At a Glance
Why Choose This Product
Aligns adjacent tile surfaces during installation
Spacer bases maintain uniform grout joints
Threaded caps tighten by hand without a separate leveling tool
Threaded caps can be saved for future installations
Suitable for both vertical and horizontal tile installations
Spacer bases available for 1/16" and 1/8" grout joints
High-count boxes available for professional and larger projects
Anti-Scratch Disks help protect tile surfaces during leveling
Product Information

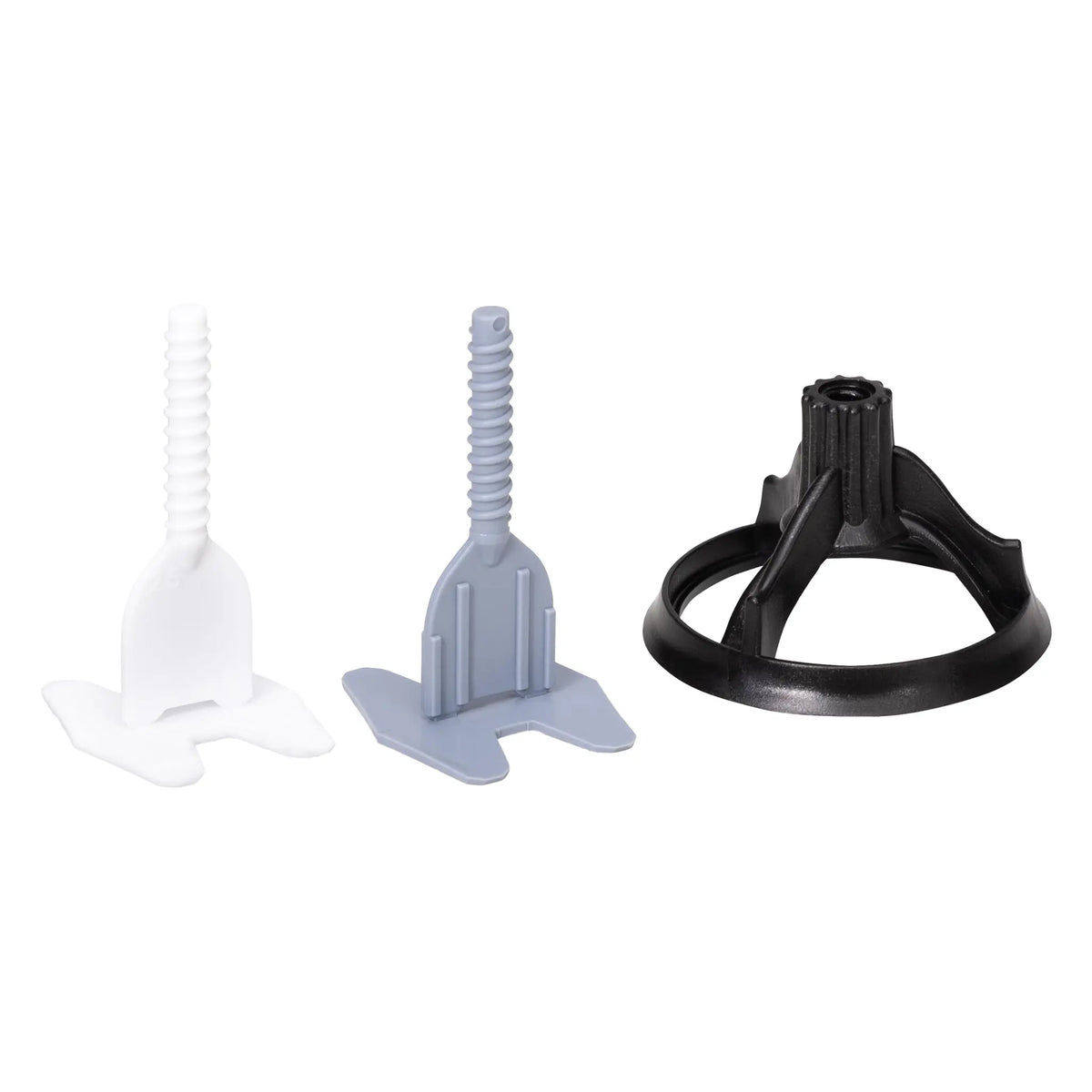

The BARWALTĀ® PLS Revolveā¢ Tile Leveling System helps create level, evenly spaced tile installations while reducing lippage between adjacent tiles. Designed for wall and floor tile up to 19 mm thick, the system uses threaded caps and spacer bases to align tile surfaces while maintaining consistent grout joint spacing.
The threaded design allows the caps to be tightened by hand without a separate leveling tool. Once the thinset has dried, the spacer bases can be removed by striking them with a rubber mallet in line with the grout joint, while the threaded caps can be saved and reused on future installations.

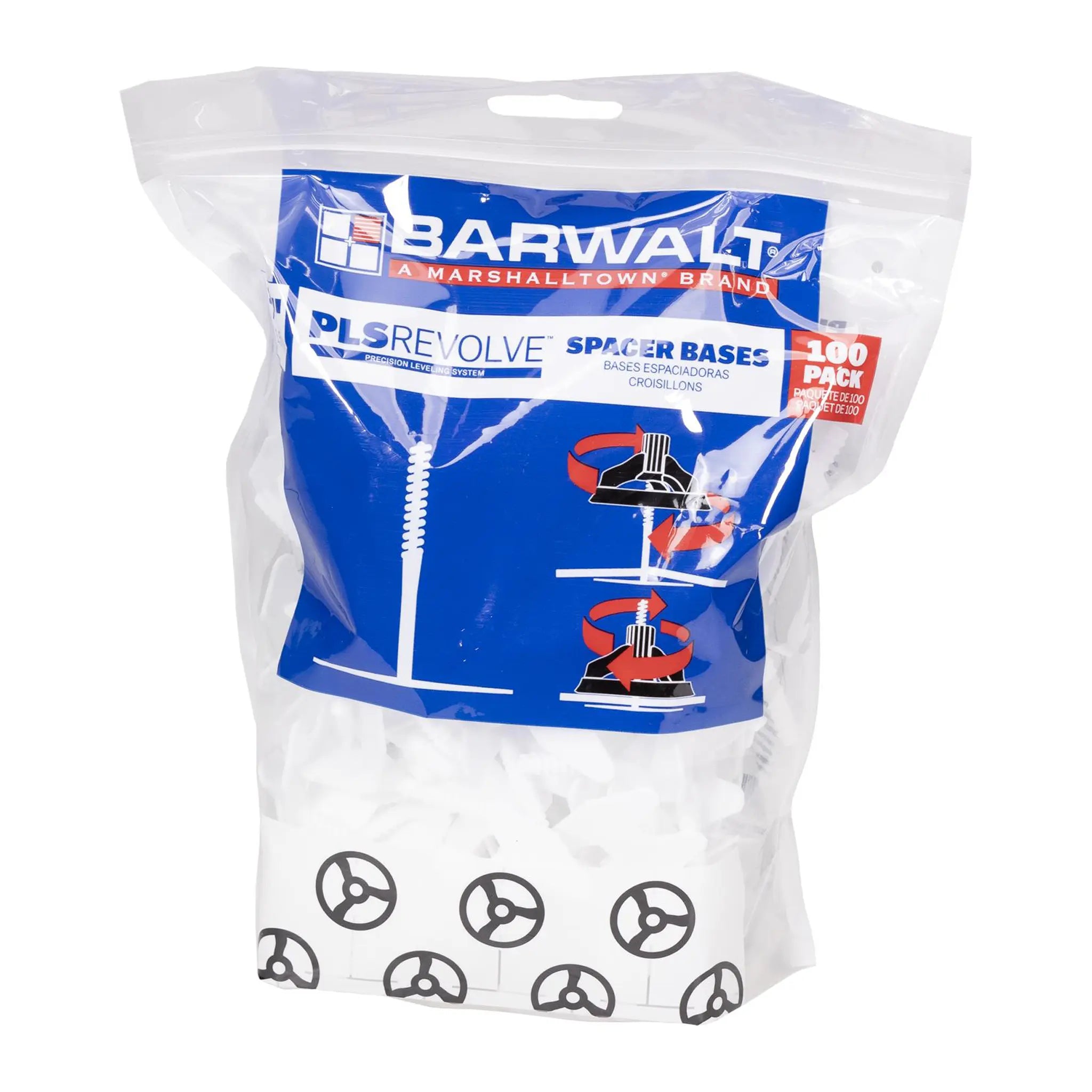

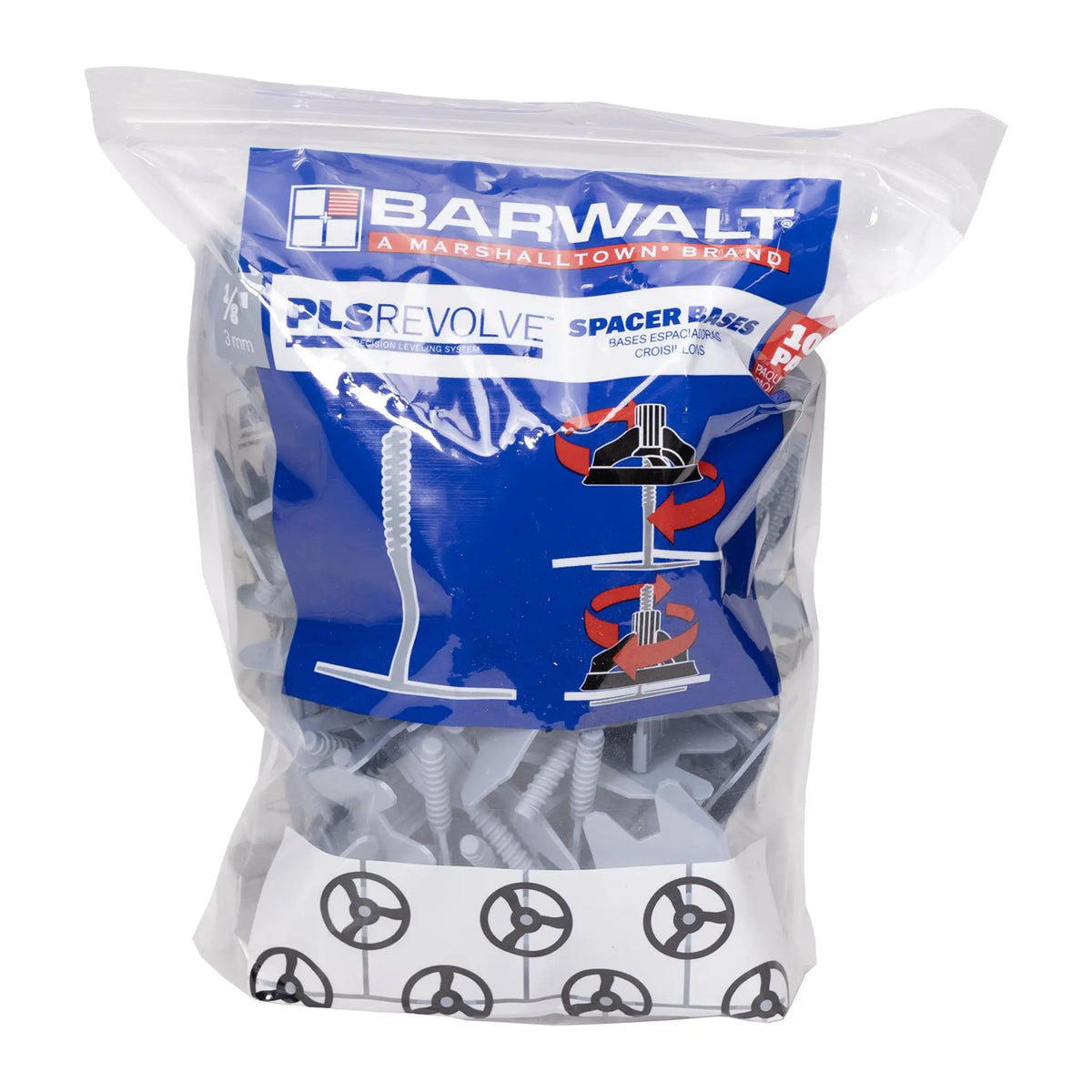

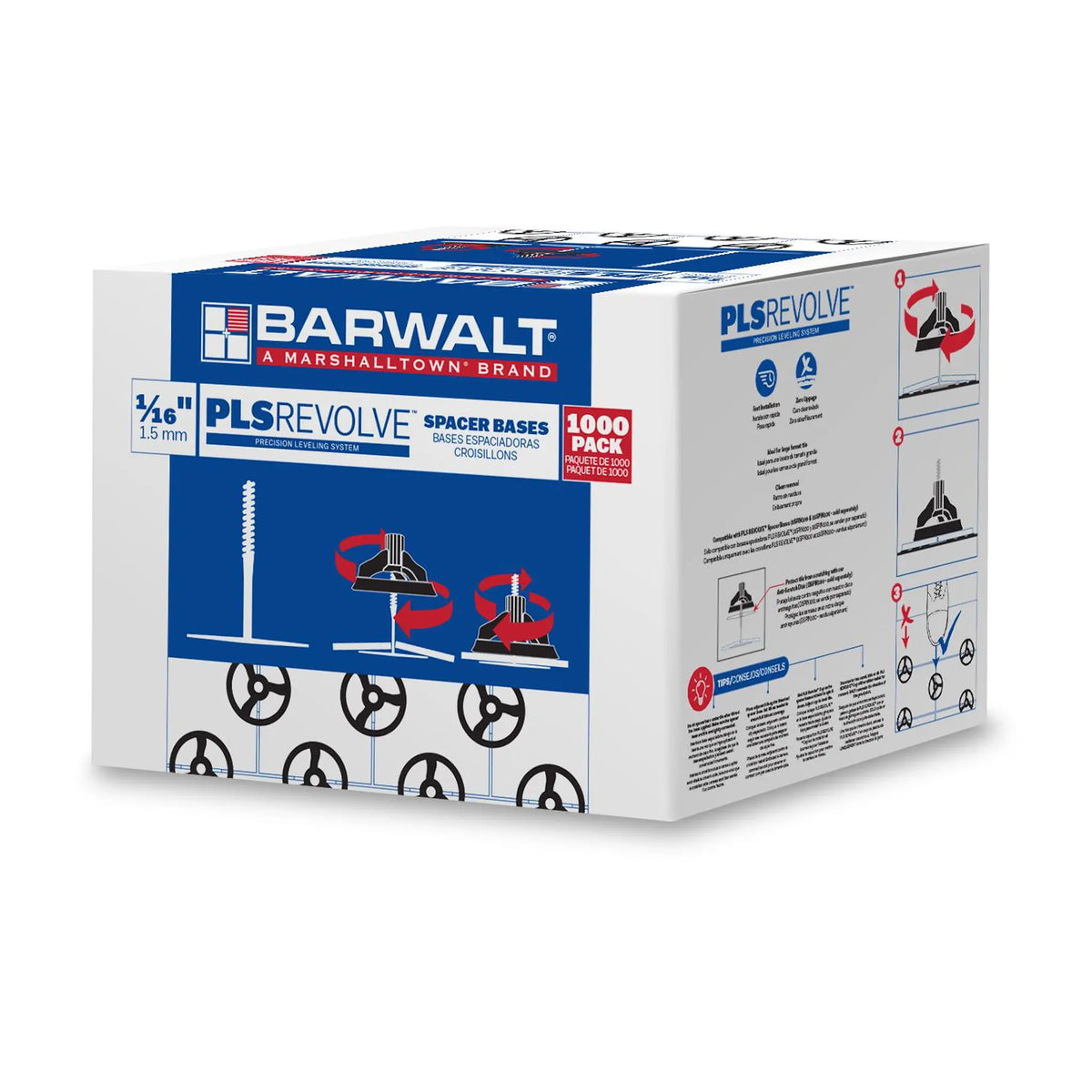

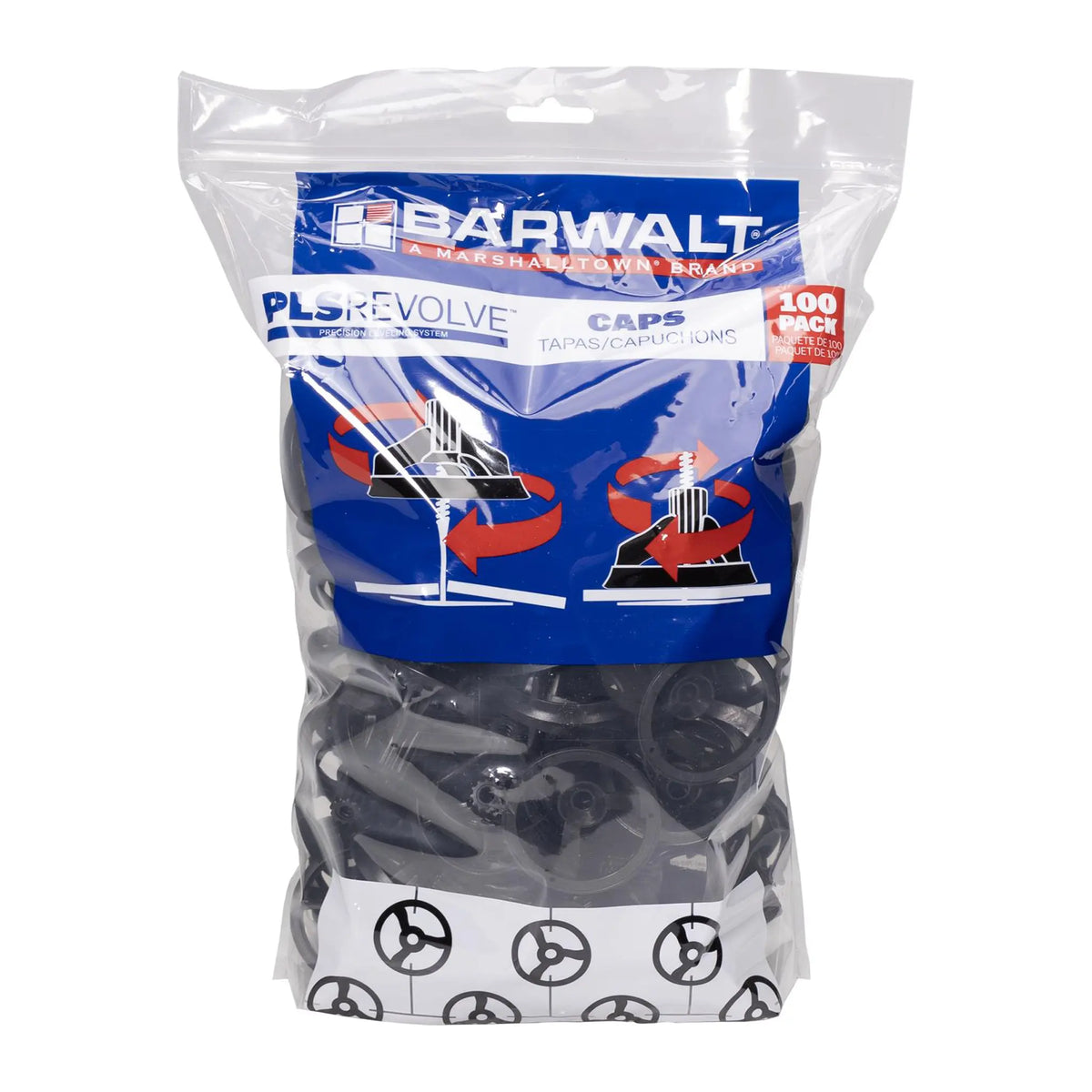

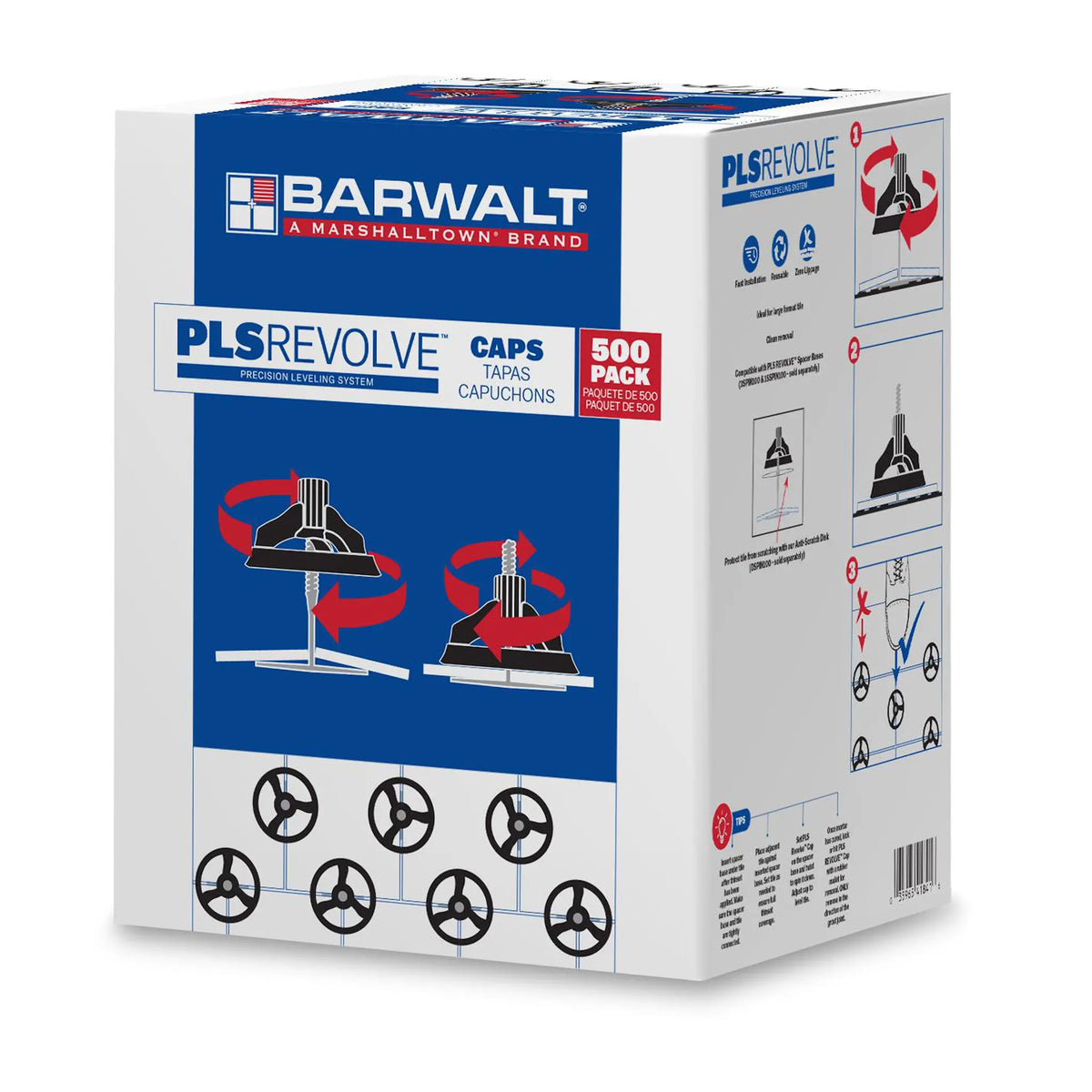

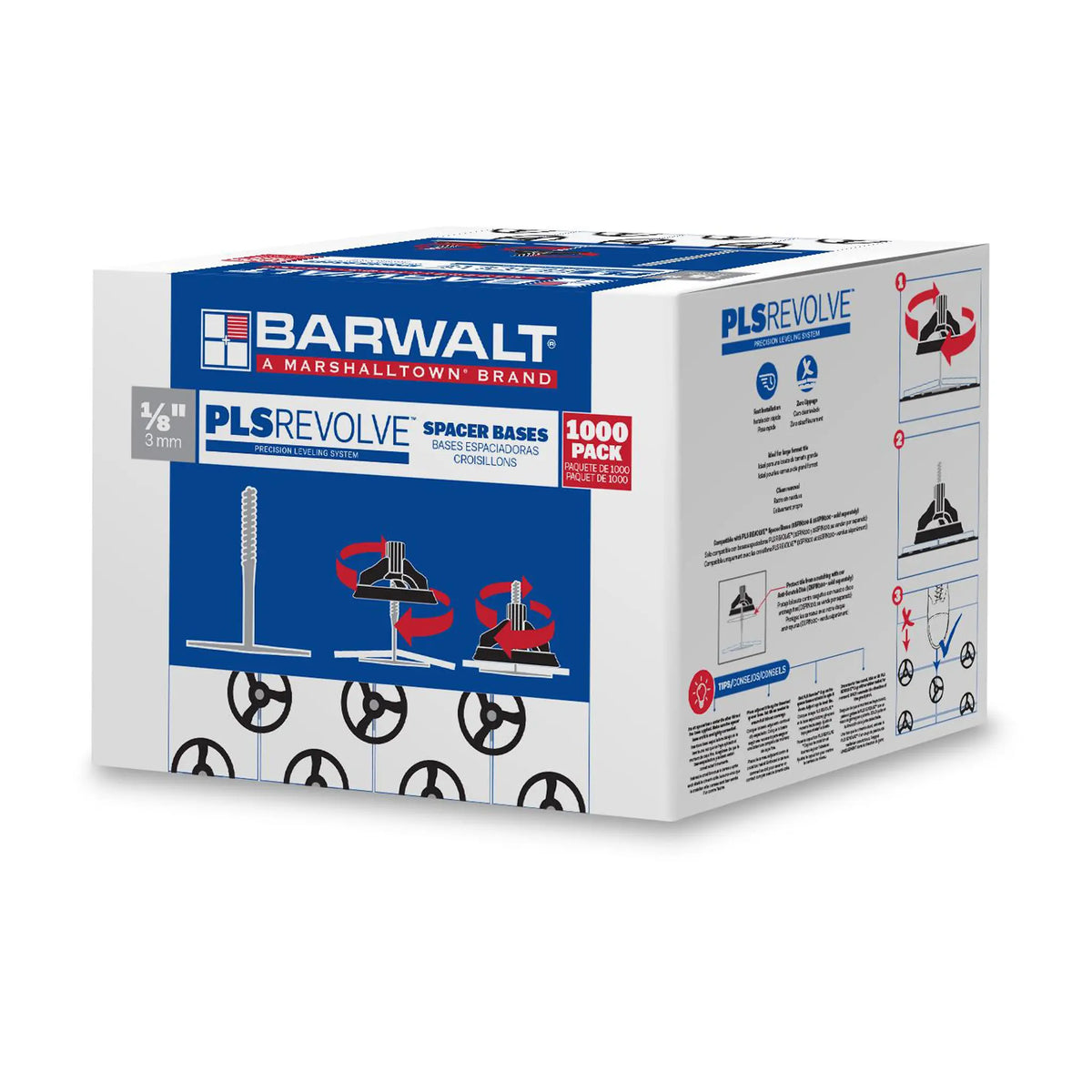

Spacer bases are available for 1/16" and 1/8" grout joints in 100-count bags or 1,000-count bulk boxes. Reusable threaded caps are available in 100-count bags or 500-count bulk boxes, allowing installers to purchase the system components and quantities appropriate for individual projects or ongoing professional use.
BARWALT Anti-Scratch Disks (DSPIN100), sold separately, can be placed beneath the threaded caps to help protect tile surfaces from scratches and marks during leveling. The separate spacer base, cap, and disk components allow reusable parts of the system to remain in service across multiple tile installations.
Common Questions
The system helps align adjacent tile surfaces to reduce lippage while maintaining consistent grout joint spacing during installation.
The system is suitable for wall and floor tile up to 19 mm thick.
PLS Revolve spacer bases are available for 1/16" and 1/8" grout joints.
No. The threaded caps are tightened without a separate leveling tool.
Yes. The threaded caps can be saved and reused on future tile installations after the spacer bases are removed.
After the thinset has dried, strike the spacer in line with the grout joint using a rubber mallet.
Yes. The leveling system is designed for both wall and floor tile installations.
BARWALT DSPIN100 Anti-Scratch Disks are available separately and can be used beneath the caps to help protect tile surfaces from scratches and marks.
