wedi S-DRY Tape
Fast Shipping
Easy Returns
Secure Checkout
At a Glance
Quick Decision Guide
Roll Size
5" × 32'
Application
Seams & Surface Transitions
Required Overlap
2"
Bonding & Waterproofing
wedi S-DRY SEAL
Waterproofing
Yes
Crack Isolation
Yes, with S-DRY SEAL
Steam Room Use
Yes, with S-DRY SEAL
Country of Origin
USA
Why Choose This Product
Key Benefits
Waterproof Transitions
Seals transitions between walls, shower bases and prefabricated modules
Seam Protection
Covers seams and overlaps within S-DRY waterproofing assemblies
System Integration
Designed for use with wedi S-DRY Membrane and S-DRY SEAL
Crack Isolation
Supports crack isolation when installed with S-DRY SEAL
Steam Room Use
Suitable for steam room applications when installed with S-DRY SEAL
5" Width
Provides the required coverage for 2" overlaps at transitions
Product Information
Product Details
Specifications
Brand
wedi®
Part Number
US5076007
Product Type
Waterproofing Tape
Roll Size
5" × 32'
Material
wedi S-DRY Membrane
Required Overlap
2"
Application
Seams & Surface Transitions
Bonding & Waterproofing
wedi S-DRY SEAL
Crack Isolation
Yes, with S-DRY SEAL
Steam Room Compatible
Yes, with S-DRY SEAL
Country of Origin
USA
About This Product

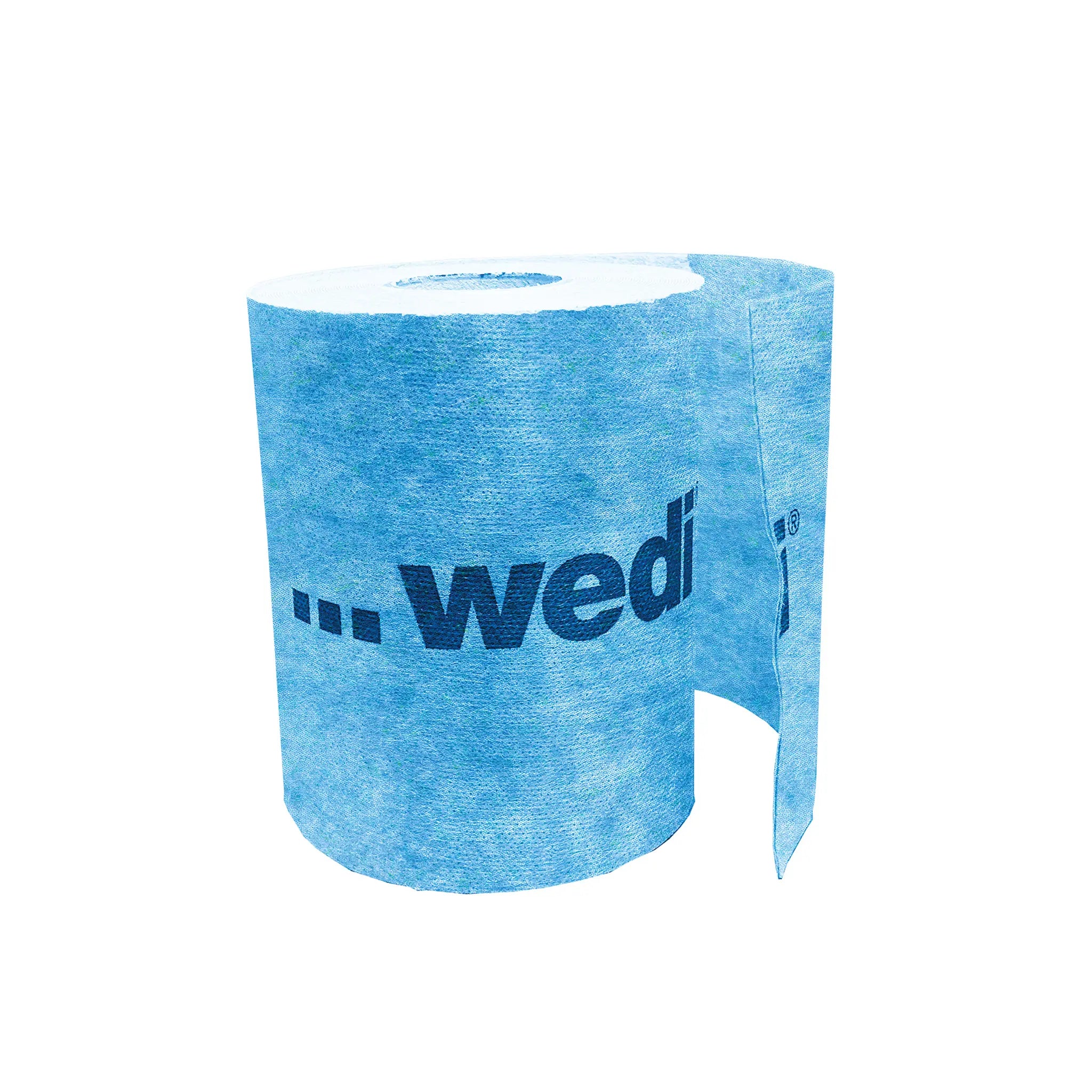

Waterproofing Tape for Shower Transitions
wedi® S-DRY™ Tape is made from S-DRY Membrane and is used to waterproof transitions between wall surfaces, shower bases, prefabricated modules, and other adjoining surfaces within S-DRY Shower Systems. The 5" wide tape is installed over transitions with a 2" overlap to maintain continuous waterproof protection.
Seam and Overlap Waterproofing with S-DRY SEAL
S-DRY Tape is bonded and waterproofed using wedi® S-DRY™ SEAL. It is used to cover seams and overlaps where S-DRY Membrane sheets and system components meet, creating a sealed transition throughout the waterproofing assembly.
Crack Isolation and Steam Room Applications
When installed with wedi S-DRY SEAL, S-DRY Tape supports waterproofing and crack isolation within the S-DRY system and is suitable for steam room applications. This allows the same transition treatment to be used in standard showers and more demanding wet-area installations.
Part of the wedi S-DRY Shower System
S-DRY Tape integrates with S-DRY Membrane, S-DRY SEAL, shower bases, and prefabricated modules to waterproof seams and surface transitions. The tape is manufactured in the USA and supplied in a 5" × 32' roll.
Common Questions
Frequently Asked Questions
What is wedi S-DRY Tape used for?
S-DRY Tape is used to waterproof seams and transitions between wall surfaces, shower bases, prefabricated modules, and other adjoining surfaces in wedi S-DRY Shower Systems.
What is used to install wedi S-DRY Tape?
wedi S-DRY SEAL is used to bond and waterproof S-DRY Tape over seams, overlaps, and transitions.
How much overlap is required with S-DRY Tape?
S-DRY Tape is installed using a 2" overlap when waterproofing transitions and adjoining surfaces.
Can wedi S-DRY Tape be used for crack isolation?
Yes. When installed with wedi S-DRY SEAL, S-DRY Tape supports crack isolation within the S-DRY system.
Can wedi S-DRY Tape be used in steam rooms?
Yes. S-DRY Tape is suitable for steam room applications when installed with wedi S-DRY SEAL as part of the S-DRY system.
What size is a roll of wedi S-DRY Tape?
Each roll measures 5" wide by 32' long.
