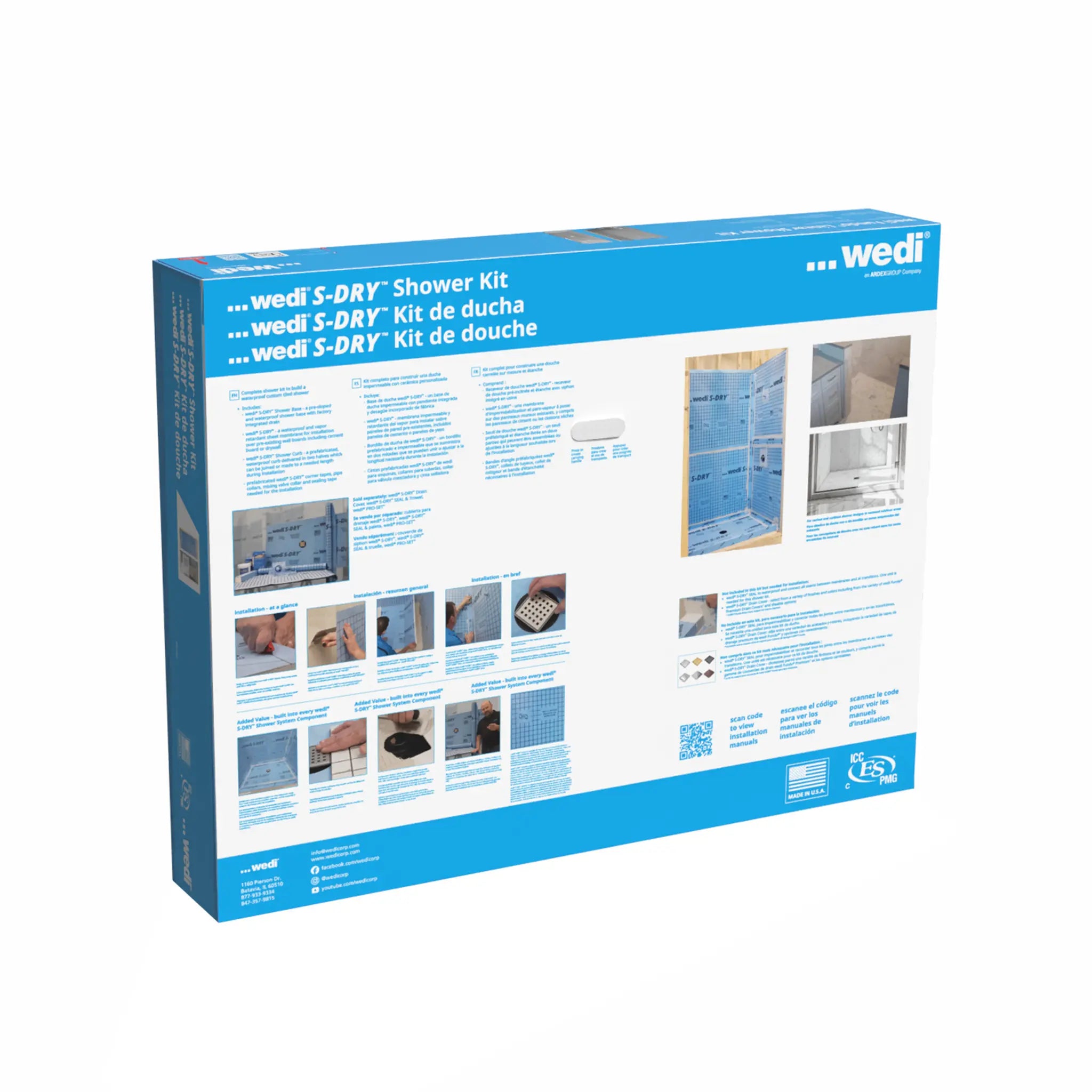

wedi S-DRY Shower Kits
Fast Shipping
Easy Returns
Secure Checkout
At a Glance
Quick Decision Guide
Shower Base Size
38" × 64"
Drain Location
Center
Drain Connection
2" Pipe
Base Type
Pre-Sloped High-Density EPS
Entry Type
Curb
Tile Compatibility
Small & Large Format Tile & Stone
Flood Test
After 6 Hours
S-DRY SEAL Included
No - Sold Separately
Why Choose This Product
Key Benefits
Complete Shower System
Includes the primary components for a waterproof tiled shower installation
Integrated Point Drain
Factory-waterproofed drain uses Fundo Click and Seal technology
Customizable Shower Base
Oversized EPS base cuts to fit with a utility knife and straight edge
Complete Waterproofing
Membrane, tape, corners and plumbing seals address shower surfaces and transitions
Flexible Drain Connection
Connects to 2" PVC, ABS, cast iron or copper waste pipe
Fast Project Turnaround
Flood testing or tile installation can begin after 6 hours
Product Information
Product Details
Specifications
Brand
wedi®
Part Number
US2076001
Product Type
Waterproof Shower Kit
Shower Base Size
38" × 64"
Drain Location
Center
Entry Type
Curb
Base Construction
High-Density EPS Foam
Base Type
Pre-Sloped & Cut-to-Fit
Drain Technology
wedi Fundo Click and Seal
Drain Connection
2" Pipe
Compatible Waste Pipe
PVC, ABS, Cast Iron & Copper
Tile Compatibility
Small & Large Format Tile & Stone
Flood Test / Tile Installation
After 6 Hours
Kit Contents
S-DRY Shower Base, 2-Piece Curb, SEAL Trowel, Inside & Outside Corners, Mixing Valve Seal, Shower Pipe Collar, S-DRY Tape & Waterproof Membrane
Drain Cover
Sold Separately
S-DRY SEAL
Sold Separately
Shower Base Country of Origin
USA
About This Product
Complete Waterproofing System for Custom Tiled Showers
wedi® S-DRY™ Shower Kits provide the primary components for constructing a waterproof custom tiled shower with a curb. Each kit combines a pre-sloped S-DRY Shower Base, waterproofing membrane, curb, seam treatment accessories, pipe and mixing valve seals, and preformed corners into one system for residential and commercial shower installations.
Pre-Sloped Shower Base with Integrated Point Drain
The high-density EPS foam shower base is pre-sloped and includes a factory-integrated, reinforced, and waterproofed drain using wedi® Fundo® Click and Seal® technology. The drain connects to 2" PVC, ABS, cast iron, or copper waste pipe and is designed to minimize interference with floor joists. Center and off-center drain configurations are available.
Cut-to-Fit Base for Custom Shower Layouts
The oversized S-DRY Shower Base can be trimmed with a utility knife and straight edge to fit the shower layout without creating cutting dust. Its lightweight, dense, insulating construction provides a durable tile-ready surface suitable for both small and large format tile and stone.
Sheet Waterproofing for Walls, Floors and Transitions
Each kit includes wedi® S-DRY™ Waterproof Membrane for shower walls and floors. The membrane can be installed over drywall, cement board, and other suitable existing wall panels within S-DRY systems and can extend beyond the shower to create a waterproof and mold-resistant transition into the surrounding bathroom.
Waterproof Seams and Shower Penetrations
Included S-DRY Tape, inside and outside corners, Mixing Valve Seal, and Shower Pipe Collar provide the components needed to address seams, transitions, corners, and common plumbing penetrations. Seams and overlaps are bonded and actively waterproofed using wedi® S-DRY™ SEAL, which is sold separately.
Fast Installation and 6-Hour Flood Test
The shower base is adhered to the subfloor with thinset mortar, while S-DRY Membrane is installed with wedi® PRO-SET™. After the S-DRY installation is completed, flood testing or tile installation can begin in as little as 6 hours.
Common Questions
Frequently Asked Questions
What is included with a wedi S-DRY Shower Kit?
Each kit includes an S-DRY Shower Base, two-piece shower curb, SEAL trowel, two sets of inside corners, one set of outside corners, Mixing Valve Seal, Shower Pipe Collar, S-DRY Tape, and a roll of S-DRY Waterproof Membrane.
Are wedi S-DRY SEAL and the drain cover included?
No. wedi S-DRY SEAL is sold separately so it can be supplied fresh, and the S-DRY Drain Cover is also selected and purchased separately.
Can the S-DRY Shower Base be cut to fit?
Yes. The oversized high-density EPS shower base can be trimmed with a utility knife and straight edge to fit the shower layout.
What type of drain connection does the S-DRY Shower Kit use?
The integrated drain connects to 2" PVC, ABS, cast iron, or copper waste pipe using wedi Fundo Click and Seal technology.
Can S-DRY Membrane be installed over existing wall panels?
Yes. Within an S-DRY system, the membrane can be installed over existing drywall, cement board, and other suitable wall panels.
How soon can an S-DRY shower be flood tested or tiled?
Flood testing or tile installation can begin as soon as 6 hours after completing the wedi S-DRY installation.
What tile sizes can be installed over an S-DRY Shower Base?
The S-DRY Shower Base has a durable tile-ready surface suitable for both small and large format tile and stone.
