At a Glance
Why Choose This Product
Combines the shower floor, walls, drain unit, curb, fasteners, and seals in one package.
Creates a streamlined linear drainage layout along the shower wall.
Provides components for constructing a 32" x 72" tiled shower.
Uses a Fundo Linear module and extension to form the planned shower base.
Includes Building Panels for one long wall and two short walls up to 80" high.
Provides the coordinated drain connection for the Fundo system.
Includes a lower-profile curb for defining the shower entrance.
Addresses common mixing valve and pipe openings within the waterproofing system.
Product Information

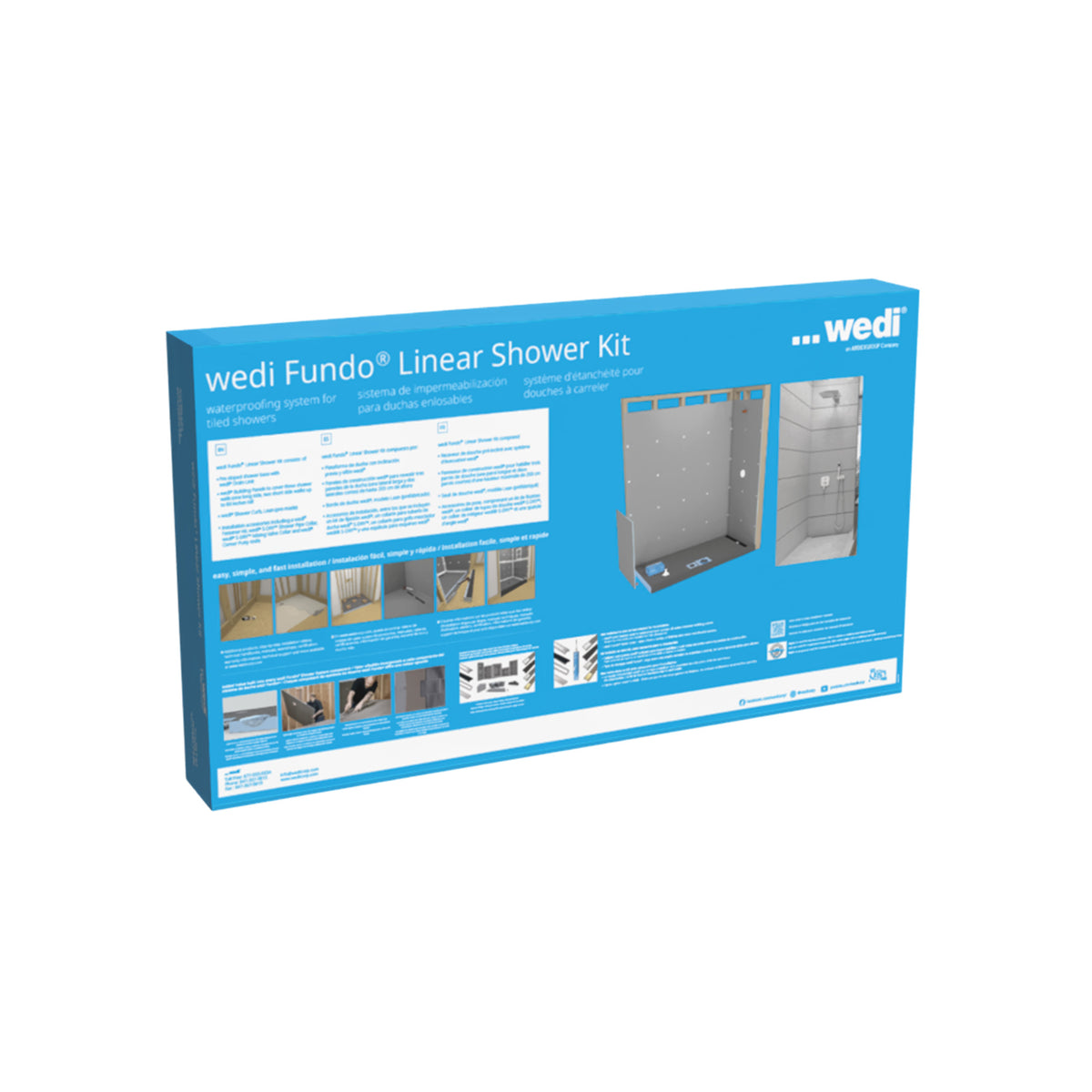

wedi Fundo Linear Shower Kit combines the primary components for constructing a waterproof 32" x 72" tiled shower with a close-to-wall linear drain. The modular shower floor uses a Fundo Linear Drain Shower Module and matching extension to create the planned shower footprint and direct water toward the drain location.
The kit extends beyond the shower floor with wedi Building Panels for one long wall and two short walls up to 80" high. A Fundo Shower Curb Lean defines the shower entrance, while the Click and Seal drain unit provides the coordinated drain connection for the system.
Included fasteners, a corner putty knife, S-DRY Mixing Valve Collar, and S-DRY Pipe Seal bring frequently needed installation components into the same package. This coordinated approach reduces the number of individual wedi components that must be selected separately when planning the tiled shower substrate.
Common Questions
The kit includes a Fundo Linear Drain Shower Module and extension, Building Panels for three shower walls, Click and Seal drain unit, Fundo Shower Curb Lean, 100-count fastener kit, corner putty knife, S-DRY Mixing Valve Collar, and S-DRY Pipe Seal.
This kit is designed for a 32" x 72" tiled shower. The floor assembly combines the supplied Fundo Linear Drain Shower Module and matching extension. Verify the framed shower dimensions and drain location against wedi installation requirements before beginning construction.
The included wedi Building Panels cover three shower walls up to 80" high. The planned layout consists of one long wall and two short side walls. Additional Building Panels may be required if the enclosure dimensions or desired wall height exceed the supplied coverage.
The Fundo Linear shower floor is designed with a close-to-wall linear drain configuration. The kit includes a Fundo Click and Seal drain unit as the coordinated drain connection component. Confirm that the project's plumbing location is compatible with the shower floor before installation.
No. wedi Joint Sealant and the 27" linear drain cover are sold separately for part US2000075. Both should be selected before installation so the required system connections and finished drain appearance can be completed according to wedi requirements.
The kit includes a wedi Fundo Shower Curb Lean for defining the shower entrance. It coordinates with the Fundo shower floor and Building Panels as part of the waterproofing system. Any planned door or enclosure should be checked for compatibility with the completed curb layout.
An S-DRY Mixing Valve Collar and S-DRY Pipe Seal are included for common plumbing penetrations through the shower walls. These components integrate the valve and pipe openings into the waterproofing assembly when installed according to the applicable wedi instructions.
Only the listed wedi components are included. Tile, setting mortar, grout, plumbing fixtures, shower doors, and general installation tools are not listed as kit contents. wedi Joint Sealant and the 27" linear drain cover must also be purchased separately for this kit.
