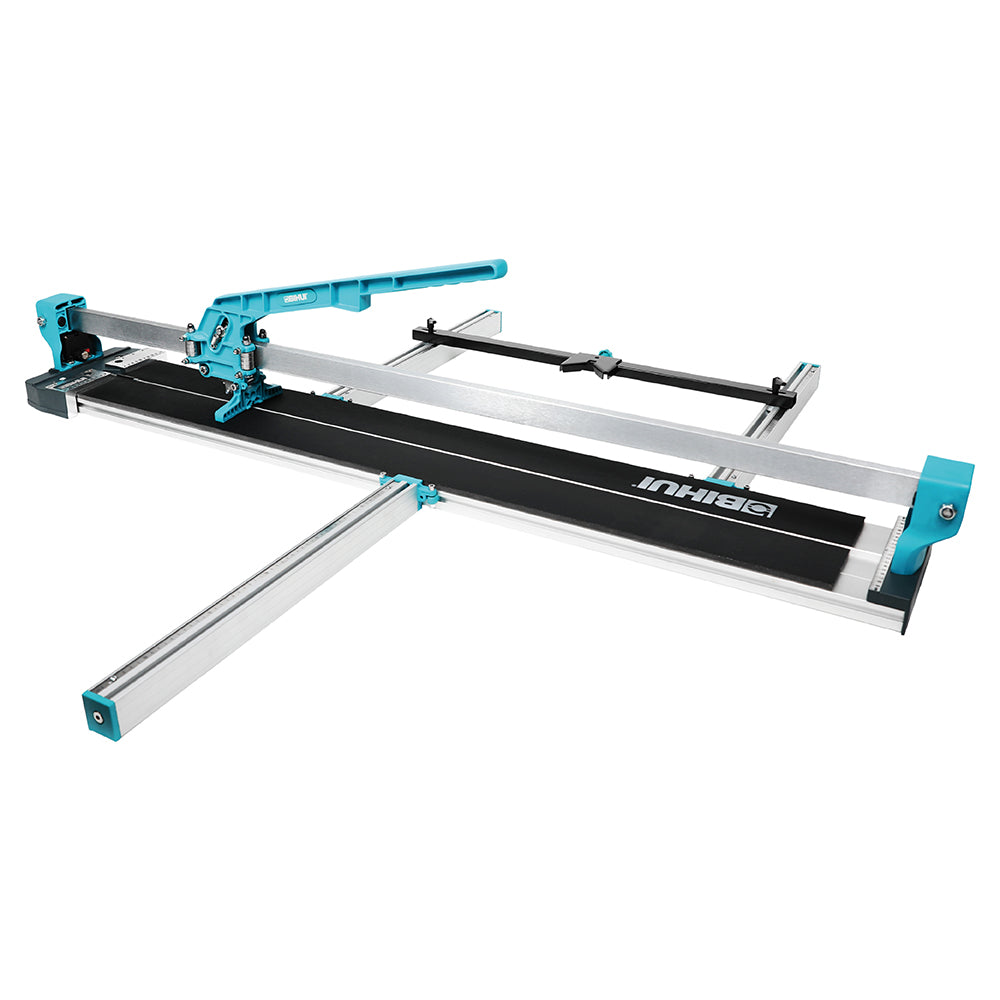

BIHUI Laser Manual Tile Cutter (47.25" & 63")
Fast Shipping
Easy Returns
Secure Checkout
At a Glance
Quick Decision Guide
Straight Cut Capacity
47.25"
Diagonal Cut Capacity
33.5" × 33.5"
Cutting Thickness
1/4" – 5/8"
Breaking Force
1,750 lbs
Laser Guide
Yes
Miter Guide
45°
Rail System
0.7" × 1.5" Solid Rail
Extension Bars
Yes
Why Choose This Product
Key Benefits
Laser Alignment
Improves cutting accuracy and visibility
Heavy-Duty Construction
Reinforced aluminum base increases rigidity
High Breaking Force
1,750 lbs handles large-format tile
Adjustable Frame
Supports accurate scoring across tile sizes
Magnetic Breaker
Simplifies tile breaking operation
Miter Capability
Includes 45° guide and extension bars
Product Information
Product Details
Specifications
Brand
BIHUI®
Part Number
TCS1200
UPC
6973702582058
Product Type
Laser Manual Tile Cutter
Straight Cut Capacity
47.25"
Diagonal Cut Capacity
33.5" × 33.5"
Cutting Thickness
1/4" – 5/8"
Breaking Force
1,750 lbs
Laser Guide
Yes
Base Construction
Reinforced Aluminum Alloy
Base Thickness
0.06"
Rail System
Solid Rail
Rail Dimensions
0.7" × 1.5"
Scoring Wheel Size
0.9" × 0.2" × 0.2"
Breaking Device
Magnetic Absorption
Cutting Frame
Adjustable
Extension Bars
Included
Miter Guide
45°
Maximum Miter Extension
39"
Application
Ceramic & Porcelain Tile
About This Product
Laser-Guided Manual Tile Cutting
The BIHUI® Laser Manual Tile Cutter combines laser-guided accuracy with a reinforced aluminum construction for precise straight and diagonal tile cuts. Its rigid rail system, adjustable cutting frame, and magnetic breaking mechanism help deliver consistent results on a wide range of ceramic and porcelain tile installations.
Heavy-Duty Construction for Professional Use
A thick reinforced aluminum alloy base and oversized solid rail system provide the rigidity needed for accurate scoring and breaking. The long-lasting scoring wheel and 1,750-pound breaking force allow the cutter to handle demanding tile installation projects while maintaining smooth operation.
Designed for Precision and Versatility
The integrated laser line improves cutting alignment, while extension bars and a 45° miter guide simplify diagonal and miter cuts. Available in 47.25" and 63" cutting capacities, the BIHUI Laser Manual Tile Cutter is designed for large-format tile installations requiring repeatable accuracy.
Common Questions
Frequently Asked Questions
What materials can the BIHUI Laser Manual Tile Cutter cut?
It is designed for cutting ceramic and porcelain tile within the specified thickness range of 1/4" to 5/8".
Does the cutter include a laser guide?
Yes. An integrated laser line helps improve cutting alignment and accuracy.
How much breaking force does the cutter provide?
Both models deliver up to 1,750 lbs of breaking force.
Can the cutter make miter cuts?
Yes. It includes extension bars and a 45° miter guide for miter cutting applications.
What is the difference between the TCS1200 and TCS1600?
The primary differences are cutting capacity and extension bar length. The TCS1200 offers a 47.25" straight cut, while the TCS1600 increases straight cutting capacity to 63".
Is the cutting frame adjustable?
Yes. Both models feature an adjustable cutting frame for improved cutting accuracy.
