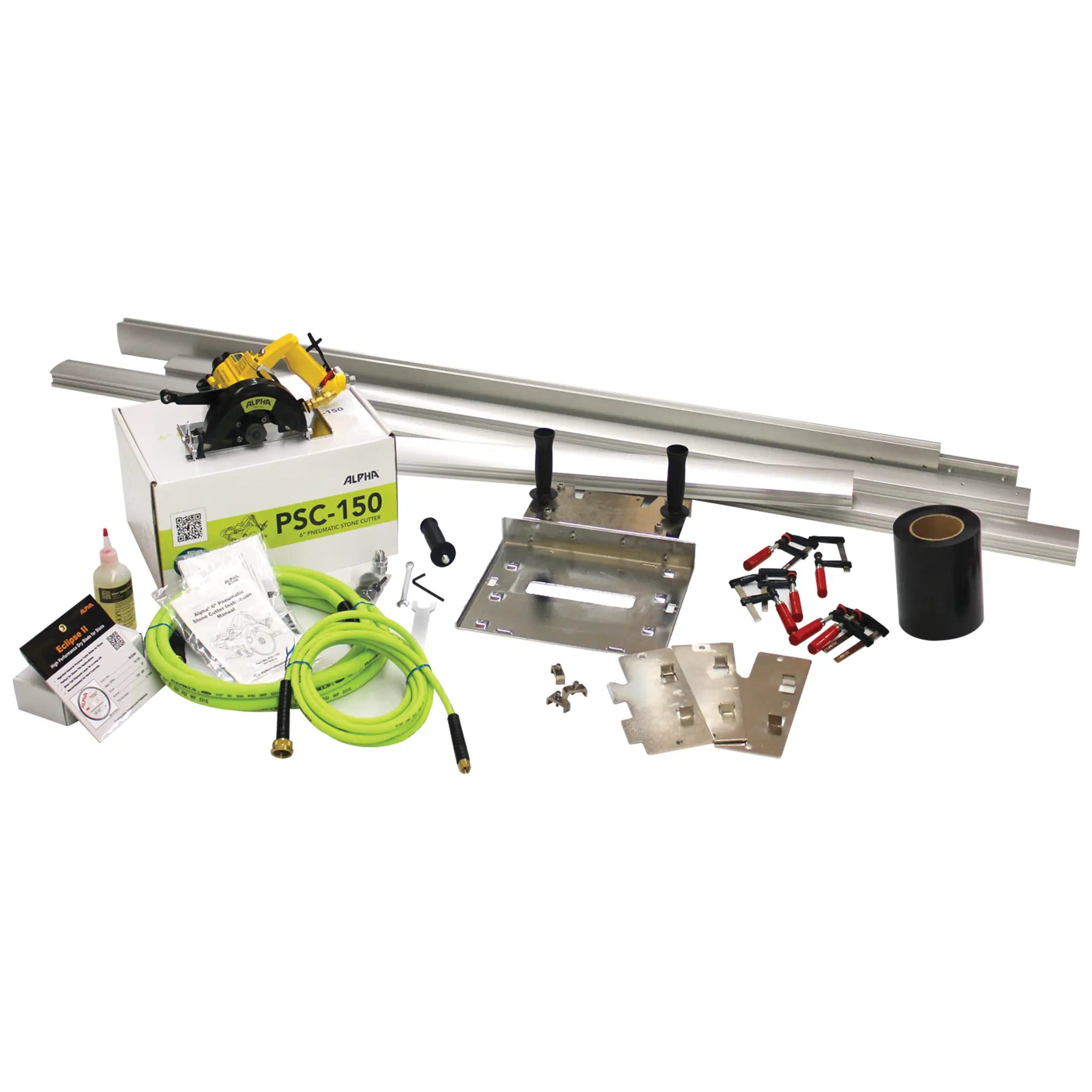

Alpha PSC-150 Miter Cutting Kit
Fast Shipping
Easy Returns
Secure Checkout
At a Glance
Quick Decision Guide
Cutting Disc Diameter
6" (150mm)
Cutting Capacity
3/4" (2cm) Material for Miter Cutting
No-Load Speed
8,500 RPM
Maximum Power
2.0 HP
Cutting Configurations
Straight, Left Miter & Right Miter
Stone Cutters Included
2 PSC-150 Wet Stone Cutters
Carriages Included
2 ASC-6CSM 6" Carriage Assemblies
Guide Rails Included
4', 7' & 12'
Why Choose This Product
Key Benefits
Precision Miter Cutting
Produces controlled miters for waterfall edges and book matching
Dual Cutter Setup
Allows opposing miter cuts on the same guide rail for V-cut preparation
One-Rail Positioning
Complete two miter positions without resetting the guide rail
Multiple Cut Configurations
Carriage templates support straight, left miter and right miter cuts
Lamination Preparation
Creates mitered edges ready for laminated fabrication
Complete Rail System
Includes 4', 7' and 12' guide rails for different workpiece lengths
Product Information
Product Details
Specifications
Brand
Alpha®
Part Number
5480-5100
UPC
749173661570
Product Type
Miter Cutting Kit
Model
PSC-150
Cutting Disc Diameter
6" (150mm)
Miter Cutting Capacity
3/4" (2cm) Material
Cutting Configurations
Straight, Left Miter & Right Miter
No-Load Speed
8,500 RPM
Maximum Power
2.0 HP
Air Pressure
90 PSI (6.2 Bar)
Minimum Air Consumption
32 CFM / 1 HP
Maximum Air Consumption
48 CFM / 2 HP
Air Inlet
3/8" NPSM
Water Inlet
1/4" BSPP
Arbor
7/8" (22.23mm)
Wet Stone Cutters Included
2 PSC-150
Carriage Assemblies Included
2 ASC-6CSM 6" Carriage Assemblies
Carriage Templates
Straight, Left Miter & Right Miter
4' Guide Rail
1 ASC-GR04 (1.2m)
7' Guide Rail
1 ASC-GR07 (2.1m)
12' Guide Rail
1 ASC-GR12 (3.6m)
Standard Accessories
2 Sets
Cutting Blades Included
2 Eclipse II Blades
Surface Protection Tape
1 BAB0650
About This Product
Guide Rail Cutting System for Straight and Miter Cuts
The Alpha® PSC-150 Miter Cutting Kit combines two 6" PSC-150 wet stone cutters with two carriage assemblies and a multi-length guide rail system for controlled straight and miter cutting. The ASC-6CSM carriage assemblies include three positioning templates that support left-side miter, right-side miter, and straight cutting configurations.
Precision Miter Cutting for Waterfall Edges and Lamination
The system is built for producing precise miter cuts in 3/4" (2cm) material for laminated waterfall edges, book matching, and other fabrication work. With two stone cutter and carriage assemblies positioned in opposite directions on the same guide rail, both sides of a V cut can be completed with the edges prepared for lamination.
One-Rail Setup for Multiple Cutting Positions
A single PSC-150 and carriage assembly can also perform both miter cuts without repositioning the guide rail on the material. After the first miter cut, the cutter can be repositioned on the carriage for the second cut, reducing setup changes and improving fabrication workflow.
Complete PSC-150 Cutting Kit with 4', 7' and 12' Guide Rails
The kit includes two PSC-150 wet stone cutters with standard accessories and Eclipse II blades, two 6" ASC-6CSM carriage assemblies, 4', 7', and 12' guide rails, and surface protection tape. Each pneumatic PSC-150 operates at up to 8,500 RPM with a 6" cutting disc and a maximum output of 2 HP.
Product Resources
Documentation & Downloads
Common Questions
Frequently Asked Questions
What cuts can the Alpha PSC-150 Miter Cutting Kit make?
The system supports straight, left-side miter, and right-side miter cutting. The carriage assembly includes three templates for positioning the PSC-150 for each cutting configuration.
Can the PSC-150 system make miter cuts for waterfall edges?
Yes. The system is designed for precise miter cutting used in laminated waterfall edges, book matching, and other fabrication applications requiring prepared mitered edges.
What material thickness can the PSC-150 miter cut?
The system is designed to miter cut 3/4" (2cm) material.
Can both sides of a V cut be made without moving the guide rail?
Yes. With two PSC-150 cutters and carriage assemblies configured in opposite directions, both mitered edges of a V can be cut using the same guide rail setup. A single cutter and carriage can also be repositioned to make both cuts without resetting the guide rail.
What guide rail lengths are included with the kit?
The kit includes 4' (1.2m), 7' (2.1m), and 12' (3.6m) Alpha guide rails.
How many PSC-150 stone cutters are included?
The kit includes two PSC-150 wet stone cutters, two sets of standard accessories with Eclipse II blades, and two ASC-6CSM 6" carriage assemblies.
What air supply does the PSC-150 require?
The PSC-150 operates at 90 PSI (6.2 Bar). Listed air consumption ranges from 32 CFM at 1 HP to 48 CFM at 2 HP.
