Alpha Porcelain Channel Cutting Kit
Fast Shipping
Easy Returns
Secure Checkout
At a Glance
Quick Decision Guide
Material
Porcelain paver tile
Application
Anti-slip and drip grooves
Cutter
ESC-125
Blade
HP03A+ Hot-Rod
Blade Profile
1/4" rod
Voltage
110V
No-Load Speed
12,000 RPM
Dust Control
Water feed or HEPA vacuum
Why Choose This Product
Key Benefits
Porcelain-Specific Kit
Pairs the ESC-125 cutter with an HP03A+ blade recommended for porcelain paver tile.
Precision Groove Placement
A reversible guide and stable clamping system help control the cutting path.
Anti-Slip Groove Capability
Creates defined grooves for porcelain paver stair treads and walking surfaces.
Water-Drip Channels
Supports controlled drip-channel cutting for exterior porcelain details.
Stair-Tread Detailing
Provides a coordinated system for professional tread fabrication.
Wet Cutting Support
Integrated water feed supplies the blade and cutting area during wet operation.
Vacuum-Ready Dust Control
Included dust cover connects to a compatible HEPA vacuum for dry cutting.
Built-In GFCI
Provides ground-fault protection for the 110V electric cutter.
Product Information
Product Details
About This Product
Alpha Channel Cutting Kit for Porcelain Pavers
Alpha Porcelain Channel Cutting Kit pairs the ESC-125 electric wet/dry stone cutter with an HP03A+ Hot-Rod blade specifically recommended for porcelain. This coordinated system helps professionals create anti-slip grooves, water-drip channels, and detailed stair-tread features in porcelain paver tile.
Controlled Groove Cutting for Stair Treads
The ESC-125 features a stable clamping system, adaptable base plate, and reversible TT ruler guide to help maintain controlled channel placement. Its 1,200W motor powers the included 3" Hot-Rod blade, which has a 6 mm thickness and is configured for 1/4" rod applications.
Wet and Vacuum-Assisted Dust Control
The integrated water-feed system supplies the cutting area during wet operation. For dry cutting, the included dust cover connects to a compatible HEPA vacuum to collect dust near the blade. Built-in GFCI protection supports safer operation when the tool is used according to Alpha requirements.
Specifications
Brand
Alpha Professional Tools
Part Number
5480-5200
UPC
749173661785
Product Type
Porcelain channel cutting kit
Included Cutter
ESC-125 wet/dry stone cutter
Included Blade
HP03A+ Hot-Rod
Recommended Material
Porcelain paver tile
Applications
Anti-slip grooves, water drips, stair treads
Voltage
110V
Amperage
11.2A
Power
1,200W
No-Load Speed
12,000 RPM
Cutter Disc Capacity
5"
Cutter Arbor
7/8" (22.23 mm)
Hot-Rod Size
3"
Hot-Rod Thickness
6 mm
Hot-Rod Profile
1/4" rod
Hot-Rod Maximum Speed
14,500 RPM
Hot-Rod Arbor
7/8" or 20 mm
Dust Control
Water feed or HEPA vacuum connection
Dust Cover
Included
Reversible TT Ruler Guide
Included
Common Questions
Frequently Asked Questions
What is included with the Alpha Porcelain Channel Cutting Kit?

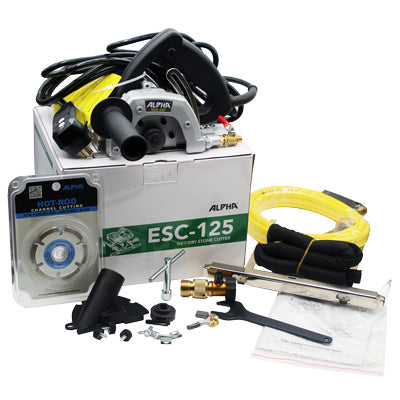

The kit combines an ESC-125 5" wet/dry stone cutter with an HP03A+ 3" Hot-Rod blade. The cutter package also includes a dust cover, reversible TT ruler guide, 15-foot water hose assembly, GFCI, side handle, felt strips, flanges, wrenches, and related connection accessories.
What material is this channel cutting kit designed for?
This version is specifically configured for porcelain paver tile. Its included HP03A+ Hot-Rod blade is recommended by Alpha for porcelain and has a 1/4" rod profile. Confirm that the material is compatible with the cutter and blade before beginning channel work.
How does the porcelain kit differ from the general-stone kit?
Part 5480-5200 includes the HP03A+ Hot-Rod blade recommended for porcelain. Alpha's general-stone kit, part 5480-5210, instead includes an HQ03A+ blade recommended for granite with a 3/16" rod profile. Select the kit according to the material being cut.
What types of channels can the kit create?
The system is designed for anti-slip grooves, water-drip channels, and stair-tread details in porcelain paver tile. Its stable cutter base, reversible guide, and clamping system help control the cutting path while the Hot-Rod blade produces the required channel profile.
Can the kit be used for wet and dry cutting?
Yes. The ESC-125 cutter and HP03A+ Hot-Rod support wet or dry channel cutting. The integrated water-feed system supplies the cutting area during wet operation. For dry cutting, connect the included dust cover to a compatible HEPA vacuum for dust collection.
Is a HEPA vacuum included with the kit?
A HEPA vacuum is not listed among the included equipment. The ESC-125 includes a dust cover designed for connection to a compatible HEPA vacuum. The user must supply the vacuum and follow Alpha's operating requirements when performing dry channel-cutting work.
What are the kit's electrical requirements?
The ESC-125 is a 110V, 11.2A cutter with 1,200W of power and a 12,000 RPM no-load speed. It uses a Type A plug and a 15-foot single-phase cord. A built-in GFCI provides ground-fault protection during operation.
What are the specifications of the included Hot-Rod blade?
The HP03A+ is a 3" Hot-Rod blade with a 6 mm thickness and a 1/4" rod profile. It has 7/8" and 20 mm arbor compatibility and a maximum operating speed of 14,500 RPM. Alpha recommends this blade for porcelain.
