RUBI TX-MAX Tile Cutters for Porcelain and Extruded Tile
Fast Shipping
Easy Returns
Secure Checkout
At a Glance
Quick Decision Guide
Model
TX-710 MAX
Straight Cut
28"
Diagonal Cut
20" × 20"
Cutting Thickness
1/8" - 7/8"
Breaking Power
2,645 lb.
Breaker Type
MULTIPOINT
Scoring System
SLS Secure Lock System
Included Scoring Wheels
5/16" & 7/8" EXTREME
Why Choose This Product
Key Benefits
2,645 lb Breaking Power
Provides the force needed to separate dense porcelain and extruded tile
One-Handed Operation
Ratchet lock and trigger release streamline scoring and breaking
SLS Scoring Precision
Secure Lock System supports more precise and efficient scoring
Thin and Thick Tile Performance
Handles a broad range of compatible tile thicknesses
Large-Format Stability
Floating steel tables and supplementary arms support larger tile
Angular and Repetitive Cutting
Swivel square and lateral stop simplify angled, repeated and narrow cuts
Protected Breaker Contact
Plastic protector helps avoid marking smooth and delicate tile surfaces
Complete Cutting Setup
Includes two EXTREME scoring wheels and a carrying case
Product Information
Product Details
Specifications
Brand
RUBI®
Part Number
17910
UPC
8413797179101
Product Type
Professional Manual Tile Cutter
Model
TX-710 MAX
Straight Cut Capacity
28"
Diagonal Cut Capacity
20" × 20"
Cutting Thickness
1/8" - 7/8"
Breaking Power
2,645 lb.
Breaker
MULTIPOINT
Scoring System
SLS Secure Lock System
Recommended Materials
Porcelain, Ceramic & Extruded Tile
Included Scoring Wheels
5/16" & 7/8" EXTREME
Large-Tile Support
2 Supplementary Arms
Angle & Repetitive Cuts
Swivel Square with Lateral Stop
Included Case
Yes
About This Product
RUBI TX-MAX Manual Tile Cutters for Intensive Work
RUBI TX-MAX Tile Cutters are professional manual cutters engineered for intensive cutting of porcelain, ceramic and extruded tile. The high-performance MULTIPOINT breaker delivers up to 2,645 lbs. of separating force, giving installers the power needed to handle thin and thick materials across demanding residential and commercial projects.

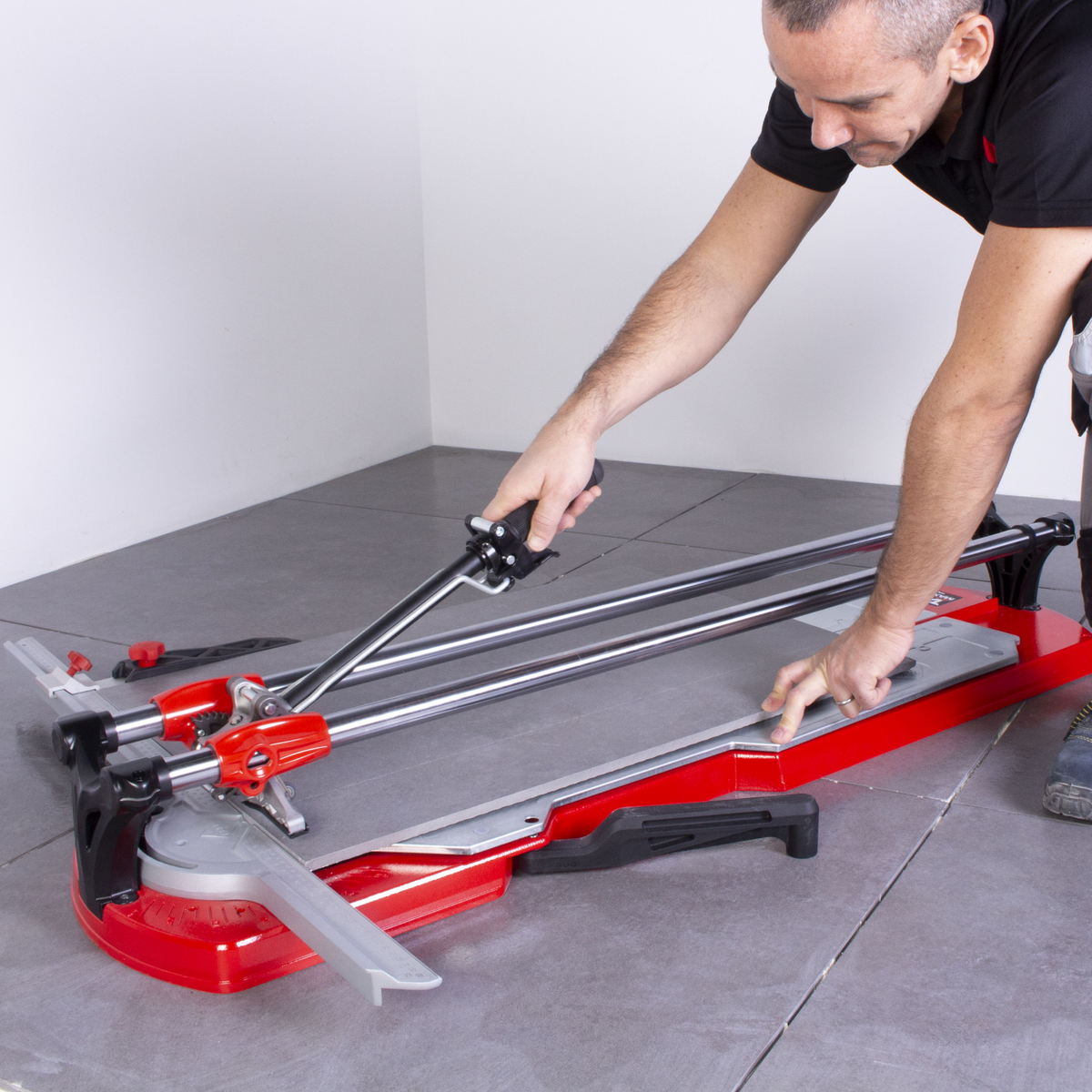

One-Handed Scoring and Breaking with SLS Control
A ratchet mechanism locks the breaker and a trigger releases it, allowing the installer to score and snap tile with one hand for a faster cutting workflow. The SLS Secure Lock System improves scoring precision and efficiency, while 1-3/16" tubular steel guides and extra-long aluminum sliders with self-lubricating friction bearings provide controlled movement and clear visibility of the scoring line.

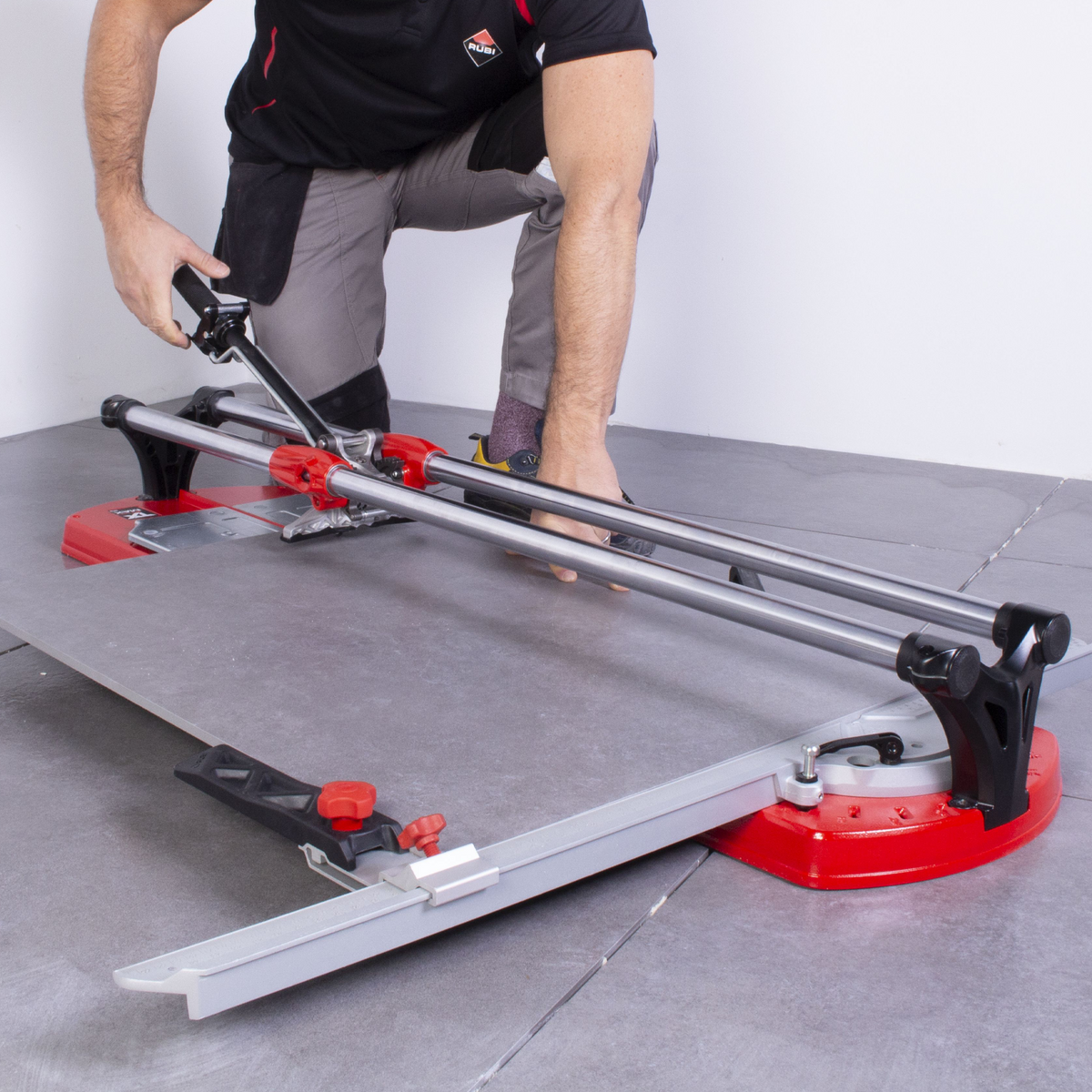

Stable Support for Large Format and Angular Cuts
A reinforced cast aluminum base and galvanized steel floating tables improve stability during scoring and breaking. Supplementary support arms accommodate larger tile formats, while the central-pivot swivel square and lateral stop help installers complete accurate angular, repetitive and narrow cuts with consistent positioning.

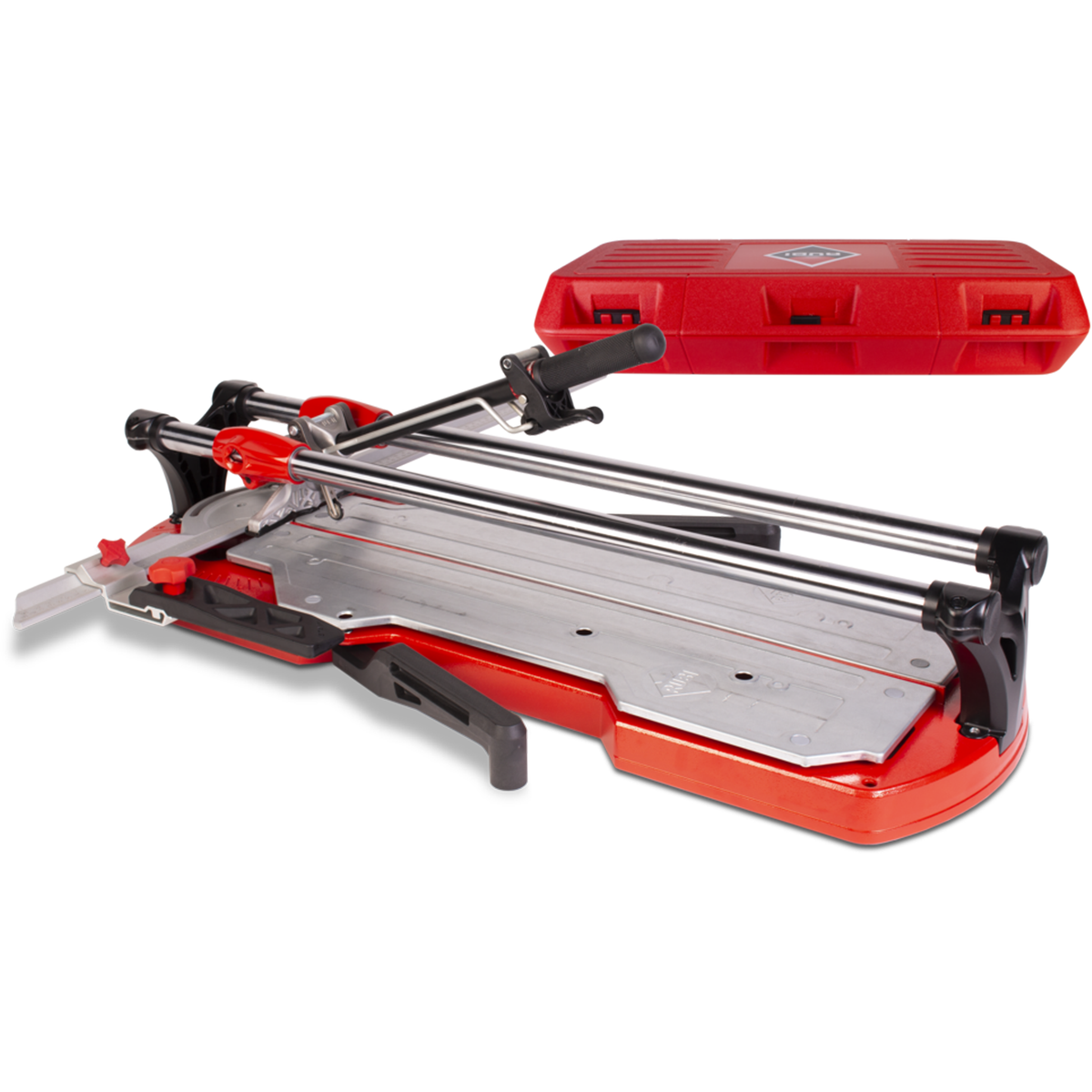

Complete Cutting Setup for Jobsite Transport
Each TX-MAX cutter includes 5/16" and 7/8" EXTREME scoring wheels and is compatible with the complete RUBI PLUS scoring wheel range. A plastic protector on the mobile aluminum breaker helps prevent marks on smooth or delicate surfaces, while the included carrying case keeps the cutter protected during transportation and storage.
Common Questions
Frequently Asked Questions
What materials can RUBI TX-MAX Tile Cutters cut?
TX-MAX cutters are designed for intensive cutting of all types of ceramic tile and are especially suited to porcelain and extruded tile. RUBI positions the series for continuous professional workloads where dense materials, repeated cuts and demanding projects require greater breaking power and cutting efficiency.
What tile thickness can the RUBI TX-MAX series cut?
RUBI’s current series page lists a cutting height from 1/8" to 7/8". Model datasheets specify ranges of 1/8" to 13/16" without the breaker protector and 1/8" to 3/4" with the protector installed. Confirm compatibility with the selected model and tile before beginning production cuts.
How much breaking power does the TX-MAX provide?
The high-performance MULTIPOINT breaker delivers up to 1,200 kg, or approximately 2,645 lbs., of separating force. Its ratchet-operated lock and trigger release allow scoring and breaking with one hand, helping installers work efficiently across compatible thin and thick tile materials.
What cutting capacities are available in the TX-MAX series?

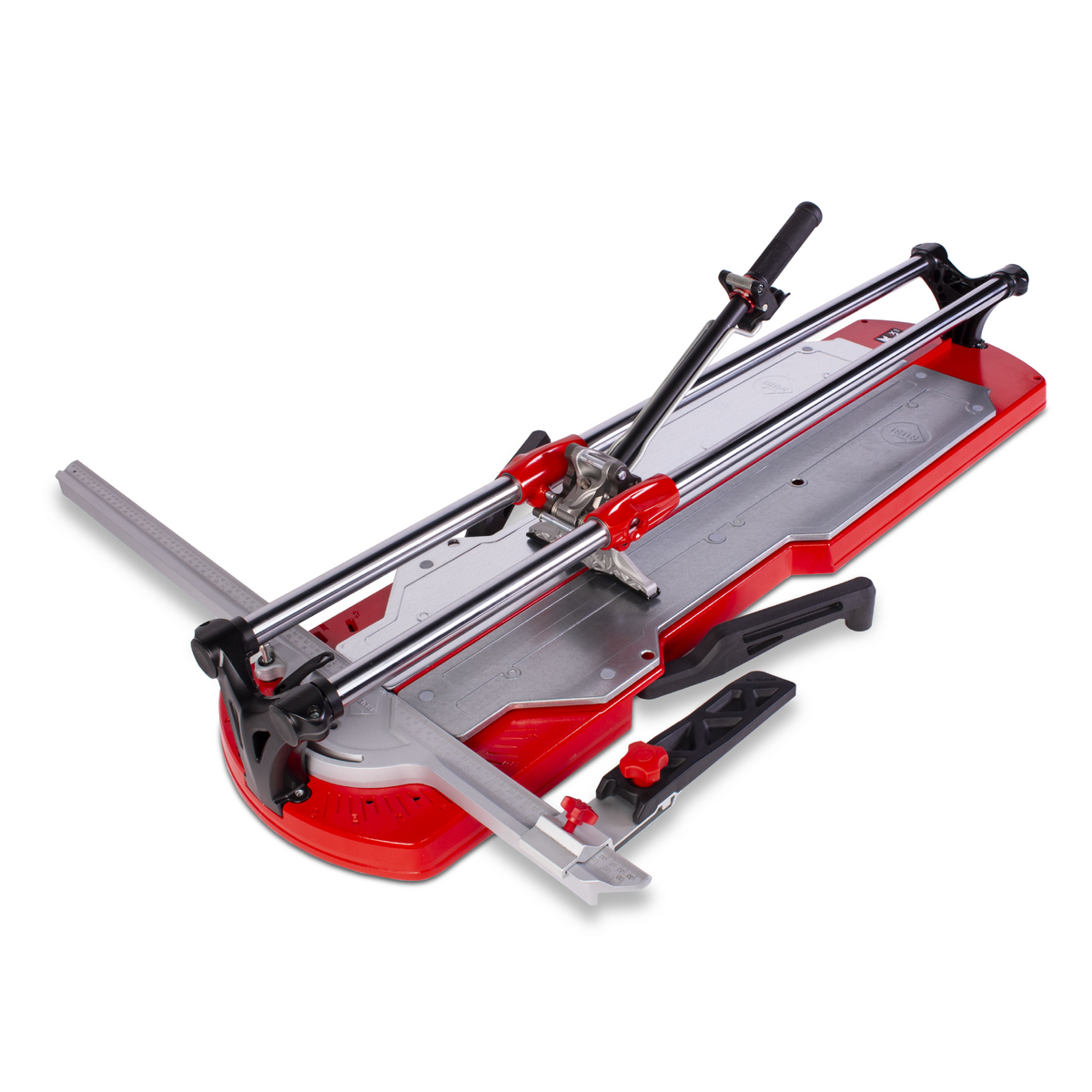

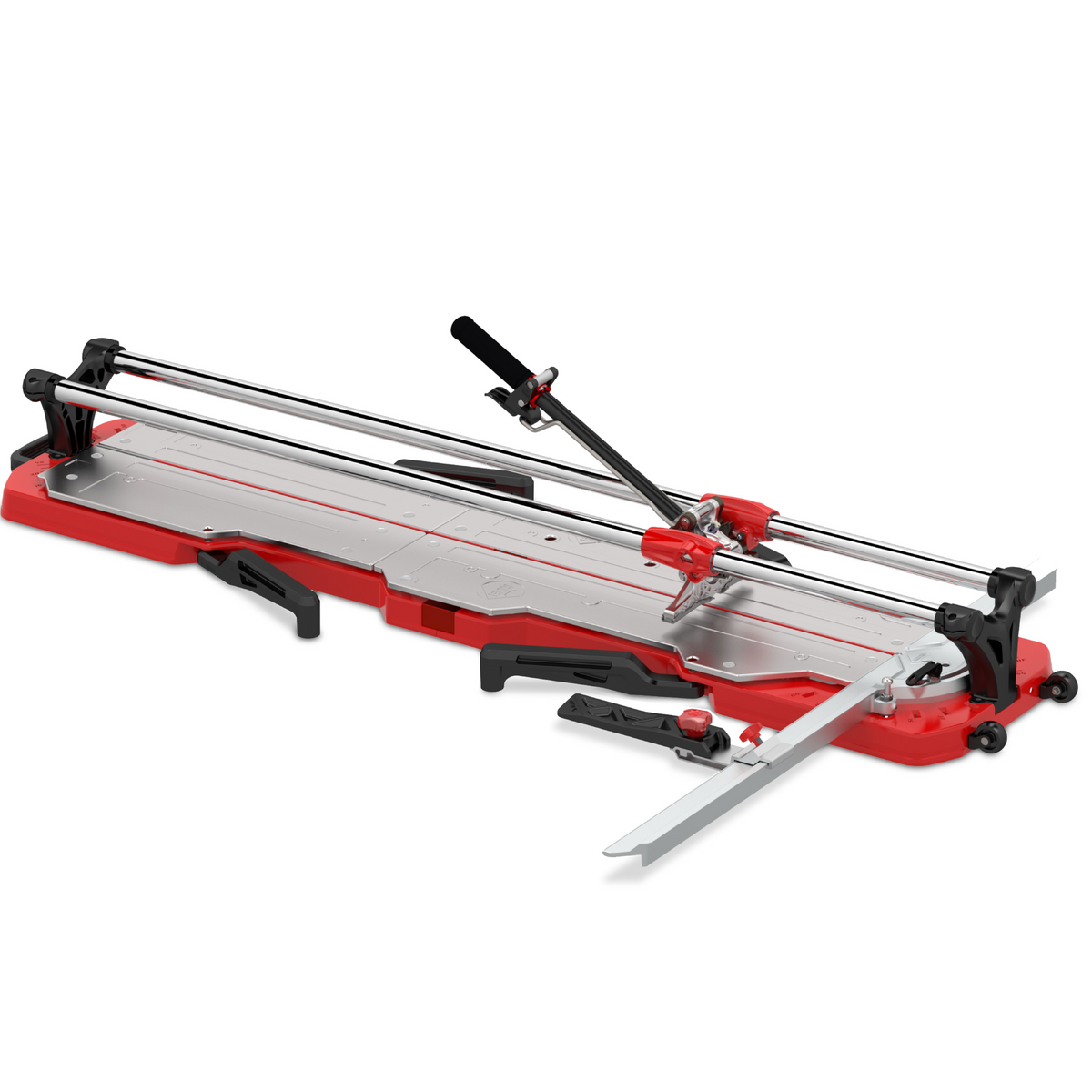

The TX-710 MAX provides approximately 28" of straight capacity and a 20" × 20" diagonal capacity. The TX-1020 MAX provides approximately 40" and 27" × 27", while the TX-1250 MAX provides approximately 49" and 33" × 33". Published inch conversions may vary slightly by specification format.

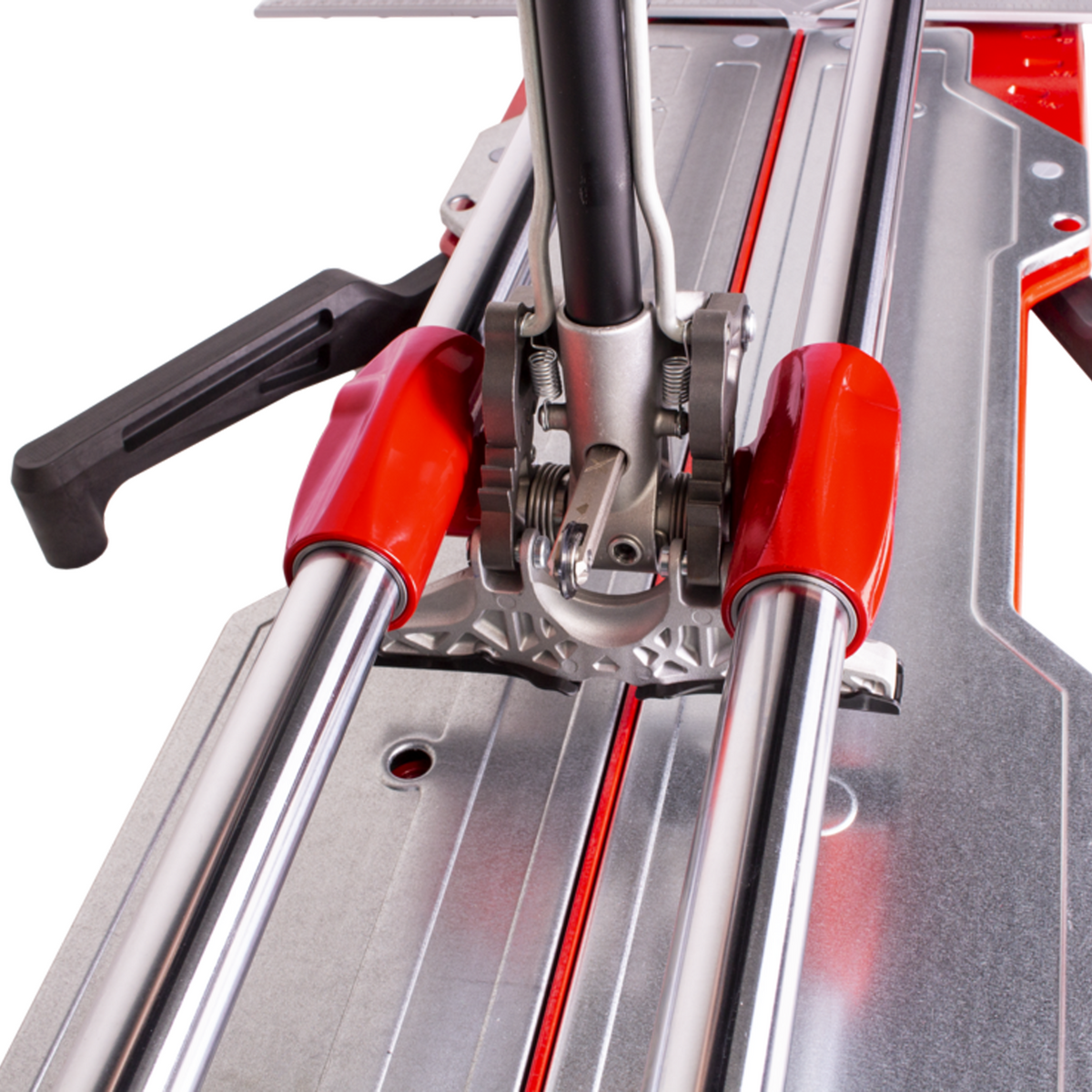

How does the SLS scoring system improve cutting control?
The SLS Secure Lock System is designed to make scoring more precise and efficient. Tubular steel guides and extra-long aluminum sliders with self-lubricating friction bearings support stable movement, while the open carriage design provides better visibility of the scoring and cutting line.
How do the TX-MAX models support large-format tile?
Galvanized steel floating tables and a reinforced cast aluminum base improve stability during cutting. The TX-710 MAX and TX-1020 MAX include two supplementary support arms, while the larger TX-1250 MAX includes four arms to provide additional support for larger tile formats.
Can TX-MAX Manual Tile Cutters make angled and repetitive cuts?

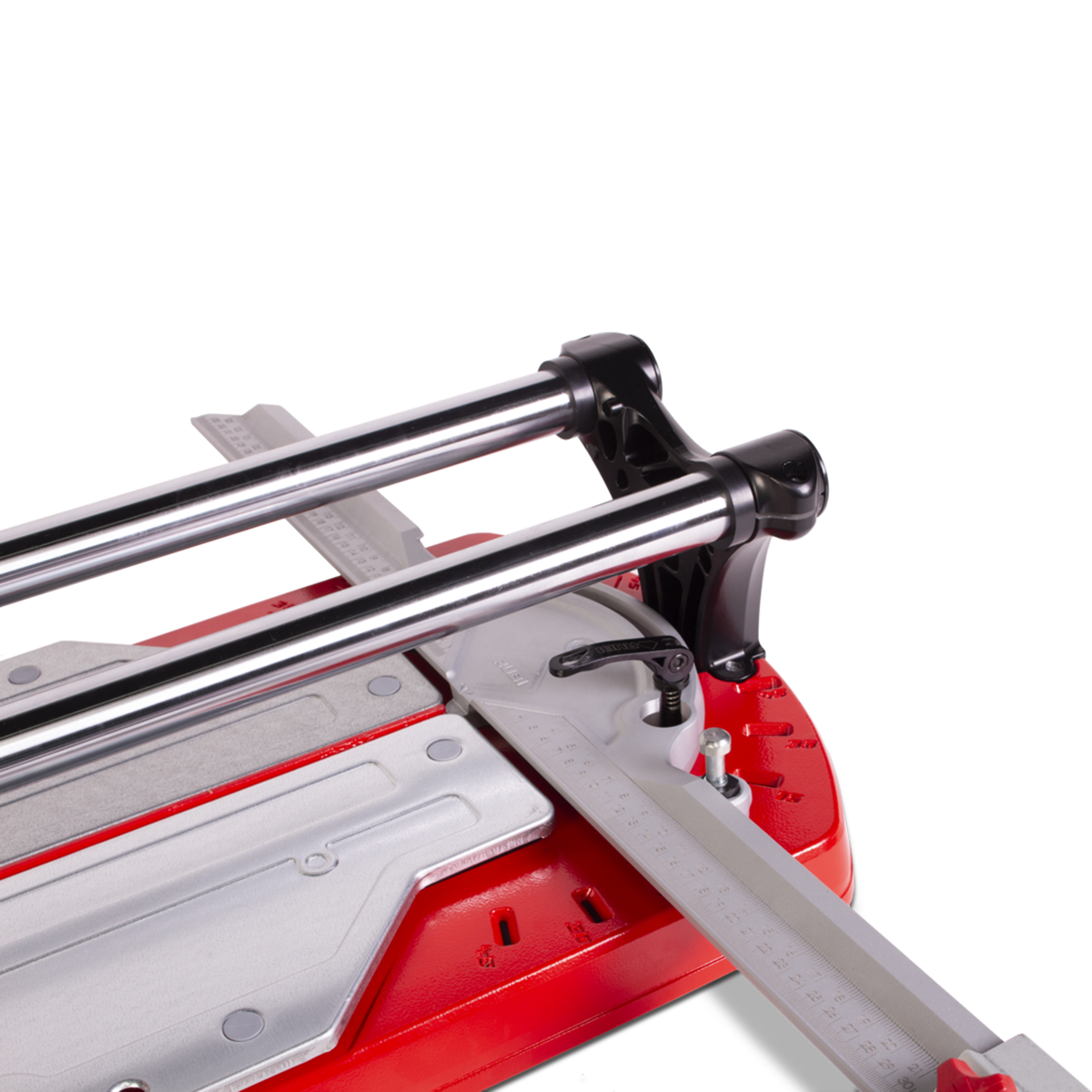

Yes. The swivel square uses a central pivot to improve precision when setting up angular cuts. A lateral stop provides a repeatable reference for completing multiple cuts at the same measurement and also helps position tile when cutting narrow strips.
What scoring wheels and transport equipment are included?
Each TX-MAX cutter includes 5/16" and 7/8" RUBI EXTREME scoring wheels and accepts the complete RUBI PLUS scoring wheel range. A carrying case is also included with every listed model, providing protection and more convenient storage or transportation between jobs.
