RUBI HIT-PLUS Manual Tile Cutters
Fast Shipping
Easy Returns
Secure Checkout
At a Glance
Quick Decision Guide
Straight Cut
47-1/4"
Diagonal Cut
33-1/2" × 33-1/2"
Tile Thickness
1/8"-3/4"
Separation Power
1,984 lbs.
Guide Diameter
1"
Included Scoring Wheel
7/8"
Case Included
Yes
Recommended Materials
Ceramic, Stoneware & Porcelain
Why Choose This Product
Key Benefits
1,984 lb Separation Power
Provides strong breaking force for demanding porcelain and ceramic cuts.
Smooth Ball-Bearing Scoring
Supports accurate, controlled scoring movement.
One-Hand MAGNET Operation
Speeds transitions between scoring and breaking.
Clear Cutting Visibility
Forward wheel placement keeps the scoring area visible.
Rigid Large-Format Support
Aluminum construction, steel guides, and supplementary supports resist flex.
Repeat and 45° Positioning
Lateral stop simplifies consistent repeated and angled cuts.
Product Information
Product Details
Specifications
Brand
RUBI®
Part Number
27902
UPC
8413797279023
Product Type
Manual Tile Cutter
Model
HIT-1200 PLUS
Straight Cutting Capacity
47-1/4"
Diagonal Cutting Capacity
33-1/2" × 33-1/2"
Tile Thickness Capacity
1/8"-3/4"
Separation Power
1,984 lbs.
Recommended Materials
Ceramic, Stoneware & Porcelain Tile
Guide Diameter
1"
Included Scoring Wheel
7/8"
Case Included
Yes
About This Product

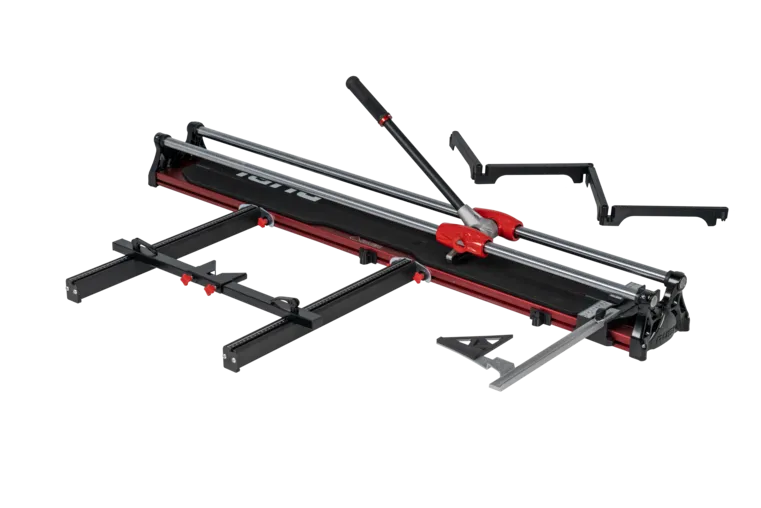

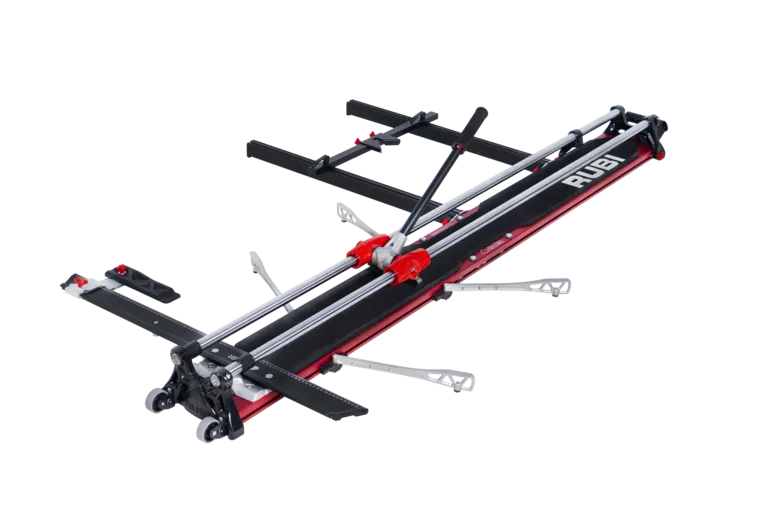

RUBI HIT-PLUS Manual Cutters for Large-Format Tile
RUBI HIT-PLUS Manual Tile Cutters are professional score and snap cutters for intensive cutting of ceramic, stoneware, and porcelain tile. Straight-cut capacities from 47 1/4" to 70 7/8" support demanding large-format installations.
Smooth Scoring and One-Handed Breaking

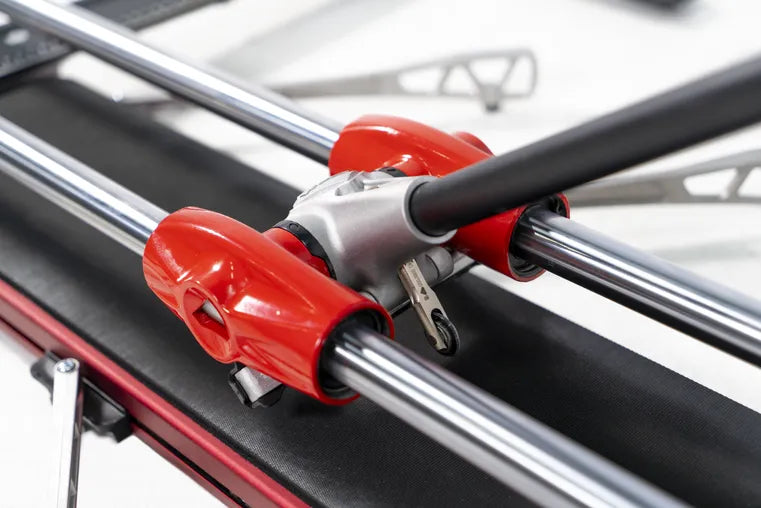

Ball-bearing sliders provide smooth scoring, while the forward wheel position keeps the cutting area visible. RUBI's MAGNET system switches between scoring and breaking with one hand for faster operation.
Rigid Support Under Breaking Pressure

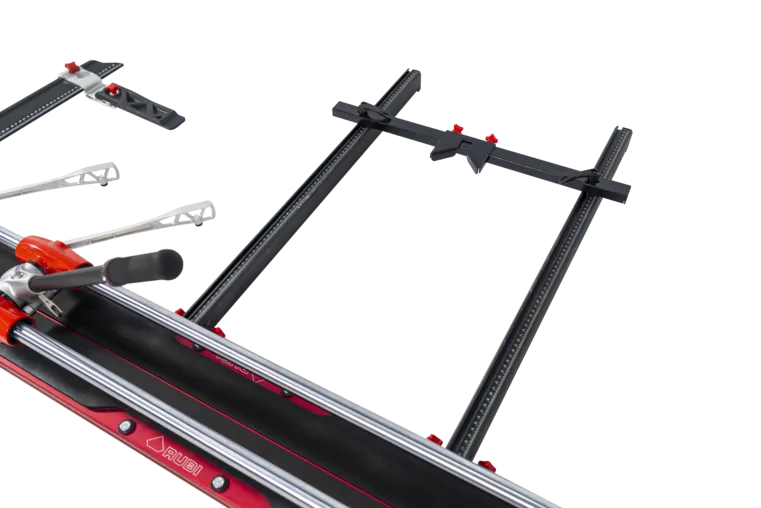

The closed extruded aluminum base and solid 1" chromed steel guides resist flex under pressure. Supplementary supports stabilize larger tiles, while the movable guide stop adjusts to the tile size.
Consistent Repetitive and 45° Cuts
The lateral stop supports repetitive and 45° cuts, while the double tile support includes a supplement for angled positioning. Interchangeable scoring wheels accommodate different tile materials.
Common Questions
Frequently Asked Questions
What materials can HIT-PLUS Tile Cutters cut?
HIT-PLUS Tile Cutters are designed for intensive cutting of ceramic tile, stoneware, and porcelain tile. Their high separation power and rigid construction support demanding professional and large-format work.
What are the cutting capacities of the HIT-PLUS models?
The HIT 1200 PLUS cuts 47 1/4" straight and 33 1/2" × 33 1/2" diagonally. The 1600 versions cut 62" straight with diagonal capacities of 39 3/8" × 39 3/8" or 44 1/2" × 44 1/2". The HIT-1800 PLUS cuts 70 7/8" straight and 50" × 50" diagonally.
What tile thickness and breaking power do the cutters provide?
All current HIT-PLUS Manual Tile Cutters accommodate tile from 1/8" to 3/4" thick. Each model provides up to 1,984 lbs. of separation power through its high-performance movable breaker.
How does the MAGNET system work?
The MAGNET system locks and releases the platen with one hand when moving between scoring and breaking. Ball-bearing sliders provide smooth scoring, while the forward scoring-wheel position keeps the working area visible.
Can the HIT-PLUS make repetitive and 45° cuts?
Yes. The lateral stop supports repetitive and 45° cuts. The double tile support also includes a supplement for positioning tile during 45° cutting.
Which scoring wheels are included and compatible?
Each cutter includes a 7/8" (22 mm) scoring wheel. The system also accepts 1/4" (6 mm), 5/16" (8 mm), 3/8" (10 mm), and 3/4" (18 mm) RUBI scoring wheels.
Which models include a carrying case?
References 27902 and 27903 include a carrying case. Current references 27900, 27909, and 27916 do not include one.
