BIHUI Laser Manual Tile Cutters
Fast Shipping
Easy Returns
Secure Checkout
At a Glance
Quick Decision Guide
Straight Cut Capacity
47.25"
Diagonal Cut Capacity
33.5" × 33.5"
Cutting Thickness
1/4" – 5/8"
Breaking Force
1,750 lbs
Laser Guide
Yes
Miter Guide
45°
Rail System
0.7" × 1.5" Solid Rail
Extension Bars
Yes
Why Choose This Product
Key Benefits

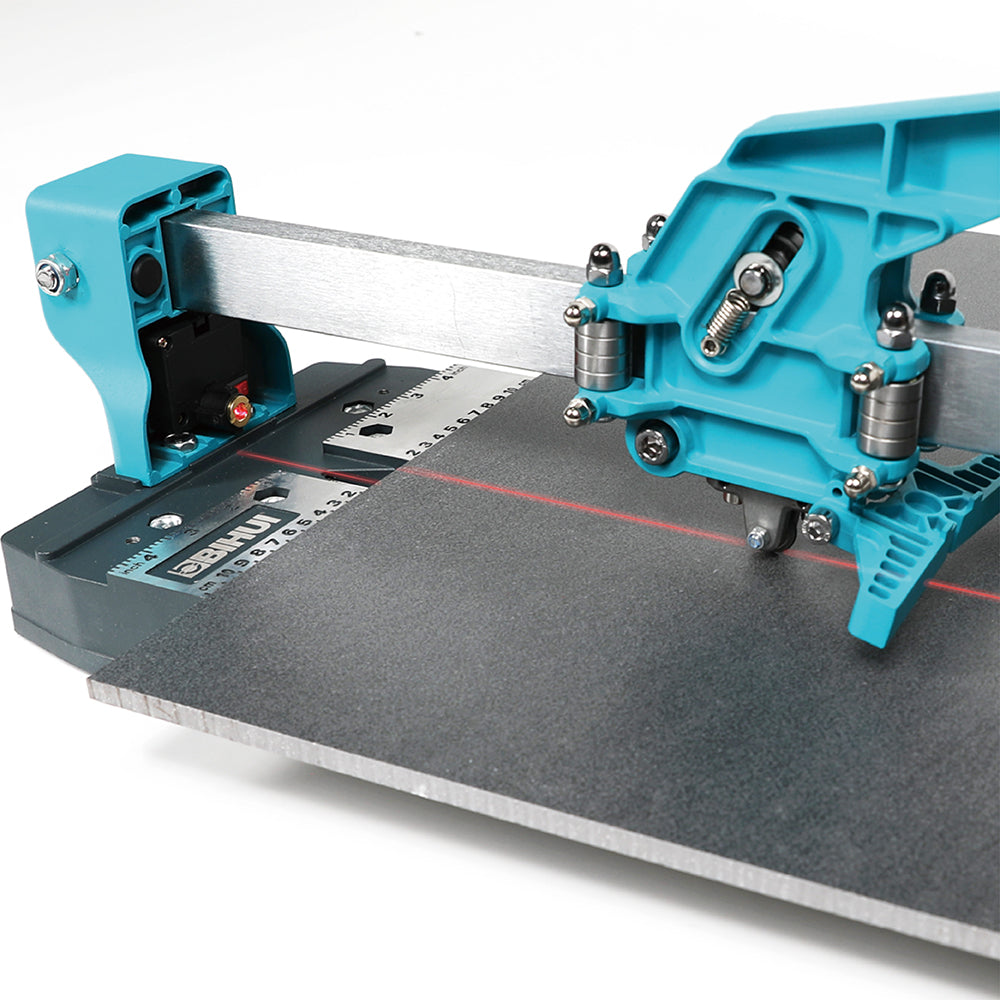

Laser Alignment
Provides a visible reference for positioning the scoring path.

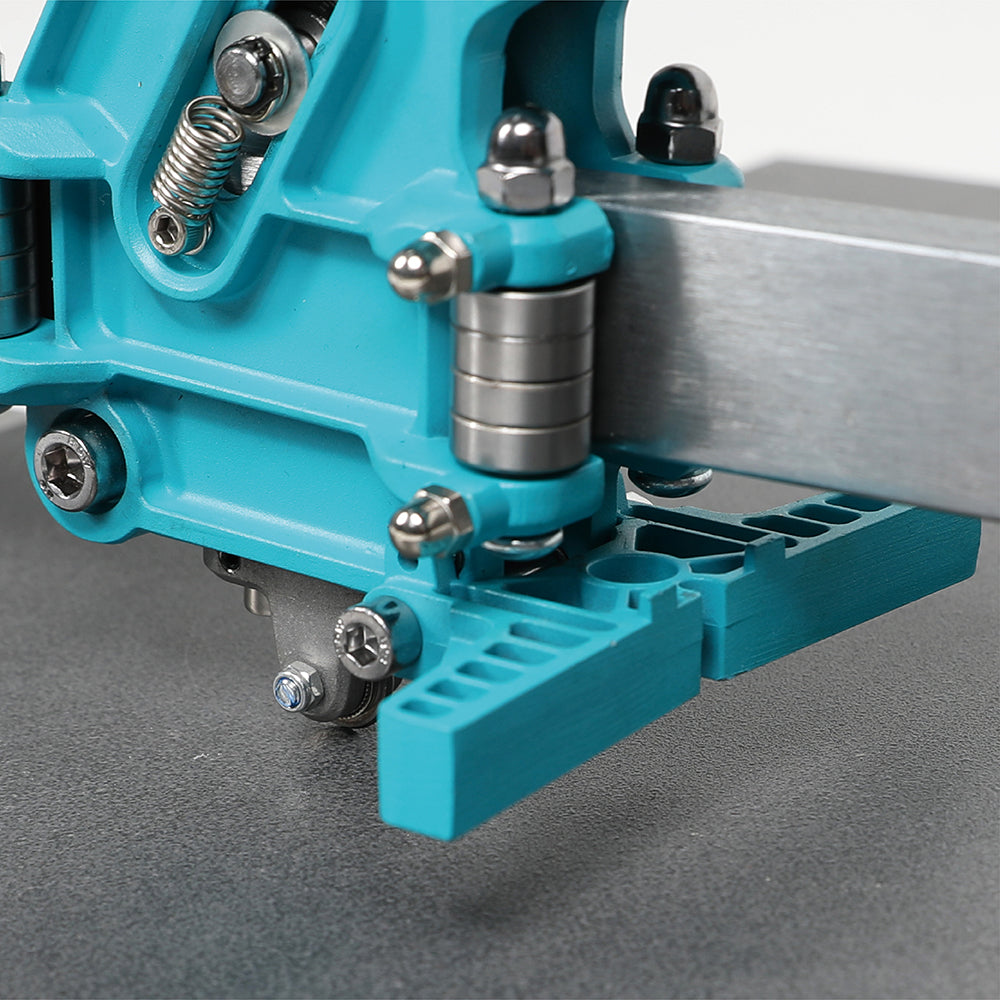

Smooth Scoring
A 21-bearing carriage moves evenly along the solid rail.
1,764 lb Breaking Force
Magnetic breaker provides powerful tile separation after scoring.
Reinforced Construction
Double-layer aluminum base creates a rigid cutting platform.
Two Capacity Options
Choose 47.25" or 63" straight-cut capability.

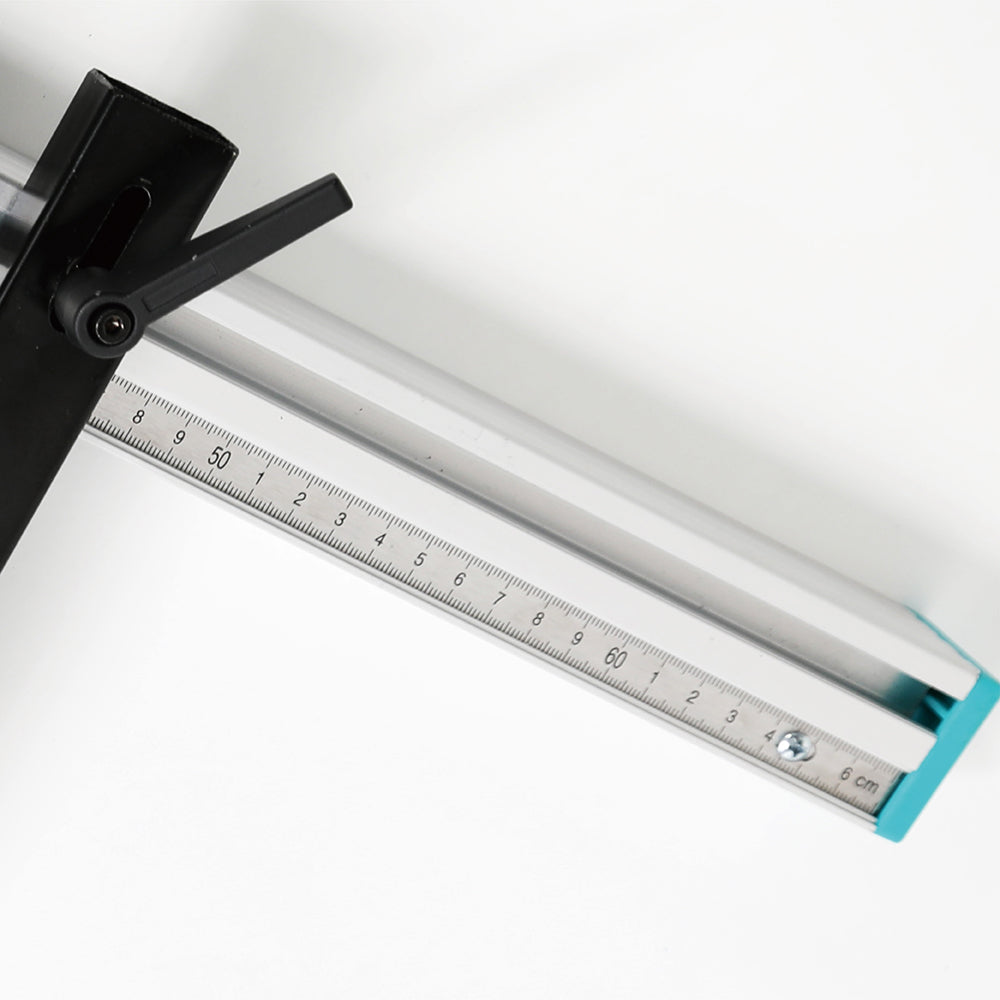

Large-Tile Support
Extension bars stabilize larger tile during long cuts.

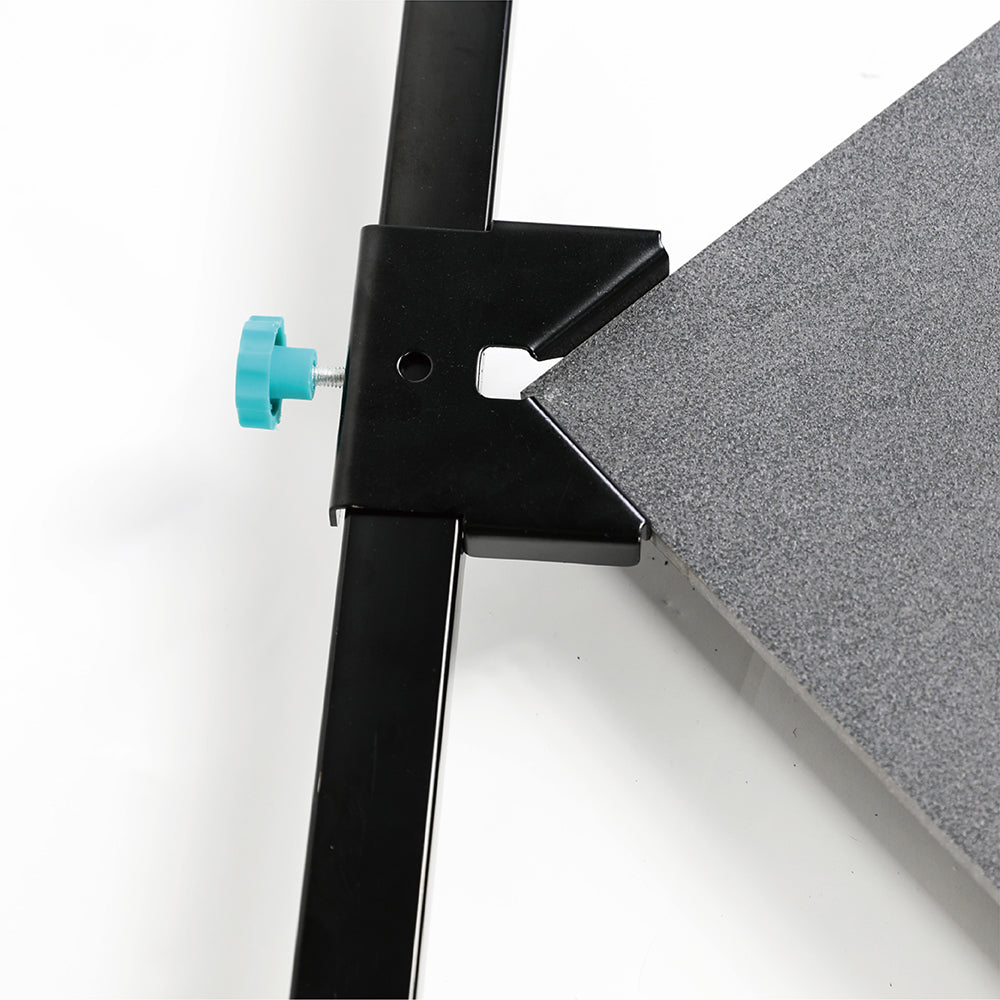

45° Positioning
Included miter guide supports accurate angled layouts.

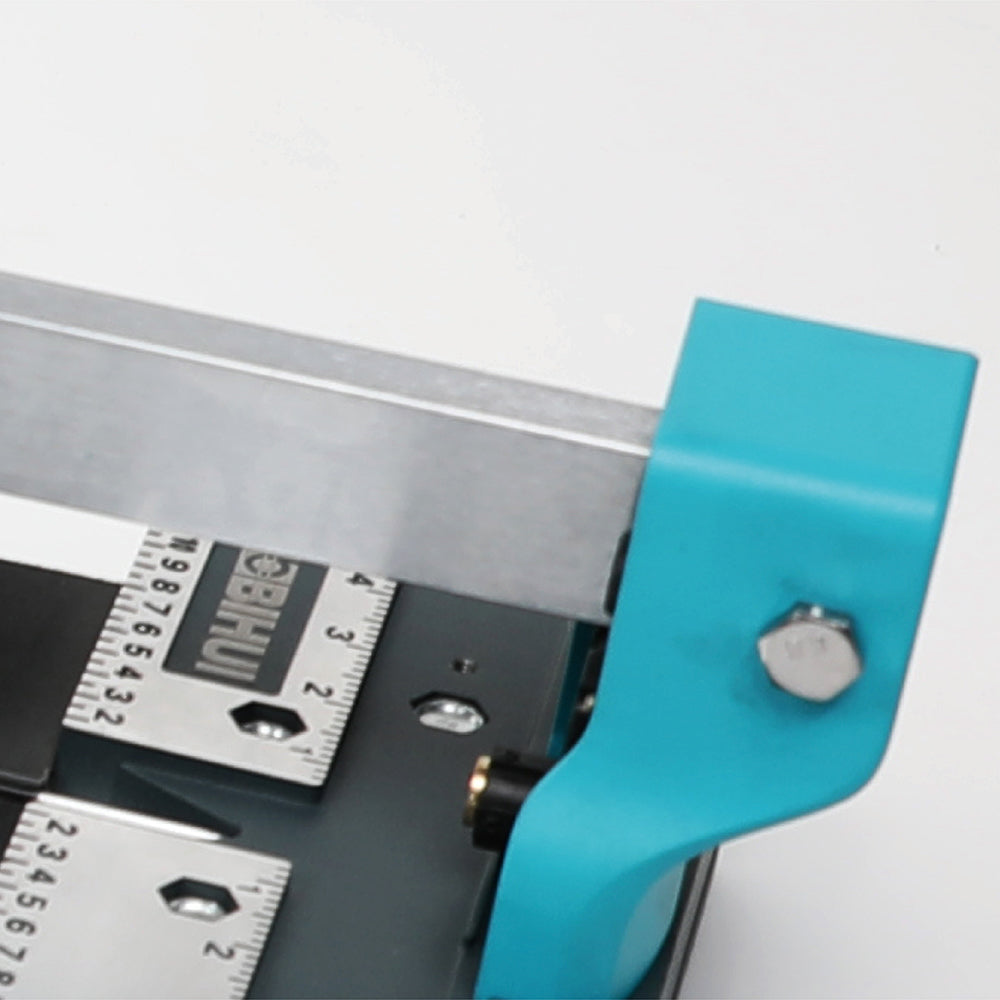

Repeatable Measurements
Three rulers simplify repeat and diagonal cutting setups.
Product Information
Product Details
Specifications
Brand
BIHUI®
Part Number
TCS1200
UPC
6973702582058
Product Type
Laser Manual Tile Cutter
Straight Cut Capacity
47.25"
Diagonal Cut Capacity
33.5" × 33.5"
Cutting Thickness
1/4" – 5/8"
Breaking Force
1,750 lbs
Laser Guide
Yes
Base Construction
Reinforced Aluminum Alloy
Base Thickness
0.06"
Rail System
Solid Rail
Rail Dimensions
0.7" × 1.5"
Scoring Wheel Size
0.9" × 0.2" × 0.2"
Breaking Device
Magnetic Absorption
Cutting Frame
Adjustable
Extension Bars
Included
Miter Guide
45°
Maximum Miter Extension
39"
Application
Ceramic & Porcelain Tile
About This Product

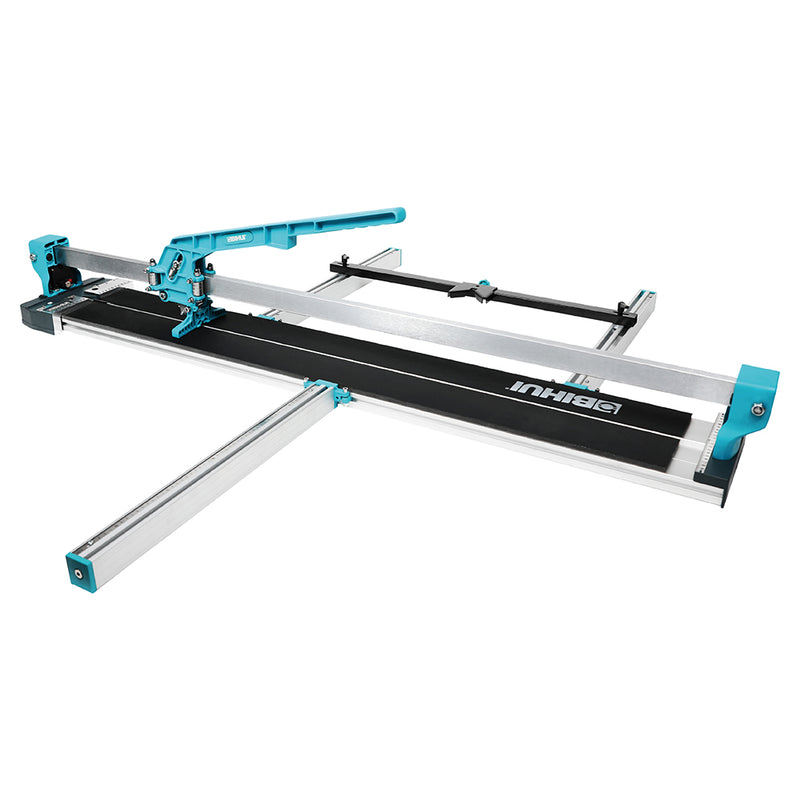

BIHUI Laser Manual Cutters for Ceramic and Porcelain
BIHUI Laser Manual Tile Cutters use a visible laser reference to help align the scoring path on compatible ceramic and porcelain tile. Available with 47.25" and 63" straight-cut capacities, they handle tile from 6 to 15 mm thick.
Rigid Frame with Smooth Scoring
A 1.6 mm double-layer aluminum base and solid 20 × 40 mm rail provide a rigid cutting platform. The 21-bearing carriage moves smoothly, while the adjustable frame and rail support accurate scoring alignment.
Magnetic Breaking After Scoring
The included 22 mm scoring wheel maintains contact with the tile before the magnetic breaker applies 800 kg, approximately 1,764 lbs., of force for controlled separation.
Repeat, Diagonal, and 45° Layouts
Three rulers support repeat and diagonal measurements, while an included 45° guide assists with angled positioning. Extension bars provide additional support for larger tile throughout longer cuts.
Common Questions
Frequently Asked Questions
What materials and thicknesses can BIHUI Laser Tile Cutters handle?
The cutters are designed for scoring and breaking compatible ceramic and porcelain tile. Both models accommodate tile from 6 to 15 mm thick, approximately 1/4" to 19/32".
What is the difference between the TCS1200 and TCS1600?
The TCS1200 cuts 47.25" straight and approximately 33.5" × 33.5" diagonally. The TCS1600 cuts 63" straight and approximately 44.5" × 44.5" diagonally.
How much breaking force do the cutters provide?
Both models deliver 800 kg, approximately 1,764 lbs., of breaking force. The magnetic breaking mechanism separates the tile after the scoring wheel creates the cut line.

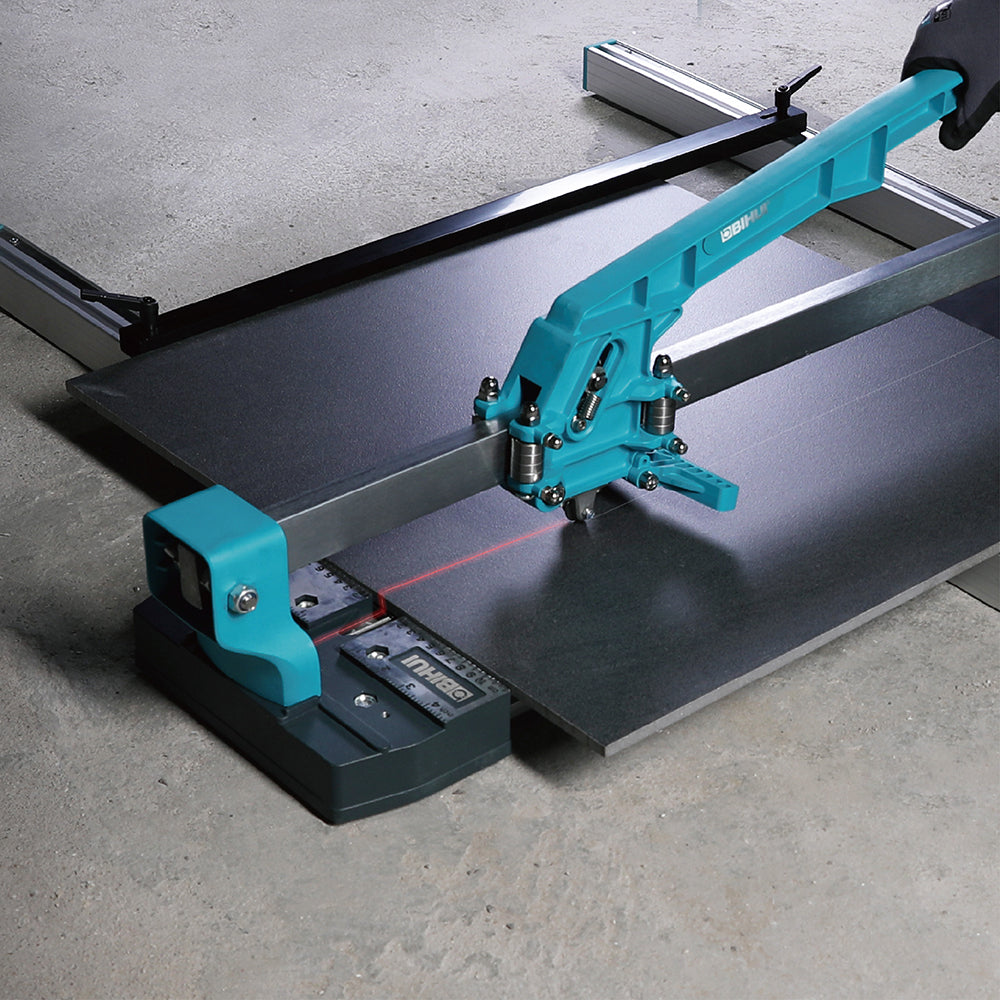

How does the laser guide work?
The integrated red laser provides a visible reference for aligning the scoring path with the intended cut. It uses two included AAA batteries.
Can these Laser Tile Cutters make 45° cuts?
Yes. Each model includes a 45° miter guide for angled positioning. Three rulers also support repeat and diagonal cutting layouts.

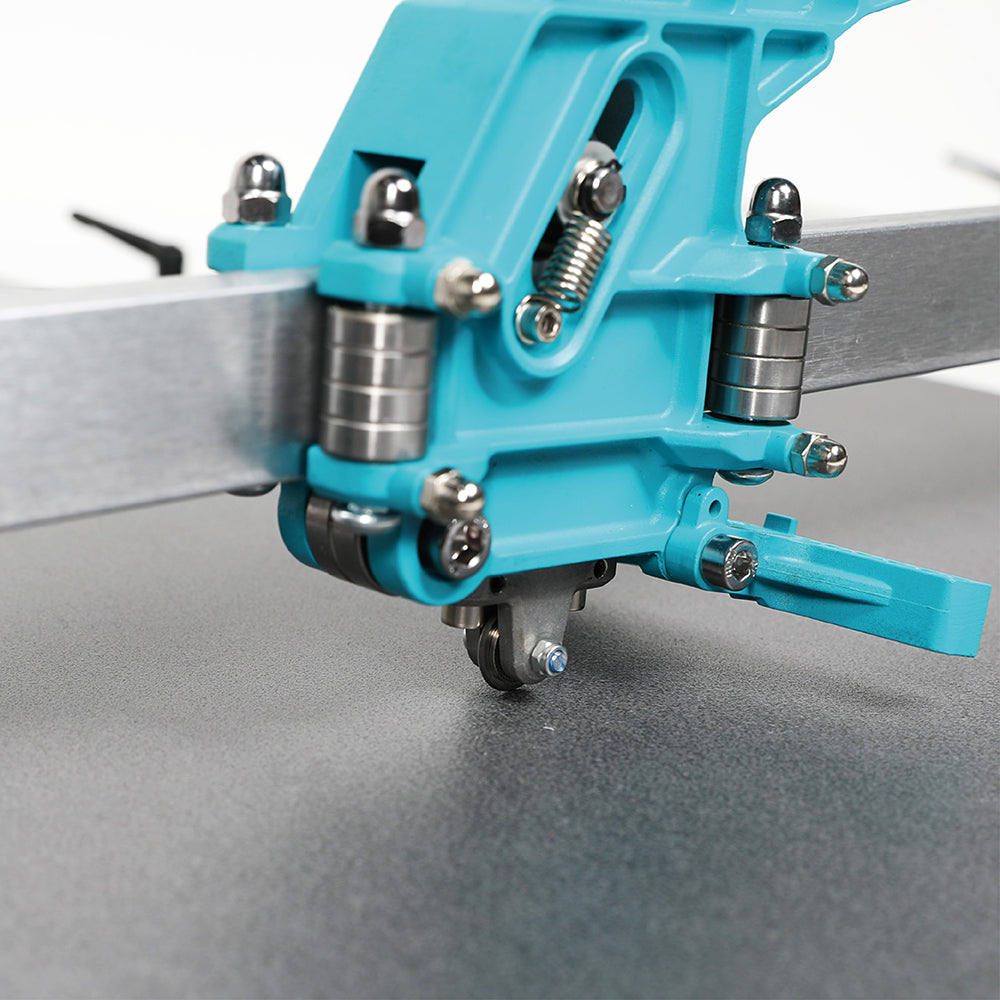

What scoring wheel is included?
Both models include a 22 × 5 × 5 mm scoring wheel designed for long service life. It scores the tile before the magnetic breaker applies separation force.
What extension bars are included?
The TCS1200 includes extension bars for supporting cuts up to approximately 39". The TCS1600 includes longer bars for supporting cuts up to approximately 59".
Can the cutting frame and rail be adjusted?
Yes. The cutting frame and rail position can be adjusted to align the scoring path. The 21-bearing carriage then travels smoothly along the solid rail.
