The Alpha PSC-150 Miter Cutting Kit is a rail-guided system designed to perform straight cuts and miter cutting on stone, porcelain slab, and large-format tile using PSC-150 wet stone cutters and carriage assemblies mounted to modular guide rails.

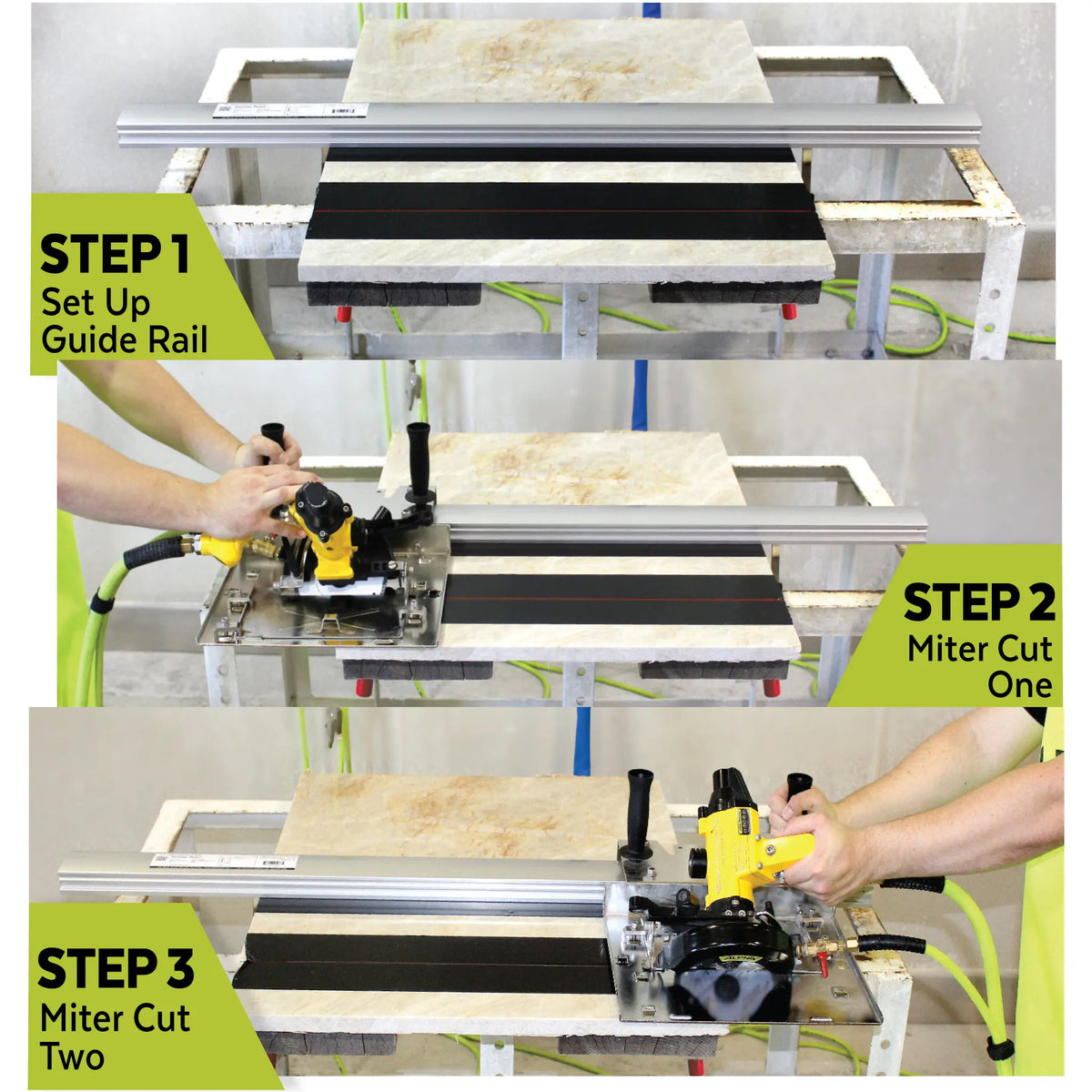

The system uses 6-inch carriage assemblies with included templates that position each cutter for left-side miter, right-side miter, or straight cutting. When two stone cutters and carriage assemblies are installed on the same guide rail in opposing directions, the setup allows two miter cuts to be completed on a single pass to form a V-profile suitable for lamination and edge buildup. With a single cutter configuration, the rail is installed once and the cutter is repositioned to complete each miter pass.
Each cutter operates at 8,500 RPM and uses water-fed wet cutting for dust control and blade cooling. The kit supports cutting of 3/4 inch (2 cm) material and is commonly used for laminated waterfall edges, book-matched seams, and precision edge preparation.
Key Features
- Straight and Miter Cutting Capability: Supports straight cuts and left-side or right-side miter cutting using interchangeable carriage templates.
- Dual Cutter Configuration: Allows two PSC-150 stone cutters to operate on the same rail for single-pass V-groove preparation.
- One-Time Rail Setup: Guide rail is installed once and cutters are repositioned for multiple miter passes when using a single cutter.
- Wet Cutting Operation: Water-fed design supports blade cooling and dust control.
- Guide Rail System: Includes 4 ft, 7 ft, and 12 ft rails for short and long material cuts.
- Template-Based Alignment: Carriage templates position the cutter for consistent miter angles.
- Edge Preparation Applications: Supports laminated edges, waterfall panels, and book-matched seams.
Specifications
| Specification | Details |
|---|---|
| Model | PSC-150 (5480-5100) |
| Cutting Disc Diameter | 6" (150 mm) |
| No Load Speed | 8,500 RPM |
| Air Pressure | 90 PSI (6.2 bar) |
| Air Consumption | 32–48 CFM |
| Arbor | 7/8" (22.23 mm) |
| Water Inlet | 1/4" BSPP |

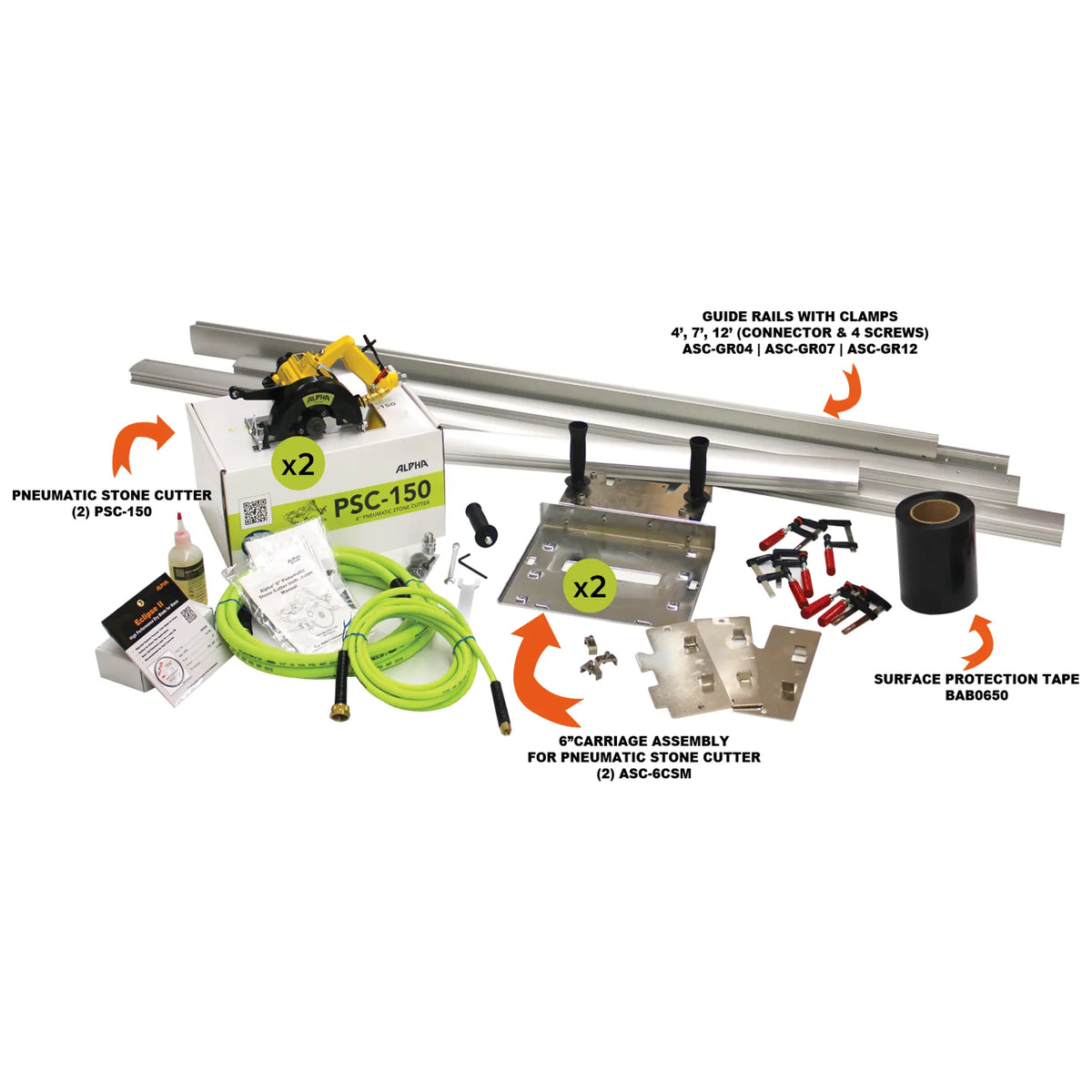

Kit Includes
- 2 × PSC-150 Wet Stone Cutters
- 2 × 6" Carriage Assemblies (ASC-6CSM)
- PSC-150 Standard Accessories with Eclipse II Blade (2 sets)
- Guide Rail 4 ft (ASC-GR04)
- Guide Rail 7 ft (ASC-GR07)
- Guide Rail 12 ft (ASC-GR12)
- Surface Protection Tape
This miter cutting kit provides a controlled rail-guided solution for straight and angled cutting used in edge preparation and slab fabrication workflows.
