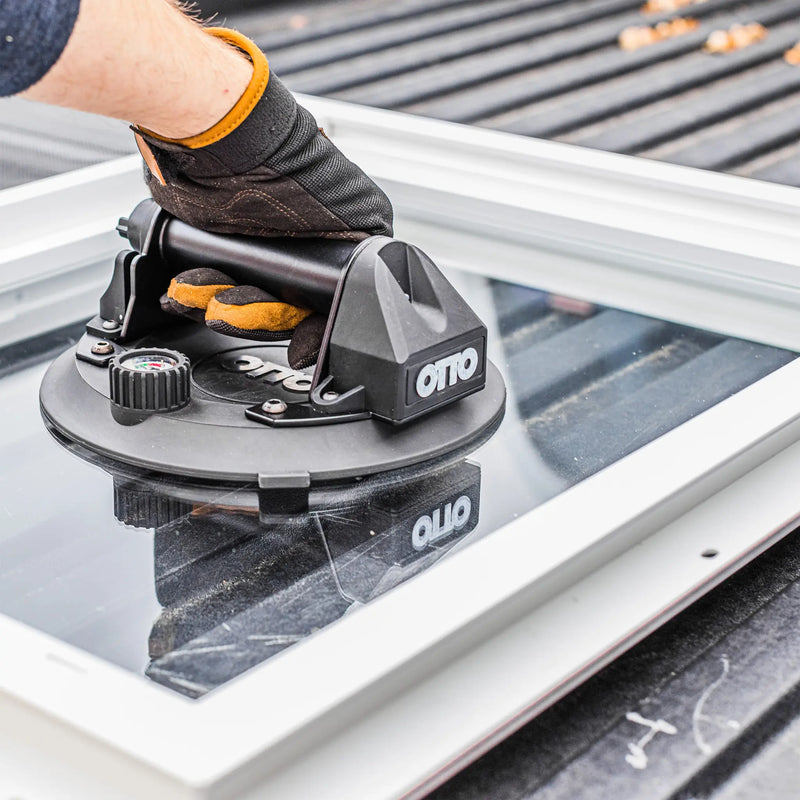

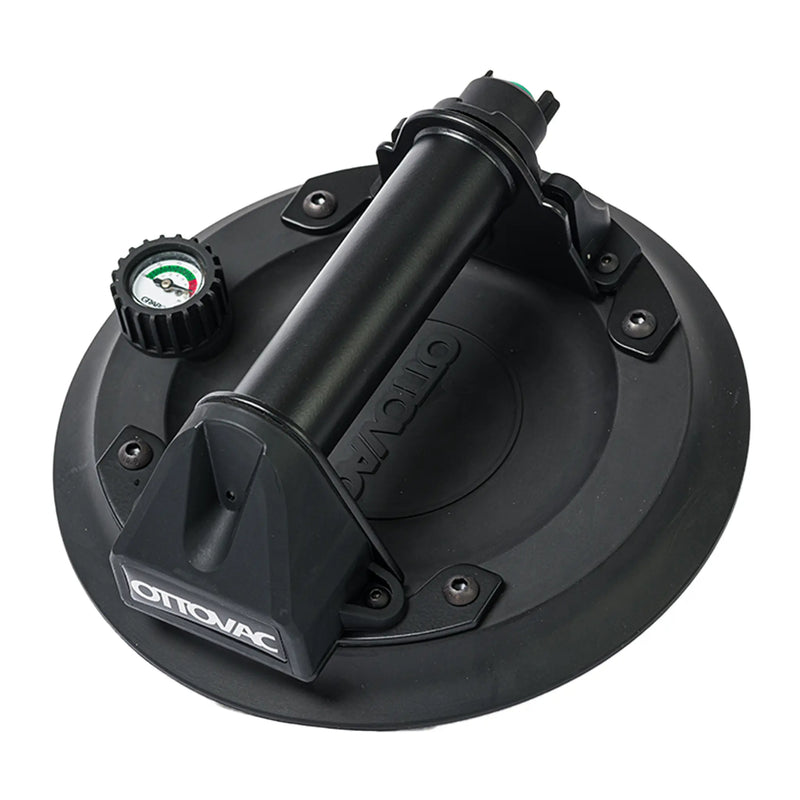

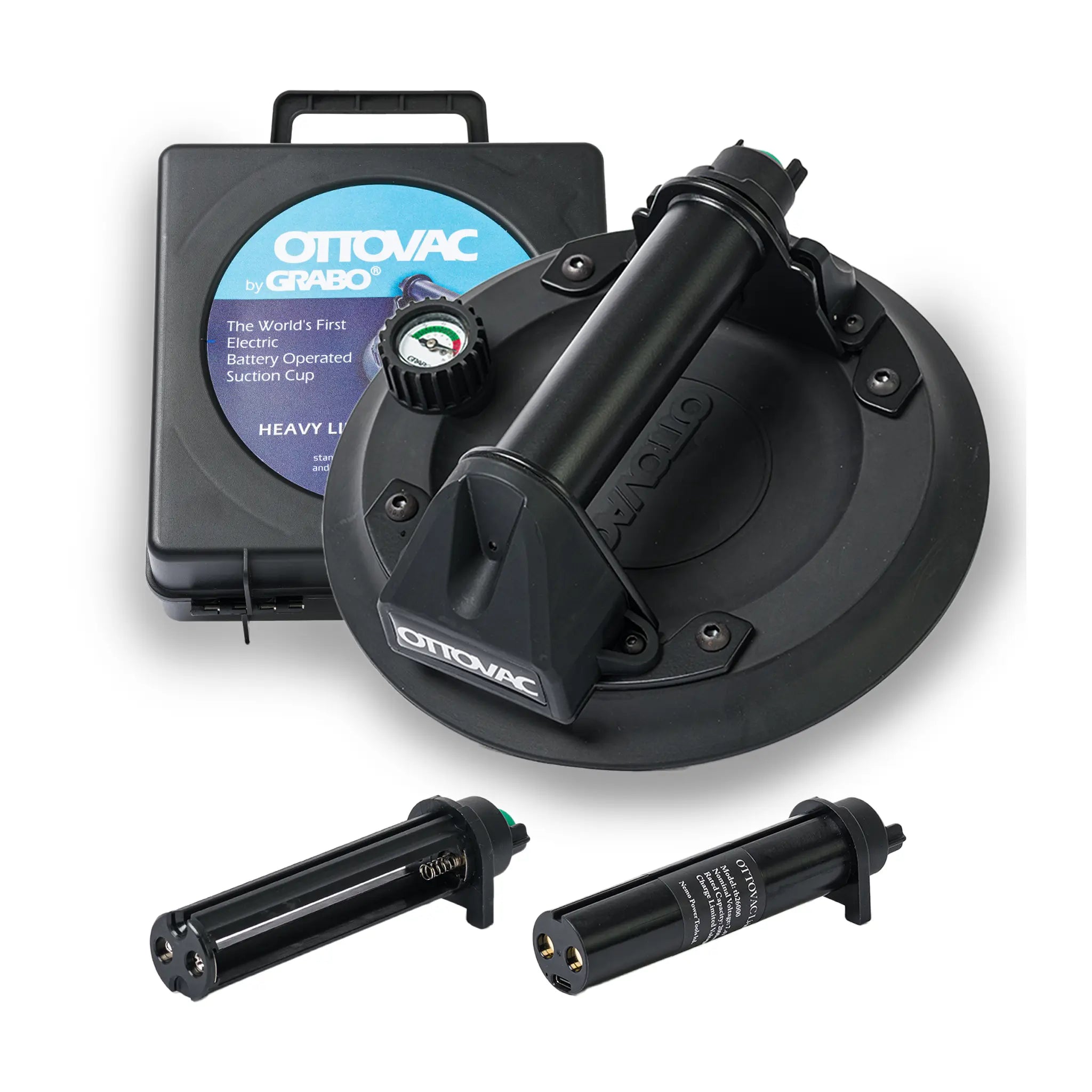

The GRABO OTTOVAC is a portable electric GRABO vacuum lifter engineered for lifting and moving smooth, flat, and non-porous materials including glass and ceramic tile. The unit operates with a built-in electric pump and pressure sensor system that automatically maintains vacuum levels without manual pumping.
When the vacuum level reaches approximately -55 kPa, the pump automatically pauses and re-engages if pressure drops during material handling. This automatic start/stop function helps maintain consistent holding force while reducing unnecessary battery consumption. The system can achieve a maximum vacuum rate of -0.7 bar (-70 kPa) and supports lifting capacities up to 330 lbs (150 kg) depending on material type and lifting orientation.
Unlike manual suction devices, this GRABO tool continuously monitors vacuum pressure during use. If suction decreases while material is in motion, the system automatically restores vacuum to maintain secure lifting. The electric release function allows material to be disengaged at the push of a button.
Key Features
- Automatic Vacuum Control: Built-in pressure sensor with automatic start/stop at -55 kPa.
- Maximum Lifting Capacity: Supports up to 330 lbs (150 kg) on glass and ceramic tile.
- Fully Electric Operation: No manual pumping required.

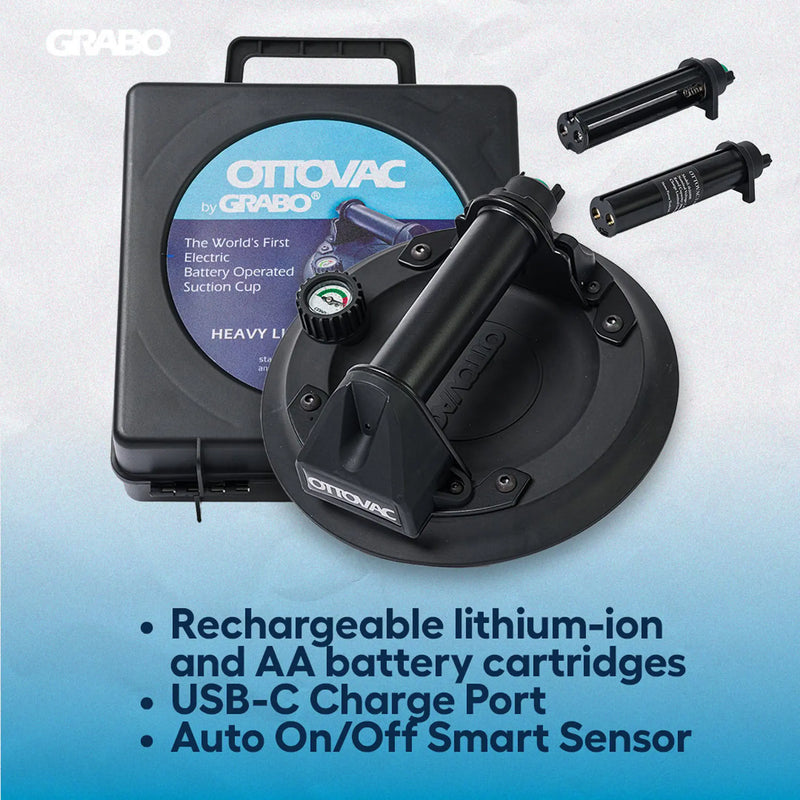

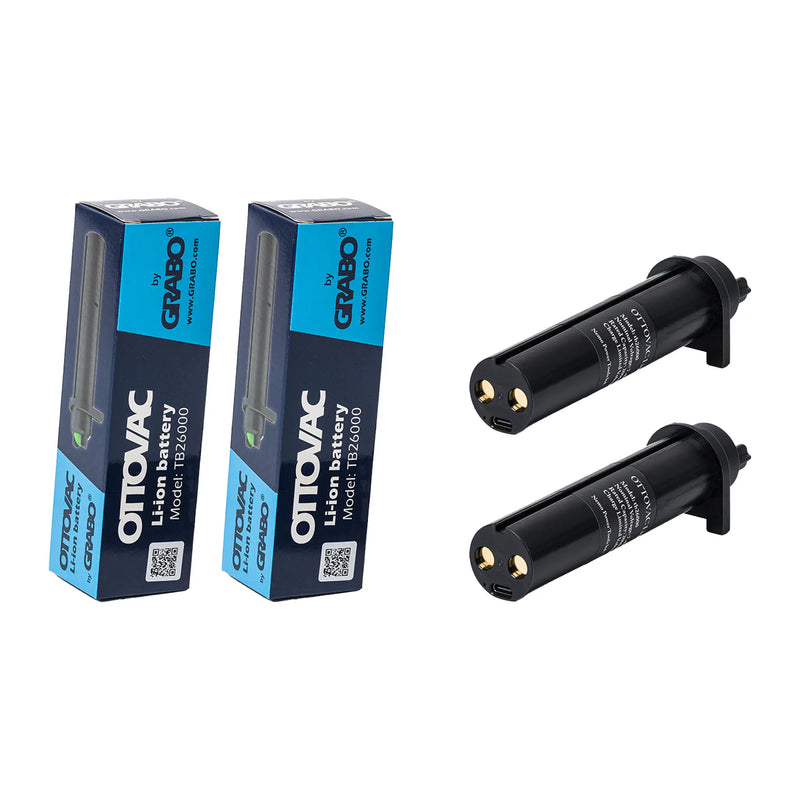

- Dual Power Options: Operates with rechargeable lithium-ion battery or 4 AA alkaline batteries.
- USB-C Charging Port: Allows charging from outlet, power bank, or computer.
- LED Battery Indicator: Red/Green indicator for battery status monitoring.
- Compact Form Factor: Measures 200 x 200 x 90 mm and weighs 2.6 lbs with battery.
Lifting Capacity
| Material | Perpendicular Hold | Parallel Hold |
|---|---|---|
| Glass | 330 lbs (150 kg) | 330 lbs (150 kg) |
| Ceramic Tile | 330 lbs (150 kg) | 330 lbs (150 kg) |
Specifications
| Specification | Details |
|---|---|
| Model | OTTOVAC-V1 (OV-V1) |
| Max Vacuum Rate | -0.7 bar (-70 kPa) |
| Max Lifting Capacity | 330 lbs (150 kg) |
| Battery | 4 AA Alkaline 1.5V or Rechargeable Lithium-Ion |
| Working Voltage | 6V |
| Rated Power | 6W |
| Rated Air Flow | 4 L/min |
| Dimensions | 8" x 8" x 3.5" |
| Net Weight | 2.6 lbs (1.2 kg) |
| Operating Temperature | 32–140°F (0–60°C) |
The GRABO OTTOVAC provides controlled electric suction performance for handling glass, tile, and other smooth materials in fabrication, installation, and jobsite environments.
