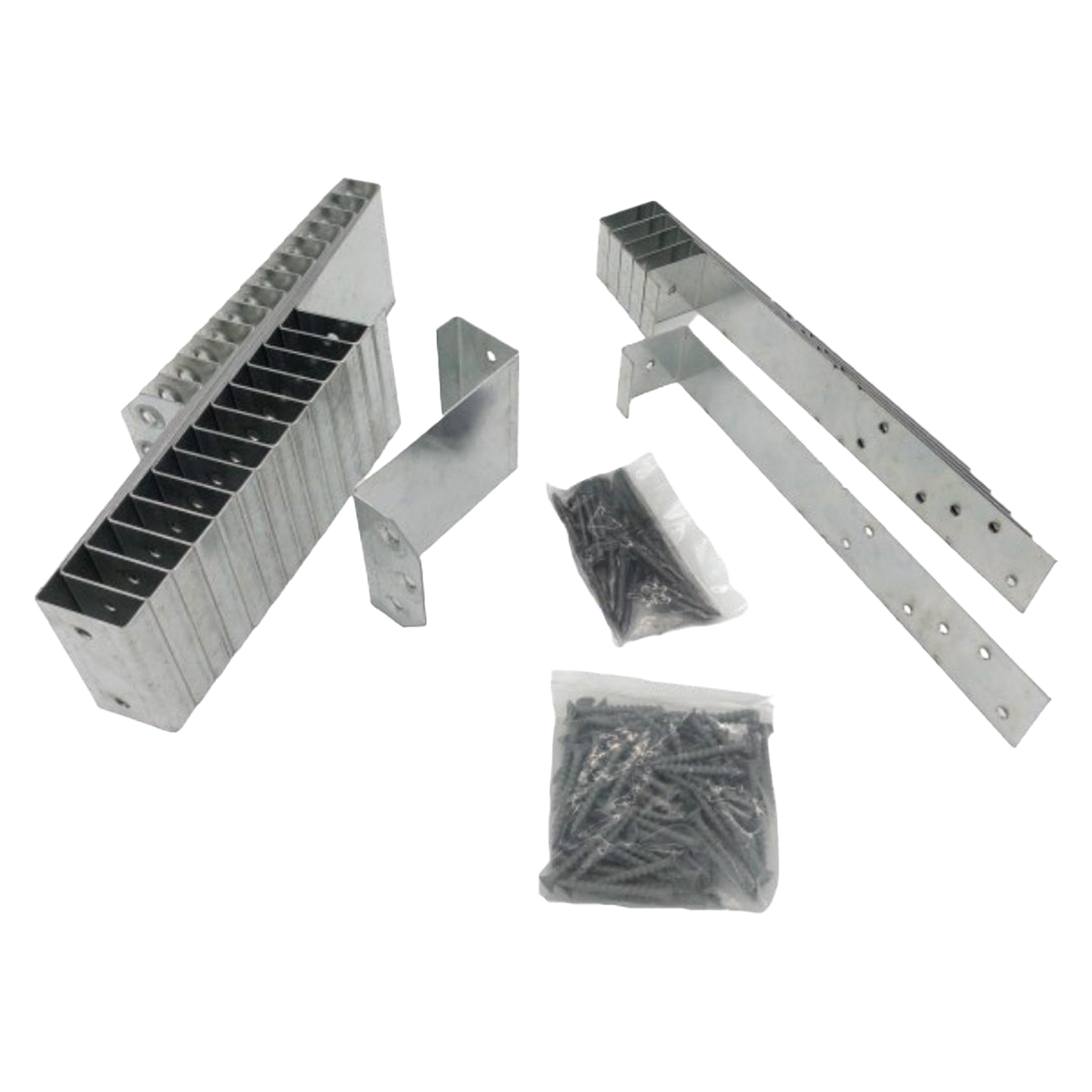

The HYDRO-BLOK® Curbless Shower Recess Installation Kit is designed to create a low-profile, barrier-free shower entry while maintaining subfloor integrity. It integrates with HYDRO-BLOK® single slope shower pans to support a recessed installation without increasing overall floor height.
The kit is engineered for use in residential and commercial applications and accommodates common framing conditions using I-joists or dimensional lumber with adjustable bracket placement.
Key Features
- Low-Profile Recess Design: Supports curbless shower layouts by reducing subfloor height at the shower entry.
- Recess Coverage Capacity: Designed for recessed shower areas up to 24 square feet.
- Framing Compatibility: Compatible with I-joists and dimensional lumber using included adjustable brackets.
- Structural Performance: Designed to meet L/360 deflection criteria with a 40 PSF live load.
Specifications
| Specification | Details |
|---|---|
| Maximum Coverage | Up to 24 sq ft |
| Bracket Spacing | 36" on center |
| Joist Brackets Included | 15 |
| Wall Brackets Included | 6 |
| Wood Screws Included | 81 |
| Joist Hanger Nails Included | 36 |
| Joist Type | I-joists or dimensional lumber |
| Deflection Rating | L/360 or better |
The HYDRO-BLOK® Curbless Shower Recess Installation Kit provides a recessed structural framework that supports curbless tiled shower assemblies while maintaining alignment with HYDRO-BLOK® waterproofing systems.
