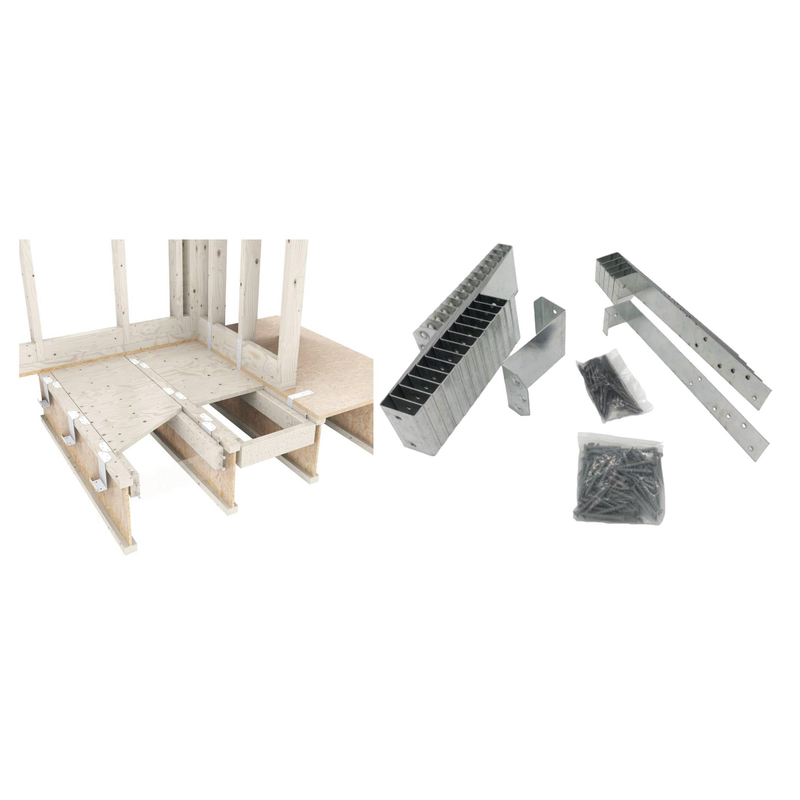

The HYDRO-BLOK® Curbless Shower Recess Installation Kit is designed to create a low-profile, barrier-free shower entry while maintaining subfloor integrity. Built for both residential and commercial applications, it integrates with HYDRO-BLOK® Single Slope Shower Pans to support a smooth transition into the shower area without raising the installation height.
Key Features
- Low-Profile Design: Reduces subfloor height to achieve a curbless, walk-in shower layout.
- Wide Coverage: Suitable for recessed shower areas up to 24 sq ft.
- Flexible Installation: Compatible with I-Joists or dimensional lumber and includes adjustable wall brackets.
- Structural Support: Designed for installations meeting L/360 deflection with a 40 PSF live load.
Specifications
| Item | Details |
|---|---|
| Max Coverage | Up to 24 sq ft |
| Bracket Spacing | 36” OC |
| Joist Brackets Included | 15 |
| Wall Brackets Included | 6 |
| Wood Screws Included | 81 |
| Joist Hanger Nails Included | 36 |
| Joist Type | I-Joists or Dimensional Lumber |
| Deflection Rating | L/360 or better |
The HYDRO-BLOK® Curbless Shower Recess Installation Kit provides a stable, low-profile foundation designed to integrate smoothly with HYDRO-BLOK® shower systems for a clean, barrier-free entry.
