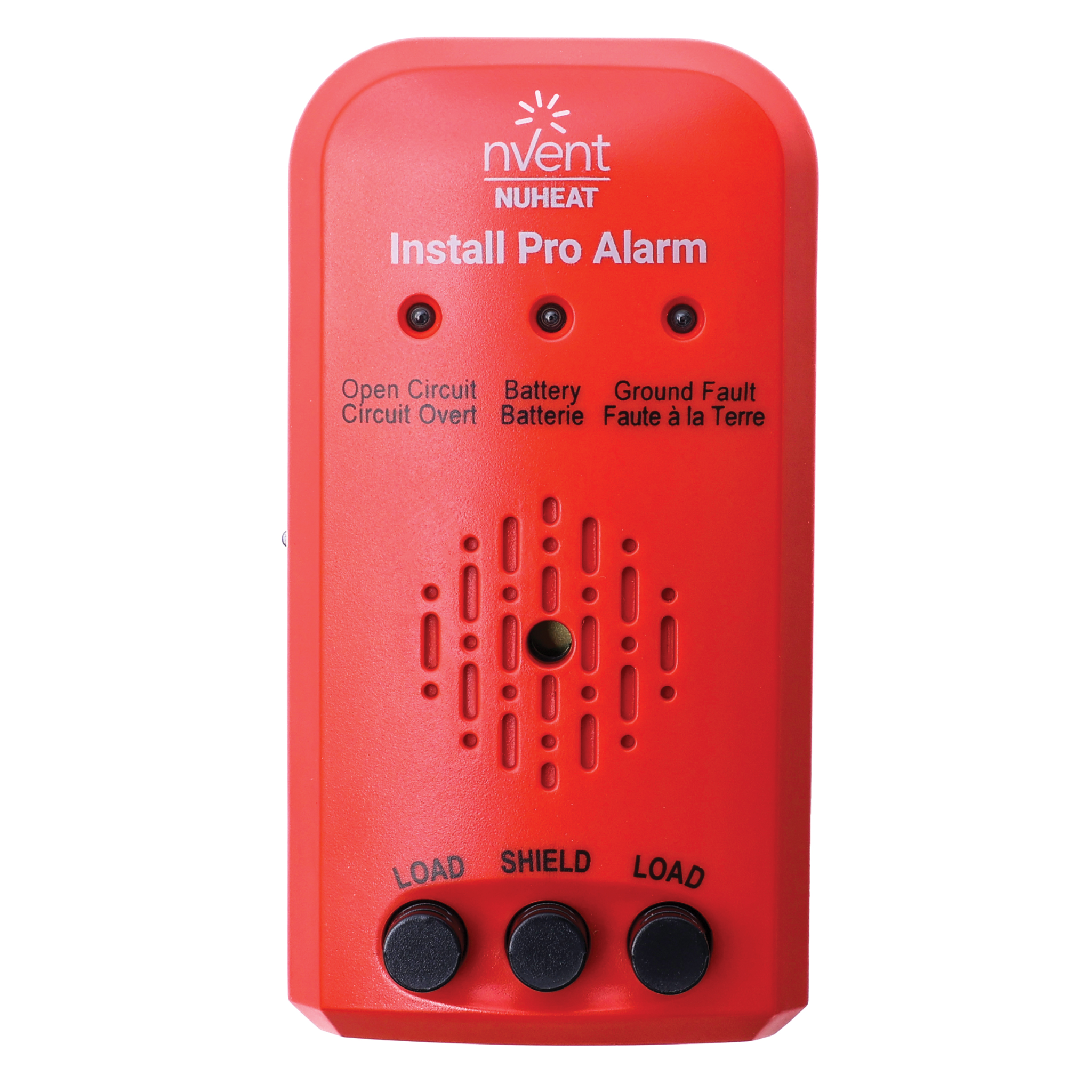

Nuheat Install Pro Alarm
Fast Shipping
Easy Returns
Secure Checkout
At a Glance
Quick Decision Guide
Monitoring
Hot, Neutral & Ground Wires
Alarm Loudness
93 dBA
Continuous Alarm
Over 90 dBA After 24 Hours
Battery
9-Volt, Included
Heating Compatibility
Line-Voltage Floor Heating
Fault Alert
Audible Alarm
Dimensions
3.75" × 2" × 1.5"
Weight
0.3 lb.
Why Choose This Product
Key Benefits
Installation Monitoring
Continuously monitors heating system wiring during installation
Damage Detection
Alerts the installer when a wire is damaged
Three-Wire Monitoring
Monitors hot, neutral and ground simultaneously
Loud Audible Alert
93 dBA alarm provides a clear fault warning
Extended Operation
Maintains over 90 dBA after 24 hours of continuous alarm operation
Replaceable Battery
Uses an included standard 9-volt battery
Product Information
Product Details
Specifications
Brand
Nuheat®
Part Number
AC0200
UPC
620713031063
Product Type
Floor Heating Installation Alarm
Alarm Loudness
93 dBA
Battery
9-Volt, Included
Monitored Wires
Hot, Neutral & Ground
Compatible Systems
Line-Voltage Floor Heating
Dimensions
3.75" × 2" × 1.5"
Weight
0.3 lb.
About This Product
Floor Heating Fault Detection During Installation
The Nuheat® Install Pro Alarm monitors the hot, neutral, and ground wires of line-voltage floor heating systems during installation. If a heating wire is damaged, the alarm sounds to alert the installer so the problem can be identified and corrected before installation continues.
93 dBA Audible Alarm
A 93 dBA alarm provides a clear audible warning when an electrical fault is detected. The alarm maintains a sound level above 90 dBA after 24 hours of continuous alarm operation, providing extended monitoring throughout floor heating installation.
9-Volt Battery for Extended Monitoring
The Install Pro Alarm operates with an included, replaceable 9-volt battery. It replaces the previous Nuheat Mat Sense Pro AC0100 with a louder alarm, longer continuous alarm operation, and a more easily replaceable battery.
Common Questions
Frequently Asked Questions
What does the Nuheat Install Pro Alarm monitor?
The Install Pro Alarm simultaneously monitors the hot, neutral, and ground wires of a line-voltage floor heating system during installation.
What happens if a floor heating wire is damaged?
If the Install Pro Alarm detects damage during installation, it sounds an audible alert so the installer can stop and correct the problem before continuing.
How loud is the Install Pro Alarm?
The alarm is rated at 93 dBA and maintains a sound level above 90 dBA after 24 hours of continuous alarm operation.
Does the Nuheat Install Pro Alarm include a battery?
Yes. A replaceable 9-volt battery is included.
Does the AC0200 replace the Nuheat Mat Sense Pro?
Yes. The AC0200 replaces the previous AC0100 Mat Sense Pro and provides a louder alarm, longer continuous alarm operation, and a more easily replaceable battery.
