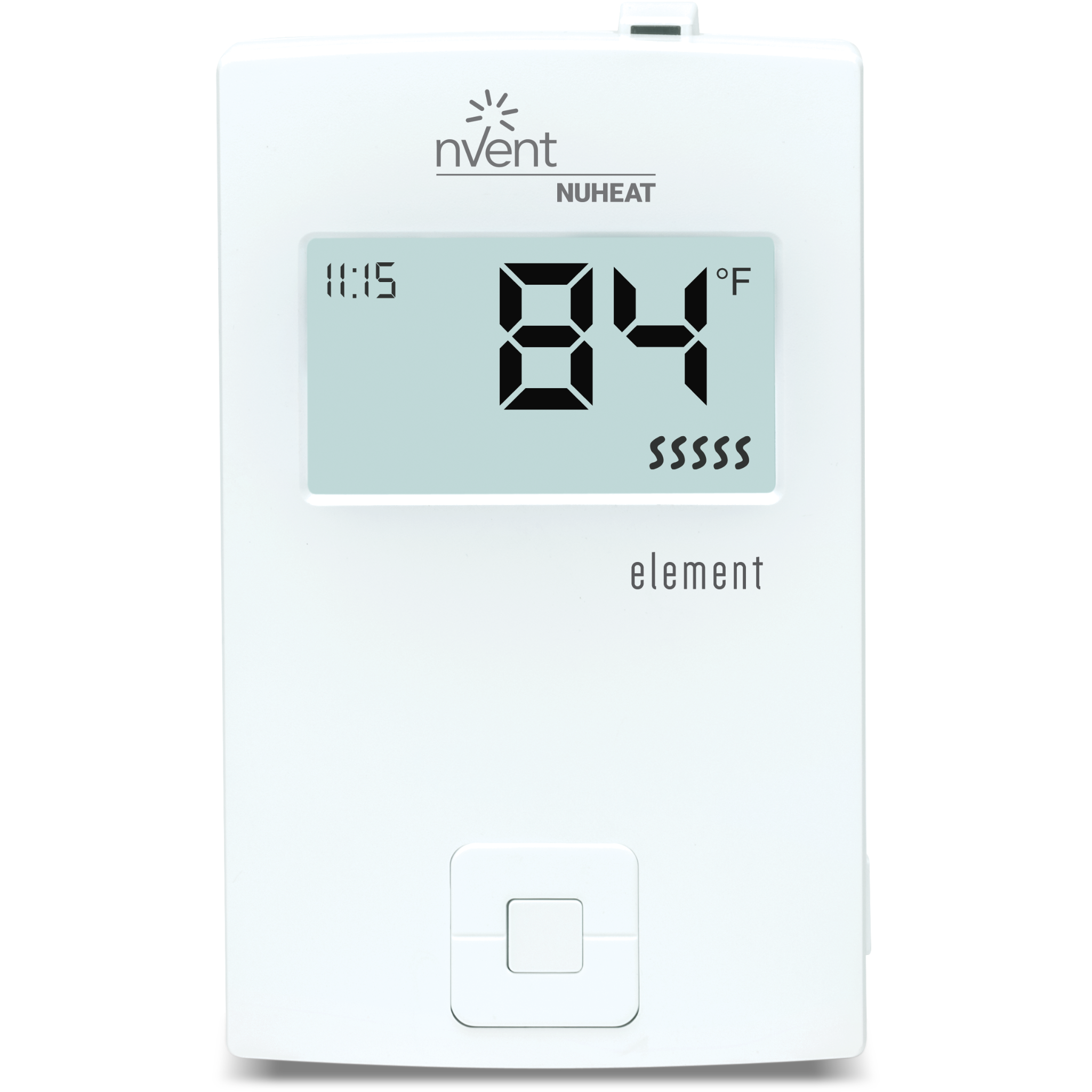

Nuheat® Element is a non-programmable floor heating thermostat designed to provide simple on/off control for Nuheat electric floor heating systems. It supports both floor sensing and ambient air sensing while displaying basic energy usage information.
The Element thermostat features dual-voltage compatibility, a physical on/off switch, and built-in Class A GFCI protection to support safe operation in residential heating applications.
Key Features
- Non-Programmable Control: Provides straightforward on/off operation for electric floor heating systems.
- Dual Sensor Capability: Supports both floor temperature sensing and ambient air sensing.
- Energy Usage Display: Displays basic energy consumption information.
- Dual-Voltage Compatibility: Compatible with 120V and 240V systems.
- Built-In Class A GFCI: Provides ground fault protection with a 5 mA trip level.
- Floor Compatibility: Suitable for tile, stone, laminate, engineered wood, and luxury vinyl tile floors.
Electrical Specifications
| Specification | Details |
|---|---|
| Model | Element |
| Supply Voltage | 120 V / 240 V, 50 / 60 Hz |
| Maximum Load | 15 A (resistive) |
| Power Output | 1800 W @ 120 V / 3600 W @ 240 V |
| GFCI Protection | Class A (5 mA trip level) |
| Approvals | UL C/US |
| Warranty | Manufacturer’s limited 3-year warranty |
Nuheat® Element provides basic temperature control and electrical protection for Nuheat floor heating systems.
