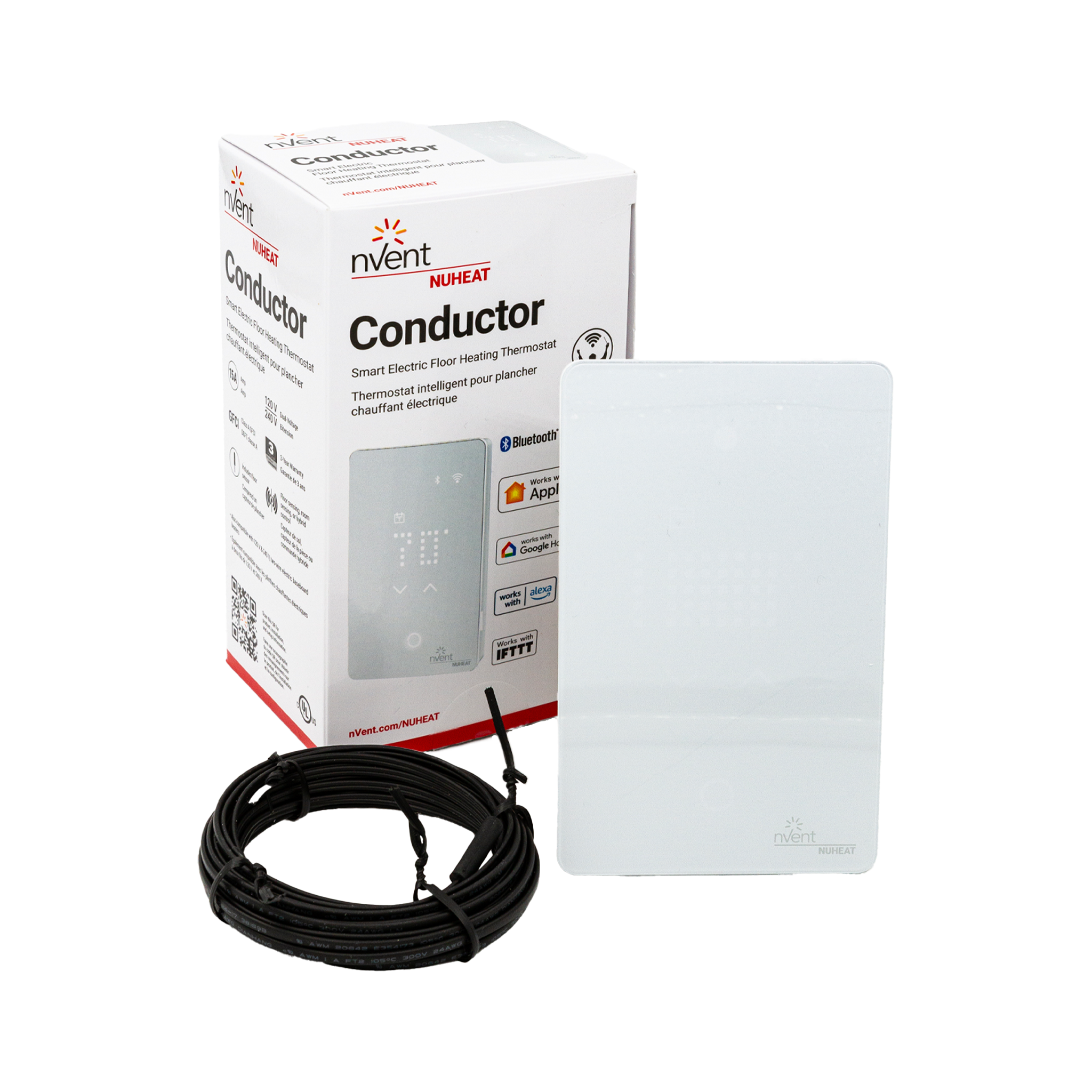

Nuheat Conductor Smart Electric Floor Heating Thermostat
Fast Shipping
Easy Returns
Secure Checkout
At a Glance
Quick Decision Guide
Voltage
120/208/240 V
Maximum Load
15 A
Maximum Power
3600 W at 240 V
GFCI
Built-In Class A, 5 mA
Sensing
Floor, Room or Hybrid
Connectivity
2.4 GHz Wi-Fi & Bluetooth 4.2
Temperature Range
41°F to 104°F
Floor Sensor
Included
Why Choose This Product
Key Benefits
Smart Connectivity
Wi-Fi and Bluetooth support connected control and mobile setup
Flexible Sensing
Operates with floor, room or hybrid temperature sensing
Adaptive Control
Auto-Adaptive Scheduling and Early Start manage heating operation
Floor Protection
Preset maximum temperatures for tile, laminate, vinyl and wood
Built-In GFCI
Class A 5 mA protection is integrated into the thermostat
System Compatibility
Controls 120 V, 208 V and 240 V electric floor heating systems
Product Information
Product Details
Specifications
Brand
Nuheat®
Part Number
2000005250
UPC
715629422668
Product Type
Smart Electric Floor Heating Thermostat
Model
CONDUCTOR
Supply Voltage
120/208/240 Vac, 50/60 Hz
Maximum Load
15 A Resistive
Maximum Power
1800 W at 120 V; 3120 W at 208 V; 3600 W at 240 V
GFCI
Built-In Class A, 5 mA Trip Level
Temperature Range
41°F to 104°F
Sensing
Floor, Room or Hybrid
Floor Sensor
Included
Wi-Fi
IEEE 802.11 b/g/n, 2.4 GHz
Bluetooth
Version 4.2
Certification
cULus Listed
Warranty
3-Year Limited
About This Product
Smart Control for Electric Floor Heating
The Nuheat® Conductor is a smart thermostat for controlling 120 V, 208 V, and 240 V electric underfloor heating systems. It supports floor sensing, room sensing, or hybrid control and includes a floor sensor for temperature management based on the installation.
Wi-Fi, Bluetooth and Mobile Setup
Built-in 2.4 GHz Wi-Fi provides connected control and over-the-air updates, while Bluetooth® allows mobile device setup without requiring Wi-Fi during setup. The Conductor works with Nuheat iOS and Android apps and supports smart home integrations and an open API for compatible custom integrations.
Adaptive Heating Features
Auto-Adaptive Scheduling, Early Start, Open Window Detection, and Vacation Mode provide additional control over heating operation. These features help the thermostat manage scheduled heating and respond to changing room conditions without requiring constant manual adjustment.
Temperature Control for Different Flooring
Maximum temperature presets are available for tile and stone up to 104°F, laminate and vinyl up to 82°F, and wood up to 80°F. A custom temperature limit can also be selected when the installation requires a different setting.
Electric Floor and Baseboard Heating Compatibility
The Conductor is designed for 120 V, 208 V, and 240 V electric underfloor heating and is also compatible with two-wire electric baseboard heaters within its electrical ratings. The thermostat supports a maximum 15 A resistive load and up to 3600 W at 240 V.
Built-In GFCI and Certified Protection
A built-in Class A GFCI with a 5 mA trip level provides integrated protection for electric floor heating installations. The thermostat is cULus Listed and backed by a 3-year limited warranty.
Common Questions
Frequently Asked Questions
What voltage does the Nuheat Conductor support?
The Conductor supports 120 V, 208 V, and 240 V electric heating systems with a maximum resistive load of 15 A.
Does the Nuheat Conductor include a floor sensor?
Yes. A floor sensor is included, and the thermostat can operate using floor sensing, room sensing, or hybrid control.
Does the Conductor have built-in GFCI protection?
Yes. It includes a built-in Class A GFCI with a 5 mA trip level.
Can the Nuheat Conductor connect to Wi-Fi?
Yes. The thermostat supports 2.4 GHz Wi-Fi and Bluetooth 4.2. Bluetooth can be used for mobile device setup without requiring Wi-Fi during setup.
Does the Conductor have temperature limits for different flooring?
Yes. Maximum temperature presets include 104°F for tile and stone, 82°F for laminate and vinyl, and 80°F for wood. A custom setting is also available.
Can the Conductor control electric baseboard heaters?
Yes. In addition to electric underfloor heating, it is compatible with 120 V, 208 V, and 240 V two-wire electric baseboard heaters within its electrical ratings.
What smart heating features are included?
The Conductor includes Auto-Adaptive Scheduling, Early Start, Open Window Detection, and Vacation Mode.
