At a Glance
Quick Decision Guide
Guide Length
12"
Package Quantity
12 Guides
Installation Use
Direct-to-Subfloor Heating Cable Installation
Membrane Required
No
Fastening Options
Hot Glue, Staples, Nails or #6 × 1/2" Screws
Fasteners per Guide
3–4
Stabilizing Guide Spacing
Every 3–4 ft
Custom Layouts
Can Be Cut for Walls, Curves & Irregular Areas
Why Choose This Product
Key Benefits
Cable Positioning
Holds Nuheat heating cable securely during installation
Consistent Spacing
Guides snap together to maintain the planned cable layout
Flexible Installation
Can be cut into smaller sections for walls and curves
Multiple Fastening Methods
Installs with hot glue, staples, nails or screws
Self-Leveler Support
Helps keep heating cable positioned during self-leveling applications
Direct-to-Subfloor Use
Supports cable installations without a membrane system
Product Information
Product Details
Specifications
Brand
Nuheat®
Part Number
AC0038
UPC
620713031018
Product Type
Heating Cable Guide
Guide Length
12"
Anvil Width
1"
Package Quantity
12 Guides
Installation Method
Direct to Subfloor
Heating Cable Compatibility
Nuheat Cable
Fastening Options
Hot Glue, Staples, Nails or #6 × 1/2" Screws
Fasteners Required
3–4 per Guide
Stabilizing Guide Spacing
Every 3–4 ft
Cuttable
Yes
About This Product

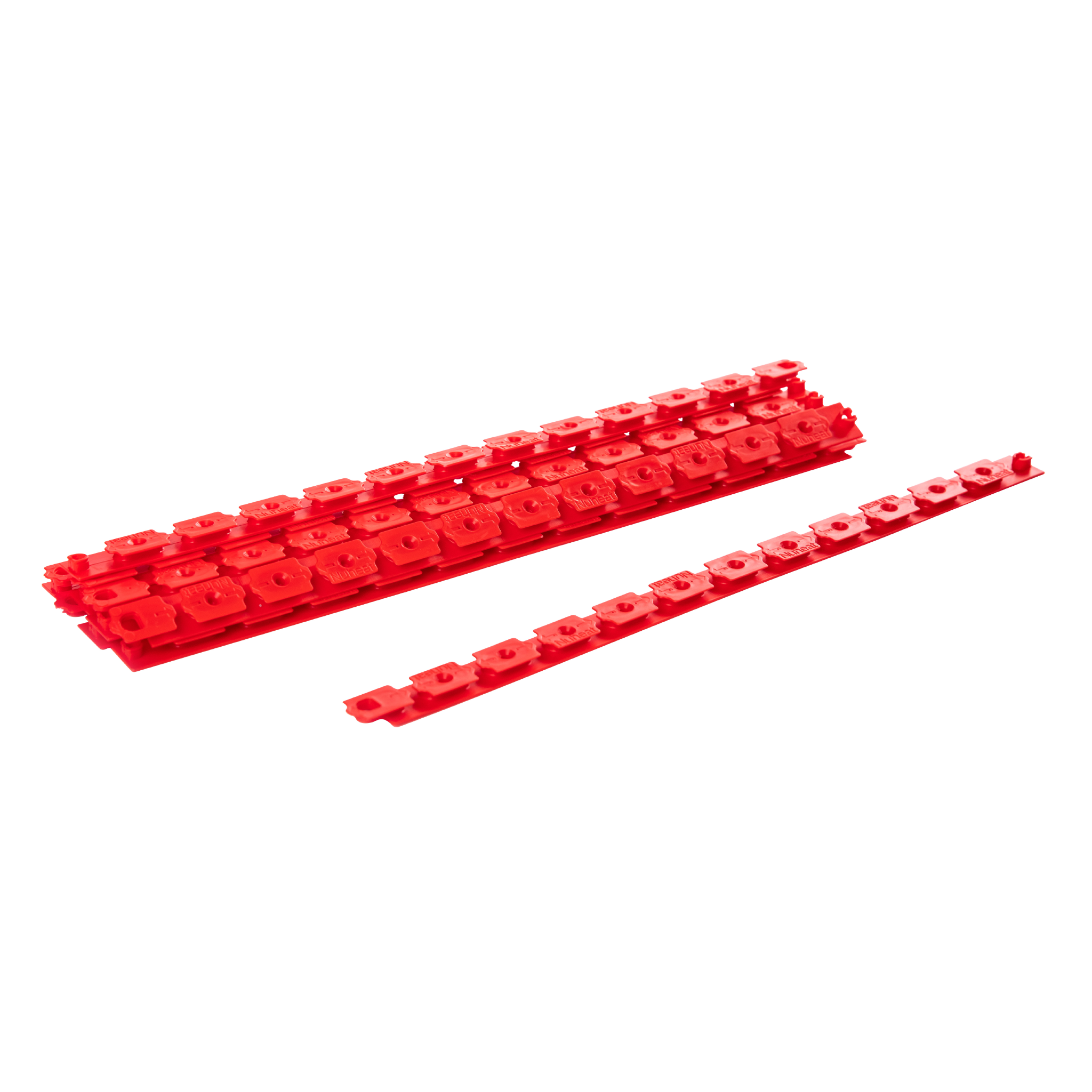

Secure Heating Cable Directly to the Subfloor
Nuheat® Cable Guides secure Nuheat heating cables directly to the subfloor for electric floor heating installations that do not use a membrane system. The guides snap together to maintain cable spacing according to the planned heating layout.
Stable Cable Placement During Installation
The guides hold heating cable in position during installation and while applying self-leveling materials. Each 12" guide can be fastened with hot glue, staples, nails, or #6 × 1/2" screws.
Adjustable for Walls, Curves and Custom Layouts
Nuheat Cable Guides can be cut into smaller sections to accommodate walls, curves, and other layout requirements. Stabilizing guides are typically placed every 3–4 ft to help maintain the cable layout across the installation area.
Common Questions
Frequently Asked Questions
What are Nuheat Cable Guides used for?
Nuheat Cable Guides secure Nuheat heating cables directly to the subfloor and help maintain the required cable spacing during installation.
Are Nuheat Cable Guides used with a membrane system?
They are designed for Nuheat Cable installations where the heating cable is secured directly to the subfloor without a membrane system.
How are Nuheat Cable Guides fastened to the subfloor?
The guides can be fastened using hot glue, staples, nails, or #6 × 1/2" screws. Nuheat specifies approximately 3–4 fasteners per guide.
Can Nuheat Cable Guides be cut?
Yes. The guides can be cut into smaller sections to accommodate walls, curves, and other custom layout requirements.
How many Nuheat Cable Guides are included?
Each package contains 12 guides.
