RUBI TRILLER Tile Vibrator
Fast Shipping
Easy Returns
Secure Checkout
At a Glance
Quick Decision Guide
Primary Use
Large-Format Tile & Porcelain Sheet Installation
Recommended Format
Porcelain Sheets Over 118" x 40"
Vibration Speed
2,940 RPM
Power Supply
110-130V, 50/60Hz
Weight
10.58 lbs
Chassis
Floating Carbon Steel
Contact Base
Replaceable & Non-Marking
Membrane Use
Uncoupling & Waterproofing Membranes
Why Choose This Product
Key Benefits
Improved Adhesion
Helps eliminate trapped air between tile and adhesive
Large-Format Installation
Designed for large porcelain tile and sheet installation
Reduced Operator Vibration
Floating chassis limits vibration transferred to the user
Vertical Surface Use
Compact 10.58 lb design supports vertical and elevated work
Membrane Installation
Helps embed uncoupling and waterproofing membranes
Non-Marking Base
Contact surface protects tile and can be replaced when worn
Product Information
Product Details
Specifications
Brand
RUBIĀ®
Part Number
18978
UPC
8413797189780
Product Type
Tile Vibrator
Primary Application
Large-Format Tile & Porcelain Sheet Installation
Recommended Tile Format
Over 118" x 40"
Vibration Speed
2,940 RPM
Power Supply
110-130V, 50/60Hz
Chassis Material
Carbon Steel
Chassis Design
Floating with Vibration Reduction
Contact Base
Non-Marking & Replaceable
Membrane Compatibility
Uncoupling & Waterproofing Membranes
Dimensions
11-1/2" x 9-1/2" x 7-1/4"
Weight
10.58 lbs
About This Product
Tile Vibration for Improved Adhesive Coverage

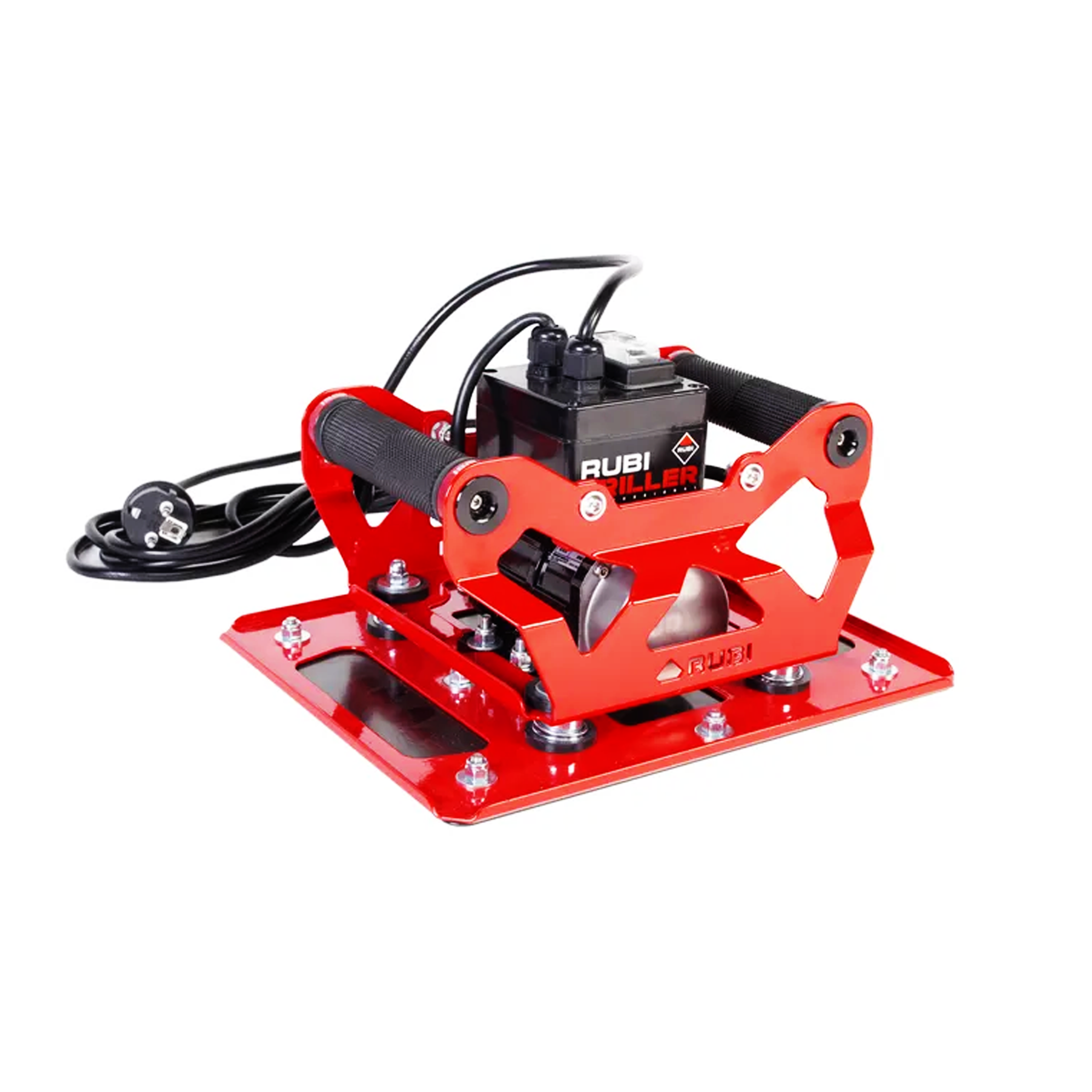

The RUBIĀ® TRILLER Tile Vibrator is a compact vibration device designed to help remove trapped air between tile and adhesive for improved contact and adhesion. It is particularly suited for installing large-format porcelain tile and porcelain sheets.
Large-Format Tile and Sheet Installation
The TRILLER is recommended especially for porcelain sheets larger than 118" x 40". It can also be used to help properly embed uncoupling and waterproofing membranes into adhesive.
Reduced Vibration for Vertical Installation
A floating carbon steel chassis incorporates a vibration reduction system that limits vibration transferred back to the operator. The compact design and 10.58 lb weight make the tool suitable for vertical surfaces and work at height.
Replaceable Non-Marking Contact Base
The contact base is designed to vibrate against ceramic tile without leaving marks and can be replaced when worn.
Common Questions
Frequently Asked Questions
What is the RUBI TRILLER Tile Vibrator used for?
The RUBI TRILLER is used to vibrate installed tile to help remove trapped air between the adhesive and the back of the tile, improving adhesive contact and adhesion.
What tile sizes is the RUBI TRILLER recommended for?
It is primarily recommended for large-format porcelain sheets, especially formats larger than 118" x 40".
Can the RUBI TRILLER be used on vertical tile installations?
Yes. Its compact design and 10.58 lb weight make it suitable for use on vertical surfaces and work at height.
Can the TRILLER be used for uncoupling and waterproofing membranes?
Yes. The TRILLER can be used to help properly embed uncoupling and waterproofing membranes into adhesive.
Will the RUBI TRILLER mark the tile surface?
The contact base is designed not to leave marks on ceramic tile and can be replaced when worn.
How fast does the RUBI TRILLER vibrate?
The TRILLER operates at 2,940 RPM.
