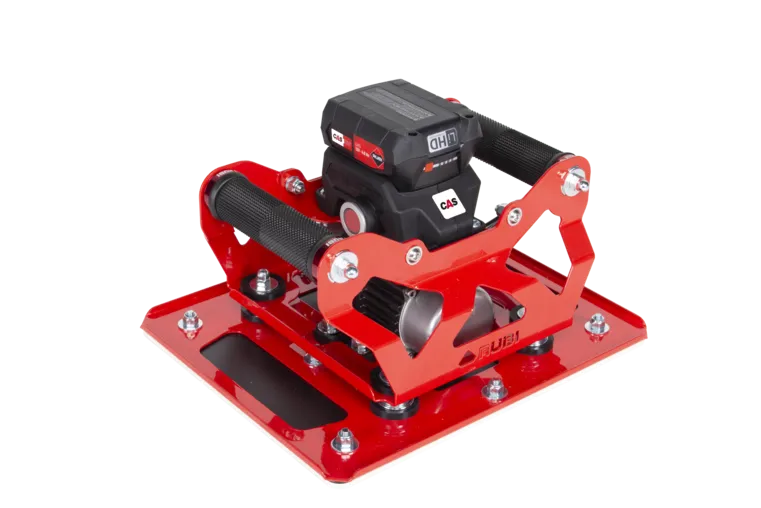

The RUBI® Triller Energy CAS is a compact, battery-powered tile vibrator designed for vibrating large-format ceramic sheets during installation. It helps release trapped air beneath the tile surface to improve adhesive wetting and support consistent bedding.
The lightweight design and floating chassis allow controlled vibration on both floor and wall installations, supporting use on horizontal and vertical surfaces without marking the tile.
Key Features
- Battery-Powered Tile Vibrator: Designed for vibrating large-format ceramic tiles during installation.
- Improves Adhesive Wetting: Helps expel trapped air beneath tiles to support even adhesive coverage.
- Floor and Wall Compatible: Suitable for both vertical and horizontal tile applications.
- Compact and Lightweight Design: Weighs approximately 13 lb (5.8 kg) to support handling on vertical surfaces.
- Floating Carbon Steel Chassis: Designed with vibration reduction to improve user comfort during operation.
- Non-Marking Vibration Plate: PUR plastic contact plate designed to protect tile surfaces and allow easy replacement.
- Ergonomic Double Grip: Supports controlled handling during use.
- Adjustable Vibration Speed: Speed regulator allows adaptation to different materials and substrates.
- Integrated Safety Systems: Includes circuit breaker protection and RUBI BMS battery management system.
Specifications
| Specification | Details |
|---|---|
| Type | Manual battery-powered tile vibrator |
| Weight | 13 lb (5.8 kg) |
| Power Source | 12V Li-HD battery |
| Battery Capacity | 4Ah |
| Battery Platform | RUBI CAS (12V compatible) |
| Chassis | Carbon steel, powder coated |
The RUBI® Triller Energy CAS supports controlled vibration during large-format tile installation to help achieve consistent adhesive coverage on floor and wall applications.
