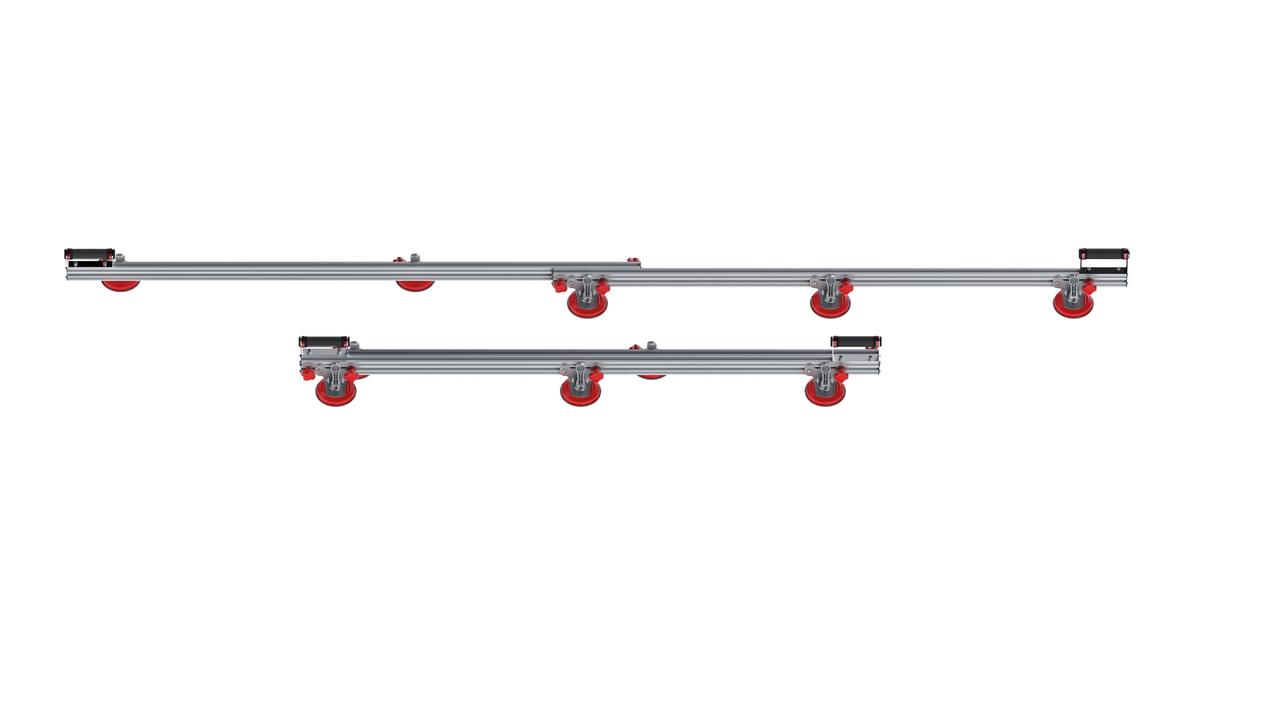

The RUBI SLIM EASYTRANS transport system is designed for handling large-format porcelain sheets up to 126 inches in length. The adjustable aluminum guides and multiple suction cups support secure movement of thin and flexible sheet materials. The system can be paired with RUBI cutting solutions, including the SLIM CUTTER and TC-125, for full-sheet installation workflows.
Key Features
- Large-Format Handling: Supports porcelain sheets up to 126 inches (320 cm) in length.
- Adjustable Guide System: Extruded aluminum guides extend from 63 to 126 inches.
- Ten Suction Cups: Adjustable positioning points help secure smooth, rough, or lightly textured surfaces.
- Repositionable Handles: Four handles can be moved along the guides for balanced lifting.
- Load Capacity: Supports 132 lbs standard and up to 242 lbs with additional suction cups.
- Compatible Tools: Works with RUBI SLIM CUTTER and TC-125 cutting systems.
Specifications
| Specification | Details |
|---|---|
| Max Sheet Length | 126 in (320 cm) |
| Guide Range | 63 in to 126 in |
| Number of Suction Cups | 10 adjustable suction cups |
| Handles | 4 repositionable handles |
| Standard Load Capacity | 132 lbs (60 kg) |
| Maximum Load Capacity | 242 lbs (110 kg) with added cups |
The RUBI SLIM EASYTRANS system provides adjustable support for transporting large-format porcelain sheets using suction-based securing points and repositionable guides.
