RUBI Angle Tile Gap Regulator
Fast Shipping
Easy Returns
Secure Checkout
At a Glance
Quick Decision Guide
Gap Adjustment
0" to 1.57"
Height Adjustment
0" to 1.57"
Positioning Angles
90Ā°, 180Ā° & 270Ā°
Suction Cup Diameter
6"
Maximum Lifting Capacity
220 lbs.
Tile Compatibility
Flat, Rough & Structured Surfaces
Application
Floor & Wall Tile Installation
Recommended Use
In Pairs
Why Choose This Product
Key Benefits
Precise Tile Positioning
Controls spacing and alignment between large format tiles
Multi-Angle Adjustment
Positions tiles at 90Ā°, 180Ā° and 270Ā°
Lateral & Height Control
Provides up to 1.57" of adjustment
Multi-Surface Grip
Vacuum suction cups work on flat, rough and structured tile
Smooth Adjustment
Screw and knob provide controlled tile movement
High Lifting Capacity
Supports loads up to 220 lbs.
Product Information
Product Details
Specifications
Brand
RUBIĀ®
Part Number
03995
UPC
8413797039955
Product Type
Tile Gap Regulator
Gap Adjustment Range
0" to 1.57"
Height Adjustment Range
0" to 1.57"
Positioning Angles
90Ā°, 180Ā° & 270Ā°
Suction Cup Diameter
6"
Suction Cup Quantity
2
Compatible Tile Surfaces
Flat, Rough & Structured
Maximum Lifting Capacity
220 lbs.
Recommended Use
In Pairs
Material
Steel, Plastic & Rubber
Dimensions
19" Ć 5-7/8" Ć 4-3/4"
Included Tools
6 mm Allen Key, 10 mm Allen Key & 17 mm Open Hex Key
About This Product
Precise Large Format Tile Positioning

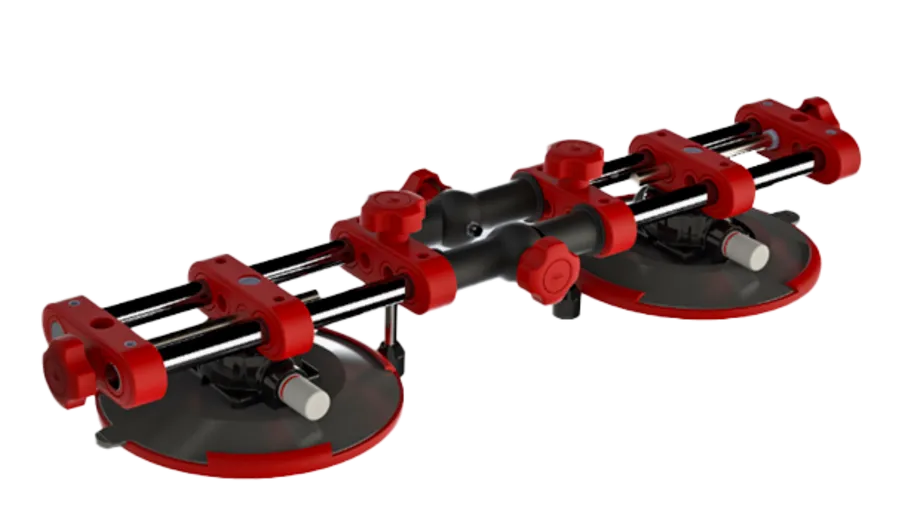

The RUBIĀ® Angle Tile Gap Regulator provides controlled adjustment of spacing and alignment between large format tiles during floor and wall installations. It supports lateral tile movement and gap reduction from 0" to 1.57" while also allowing height adjustment within the same range.
Adjustable Tile Alignment at Multiple Angles
The regulator can be positioned and adjusted at 90Ā°, 180Ā°, and 270Ā° to accommodate different installation layouts. An adjustment screw with knob provides smooth, controlled movement for positioning and leveling adjacent tiles.
6" Suction Cups for Multiple Tile Surfaces
Two 6" vacuum suction cups grip flat, rough, and structured tile surfaces and include release tabs for removal. The regulator provides a maximum lifting capacity of 220 lbs. and is recommended for use in pairs.
Common Questions
Frequently Asked Questions
What is the RUBI Angle Tile Gap Regulator used for?
It is used to adjust spacing, alignment, and height between large format tiles during floor and wall installations.
How much tile spacing can the regulator adjust?
It provides lateral adjustment and gap reduction from 0" to 1.57".
Can the regulator adjust the height of adjacent tiles?
Yes. It provides 0" to 1.57" of height adjustment to help bring adjacent tiles to the same level.
What positioning angles does the regulator support?
The regulator can be positioned and adjusted at 90Ā°, 180Ā°, and 270Ā°.
Will the suction cups work on textured tile?
Yes. The 6" vacuum suction cups are designed for flat, rough, and structured tile surfaces.
What is the maximum lifting capacity?
The regulator has a maximum lifting capacity of 220 lbs.
Should RUBI Angle Tile Gap Regulators be used in pairs?
Yes. RUBI recommends using the regulators in pairs when positioning and adjusting tiles.
