HYDRO-BLOK Curbless Shower Recess Installation Kit

Name: HYDRO-BLOK Curbless Shower Recess Installation Kit
Brand: HYDRO-BLOK
SKU: HB-FLOOR-LOWER-KIT-HBFLJCK
Price: 172.4 USD
Availability: InStock

For Recessed Curbless Shower Floor Construction

$0.00 - $0.00

$0.00

$172.40

$172.40 - $172.40

$172.40

HYDRO-BLOK | MPN: HBFLJCK

Free Shipping Eligible

Availability:

Only 2 left!

Curbless Shower Recess Installation Kit Specifications

Maximum Coverage Area: 60" x 60"
Bracket Spacing: 36 in on center
Compatible Joist Types: I-joists and dimensional lumber
Deflection Rating: L/360 or better

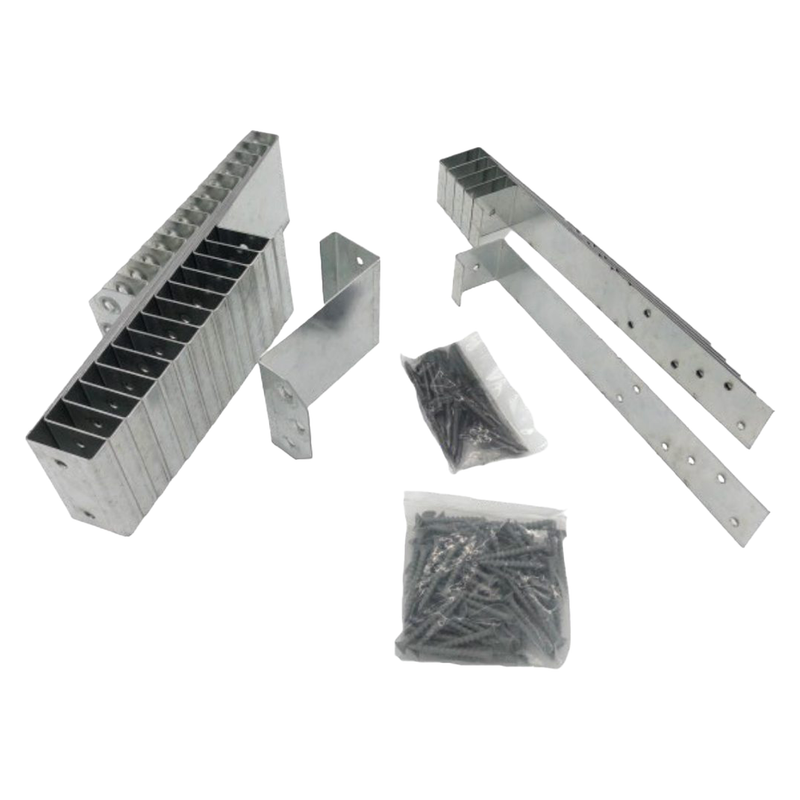

Included Components: 15 joist brackets, 6 wall brackets, 81 wood screws, 36 joist hanger nails
Application: Recessed support system for curbless shower installations

Quantity

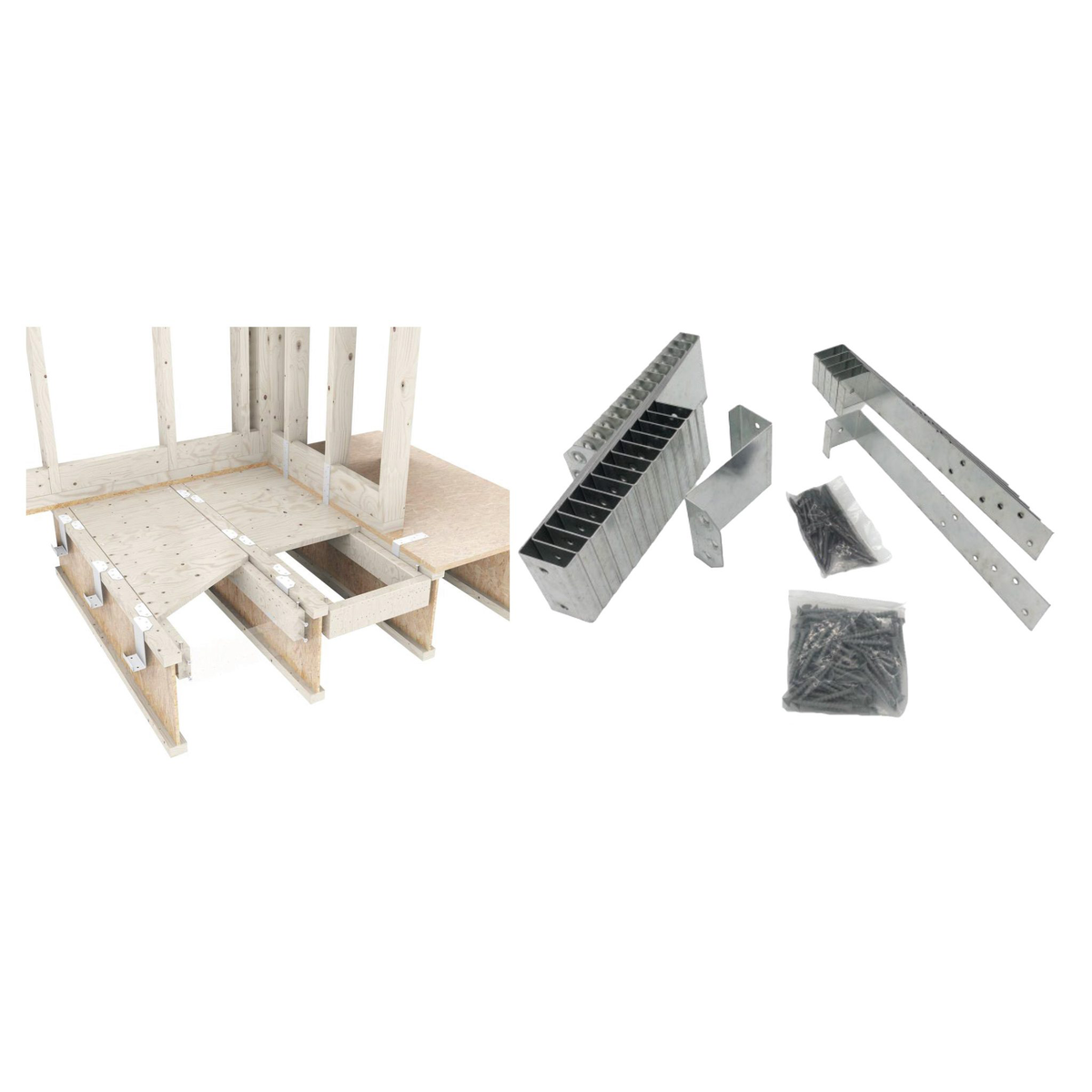

The HYDRO-BLOK® Curbless Shower Recess Installation Kit is designed to create recessed floor areas for curbless shower installations. It integrates with HYDRO-BLOK® shower pans and is compatible with I-joists and dimensional lumber framing.

Key Features

Curbless Shower Recess Design: Creates a recessed floor area for barrier-free shower installations.
HYDRO-BLOK Compatibility: Designed for use with HYDRO-BLOK® single slope shower pans.
Framing Compatibility: Works with I-joists and dimensional lumber.
Adjustable Brackets: Allows placement across different framing layouts.
24 Sq Ft Capacity: Supports recessed shower areas up to 60" x 60".
L/360 Deflection Rating: Designed to meet L/360 or better deflection requirements.

Best For

Curbless shower installations
Barrier-free shower entry systems
Residential and commercial shower construction
HYDRO-BLOK shower pan installations

Why Professionals Choose Tile This

Free shipping on eligible orders $200+
Same-day shipping before 2 PM CST (Mon–Sat) for in-stock items
Eligible for our Contractor Pricing Program
Authorized Hydro-Blok Dealer

HYDRO-BLOK Curbless Shower Recess Installation Kit $172.40

Description

The HYDRO-BLOK® Curbless Shower Recess Installation Kit is designed to create recessed floor areas for curbless shower installations. It is compatible with HYDRO-BLOK® single slope shower pans and supports recessed shower areas up to 60" x 60".

The kit includes adjustable brackets, fasteners, and installation hardware for use with I-joists or dimensional lumber framing. It is designed to meet L/360 or better deflection requirements under standard load conditions.

Specifications

Specification	Details
Maximum Coverage	60" x 60"
Bracket Spacing	36" on center
Joist Brackets Included	15
Wall Brackets Included	6
Wood Screws Included	81
Joist Hanger Nails Included	36
Joist Type	I-joists or dimensional lumber
Deflection Rating	L/360 or better

Frequently Asked Questions

Is this kit compatible with HYDRO-BLOK shower pans?

Yes. The HYDRO-BLOK® Curbless Shower Recess Installation Kit is designed for use with HYDRO-BLOK® single slope shower pans.

What framing types can this kit be installed with?

The kit is compatible with I-joists and dimensional lumber framing systems.

How much shower area can this kit support?

The kit is designed for recessed shower areas up to 60" x 60".

What hardware is included?

The kit includes joist brackets, wall brackets, wood screws, and joist hanger nails.
