BIHUI Mitre Jolly Cutting System
Fast Shipping
Easy Returns
Secure Checkout
At a Glance
Quick Decision Guide
Power Output
1400W
Variable Speed
3,000–10,000 RPM
Cutting Angle
45°–48°
Blade Capacity
4-1/2" & 5"
Voltage
110V / 60Hz
Spindle Thread
5/8"-11
Dust Collection
Integrated Vacuum Port
Included Case
Padded Carrying Case
Why Choose This Product
Key Benefits
Guided Beveling
Frame maintains a consistent angle along the material edge

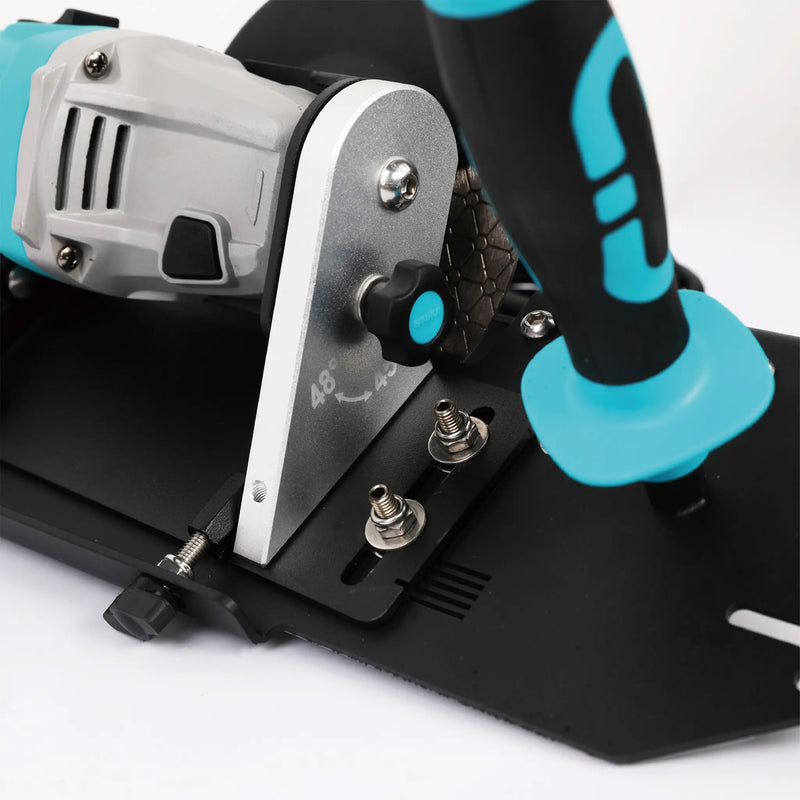

Adjustable Cutting Angle
Supports bevel cuts from 45° to 48°
Long-Format Capability
Cutting length is not restricted by a fixed rail
Material Capacity
Accommodates tile and stone up to 19 mm thick
Variable-Speed Control
Six grinder settings adapt operation to the material
Dust Management
32 mm port supports connection to a compatible vacuum
Surface Protection
Cushion strip helps protect the tile as the guide moves
Complete Portable System
Includes grinder, frame, blade and padded case
Product Information
Product Details
Specifications
Brand
BIHUI®
Part Number
LFMBA
UPC
6973702584083
Product Type
Guided Mitre Jolly Cutting System
Included Grinder
BIHUI AG1400A 5" Variable-Speed Angle Grinder
Voltage
110V / 60Hz
Grinder Power
1,400W
Speed Range
3,000–10,000 RPM
Speed Settings
Six
Grinder Spindle
5/8"-11
Grinder Features
Constant-speed control, soft start and power-off protection
Cutting Angle
45°–48°
Maximum Material Thickness
19 mm (3/4")
Maximum Cutting Length
Not restricted by a fixed-length rail
Blade Size
5" (125 mm)
Frame Construction
Stainless steel with cushion strip
Frame Compatibility
M14 and 5/8"-11 angle grinders
Dust Port
32 mm
System Weight
5.2 kg (11.5 lb)
Included Components
Angle grinder, cutting frame, cushioned guide, diamond blade and padded carrying case
About This Product

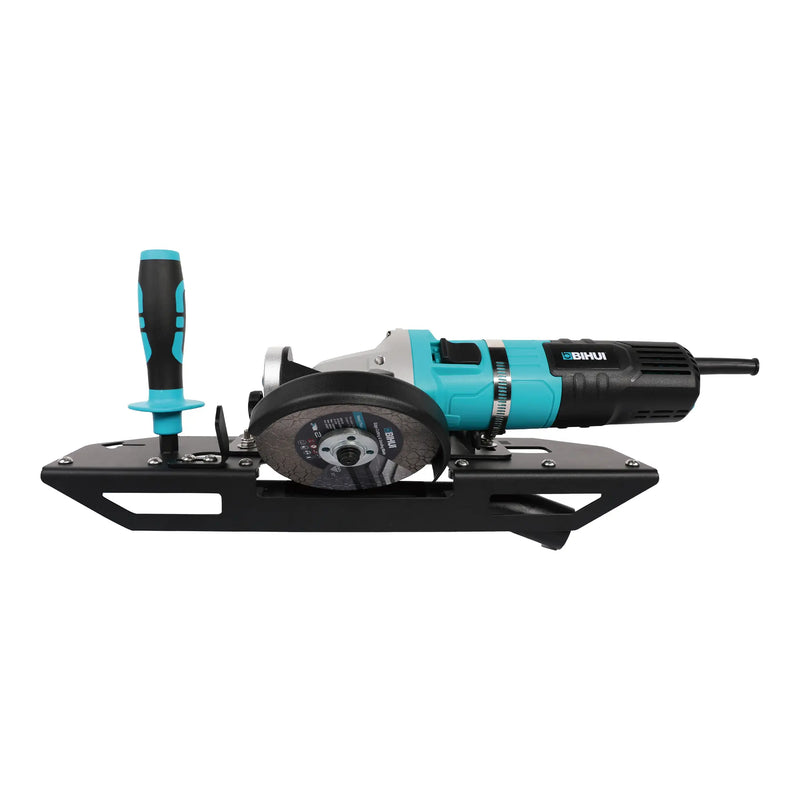

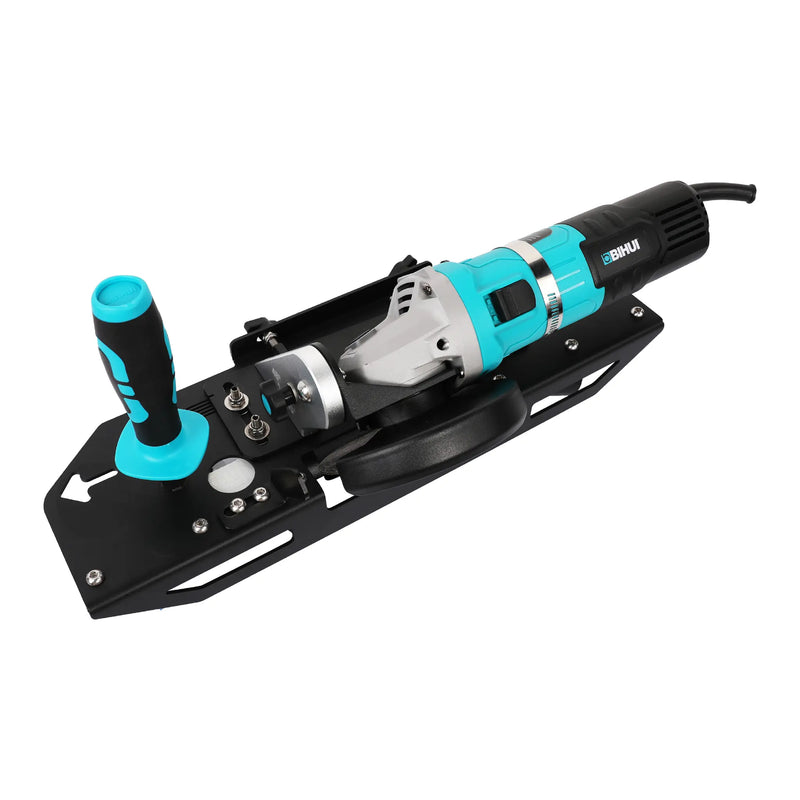

Guided Mitre Cutting System for Tile and Stone
The BIHUI® Mitre Jolly Cutting System combines a 5" variable-speed angle grinder with a stainless steel guide frame for producing controlled bevel cuts on tile and natural stone. The guide adjusts from 45° to 48° and accommodates materials up to 19 mm (3/4") thick.

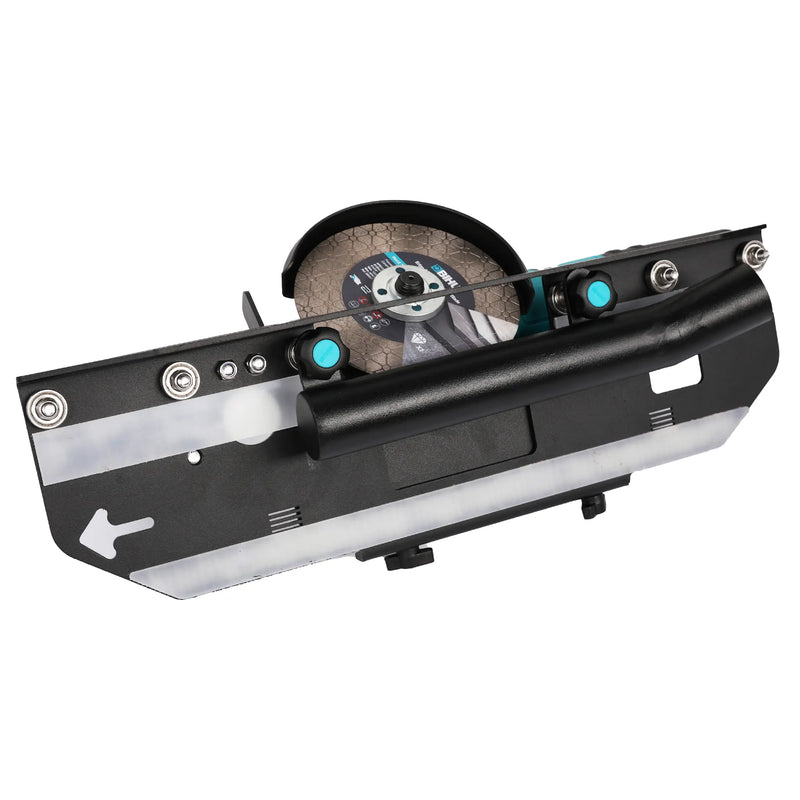

Stainless Steel Guide for Long, Consistent Cuts
The guide frame maintains the cutting angle as it travels along the material edge. Because the system is not restricted by a fixed-length rail, it can follow long tile and slab edges without a specified maximum cutting length. An integrated cushion strip supports smooth movement while helping protect the tile surface.
1,400W Variable-Speed Angle Grinder
The included BIHUI AG1400A Angle Grinder operates on 110V / 60Hz power and provides six speed settings from 3,000 to 10,000 RPM. Constant-speed control and soft start support controlled operation, while the 5/8"-11 spindle accepts the included 5" (125 mm) diamond blade.

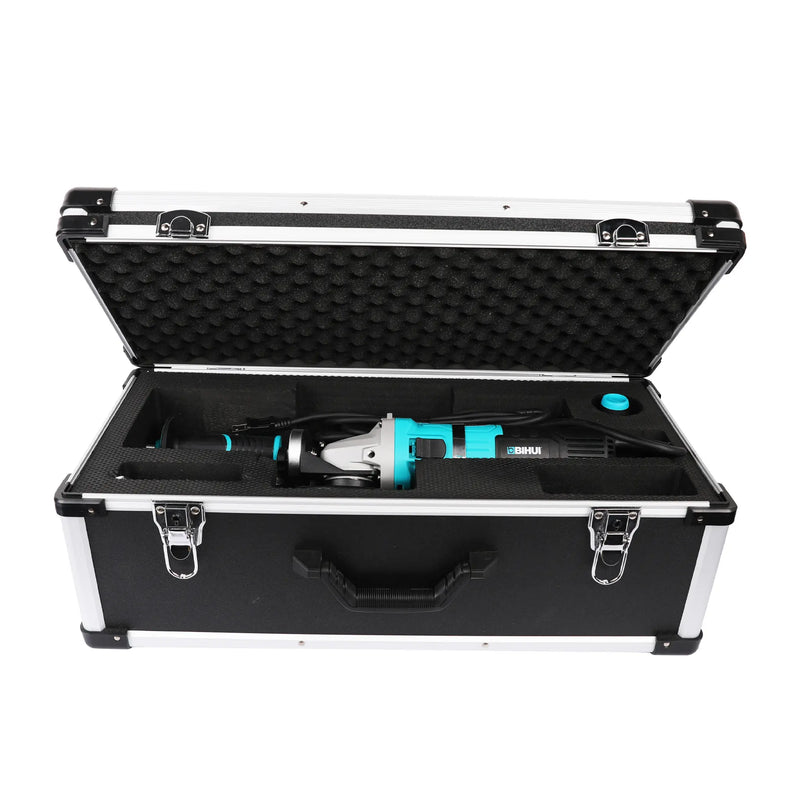

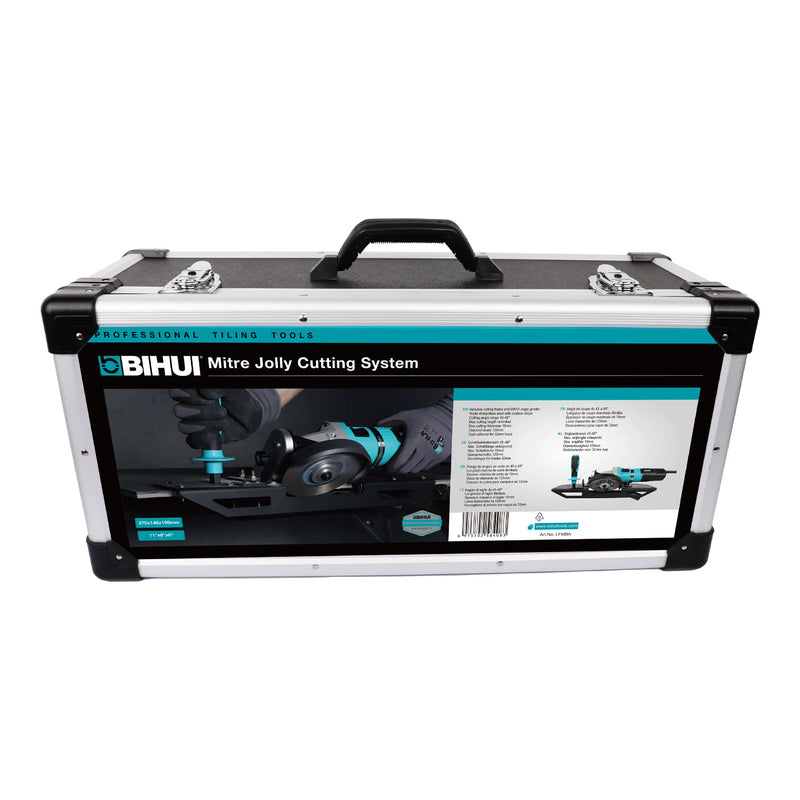

32mm Dust Port and Padded Carrying Case
A 32 mm dust port allows the guide frame to be connected to a compatible vacuum for dust collection at the cutting area. The complete system includes the angle grinder, stainless steel cutting frame, cushioned guide, 5" diamond blade, and padded carrying case for organized storage and transportation.
Common Questions
Frequently Asked Questions

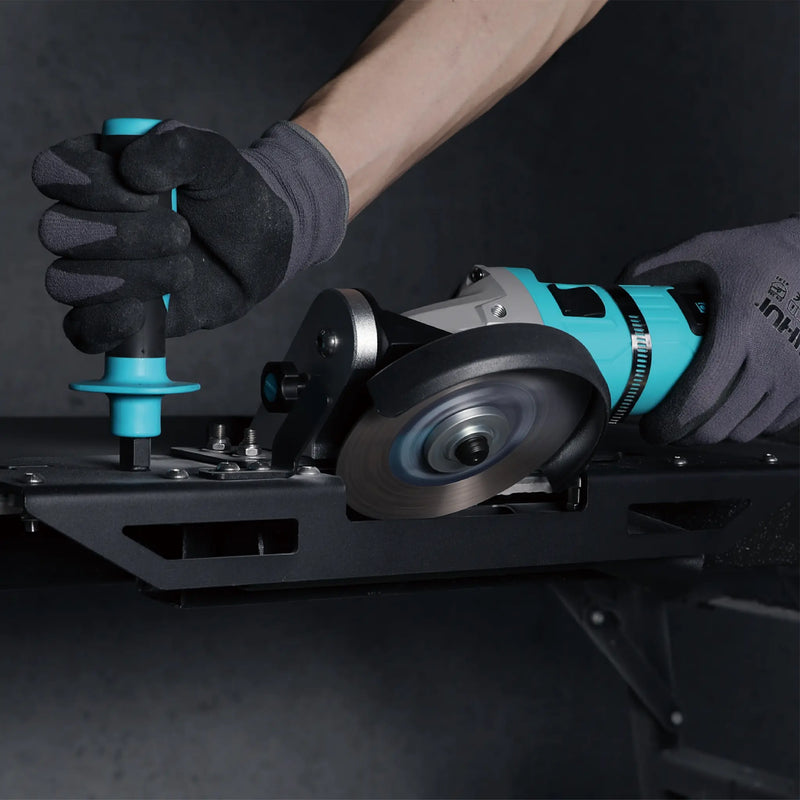

What is the BIHUI Mitre Jolly Cutting System used for?
The system guides an angle grinder along the edge of tile or natural stone to produce consistent bevels for mitered edge assemblies.
What cutting angles does the system support?
The stainless steel guide frame adjusts from 45° to 48°.
What is the maximum material thickness?
The system accommodates tile and stone up to 19 mm, or approximately 3/4", thick.
What is the maximum cutting length?
The system is not restricted by a fixed-length rail, allowing the guide to travel along long tile and slab edges.
What grinder is included with the LFMBA system?
The system includes a BIHUI AG1400A 5" Angle Grinder with a 1,400W motor and six speed settings from 3,000 to 10,000 RPM.
What blade size does the Mitre Jolly Cutting System use?
The system uses a 5" (125 mm) diamond blade, which is included with the kit.
Can a vacuum be connected to the cutting frame?
Yes. The frame includes a 32 mm dust port for connection to a compatible vacuum hose or dust collection system.
Can the frame be used with another angle grinder?
BIHUI lists the frame as suitable for M14 and 5/8"-11 angle grinders. The complete LFMBA system includes the 5/8"-11 BIHUI AG1400A Angle Grinder.
What is included with the BIHUI Mitre Jolly Cutting System?
The system includes a 5" variable-speed angle grinder, stainless steel cutting frame with cushion strip, 5" diamond blade, and padded carrying case.
