Nuheat Cable Kit with Home Thermostat
Fast Shipping
Easy Returns
Secure Checkout
At a Glance
Quick Decision Guide
Coverage
8 ft²
Voltage
120V
Cable Power
89W
Cable Length
29 ft
Heat Output
12–15 W/ft²
Thermostat
Nuheat Home
Programming
7-Day Programmable
Floor Sensor
Included
Why Choose This Product
Key Benefits
Complete Heating Kit
Combines Nuheat Cable, Home Thermostat and floor sensing probe
Customizable Layout
Free-form cable adapts to the dimensions of the heated area
Programmable Control
7-day thermostat scheduling for electric floor heating
Touchscreen Interface
3.5" color display provides system control and energy information
Built-In Protection
Home Thermostat includes Class A GFCI protection
Multiple Flooring Types
Compatible with tile, stone, laminate, engineered wood and luxury vinyl
Product Information
Product Details
Specifications
Brand
Nuheat®
Cable Model
N1C008
Product Type
Electric Floor Heating Cable Kit
Coverage
8 ft²
Voltage
120V
Cable Power
89W
Cable Current
0.74A
Cable Resistance
162 Ohms
Cable Length
29 ft
Heat Output
12–15 W/ft²
Cable Guides
12
Thermostat
Nuheat Home
Thermostat Part Number
AC0056
Thermostat Programming
7-Day
Display
3.5" Color Touchscreen
Sensing
Floor & Ambient Air
GFCI
Built-In Class A, 5 mA
Floor Sensing Probe
Included
About This Product

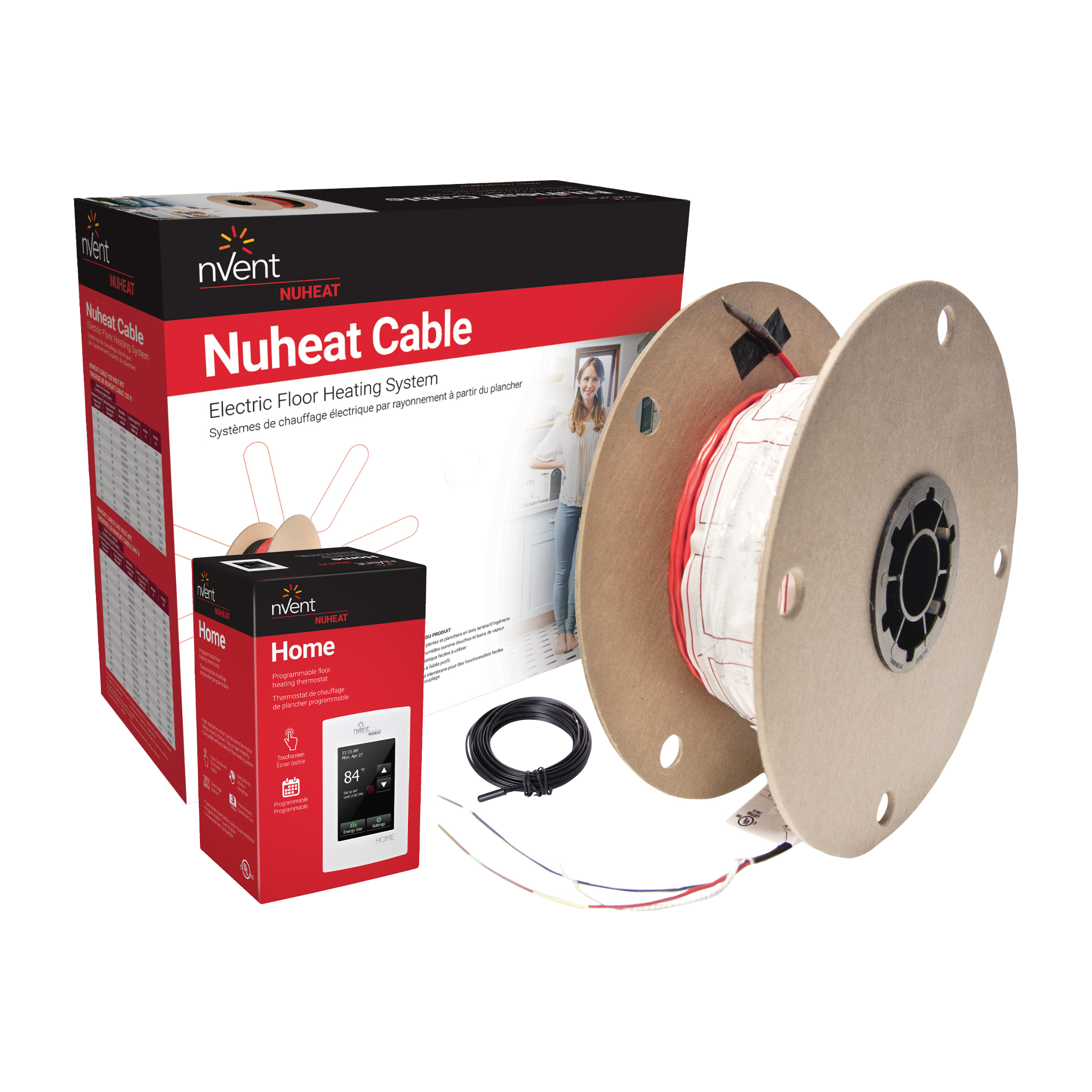

Complete Electric Floor Heating Cable Kit
The Nuheat® Cable Kit combines a free-form Nuheat heat cable, Nuheat Home Thermostat, and floor sensing probe into one complete electric floor heating package. The cable layout can be adjusted on site using cable guides, allowing installers to match the heated area more closely than a fixed-size mat system and provide approximately 12–15 W/ft² based on cable spacing.
Flexible Heat Cable for Custom Room Layouts
The Nuheat Cable system is designed for bathrooms, kitchens, and other spaces where the heated area may include corners, fixtures, cabinets, or irregular dimensions. The free-form cable can be routed around these areas while maintaining the required spacing, making it useful for custom radiant heating layouts where standard rectangular heating mats may not provide the right coverage.
Radiant Heating for Multiple Flooring Types
Nuheat Cable provides radiant floor heating beneath tile, stone, laminate, engineered wood, and luxury vinyl flooring. The system heats the finished floor surface from below and is available in multiple cable sizes for heated areas from 8 ft² to 240 ft².
120V and 240V Electric Floor Heating Options
Cable kits are available in both 120V and 240V configurations to accommodate different project sizes and electrical requirements. Each cable size has its own rated wattage, amperage, resistance, cable length, and coverage area, allowing the system to be selected based on the actual heated square footage and required voltage.
7-Day Programmable Floor Heating Thermostat
The included Nuheat Home Thermostat features a 3.5" color touchscreen with 7-day programmable control for the floor heating system. It supports both floor sensing and ambient air sensing and includes an energy use monitor for viewing heating system energy consumption.
Built-In Class A GFCI Protection
The Home Thermostat is compatible with both 120V and 240V systems and supports a maximum 15A resistive load. It provides up to 1,800W at 120V or 3,600W at 240V and includes built-in Class A GFCI protection with a 5 mA trip level.
Floor Sensing Probe Included
The included floor sensing probe allows the thermostat to monitor floor temperature directly for more precise radiant heating control. Combined with the programmable thermostat and adjustable heat cable layout, the kit provides the primary components needed to control and operate a Nuheat electric floor heating system.
Common Questions
Frequently Asked Questions
What is included with the Nuheat Cable Kit?
Each kit includes the selected Nuheat floor heating cable, a Nuheat Home 7-day programmable thermostat, and a floor sensing probe.
What flooring can the Nuheat Cable Kit be used with?
The system is suitable for electric floor heating beneath tile, stone, laminate, engineered wood, and luxury vinyl flooring.
How do I choose the correct Nuheat Cable Kit size?
Select the cable based on the area that will actually be heated and the required system voltage. Available cable sizes cover heated areas from 8 ft² to 240 ft².
Does the included thermostat work with both 120V and 240V cables?
Yes. The Nuheat Home Thermostat supports both 120V and 240V floor heating systems with a maximum resistive load of 15A.
What does the floor sensing probe do?
The floor sensing probe allows the Nuheat Home Thermostat to monitor floor temperature and control the electric floor heating system using floor sensing.
Does the Nuheat Home Thermostat include GFCI protection?
Yes. The thermostat includes built-in Class A GFCI protection with a 5 mA trip level.
Can the Nuheat Cable layout be adjusted during installation?
Yes. The free-form cable is installed using cable guides, allowing the layout and spacing to be adjusted on site for the dimensions of the heated area.
What is the maximum load of the Nuheat Home Thermostat?
The thermostat supports a maximum 15A resistive load, providing up to 1,800W at 120V or 3,600W at 240V.
