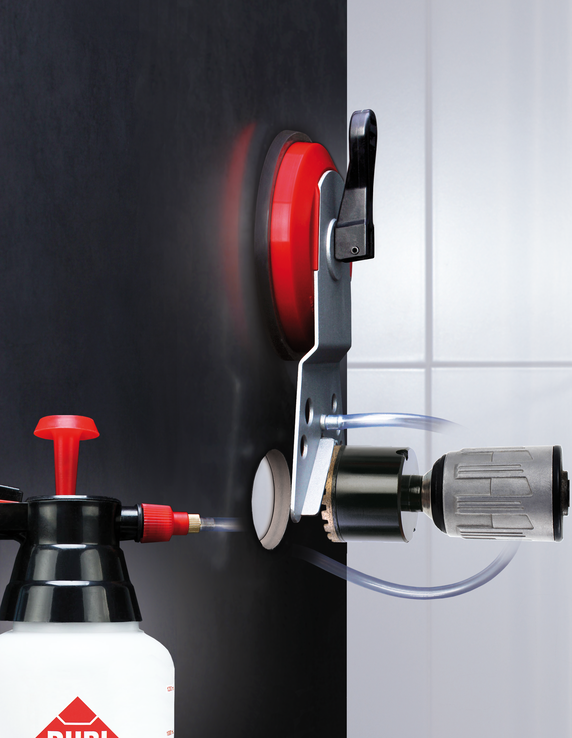

The RUBI FORAGRES Diamond Drill Bits Kit is intended for drilling holes in ceramic tile, porcelain tile, granite, and marble during installation work. The included guide, water tank, and pump support controlled, water-cooled drilling for clean hole edges and extended bit life. All drill bits must be used with a non-percussive power drill.
Key Features

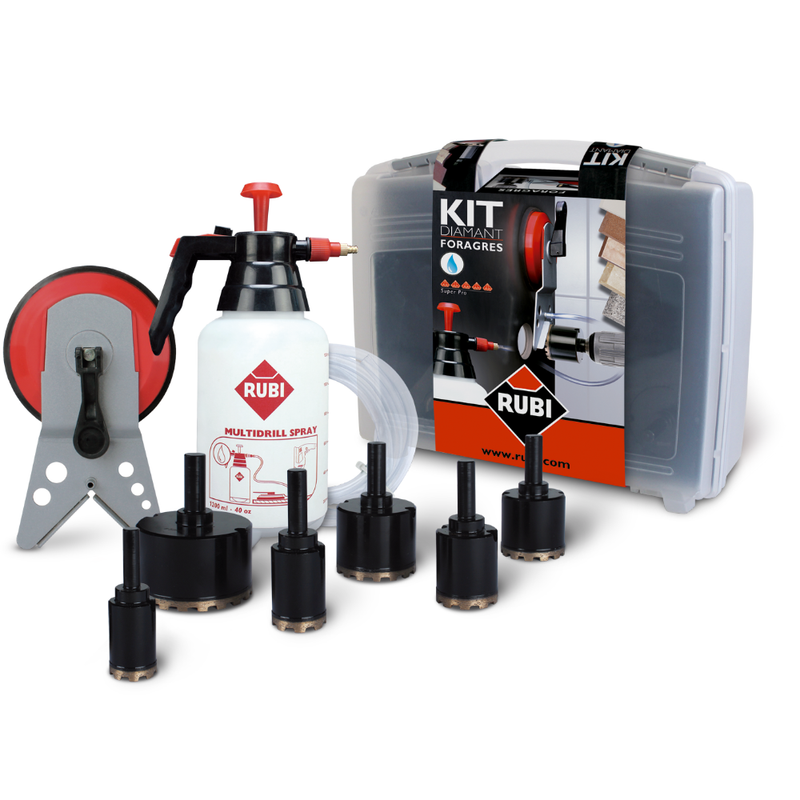

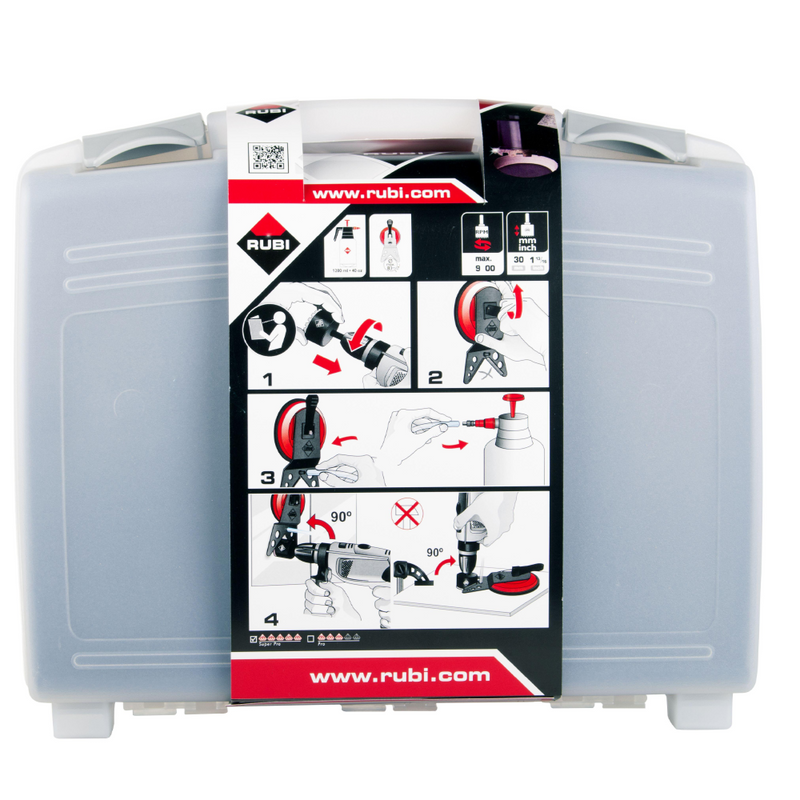

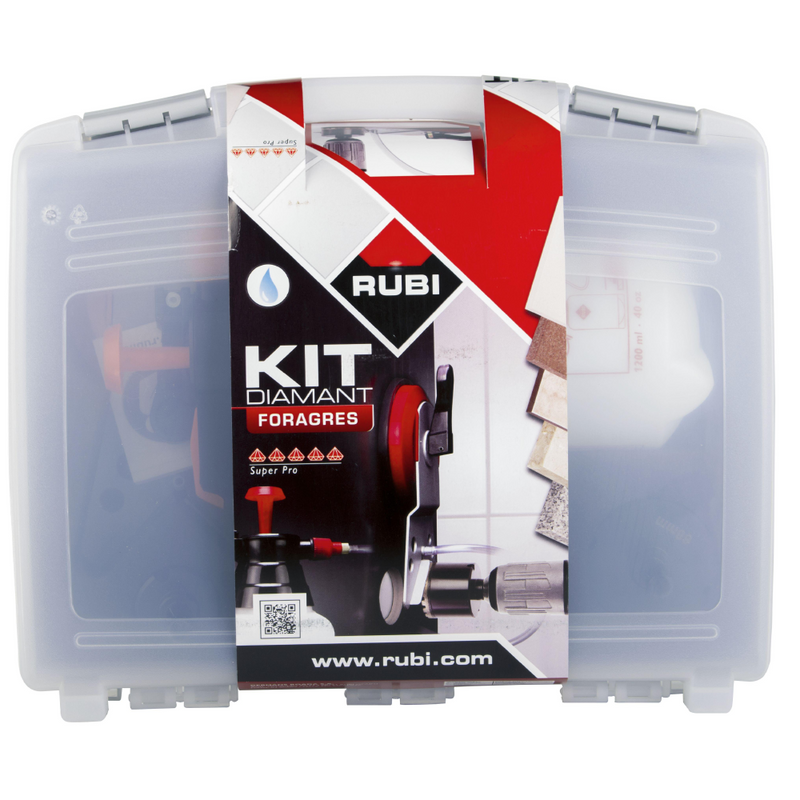

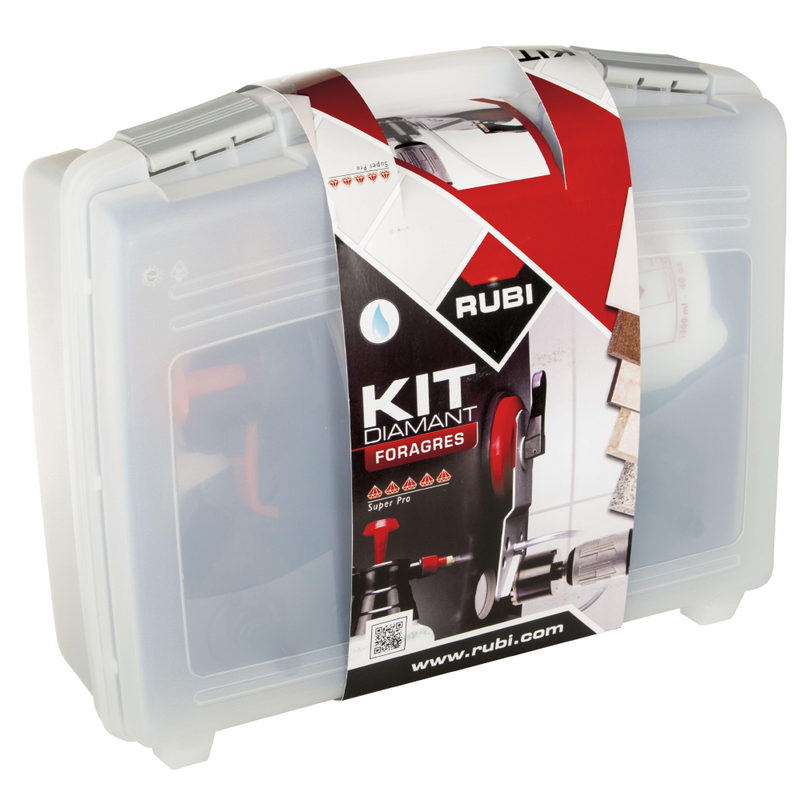

- Complete Drilling Kit: Includes MULTIDRILL guide, water tank, pump, hose, six diamond drill bits, and carrying case.
- Diamond Sintered Rim: Laser-welded construction supports consistent drilling performance.
- Water-Cooled Operation: All bits require water cooling for clean finishes and extended life.
- Material Compatibility: Suitable for ceramic, porcelain, granite, and marble surfaces.
- Controlled Centering: MULTIDRILL guide recommended for holes up to 3.27 inches; FORAGRES guide for larger diameters.
- Non-Percussive Use: Designed for use with rotary drills only; percussion mode is not compatible.
- Expected Bit Life: Average lifespan of 60 holes depending on material type and cooling quality.
- Moderate Speed Requirements: Max 900 rpm for most diameters; 450 rpm for 4 and 4-3/4 inch bits.
Specifications
| Kit Components | Guide, tank, pump, hose, 6 drill bits, case |
| Drill Bit Diameters | 3/4", 1-1/8", 1-3/8", 1-3/4", 2", 2-3/4" |
| Drilling Depth | 1-1/8" (1.3" for 2-1/4" and 3" bits) |
| Max Speed | 900 rpm; 450 rpm for 4" and 4-3/4" |
| Material Compatibility | Ceramic, porcelain, granite, marble |
The RUBI FORAGRES Diamond Drill Bits Kit supports controlled, water-cooled drilling for clean hole creation across multiple tile and stone materials when used with a rotary drill.
