BARWALT PLS Revolve Tile Leveling System
BARWALT PLS Revolve Tile Leveling System
BARWALT PLS Revolve Tile Leveling System
BARWALT PLS Revolve Tile Leveling System
BARWALT PLS Revolve Tile Leveling System
BARWALT PLS Revolve Tile Leveling System
BARWALT PLS Revolve Tile Leveling System

BARWALT PLS Revolve Tile Leveling System

Spin Cap Tile Leveling System for Walls & Floors

Sold out
$8.34 - $123.22
$8.34
$8.34 - $123.22
$8.34
BARWALT  |  MPN: 15SPIN100  |  UPC: 035965331081
Free Shipping Eligible
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Joint Size: 1/16"
Quantity: 100

The BARWALT PLS Revolve Tile Leveling System spaces and levels tile during installation to reduce lippage. The spin caps tighten by hand, require no extra tools, and can be reused after the spacer bases are removed.

Key Features
  • Spin Cap Design: Tightens by hand without pliers or extra tools.
  • Lippage Control: Holds tile edges level while thinset cures.
  • Reusable Caps: Caps can be saved and used on future jobs.
  • Wall/Floor Use: Works with wall and floor tile up to 19 mm thick.
  • Spacer Options: Available in 1/16" and 1/8" grout joint sizes.
  • Bulk Packs: Available in jobsite quantities for larger tile projects.
Best For
  • Reducing tile lippage
  • Wall and floor tile installation
  • Tile up to 19 mm thick
  • 1/16" and 1/8" grout joints
  • Professional tile layout and leveling

Why Professionals Choose Tile This

  • Free shipping on eligible orders $200+
  • Same-day shipping before 2 PM CST (Mon–Sat) for in-stock items
  • Eligible for our Contractor Pricing Program
  • Authorized BARWALT Dealer
BARWALT PLS Revolve Tile Leveling System 1/16" / 100 $8.34

Description

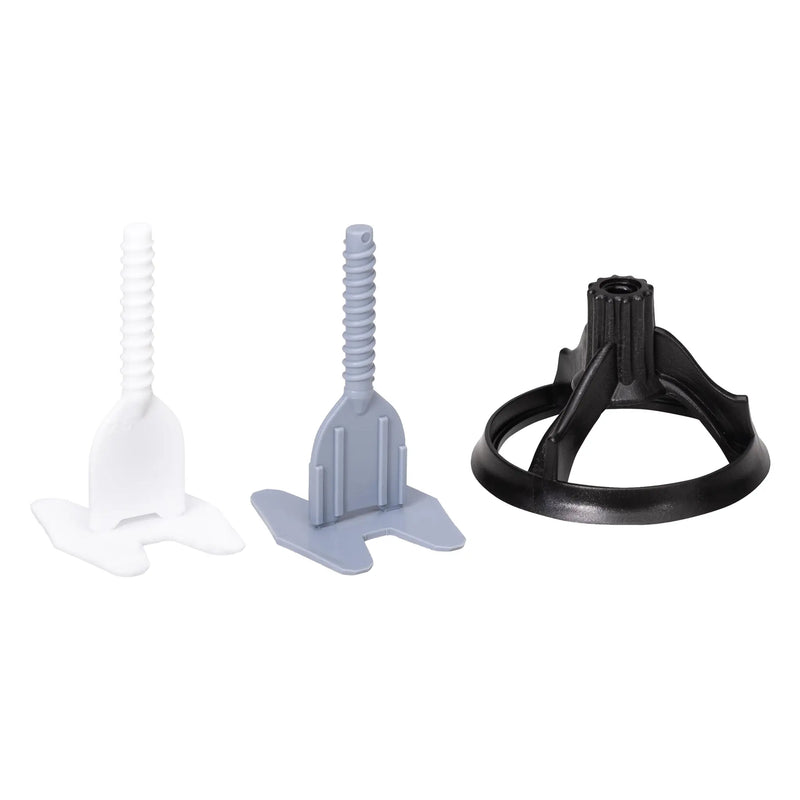

The BARWALT PLS Revolve Tile Leveling System spaces and levels tile during installation to reduce lippage on wall and floor tile. The system uses straight spacer bases and reusable spin caps to hold tile edges flat while the thinset cures.

The caps tighten by hand and do not require pliers or extra tools. After the thinset dries, the spacer bases are removed by striking them along the grout joint with a rubber mallet, while the caps are saved for reuse on the next job.

Specifications

Part Number Item Type Size / Joint Quantity

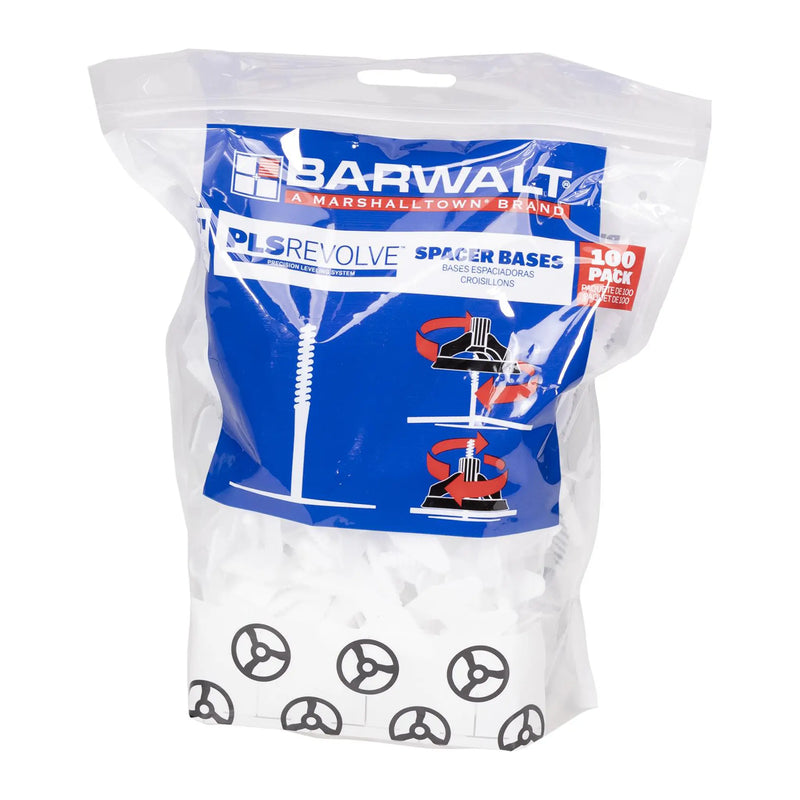

15SPIN100 Spacer Bases 1/16" 100

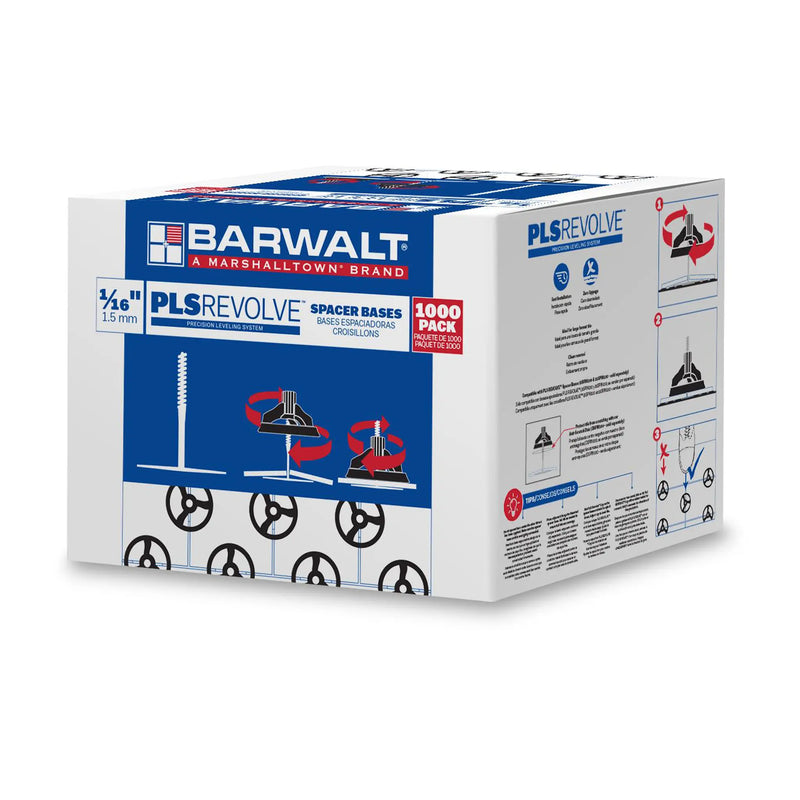

15PLSREV1000 Spacer Bases 1/16" 1000

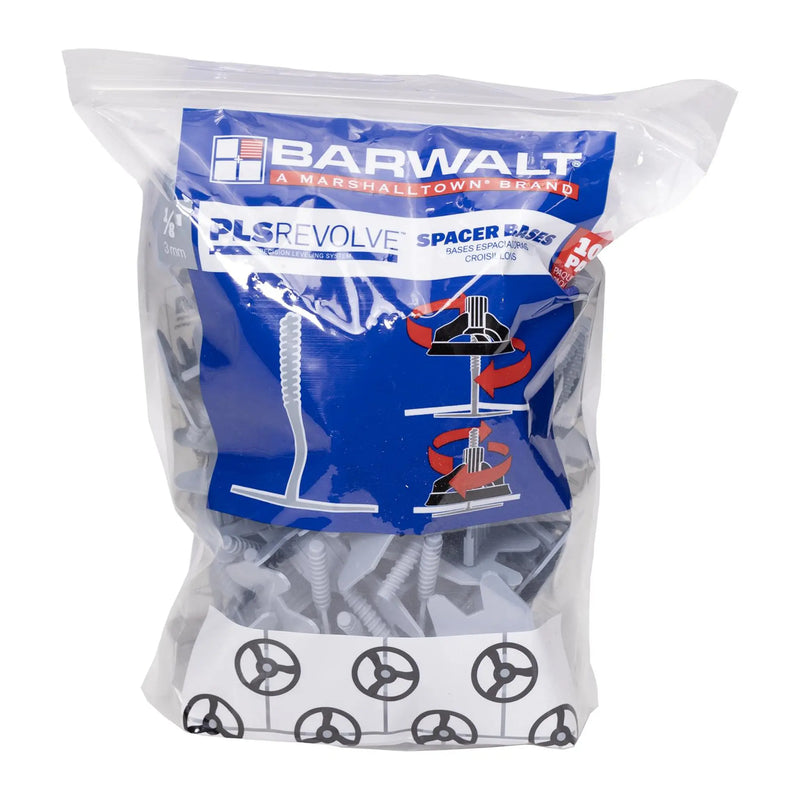

3SPIN100 Spacer Bases 1/8" 100

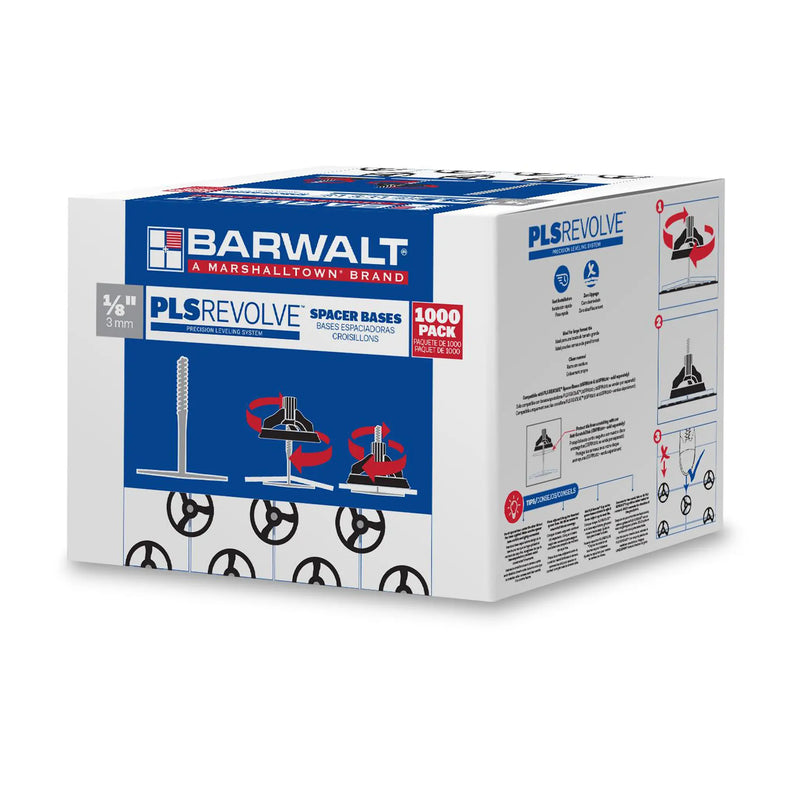

3PLSREV1000 Spacer Bases 1/8" 1000

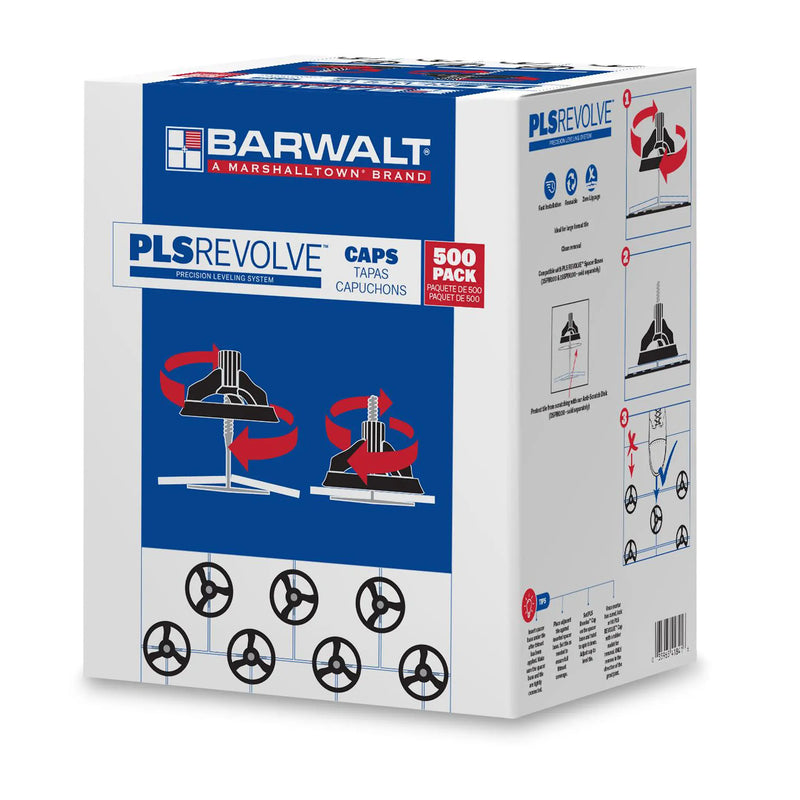

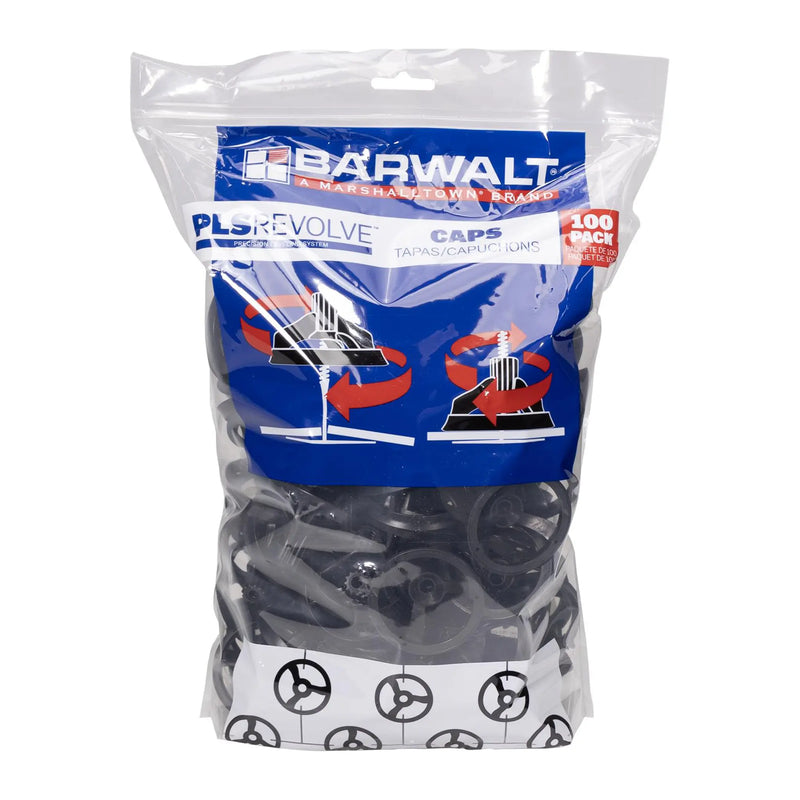

SPINC100 Threaded Caps Reusable 100
CPLSREV500 Threaded Caps Reusable 500

Frequently Asked Questions

Does this system require pliers?
No. The BARWALT PLS Revolve Tile Leveling System uses spin caps that tighten by hand without pliers or extra tools.
Are the caps reusable?
Yes. The spin caps are reusable after the spacer bases are removed from the grout joint.
What tile thickness does this system work with?
The BARWALT PLS Revolve Tile Leveling System works with wall and floor tile up to 19 mm thick.
How are the spacer bases removed?
After the thinset dries, strike the spacer base along the grout joint with a rubber mallet to remove it.
What grout joint sizes are available?
The BARWALT PLS Revolve Tile Leveling System is available with 1/16" and 1/8" spacer bases.
