Tile Leveling Systems Comparison: Spin Doctor vs. Wedge-Style (Which Saves More Time?)

Tiles are unbeatable when it comes to transforming a space, whether it is a kitchen or a bathroom. However, they require proper installation every time. When there is a height difference between neighboring tiles, it affects the appearance of your room, creates tripping hazards, and causes maintenance issues.

As such, using the right tile leveling system has a positive impact. It helps you achieve a smooth, professional-looking finish while streamlining the process.

The Spin Doctor and wedge-style tile leveling systems are two popular choices. Which works better, especially in terms of speed? At Tile This, we know the answer.

Understanding Tile Leveling Systems

A tile leveling system is a tool that keeps tiles flat and evenly aligned while the mortar cures. Instead of constantly adjusting individual tiles by hand, the system does much of the job for you.

Most systems have two basic components. First, clips or posts between the tiles. Then, wedges or caps that gently pull adjacent tiles into the same plane.

Unlike traditional tile leveling spacers, which only maintain the width of your grout joints, tile leveling systems also minimize lippage, or having one tile sitting slightly higher than another. There are several styles, including the following:

• Cap-and-Strap: This system is easy to learn, but it takes longer to set than other options. Straps slide underneath the tile, while reusable caps tighten over the top to apply even pressure across the surface.

• Clip-and-Wedge: This system is great for DIYers and experts alike, but beginners may need more practice. Clips go beneath the tile, and reusable wedges are inserted for pressure.

• Spin-Cap-and-Post: This system is for more detailed installations. Use threaded posts with twist-on caps. As you tighten each cap, you gradually bring neighboring tiles into alignment.

What Is the Spin Doctor System?

The Spin Doctor system takes the spin-cap-and-post concept and enables one-handed operation, which is especially helpful when dealing with large or heavy tiles. It includes Red Breakaway Threaded Spacer Posts (1/16″ or 1.5 mm), Black Breakaway Threaded Spacer Posts (1/8″ or 3 mm), leveling caps, and optional Anti-Friction Protection Plates.

The system consists of separate components that you can purchase individually. That means you can replace only the parts you need instead of buying an entirely new kit every time.

You can reuse the tile leveling spacers after you separate them from the base, too. Also, the open design of the caps lets you see your grout joints, making it easier to confirm that everything is staying evenly spaced. Once the mortar has cured, removing the caps is quick and effortless.

The Spin Doctor system is versatile, working with virtually all tile materials. Porcelain, ceramic, natural stone, or other specialty products? No problem!

What Is the Wedge-Style System?

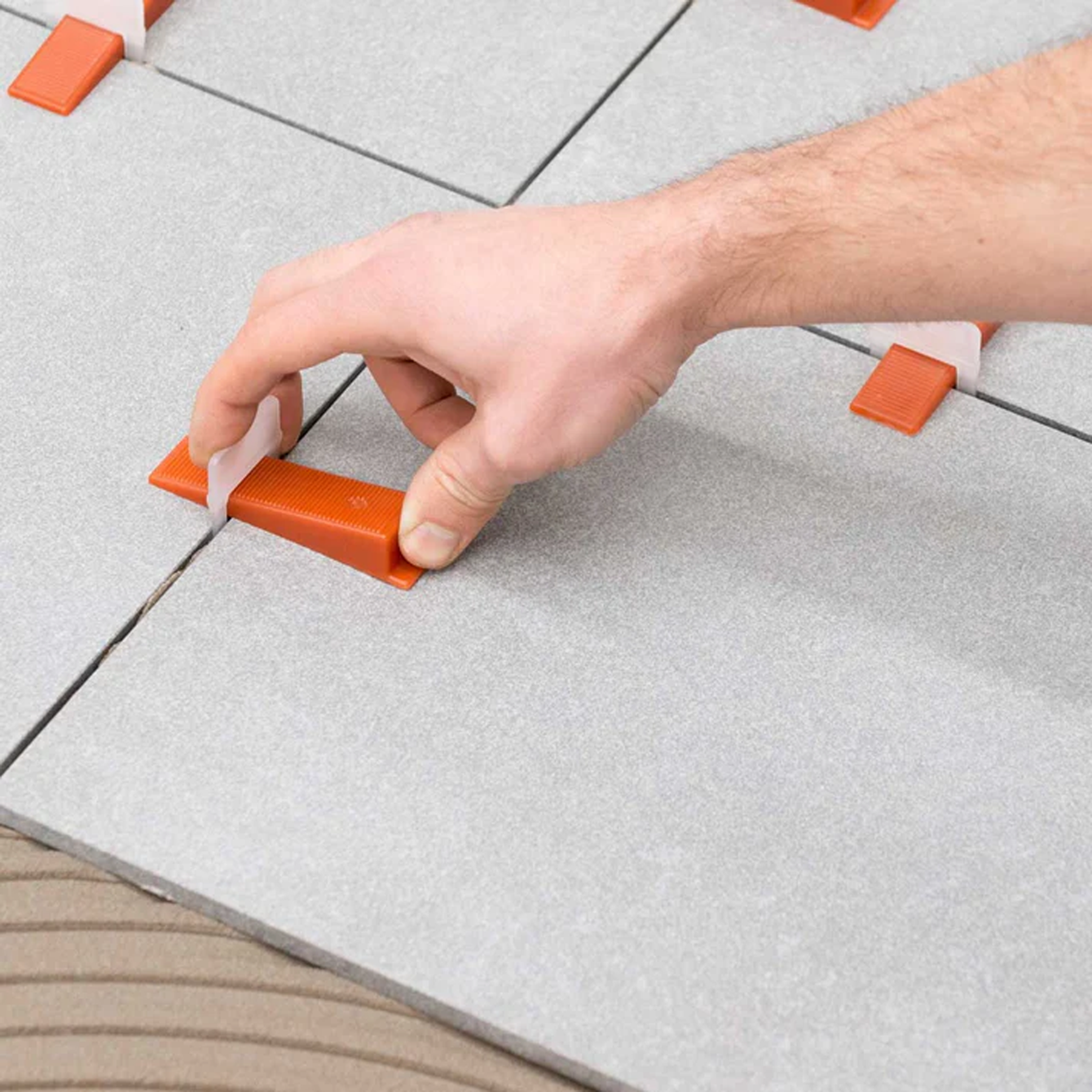

The wedge-style system has been the go-to across the industry for well over a decade. It is dependable, efficient, and incredibly familiar. Again, it simply involves placing clips underneath the tiles and pushing wedges into them using installation pliers. As the wedges tighten, they pull adjacent tiles into the same plane.

The wedges themselves are built to last. You can reuse a good set on dozens of projects with proper care! Moreover, many systems are compatible with several major brands. They are well-suited for ceramic and porcelain tiles, as well as large-format floors.

Which One Should You Choose?

Every tile project is different, so there is no one-size-fits-all answer. The best choice depends on your experience level, the type of tile you are working with, and what matters most to you during installation.

You might appreciate the precise adjustments with Spin Doctor systems. They also do not require tools, and installations are easier on your body during all-day jobs. However, they cost more per unit.

If your main priority is completing projects as fast as possible, wedge-style systems have a strong advantage. Once you develop a rhythm, you can move swiftly across floor areas without sacrificing quality. Since wedges are driven into the clips with pliers, there is slightly more physical effort involved than simply twisting a cap. You must be extra careful when removing the clips after the mortar cures as well.

Both systems produce excellent results when used correctly. They simply approach the job in different ways. Ultimately, wedge-style systems win where productivity matters.

Tile Solutions from Tile This

Since 2012, Tile This has been helping contractors, professional installers, and DIY homeowners find the best tools for the best tile installations. Our founder is a former tile installer, so you can rest assured we know what you need on the jobsite.

Every product we carry is carefully selected. If you are shopping for a reliable tile leveling system, our spin-cap-and-post and wedge-style selections are available in sizes 1/32″, 3/32″, 1/16″, and 1/8″. We have a friendly team that is ready to guide and support you.

Are you ready to save time installing your tiles and still do it flawlessly? Call Tile This at (952) 882-0436 or contact us online.
