RUBI TX-MAX Manual Tile Cutters
Fast Shipping
Easy Returns
Secure Checkout
At a Glance
Quick Decision Guide
Model
TX-710 MAX
Straight Cut
28"
Diagonal Cut
20" Ć 20"
Cutting Thickness
1/8" - 7/8"
Breaking Power
2,645 lb.
Breaker Type
MULTIPOINT
Scoring System
SLS Secure Lock System
Included Scoring Wheels
5/16" & 7/8" EXTREME
Why Choose This Product
Key Benefits
2,645 lb. Breaking Power
High-performance MULTIPOINT breaker handles thin and thick tile
One-Handed Operation
Ratchet lock and trigger release streamline scoring and breaking
SLS Scoring System
Secure Lock System improves scoring precision and efficiency
Large-Tile Stability
Floating tables and two supplementary arms support larger formats
Accurate Angle Cuts
Central-pivot swivel square improves precision on diagonal cuts
Complete Cutting Setup
Includes two EXTREME scoring wheels and carrying case
Product Information
Product Details
Specifications
Brand
RUBIĀ®
Part Number
17910
UPC
8413797179101
Product Type
Professional Manual Tile Cutter
Model
TX-710 MAX
Straight Cut Capacity
28"
Diagonal Cut Capacity
20" Ć 20"
Cutting Thickness
1/8" - 7/8"
Breaking Power
2,645 lb.
Breaker
MULTIPOINT
Scoring System
SLS Secure Lock System
Recommended Materials
Porcelain, Ceramic & Extruded Tile
Included Scoring Wheels
5/16" & 7/8" EXTREME
Large-Tile Support
2 Supplementary Arms
Angle & Repetitive Cuts
Swivel Square with Lateral Stop
Included Case
Yes
About This Product

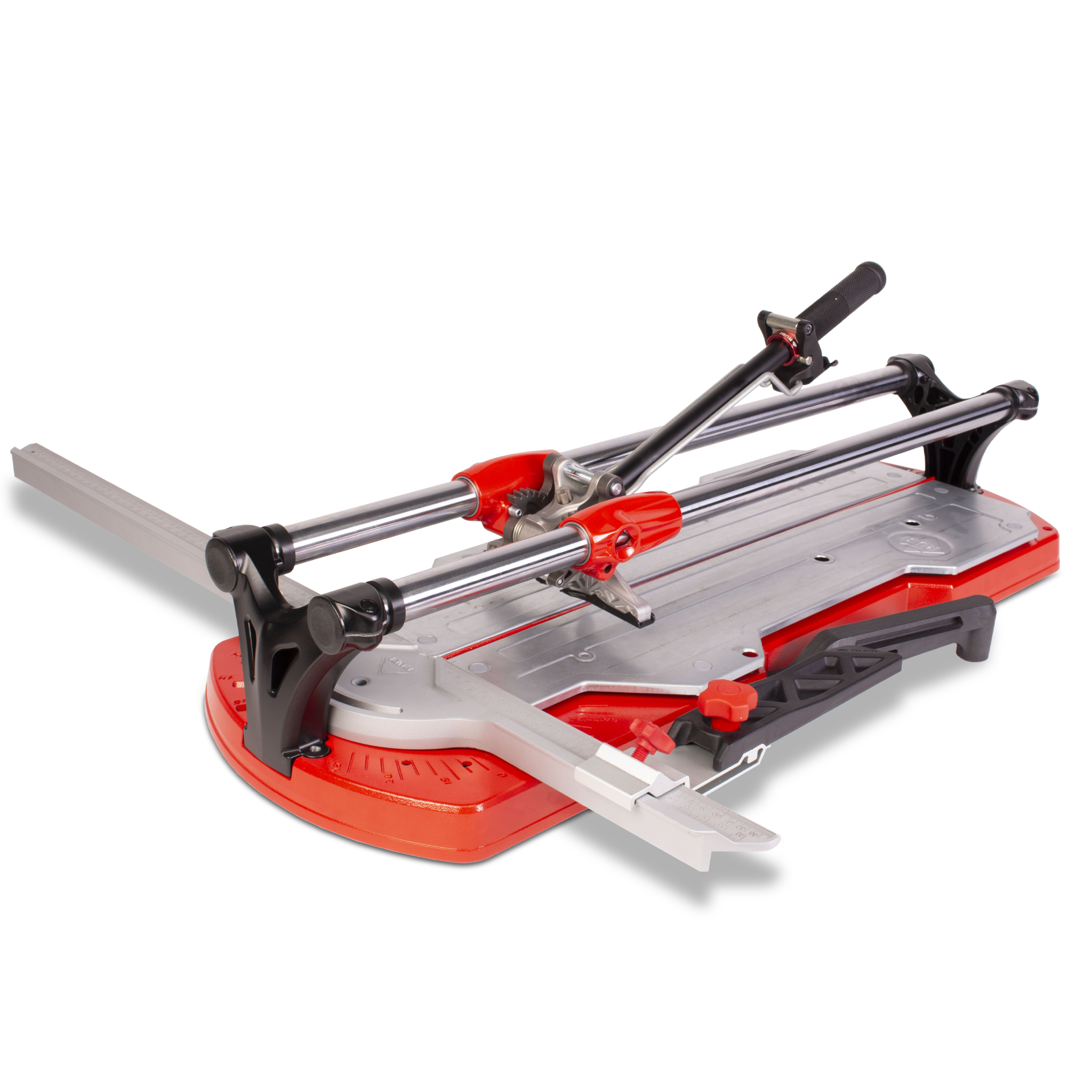

Professional Manual Cutter for Porcelain and Ceramic Tile
RUBIĀ® TX-MAX Manual Tile Cutters are designed for intensive cutting of porcelain, ceramic, and extruded tile. The high-performance MULTIPOINT breaker delivers up to 2,645 lb. of breaking power and handles tile from 1/8" to 7/8" thick.
One-Handed Scoring and Breaking
The ratchet-operated breaker lock and trigger release allow scoring and breaking with one hand for faster repetitive cutting. RUBI's SLS (Secure Lock System) improves scoring precision, while the cutter design provides clear visibility of the scoring and cutting line.
Stable Support for Large-Format Tile
A reinforced cast aluminum base, galvanized steel floating tables, and two supplementary support arms provide stability when working with larger tile. The swivel square uses a central pivot for accurate angular cuts, while the lateral stop supports repetitive and narrow cuts.
Included Scoring Wheels and Carrying Case
Each TX-MAX includes 5/16" and 7/8" EXTREME scoring wheels and is compatible with the RUBI PLUS scoring wheel range. A carrying case is included for transport and storage.
Common Questions
Frequently Asked Questions
What types of tile can RUBI TX-MAX Tile Cutters cut?
RUBI TX-MAX Tile Cutters are designed for intensive cutting of porcelain, ceramic, and extruded tile.
How thick of tile can the TX-MAX cut?
All three TX-MAX models can cut tile from 1/8" to 7/8" thick.
How much breaking power does the TX-MAX provide?
The MULTIPOINT breaker provides up to 2,645 lb. of breaking power across the TX-MAX range.
What are the cutting capacities of the TX-MAX models?
The TX-710 MAX provides a 28" straight cut and 20" Ć 20" diagonal cut. The TX-1020 MAX provides a 40" straight cut and 27.5" Ć 27.5" diagonal cut. The TX-1250 MAX provides a 49" straight cut and 33.5" Ć 33.5" diagonal cut.
Can the TX-MAX score and break tile with one hand?
Yes. The breaker uses a ratchet locking mechanism and trigger release that allow scoring and breaking with one hand.
Which scoring wheels are included with the TX-MAX?
Each cutter includes 5/16" and 7/8" RUBI EXTREME scoring wheels and is compatible with the RUBI PLUS scoring wheel range.
Does the RUBI TX-MAX include supports for large tile?
Yes. Each model includes two supplementary support arms along with galvanized steel floating tables to improve stability when cutting larger tile.
Does the TX-MAX come with a carrying case?
Yes. A carrying case is included with each TX-MAX cutter.
