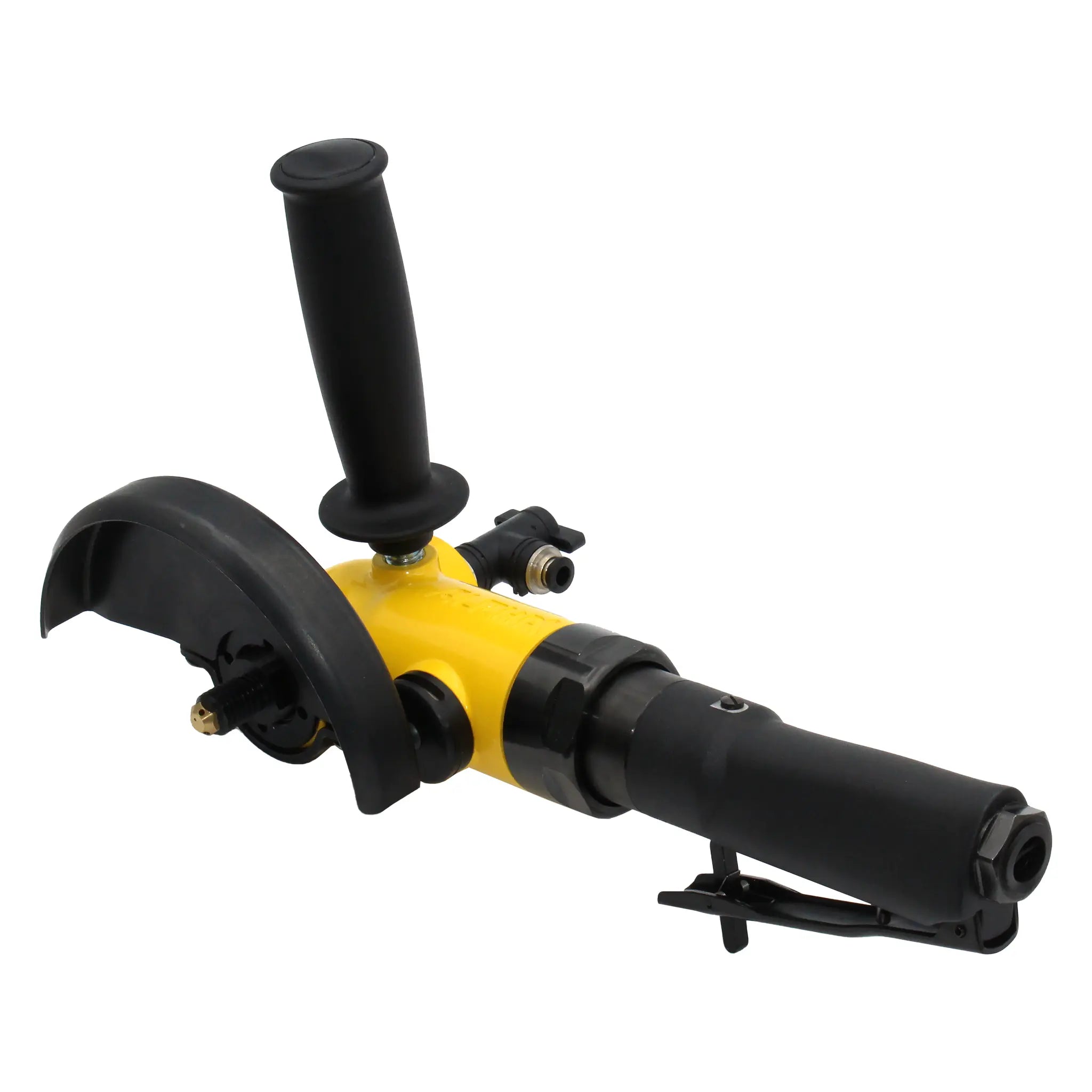

Alpha PWC Pneumatic Cutter/Grinder
Fast Shipping
Easy Returns
Secure Checkout
At a Glance
Quick Decision Guide
Maximum Disc Capacity
6" (150 mm)
No-Load Speed
10,000 RPM
Spindle
5/8"-11
Maximum Power
1.4 HP
Air Pressure
90 PSI (6.2 Bar)
Maximum Air Consumption
33 CFM (934 L/min)
Water Feed
Quad Adapter Center Water Feed
Tool Weight
4.6 lbs (2.1 kg)
Why Choose This Product
Key Benefits
Cutting & Grinding
One pneumatic tool supports wet cutting and flat grinding
Dual-Side Water Delivery
Quad adapter directs water to the front and back of the blade
Flexible Cutting Direction
Handle configurations support pull-to-cut and push-to-cut methods
Reversible Guard
Accommodates left- or right-side blade positioning
Controlled Startup
Spring-return throttle helps prevent accidental activation
Maintenance Access
Dedicated oil port simplifies routine pneumatic tool lubrication
Product Information
Product Details
Specifications
Brand
Alpha®
Part Number
PWC-658
UPC
749173430336
Product Type
Pneumatic Cutter/Grinder
Maximum Disc Capacity
6" (150 mm)
No-Load Speed
10,000 RPM
Spindle
5/8"-11
Maximum Power
1.4 HP
Air Pressure
90 PSI (6.2 Bar)
Maximum Air Consumption
33 CFM (934 L/min)
Air Inlet
3/8" NPSM
Water Inlet
1/8" BSPT
Water Feed System
Quad Adapter Center Water Feed
Water Delivery
Front & Back Side of Blade
Flat Grinding
Yes
Safety Guard
Reversible for Left or Right Blade Position
Cutting Configuration
Push-to-Cut & Pull-to-Cut
Throttle
Spring-Return
Oil Port
Easy-Access Daily Maintenance Port
Weight
4.6 lbs (2.1 kg)
Length
11-3/4" (298 mm)
Included Blade
Alpha® Elite Q Blade
Included Hose
30 ft. (9.1 m) Air/Water Twin Hose Assembly
Included Storage
Reusable, Stackable Toolbox
Warranty
1 Year Tool Warranty
About This Product
High-Performance Pneumatic Cutting and Grinding
The Alpha® PWC Pneumatic Cutter/Grinder is a high-speed air-powered tool for cutting and grinding stone. Designed for stone fabrication, the PWC combines up to 1.4 HP with a center water-feed system and configurations for both cutting and flat grinding applications.
Quad Adapter Center Water-Feed System
The Quad W Adapter center water-feed system directs water to both the front and back sides of the blade during cutting. The center-feed design also supplies water for flat grinding, allowing the same pneumatic tool to handle multiple fabrication operations while providing water directly at the working area.
Push-to-Cut and Pull-to-Cut Configurations
A reversible safety guard accommodates left- or right-side blade positioning. The included L-bracket and side handle support a pull-to-cut configuration, while the side handle can also be installed for push-to-cut operation, giving fabricators flexibility based on the cut and working position.
Fabrication Controls and Daily Maintenance
A spring-return throttle helps prevent accidental startup, while an accessible oil port supports routine maintenance of the pneumatic tool. Each cutter/grinder includes a 30 ft. air/water twin hose assembly, Alpha® Elite Q Blade, Quad W Adapter Assembly, safety guard, handles, fittings, maintenance oil, wrenches, and a reusable stackable toolbox.
Product Resources
Documentation & Downloads
Common Questions
Frequently Asked Questions
Can the Alpha PWC Pneumatic Cutter/Grinder be used for both cutting and grinding?
Yes. The PWC is designed for stone cutting and flat grinding applications. Its center water-feed system supplies water during both operations.
How does the center water-feed system work?
The Quad W Adapter center water-feed system directs water to both the front and back sides of the blade. The system also provides center-fed water for flat grinding applications.
What is the difference between the PWC-658 and PWC-514?
The PWC-658 accepts discs up to 6", operates at 10,000 RPM, and has a 5/8"-11 spindle. The PWC-514 accepts discs up to 5", operates at 12,000 RPM, and uses an M14-2 spindle.
Can the tool be configured for push-to-cut and pull-to-cut operation?
Yes. The L-bracket and side handle configuration supports the pull-to-cut method, while the side handle attachment can be configured for push-to-cut operation.
Can the blade be positioned on either side of the tool?
Yes. The reversible safety guard supports left- or right-side blade positioning.
What air supply does the PWC cutter/grinder require?
The tool operates at 90 PSI (6.2 Bar) with maximum air consumption of 33 CFM (934 L/min).
What equipment is included with the Alpha PWC Pneumatic Cutter/Grinder?
Included equipment consists of a reusable stackable toolbox, 30 ft. air/water twin hose assembly, Alpha® Elite Q Blade, rust inhibitor oil, Quad W Adapter Assembly, safety guard, side handle, handle bracket assembly, quick-connect ball valve, hex wrenches, spanner wrenches, and an extension rod with nylon lock nut.
