Alpha Filter/Regulator Manifold System
Alpha Filter/Regulator Manifold System
Alpha Filter/Regulator Manifold System

Alpha Filter/Regulator Manifold System

Compressed Air Filtration, Regulation & Distribution System

$310.67 - $376.11
$310.67
$310.67 - $376.11
$310.67
Alpha  |  MPN: 1030-0021  |  UPC: 749173642791
Free Shipping Eligible
Availability:
Ships Direct from Manufacturer (Lead Time May Vary)
Availability:
Ships Direct from Manufacturer (Lead Time May Vary)
Availability:
Ships Direct from Manufacturer (Lead Time May Vary)
Availability:
Ships Direct from Manufacturer (Lead Time May Vary)
Size: 53 CFM
Threads: 3/8" NPT

53 CFM Filter/Regulator Manifold System Specifications

  • Flow Rating: 53 CFM
  • System Size: 3/8"
  • Inlet Thread Options: 3/8" NPT
  • Pressure Regulation: Designed for 85 PSI tool pressure
  • Configuration: Filter/regulator with multi-port aluminum manifold
  • Application: Pneumatic tool air management

The Alpha Filter/Regulator Manifold System is a compressed air management system that filters contaminants, regulates air pressure, and distributes air to multiple pneumatic tools. It combines a filter/regulator, shut-off and dump valve, and multi-port aluminum manifold in a single assembly.

Key Features
  • Integrated Filter/Regulator: Filters moisture and contaminants while regulating tool pressure.
  • Multi-Port Manifold: Supports connection of multiple pneumatic tools from a single station.
  • Shut-Off & Dump Valve: Allows air isolation and pressure release during maintenance.
  • High Airflow Capacity: Available in 53 CFM and 106 CFM configurations.
  • Multiple Inlet Options: Offered with 3/8", 1/2", and 3/4" NPT connections.
  • Point-of-Use Installation: Mounts near workstations for localized air control.
Best For
  • Pneumatic tool workstations
  • Air pressure regulation at the point of use
  • Multi-tool compressed air distribution
  • Stone fabrication and shop environments
  • Reducing contaminants in compressed air systems

Why Professionals Choose Tile This

  • Free shipping on eligible orders $200+
  • Same-day shipping before 2 PM CST (Mon–Sat) for in-stock items
  • Eligible for our Contractor Pricing Program
  • Authorized Alpha Dealer
Alpha Filter/Regulator Manifold System 53 CFM / 3/8" NPT $310.67

Description

The Alpha Filter/Regulator Manifold System is a compressed air control assembly designed to filter contaminants, regulate air pressure, and distribute compressed air to pneumatic tools. The system combines a filter/regulator, shut-off and dump valve, and aluminum manifold with multiple quick-disconnect ports.

Available in 53 CFM and 106 CFM configurations, the system supports point-of-use installation near pneumatic workstations. Multiple inlet thread options allow integration into existing compressed air systems while providing regulated air delivery to connected tools.

Specifications

Part Number Flow Rating System Size Inlet Threads

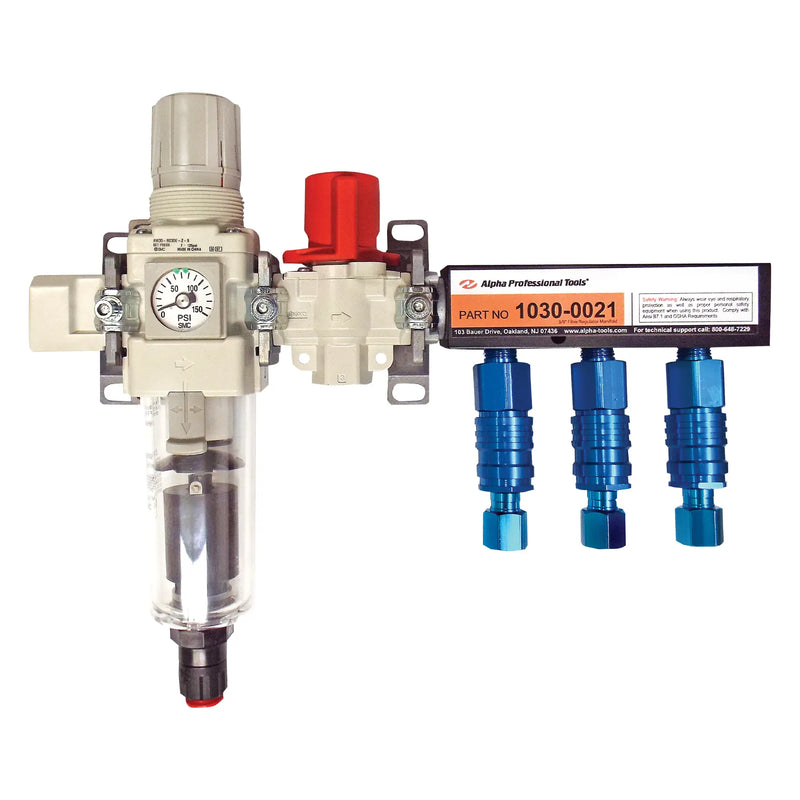

1030-0021 53 CFM 3/8" 3/8" NPT
1030-0022 53 CFM 3/8" 1/2" NPT

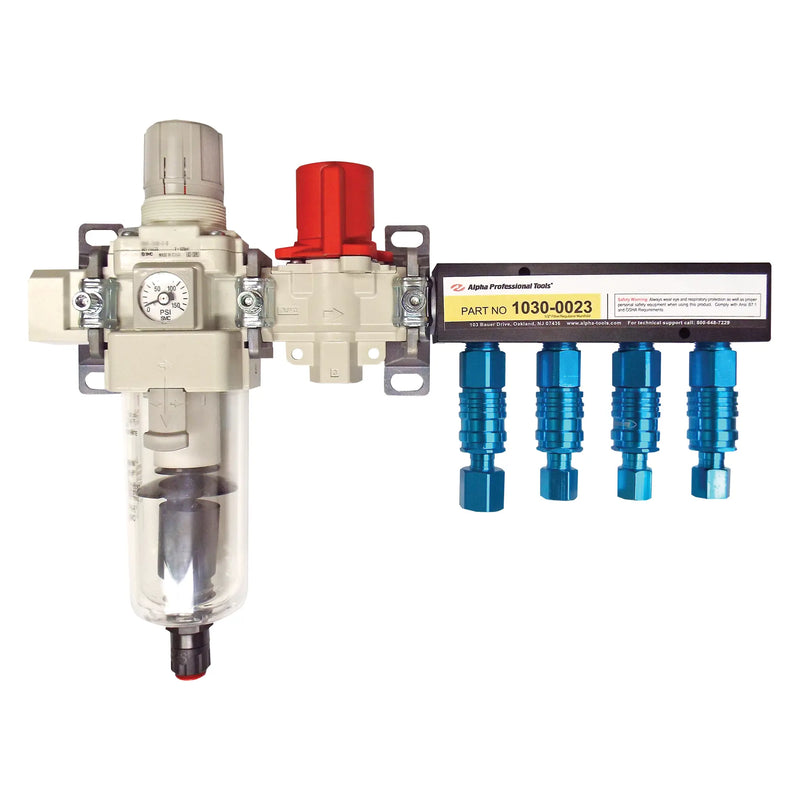

1030-0023 106 CFM 1/2" 1/2" NPT
1030-0024 106 CFM 1/2" 3/4" NPT

Frequently Asked Questions

What does this system include?
The Alpha Filter/Regulator Manifold System includes a filter/regulator, shut-off and dump valve, and a multi-port aluminum manifold for pneumatic tool connections.
What airflow capacities are available?
The system is available in 53 CFM and 106 CFM configurations to support different compressed air requirements.
Can multiple tools be connected at the same time?
Yes. The integrated manifold provides multiple quick-disconnect ports for connecting multiple pneumatic tools.
What inlet thread sizes are offered?
Available inlet thread options include 3/8" NPT, 1/2" NPT, and 3/4" NPT depending on the selected model.
