BIHUI Battery Powered Master Carrier System
Fast Shipping
Easy Returns
Secure Checkout
At a Glance
Quick Decision Guide
Maximum Lifting Capacity
441 lbs
Maximum Panel Size
126" x 63"
Vacuum Suction Cups
6 Battery-Powered Cups
Suction Cup Display
Digital Panel
Surface Compatibility
Smooth & Textured Tile
Top Handles
4 Soft-Grip Handles
Side Handles
4 Extension Handles
Suction Cup Layout
Interchangeable
Why Choose This Product
Key Benefits
Complete Handling System
Rails, frame bars, handles and powered suction cups work together for large-panel handling
Powered Vacuum Grip
Six battery-powered suction cups provide grip across large tile and slab surfaces
Large-Panel Capacity
Handles panels up to 126" x 63" and loads up to 441 lbs
Smooth & Textured Surfaces
Vacuum cups are compatible with both smooth and textured tile
Multiple Lifting Positions
Four top handles and four side extension handles improve lifting control and leverage
Adjustable Cup Placement
Interchangeable design allows suction cups to be arranged for different panel sizes
Product Information
Product Details
Specifications
Brand
BIHUI®
Part Number
LFCSB
UPC
6977607506409
Product Type
Battery Powered Carrier System
Maximum Lifting Capacity
441 lbs
Maximum Panel Size
126" x 63"
Suction Cups
6 Battery-Powered Vacuum Cups
Suction Cup Display
Digital Panel
Surface Compatibility
Smooth & Textured Tile
Suction Cup Layout
Interchangeable
Top Handles
4 Soft-Grip Handles
Side Handles
4 Extension Handles
Frame Bars
Connect Rails Perpendicularly
Included Components
Frame, Rails, Frame Bars & Suction Cups
Suitable Materials
Large-Format Tile, Porcelain Slabs, Stone Panels & Gauged Panels
About This Product
Large-Format Tile and Slab Handling System
The BIHUI® Battery Powered Master Carrier System is a complete lifting and handling system for moving and positioning large-format tile, porcelain slabs, stone panels, and gauged panels. The assembled carrier supports panels up to 126" x 63" with a maximum lifting capacity of 441 lbs.
Six Battery-Powered Vacuum Suction Cups
Six battery-powered vacuum suction cups provide powered grip across the panel, with digital displays for monitoring each cup during use. The suction cups are compatible with both smooth and textured tile surfaces and feature an interchangeable layout that allows their positions to be arranged for different panel sizes.
Multi-Handle Rail System for Lifting Control
The carrier rails feature four soft-grip handles across the top and four extension handles along the sides to provide multiple lifting positions, additional leverage, and greater control while handling large panels. Frame bars connect the rails perpendicularly to create the complete carrier structure.
Common Questions
Frequently Asked Questions
What is the maximum lifting capacity of the BIHUI Master Carrier System?
The system has a maximum lifting capacity of 441 lbs.
What size panels can the carrier system handle?
The carrier system can handle panels up to 10.5' x 5.25'.
How many powered suction cups are included?
The system includes six battery-powered vacuum suction cups with digital panels.
Do the suction cups work on textured tile?
Yes. The battery-powered vacuum suction cups are compatible with both smooth and textured tile surfaces.
Can the suction cup positions be adjusted?
Yes. The interchangeable design allows the suction cups to be arranged in different positions to accommodate different panel sizes.
What materials can the BIHUI Master Carrier System handle?
The system is designed for handling large-format tile, porcelain slabs, stone panels, and gauged panels within its specified size and lifting capacity.
How many lifting handles does the carrier system have?
The rails feature four soft-grip handles on top and four extension handles on the sides for additional lifting force and control.

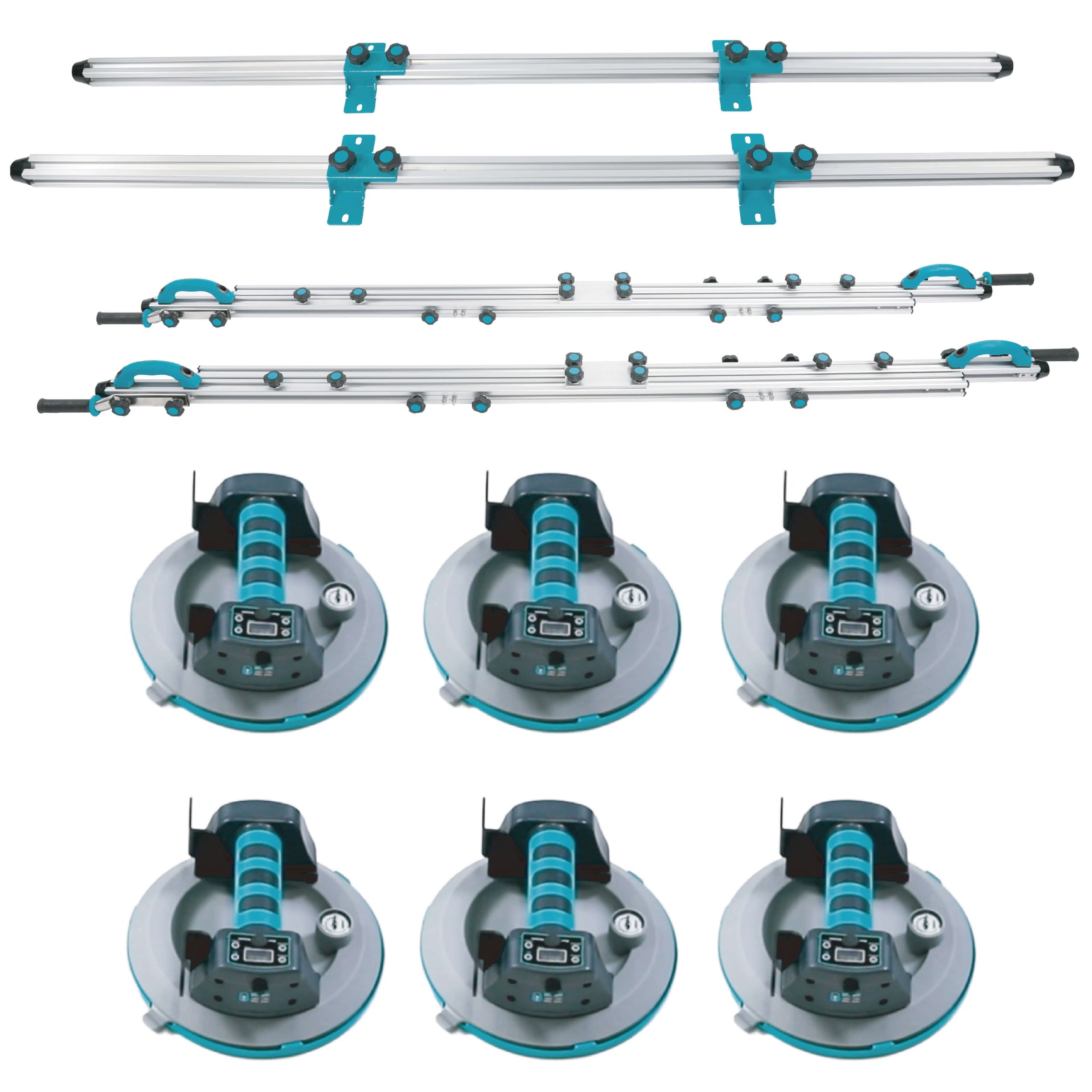

What is included with the BIHUI Battery Powered Master Carrier System?
The complete system includes the frame, rails, frame bars, and six battery-powered vacuum suction cups.
