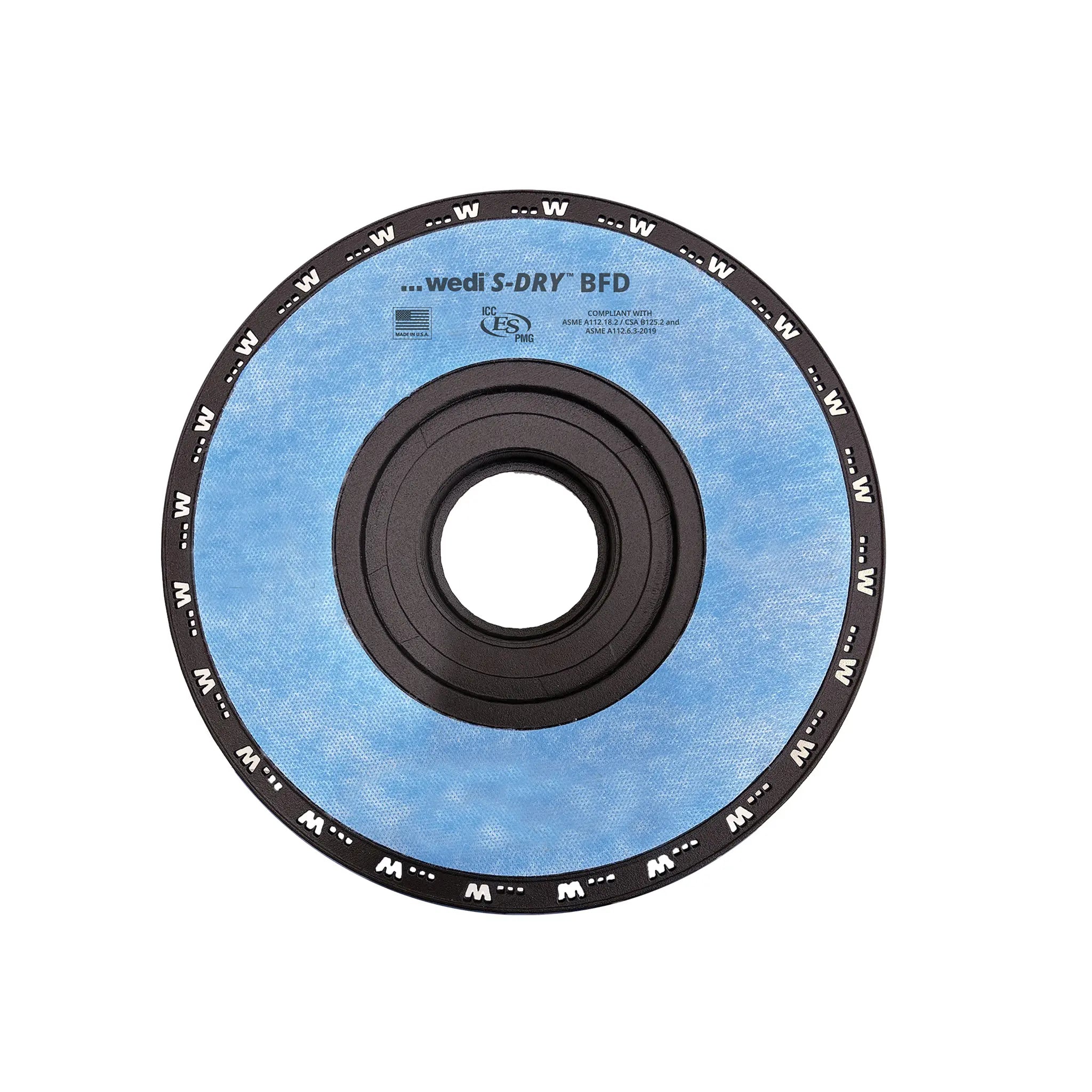

wedi S-DRY Bonding Flange Drain
Fast Shipping
Easy Returns
Secure Checkout
At a Glance
Quick Decision Guide
Installation Type
Mortar Bed Shower Base
Waterproofing System
wedi S-DRY
Dry-Pack Thickness
1/2" to 1-1/2"
Subfloor Extension
3/4"
Tile Thickness
3/16" to 5/8"
Drain Cover Adjustment
1/4" in All Directions
Drain Cover Support
Included
Drain Cover
Sold Separately
Why Choose This Product
Key Benefits
Integrated Waterproofing
Thermally fused membrane-to-flange connection resists delamination
Low-Profile Design
Drain body extends only 3/4" into the subfloor
Adjustable Mortar Bed
Included spacers accommodate 1/2" to 1-1/2" dry-pack thicknesses
Stable Installation
Integrated support stabilizes the drain at varying installation heights
Flexible Tile Alignment
Drain cover adjusts 1/4" laterally in all directions
Wide Tile Compatibility
Accommodates tile from 3/16" to 5/8" thick
Product Information
Product Details
Specifications
Brand
wedi®
Product Type
Bonding Flange Drain
Installation Type
Mortar Bed Shower Base
Dry-Pack Thickness
1/2" to 1-1/2"
Subfloor Extension
3/4"
Tile Thickness
3/16" to 5/8"
Drain Cover Adjustment
1/4" in All Directions
Membrane Connection
Thermally Fused to Bonded Flange
Drain Cover Support
Included
Drain Cover
Sold Separately
Country of Origin
USA
About This Product
Bonding Flange Drain for Mortar Bed Showers
The wedi® S-DRY™ Bonding Flange Drain (BFD) is designed for mortar bed shower bases topically waterproofed with the wedi S-DRY Shower System. The drain integrates the waterproofing membrane directly with the drain assembly for a continuous waterproof connection at the shower floor.
Thermally Fused Waterproofing Connection
The membrane is thermally fused to the bonded flange to prevent delamination at the drain connection. A two-part cementitious waterproofing compound bonds the S-DRY membrane to the drain flange, helping prevent moisture from wicking beneath the membrane.
Adjustable Installation for Mortar Bed Thickness
The low-profile drain includes spacers for use with 1/2" to 1-1/2" dry-pack mortar thicknesses, while an integrated support system stabilizes the drain and flange at varying installation heights. The drain body extends only 3/4" into the subfloor, allowing connection to waste piping positioned close to a floor joist.
Adjustable Drain Cover for Tile Installation
The drain cover assembly accommodates tile from 3/16" to 5/8" thick and provides 1/4" of lateral adjustment in all directions for alignment with the tile layout. A minimal thinset mortar bed is required around the drain cover, reducing moisture buildup and shortening drying time. The drain cover support piece is included; the wedi S-DRY Drain Cover is selected separately.
Common Questions
Frequently Asked Questions
What type of shower installation is the S-DRY Bonding Flange Drain designed for?
The drain is designed for mortar bed shower base assemblies that are topically waterproofed with the wedi S-DRY Shower System.
What mortar bed thickness can the drain accommodate?
The included spacers accommodate dry-pack mortar thicknesses from 1/2" to 1-1/2". Installation height can also be increased using mortar.
How far does the drain extend into the subfloor?
The drain body extends only 3/4" into the subfloor, allowing connection to waste piping located close to a floor joist.
What tile thicknesses can the drain cover accommodate?
The drain cover assembly accommodates tile from 3/16" to 5/8" thick.
Can the drain cover be adjusted to align with the tile layout?
Yes. The drain cover provides 1/4" of lateral adjustment in all directions to simplify alignment with the surrounding tile.
Is the S-DRY Drain Cover included?
No. The drain cover support piece is included with the drain, but the wedi S-DRY Drain Cover is selected and purchased separately.
