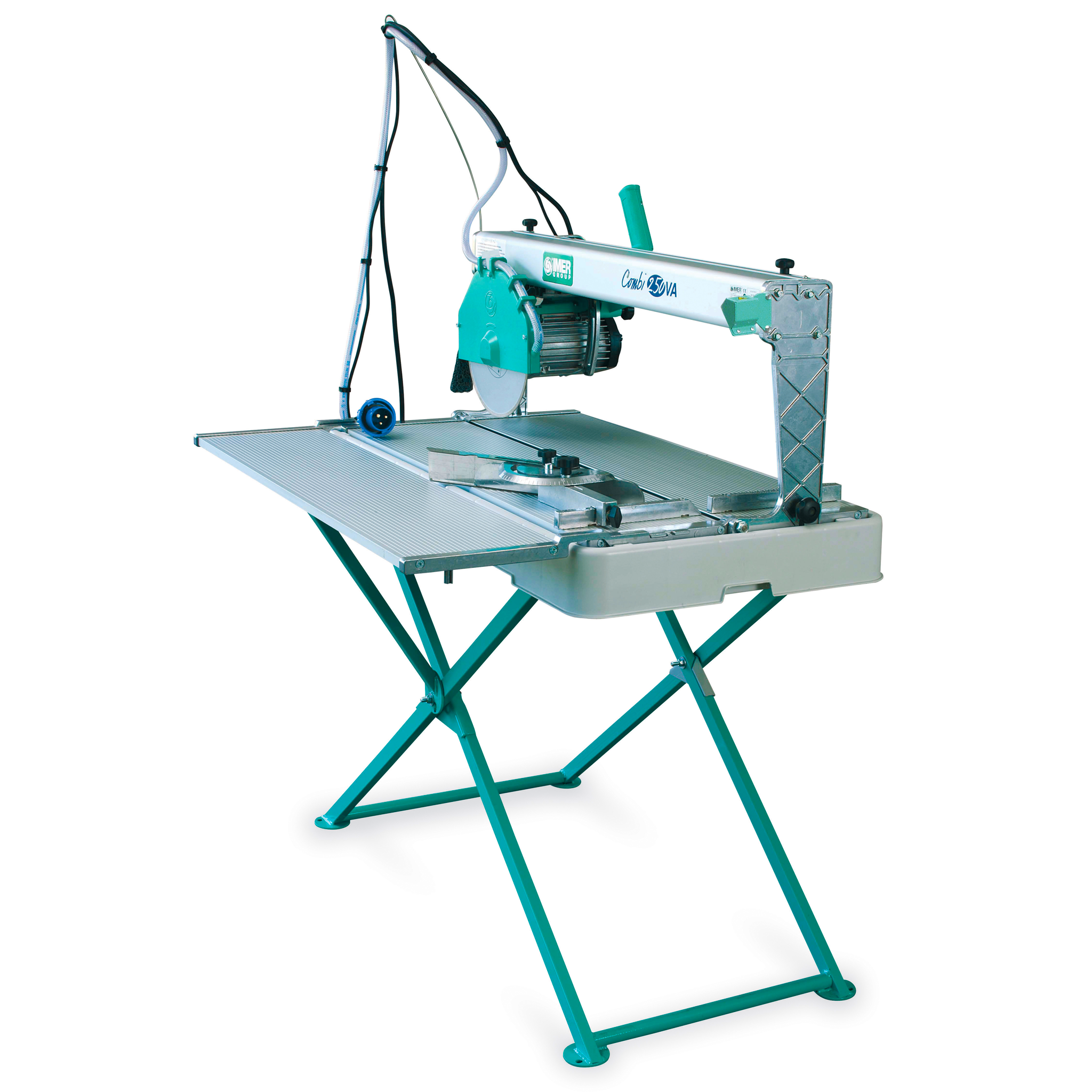

The IMER® Combicut 250VA is a lightweight overhead rail saw designed for precise cutting on smaller tile projects up to 28 inches. Despite its compact size, it offers advanced cutting capability, accurate miter performance, and a transport-friendly design. It arrives assembled, with only two bolts required for the stand.
Key Features
- Accurate Overhead Rail System: Supports clean, controlled cuts and precise miters.
- Lightweight for Transport: Easy to move on and off jobsites without sacrificing capability.
- Complete Setup Included: Ships with a side table, protractor, folding stand, and 10" porcelain blade.
- Ready to Use: Saw arrives fully assembled; only the stand requires basic attachment.
- High-Flow Water System: Includes pump and adjustable valve to support effective cooling and dust control.
Specifications
| Specification | Details |
|---|---|
| Model # | 1188164 |
| Blade Diameter | 10 in |
| Blade Shaft Diameter | 5/8 in |
| Max Cut Length (with plunge) | 28 in (31 in) |
| Max Cutting Depth | 3.75 in |
| Motor Rating | 1.75 HP 120 V |
| Blade Speed | 2,800 rpm |
| Weight (Boxed) | 72 lbs (85 lbs) |
| Water Pan Capacity | 10 gal |
| Water Pump Flow | 3 gpm |
| Dimensions (L x H x W) | 40 in x 22 in x 18 in |
The IMER® Combicut 250VA is a practical solution for tile professionals who need accurate cutting performance in a compact, easy-to-transport rail saw.
