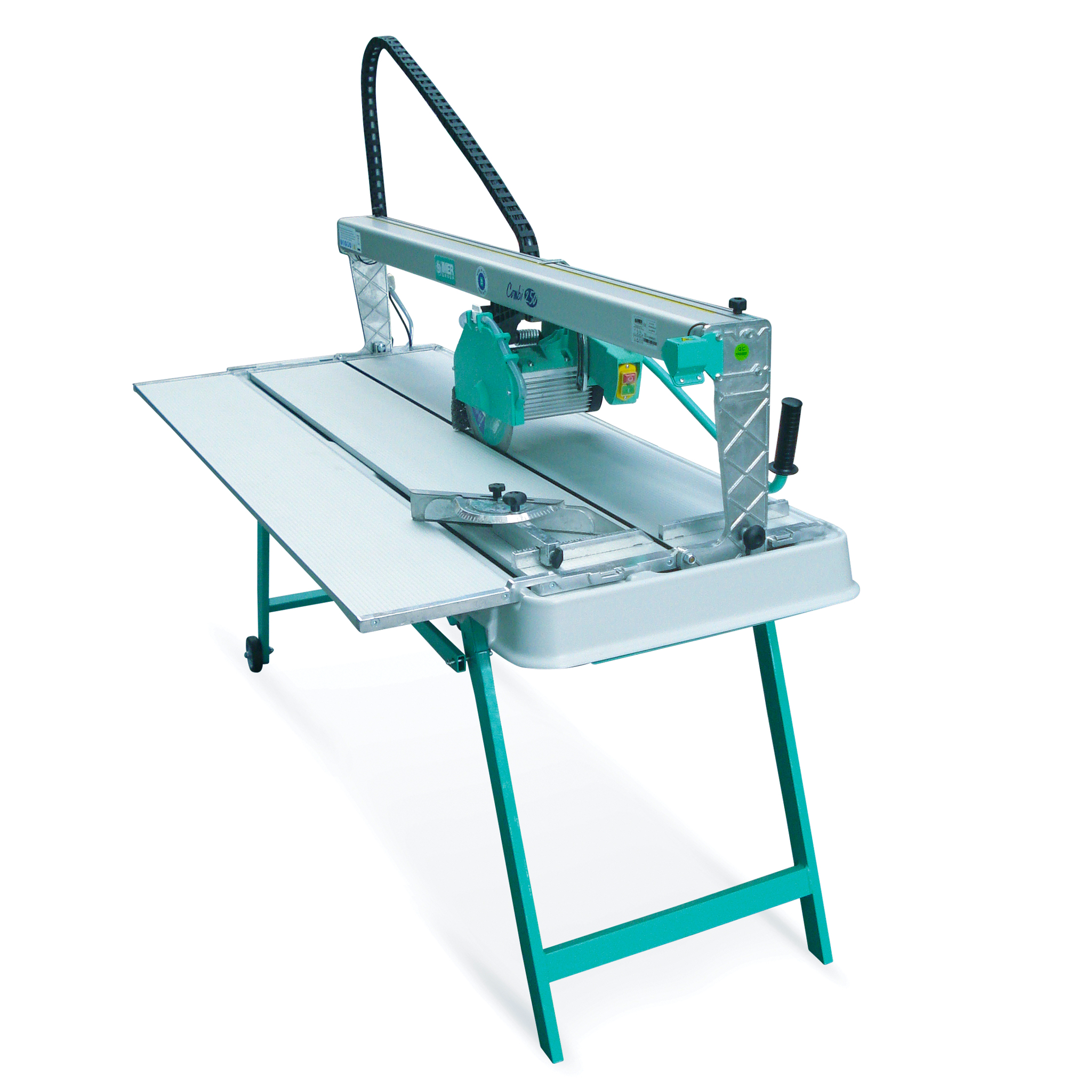

The IMER Combicut 250-1500VA Tile Saw is built for straight and miter cutting on tile up to 57 inches, or 60 inches with a plunge cut. Its lightweight frame supports transport and setup on jobsites while maintaining consistent performance for large format material.
Key Features
- Extended Cut Capacity: Handles tile lengths up to 57 inches, or 60 inches with a plunge cut.
- Included Blade: Comes with a 10 inch continuous rim porcelain blade.
- Integrated Stand: Folding stand with wheel kit supports transport and fast setup.
- Angle Cutting: Protractor with 180° adjustment supports controlled miter cuts.
- Support Table: Side table included for large format tile stability.
- Water System: High flow pump, adjustable valve, and removable poly water pan with baffle.
- Laser Guide: Integrated laser provides alignment assistance for straight cuts.
- Assembly: Ships assembled; only the stand requires two bolts for attachment.
Specifications
| Specification | Details |
|---|---|
| Model # | 1188180 |
| Blade Diameter | 10 in |
| Blade Shaft Diameter | 5/8 in |
| Max Cut Length (with plunge) | 57 in (60 in) |
| Max Cutting Depth | 3.75 in |
| Motor Rating | 1.75 HP 120 V |
| Blade Speed | 2,800 rpm |
| Weight (Boxed) | 125 lbs (150 lbs) |
| Water Pan Capacity | 13 gal |
| Water Pump Flow | 3 gpm |
| Dimensions (L x H x W) | 76 in x 24 in x 25 in |
The IMER Combicut 250-1500VA is suited for installers who need extended cutting capacity in a lightweight rail saw that supports accurate straight and miter cuts on large format tile.
