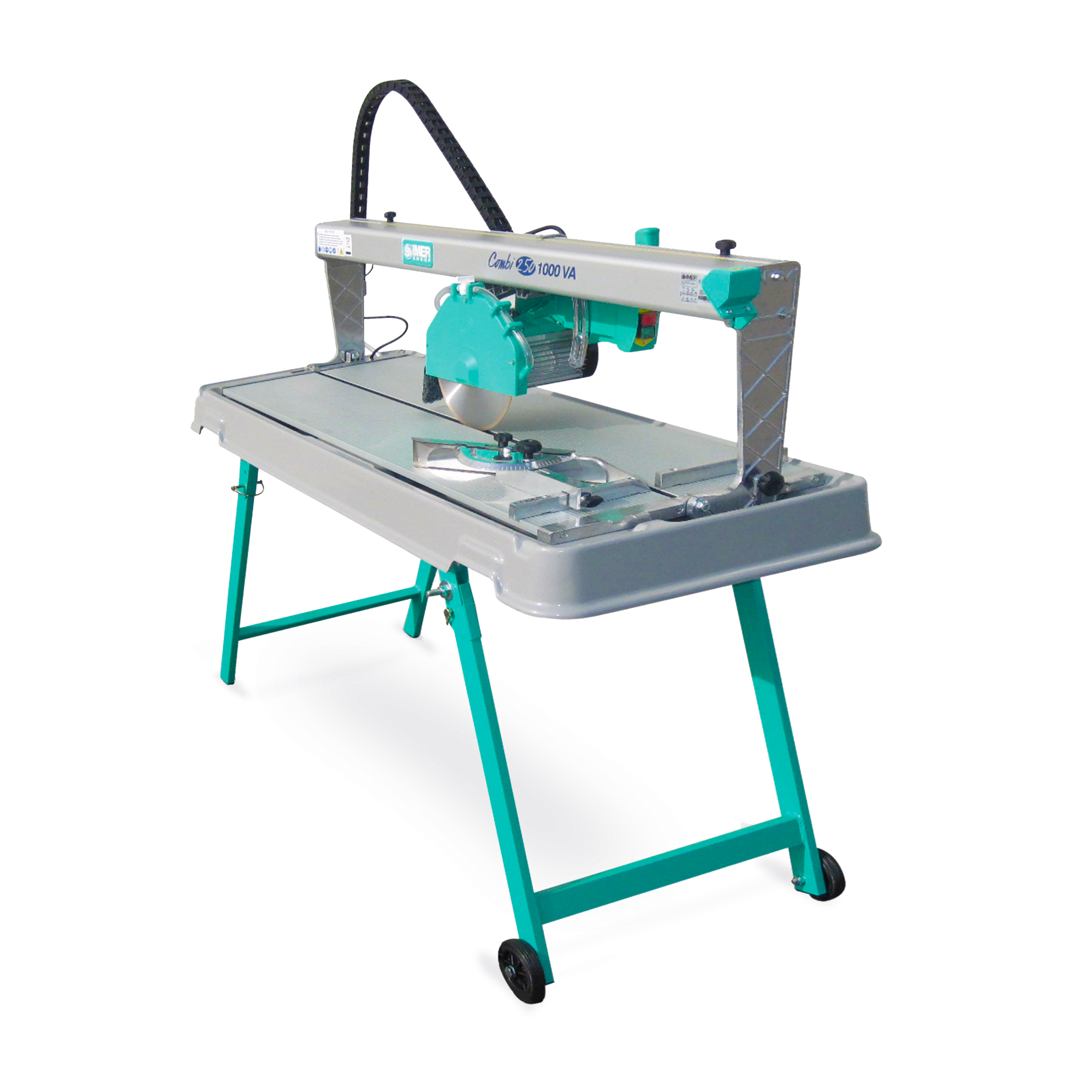

The IMER Combicut 250-1000VA Tile Saw is designed for accurate straight and miter cuts on tile up to 37 inches. Its lightweight frame supports transport while maintaining consistent cutting capability on smaller format jobs.
Key Features
- Cut Capacity: Supports tile lengths up to 37 inches with 40 inch plunge capability.
- Assembly: Ships assembled; stand requires only two bolts.
- Blade Included: Comes with a 10 inch continuous rim porcelain blade.
- Support Table: Includes side table for large format tile.
- Protractor: Included protractor provides 180 degree adjustment for angle cutting.
- Water Control: Includes high flow water pump, water valve, and removable poly water pan with baffle.
- Laser Guide: Integrated laser aids alignment for straight cuts.
- Integrated Stand: Folding stand with wheel kit supports transport and setup.
Specifications
| Specification | Details |
|---|---|
| Model Number | 1188174 |
| Blade Diameter | 10 in |
| Blade Shaft Diameter | 5/8 in |
| Max Cut Length | 37 in (40 in plunge) |
| Max Cutting Depth | 3.75 in |
| Motor Rating | 1.75 HP, 120 V |
| Blade Speed | 2,800 rpm |
| Weight (Boxed) | 92 lbs (98 lbs) |
| Water Pan Capacity | 12 gal |
| Water Pump Flow | 3 gpm |
| Dimensions (L x H x W) | 55 in x 24 in x 25 in |
This configuration suits installers who need a lightweight overhead rail saw that provides consistent straight and miter cutting capability with minimal setup requirements.
