The Alpha® Dry Porcelain Paver Tile Cutting System is a professional-grade tile saw designed specifically for dry tile cutting applications. This portable and virtually dust-free dry tile saw provides fast, accurate cuts on porcelain and other tiles without the mess of water cleanup. Ideal for fabricators, contractors, and tile contractors, this system delivers superior performance on job sites requiring efficiency and mobility.
Key Features of the Alpha® Dry Tile Saw
- Virtually Dust-Free Operation: Minimizes airborne dust for cleaner, safer job sites.
- Portable Cutting System: Lightweight table and stand allow easy transport and storage.
- Accurate Cutting Performance: Cuts 1/2" thick tile precisely, including diagonal cuts on 20" x 20" tiles.
- Built-In Breaker Assembly: Ensures clean and controlled tile breaking post-cut.
- Handles Up To 3/4" Thick Porcelain Paver Tile: Versatile enough for various tile thicknesses.

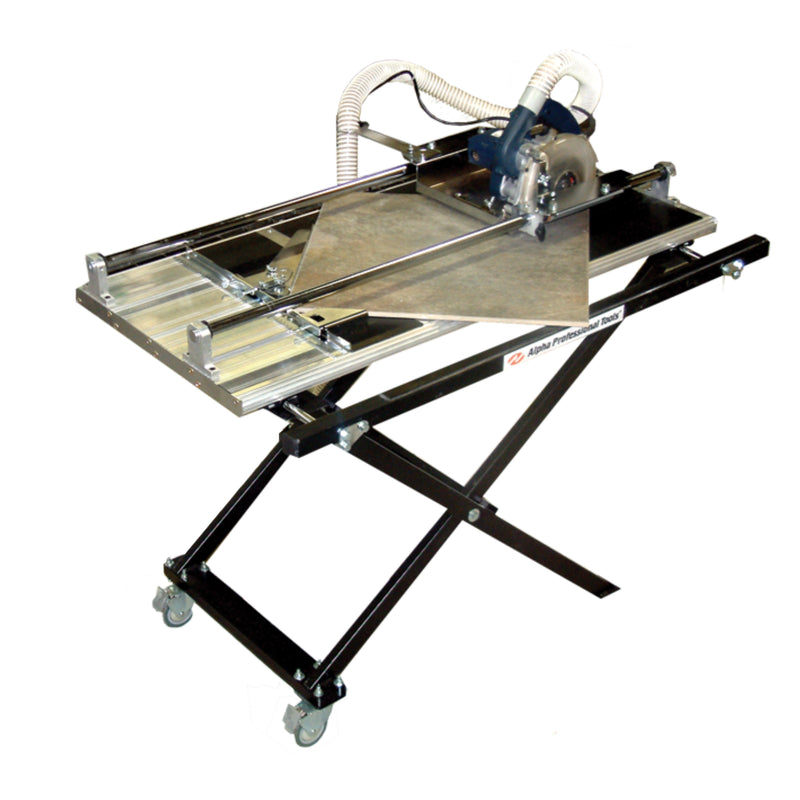

- Complete Kit Included: Comes with Ecocutter, stand, table, and 5” Alpha® Ultracut GPM dry cutting blade.
- Eliminates Downtime and Cleanup: No water needed, reducing delays and mess.
Specifications for the Alpha® Dry Porcelain Paver Tile Cutting System
| Specification | Details |
|---|---|
| Model | ECC-KIT (ECC-125) |
| Voltage | 110 Volts |
| Amperage | 11.2A |
| Power | 1200W |
| No Load Speed | 12,000 RPM |
| Weight | 9.5 lbs (4.3 kgs) |
| Arbor Size | 7/8" (22.23 mm) |
| Cutting Disc Diameter | 5" (125 mm) |
| Max Cutting Depth | 1-1/8" (29 mm) without table |
Size Specifications
| Component | Size / Dimensions |
|---|---|
| Tile Size Capacity | Up to 20" x 20" |
| Tile Thickness Capacity | Up to 3/4" thick porcelain paver |
| Dust Bag Dimensions | 17" x 13-1/2" x 12" |
Usage Instructions for Dry Tile Cutting
The Alpha® Dry Porcelain Paver Tile Cutting System is engineered for dry cutting tile, eliminating the need for water. Use the included Ultracut GPM 5” blade for clean, precise cuts on porcelain and similar materials. The portable cutting table and stand simplify setup and breakdown on job sites. The built-in breaker assembly assists in clean tile snapping after scoring. This system is perfect for contractors and tile fabricators looking to improve efficiency and reduce job site cleanup.
Warranty Information
This tile saw comes with a one-year tool warranty, providing peace of mind for professional installers relying on consistent performance.
Upgrade your tile cutting process with the Alpha® Dry Porcelain Paver Tile Cutting System. Experience fast, accurate, and dust-free dry tile cutting on-site. Order now to increase productivity and reduce cleanup time with this industry-leading dry tile saw.
