Alpha Countertop Trim Kit (ESC-150 & ESC-250)

Alpha Countertop Trim Kit (ESC-150 & ESC-250)

Rail System for Cutting Stone, Porcelain Slabs & Engineered Materials

$1,113.79 - $1,113.79
$1,113.79
$1,113.79 - $1,113.79
$1,113.79
Alpha  |  MPN: 5480-4250  |  UPC: 749173661723
Free Shipping Eligible
Availability:
Ships Direct from Manufacturer (Lead Time May Vary)
Availability:
Ships Direct from Manufacturer (Lead Time May Vary)
Voltage: ESC-150 (110V)

ESC-150 Countertop Trim Kit Specifications

  • Voltage: 110V
  • Amperage: 11.2A
  • Maximum Cutting Depth: 2 in
  • Blade Capacity: 6" Eclipse II diamond blade
  • Operation Type: Wet or dry cutting
  • Application: Stone, porcelain slab, and engineered material trimming and sizing

The Alpha Countertop Trim Kit is a rail-guided cutting system designed for straight trimming and sizing of stone, porcelain slabs, and engineered materials. Its carriage-mounted cutter, rigid guide rail, and high-capacity cutting design help maintain controlled, accurate cuts across dense slab materials.

Key Features
  • Rail-Guided Cutting System: Maintains straight, consistent cuts on slab materials.
  • Carriage-Mounted Cutter: Helps reduce edge deviation during cutting.
  • 2" Cutting Capacity: Supports thicker slab and stone materials.
  • Stone and Slab Applications: Designed for porcelain slabs, engineered surfaces, and natural stone.
  • 6" Diamond Blade Included: Supports dense material cutting applications.
  • Wet or Dry Cutting: Adapts to different fabrication and installation conditions.
  • 110V and 220V Options: Available for different power requirements.
Best For
  • Stone, porcelain slab, and engineered materials
  • Countertop trimming and on-site fitting
  • Straight-line cutting
  • Controlled high-capacity rail-guided cutting

Why Professionals Choose Tile This

  • Free shipping on eligible orders $200+
  • Same-day shipping before 2 PM CST (Mon–Sat) for in-stock items
  • Eligible for our Contractor Pricing Program
  • Authorized Alpha Dealer
Alpha Countertop Trim Kit (ESC-150 & ESC-250) ESC-150 (110V) $1,113.79

Description

The Alpha Countertop Trim Kit uses a carriage-mounted stone cutter and guide rail system to maintain straight, controlled cuts across stone, porcelain slabs, and engineered materials. Its stable rail-guided movement and high-capacity cutting design help improve cutting accuracy during countertop trimming, slab sizing, and fabrication work.

Designed for thicker slab materials and demanding cutting applications, the system supports wet or dry cutting and handles materials up to 2 inches thick. A 6" diamond blade, rigid carriage assembly, and controlled guide alignment help maintain consistent cutting performance across granite, quartz, porcelain slabs, sintered materials, and similar hard surfaces.

The kit is available in both 110V and 220V configurations while maintaining the same cutting depth, rail-guided system design, and core cutting components.

Specifications

Model Voltage Amperage Max Cutting Depth
ESC-150 110V 11.2A 2 in (50.8 mm)
ESC-250 220V 5.5A 2 in (50.8 mm)

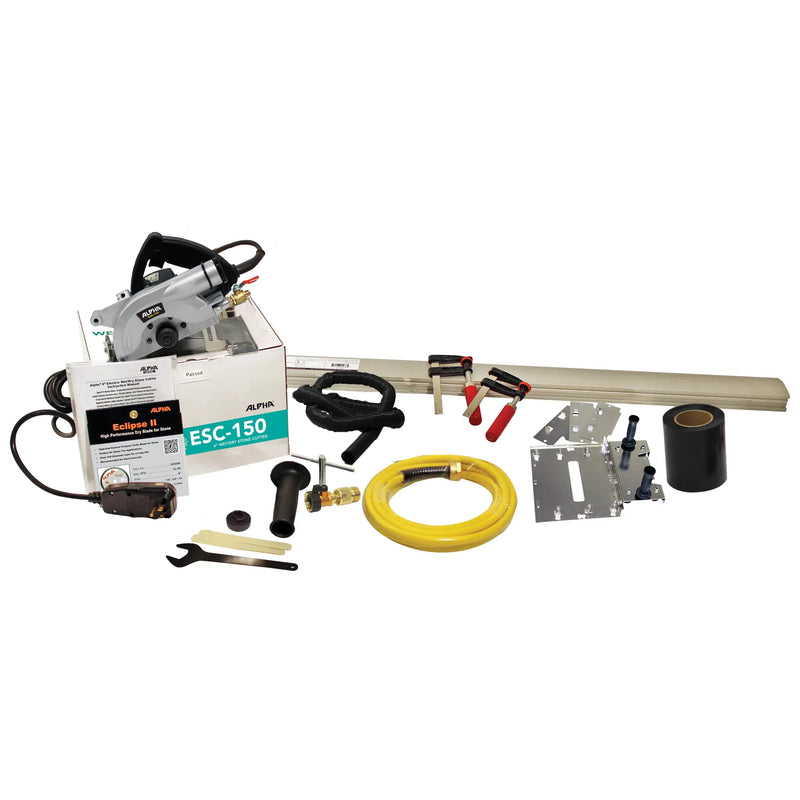

Kit Includes

  • 1 Electric stone cutter
  • 1 Carriage assembly (ASC-6CSM)
  • 1 Eclipse II 6" diamond blade (DEE006)
  • 1 Guide rail 4 ft (ASC-GR04)
  • Surface protection tape
  • Standard tool accessories

Frequently Asked Questions

What materials can the Alpha Countertop Trim Kit cut?
The system is designed for granite, quartz, marble, limestone, porcelain slabs, sintered materials, concrete, engineered stone, and similar hard surface materials.
Can the system cut thick slab materials?
Yes. The Alpha Countertop Trim Kit supports cutting depths up to 2 inches (50.8 mm) for thicker slab and countertop materials.
Does the system support wet and dry cutting?
Yes. The included stone cutter supports both wet and dry cutting configurations depending on fabrication conditions and material type.
Are both 110V and 220V versions available?
Yes. The kit is available with either the ESC-150 110V cutter or the ESC-250 220V cutter depending on power requirements.
