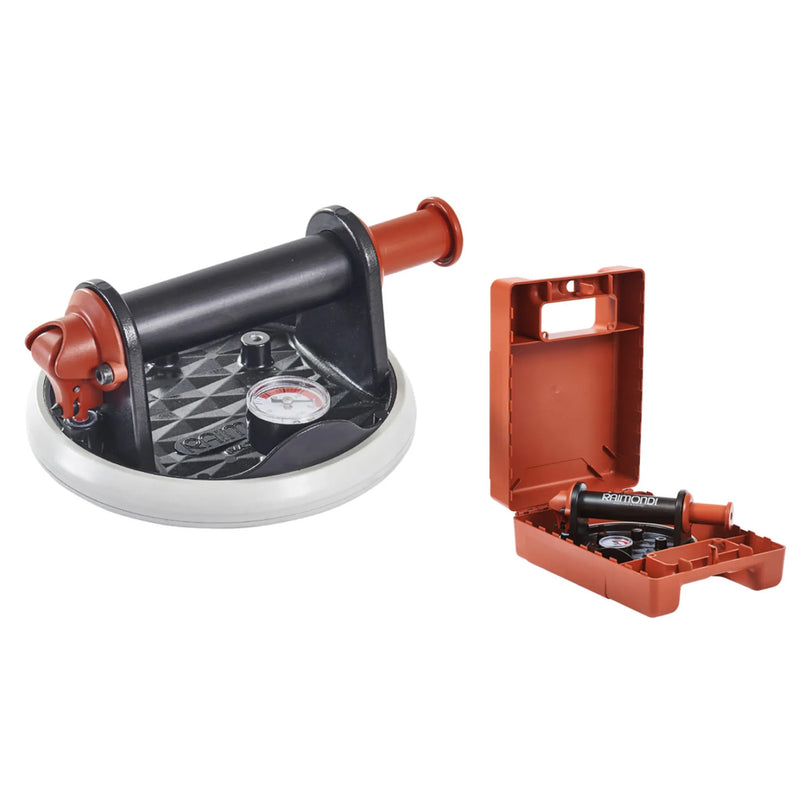

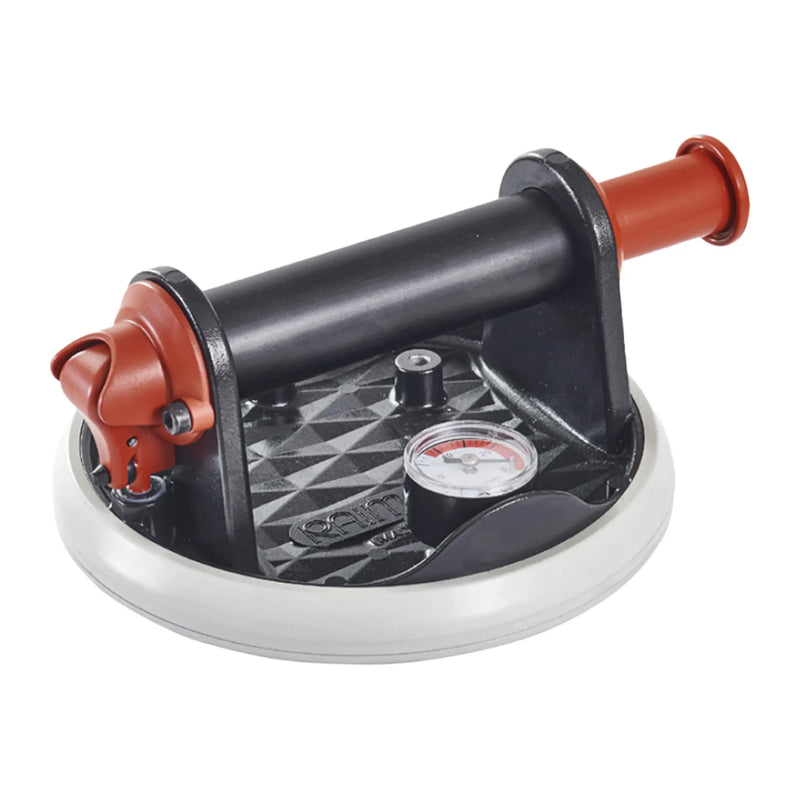

The Raimondi® Vacuum Pump Suction Cup is a single-cup lifting and handling tool designed for secure gripping of ceramic tile and similar surfaces. A built-in vacuum gauge allows suction pressure to be monitored during use for controlled handling.
The suction cup is designed to adhere to both smooth and textured tile surfaces and features a stain-free rubber pad with a removable cup mounted to a die-cast aluminum body.
Key Features
- Integrated Vacuum Gauge: Displays suction level to help monitor grip during lifting and placement.

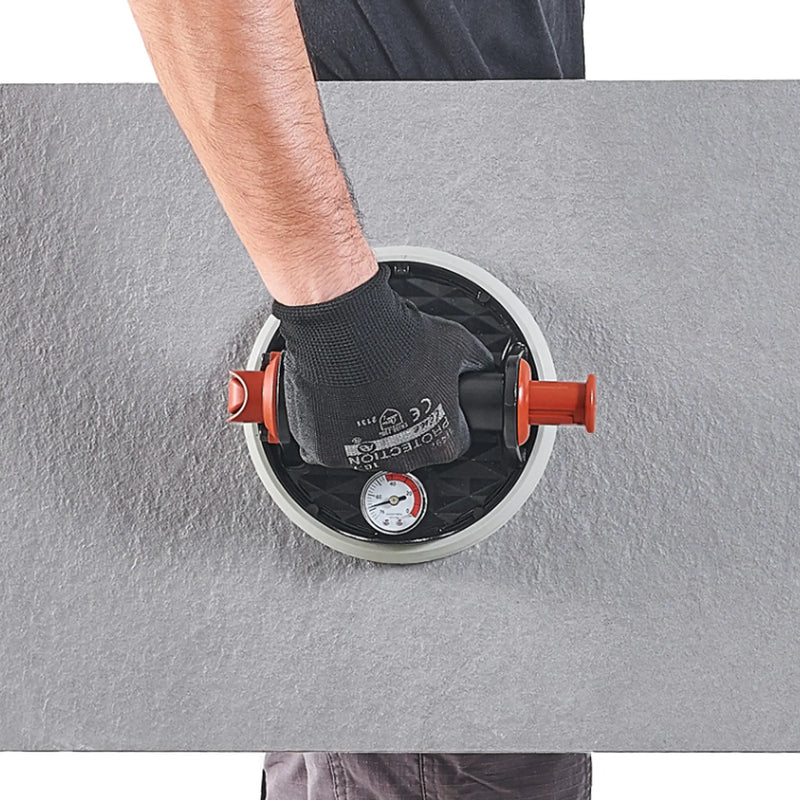

- Textured Surface Compatibility: Designed to suction onto textured ceramic tile.
- Stain-Free Rubber Cup: Leaves no marks on tile surfaces during use.

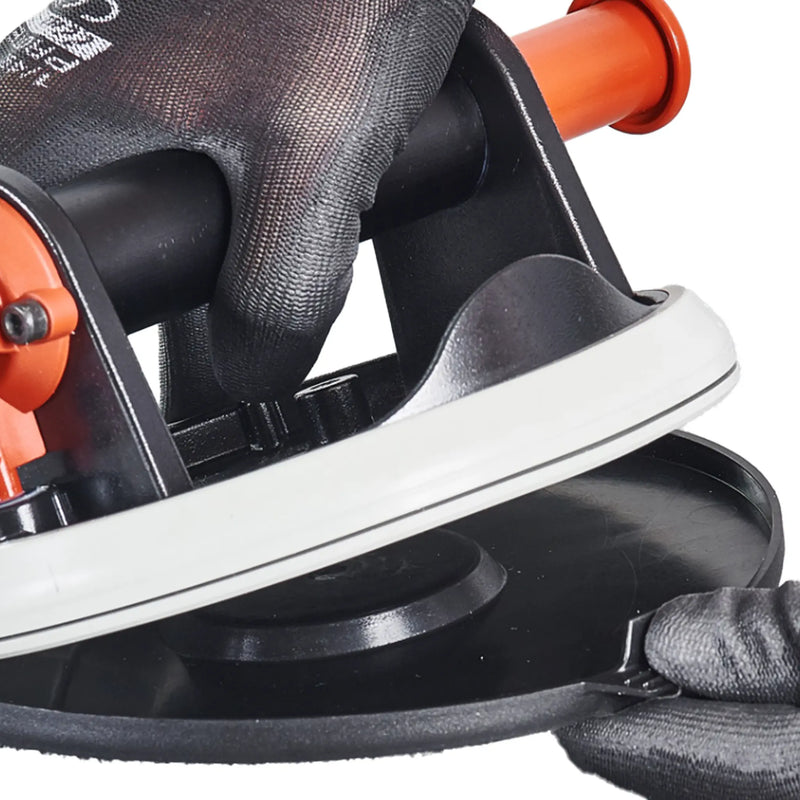

- Die-Cast Aluminum Body: Provides strength with a removable suction cup design.
- High Load Capacity: Rated for loads up to 286 lbs (130 kg).
Specifications
| Specification | Details |
|---|---|
| Cup Diameter | 7" (175 mm) |
| Maximum Load Capacity | 286 lbs (130 kg) |
| Body Material | Die-cast aluminum |
| Cup Material | Stain-free rubber |
| Weight | 3.2 lbs |
The Raimondi® Vacuum Pump Suction Cup provides controlled lifting and handling of ceramic tile with monitored suction and a high load rating.
