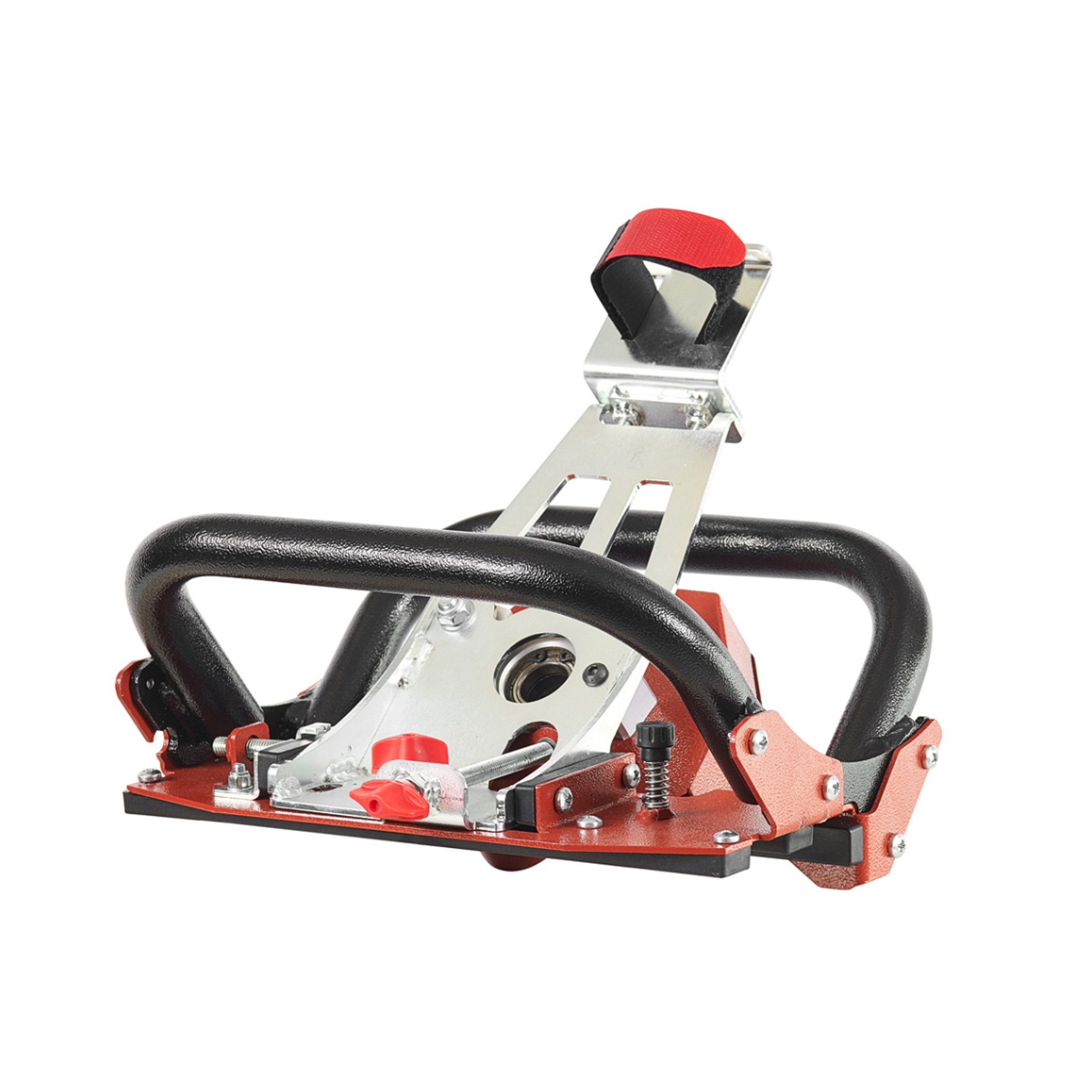

Raimondi Power Miter Jolly
Fast Shipping
Easy Returns
Secure Checkout
At a Glance
Quick Decision Guide
Miter Cut
45° Jolly Bevel
Maximum Tile Thickness
5/8" (16 mm)
Blade Size
4-1/2"
Grinder Power
600-1100W
Grinder Arbor
5/8"-11
Guide Rail
Not Required
Cutting Length
No Limit
Cutting Method
Wet or Dry
Why Choose This Product
Key Benefits
Precise Mitering
Produces clean, consistent 45° bevel cuts
Edge-Guided Design
Uses the tile or slab edge instead of a guide rail
No Length Limit
Miters long tile and slab sections without a rail
Adjustable Depth
Controls the amount of material removed
Reduced Chipping
Adjustable blade tilt protects the finished edge
Smooth Operation
Anti-scratch slides move smoothly across the material
Dual-Handle Control
Provides consistent pressure throughout the cut
Blade Included
Includes a 4-1/2" Cross-Turbo diamond blade
Product Information
Product Details
Specifications
Brand
Raimondi®
Part Number
433BCOH-US
UPC
8051830025253
Product Type
Tile & Slab Mitering Tool
Miter Cut
45° Jolly Bevel
Maximum Tile Thickness
5/8" (16 mm)
Blade Size
4-1/2" (115 mm)
Grinder Power
600-1100W
Grinder Arbor
5/8"-11
Guide Rail Required
No
Cutting Length
No Limit
Cutting Depth
Adjustable
Blade Tilt
Adjustable
Cutting Method
Wet or Dry
Included
4-1/2" Cross-Turbo Diamond Blade
Angle Grinder Included
No
About This Product
Fast, Precise Tile and Slab Mitering
The Raimondi® Power Miter Jolly produces high-quality 45° bevel cuts on tile and slabs directly at the jobsite. It rides along the material edge as its guide, eliminating the need for a rail and allowing miter cuts with no length limit.
Adjustable Cutting Depth and Blade Position
Cutting depth can be adjusted with dedicated knobs to control how much material is removed and how close the cut runs to the finished tile surface. Blade tilt can also be adjusted to help prevent the rear of the blade from chipping the finished edge.
Stable Control Across Long Bevel Cuts
Dual handles provide the pressure and control needed from the beginning through the end of the cut. Anti-scratch plastic slides move smoothly along the tile or slab surface, helping maintain consistent positioning while protecting the material from unnecessary contact damage.
Angle Grinder Powered with Blade Included
The US model works with most 600-1100W angle grinders equipped with a 5/8"-11 arbor. A 4-1/2" Cross-Turbo diamond blade is included, supporting material up to 5/8" (16 mm) thick. The angle grinder is sold separately.
Wet or Dry Cutting Options
The Power Miter Jolly can be used for standard dry cutting or configured for wet cutting with the compatible Raimondi wet cutting and dust suppression kit. When wet cutting, use a suitable cordless grinder or qualifying water-resistant corded grinder and proper GFCI protection around water.
Common Questions
Frequently Asked Questions
What is the Raimondi Power Miter Jolly used for?
The Power Miter Jolly is designed to create precise, high-quality bevel or jolly cuts along the edges of tile and slabs for mitered installations.
What angle does the Power Miter Jolly cut?
It is designed for nominal 45° miter or jolly cuts. Raimondi specifies the actual miter angle at approximately 47°.
Does the Power Miter Jolly require a guide rail?
No. The tool rides directly along the edge of the tile or slab, so a separate guide rail is not required. This also allows it to work on material without a practical length limit.
What angle grinders are compatible with the US Power Miter Jolly?
The 433BCOH-US is designed for use with most 600-1100W angle grinders equipped with a 5/8"-11 arbor.
Is an angle grinder included?
No. The angle grinder must be purchased separately. The Power Miter Jolly does include a 4-1/2" Cross-Turbo diamond blade.
What is the maximum tile thickness?
With the included 4-1/2" (115 mm) blade, the maximum specified tile or slab thickness is 5/8" (16 mm).
Can the cutting depth be adjusted?
Yes. Dedicated adjustment knobs control the amount of material removed and allow the cut to be positioned closer to or farther from the tile glaze. Once set, the adjustment can be maintained across different material thicknesses.
Can the Power Miter Jolly be used for wet cutting?
Yes. The standard tool is configured for dry use, but wet cutting is possible with the compatible Raimondi wet cutting and dust suppression kit. Wet operation requires an appropriate cordless grinder or qualifying IP54-rated or higher corded grinder, along with proper electrical protection around water.
