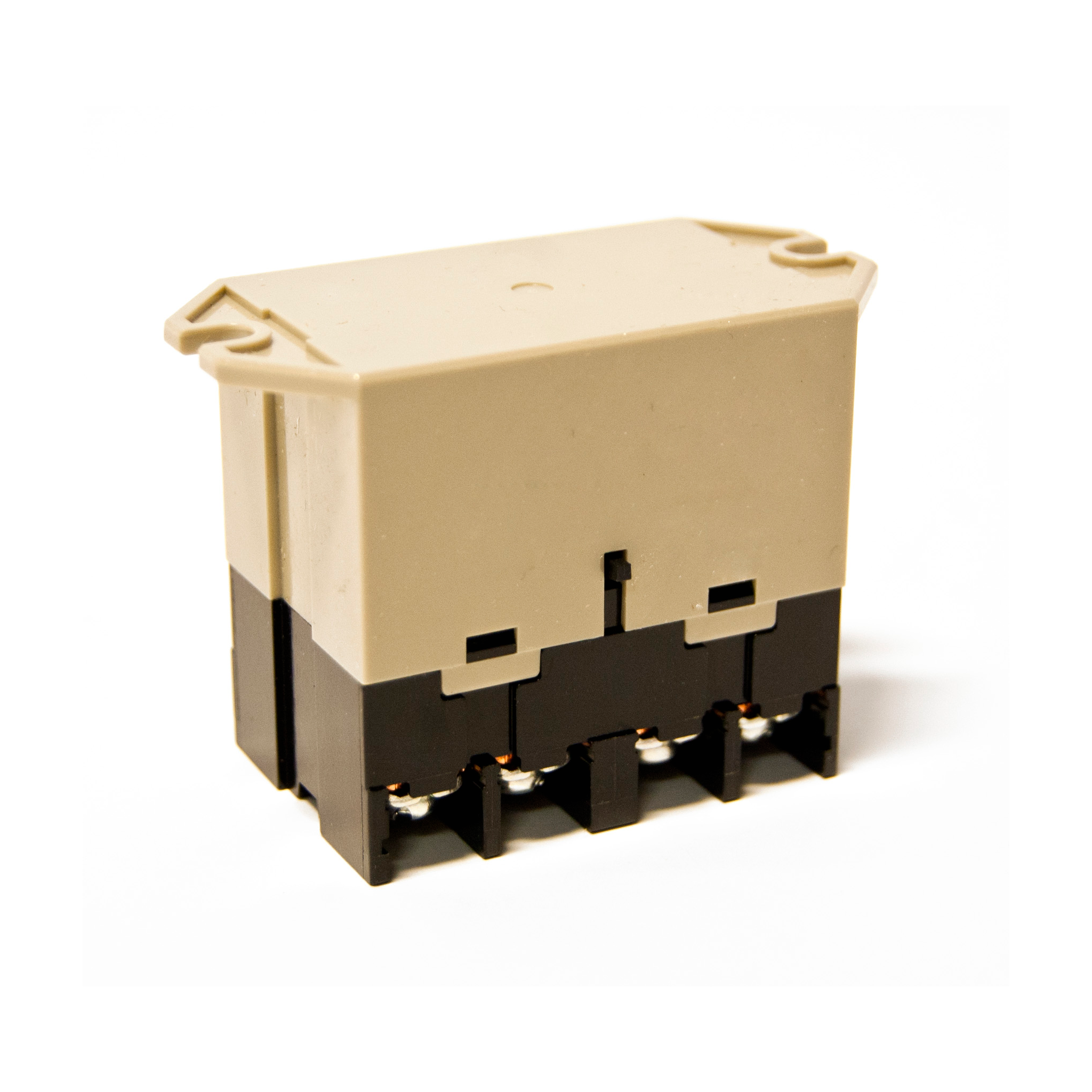

Nuheat Relay for Radiant Floor Heating Systems
Fast Shipping
Easy Returns
Secure Checkout
At a Glance
Quick Decision Guide
Voltage
120 V
Function
Multi-Circuit Heating Control
Load Application
Systems Exceeding 15 Amps
System Compatibility
Nuheat Radiant Floor Heating
Why Choose This Product
Key Benefits
Expanded Load Control
Supports floor heating systems that exceed thermostat load capacity
Multi-Circuit Operation
Connects multiple heating circuits to one thermostat
Thermostat-Controlled Switching
Activates connected heating elements when heat is called for
Voltage Options
Available for 120 V and 240 V Nuheat floor heating systems
Product Information
Product Details
Specifications
Brand
Nuheat®
Part Number
AC0006
UPC
620713004135
Product Type
Radiant Floor Heating Relay
Voltage
120 V
Function
Multi-Circuit Heating Control
Load Application
Systems Exceeding 15 Amps
System Compatibility
Nuheat Radiant Floor Heating Systems
Control Type
Thermostat-Controlled Switching
About This Product
Additional Load Control for Radiant Floor Heating
The Nuheat® Relay is an electrical control device for radiant floor heating systems where the total heating load exceeds the 15-amp capacity of the thermostat. It functions as a contactor, switching power to the connected heating elements when the thermostat calls for heat.
Control Multiple Heating Circuits from One Thermostat
The relay allows multiple Nuheat radiant floor heating circuits to operate from a single thermostat while providing the additional load control required by larger installations. Separate 120 V and 240 V models are available to match the floor heating system voltage.
Common Questions
Frequently Asked Questions
What does a Nuheat Relay do?
The relay connects multiple radiant floor heating circuits to one thermostat and switches power to the heating elements when the thermostat calls for heat.
When is a Nuheat Relay required?
It is used when the total radiant floor heating load exceeds 15 amps and the thermostat cannot carry the full heating load directly.
Can one thermostat control multiple heating circuits with the relay?
Yes. The relay is designed to provide additional load control so multiple Nuheat radiant floor heating circuits can operate from one thermostat.
What voltage options are available?
The Nuheat Relay is available in a 120 V model, part number AC0006, and a 240 V model, part number AC0007.
