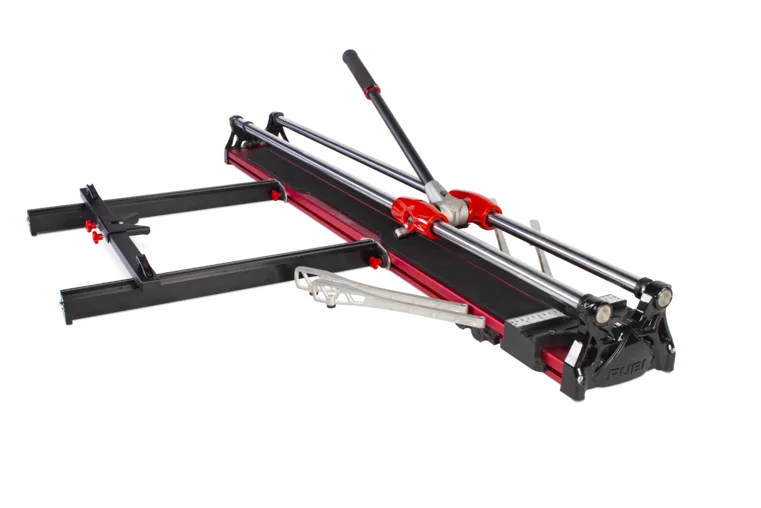

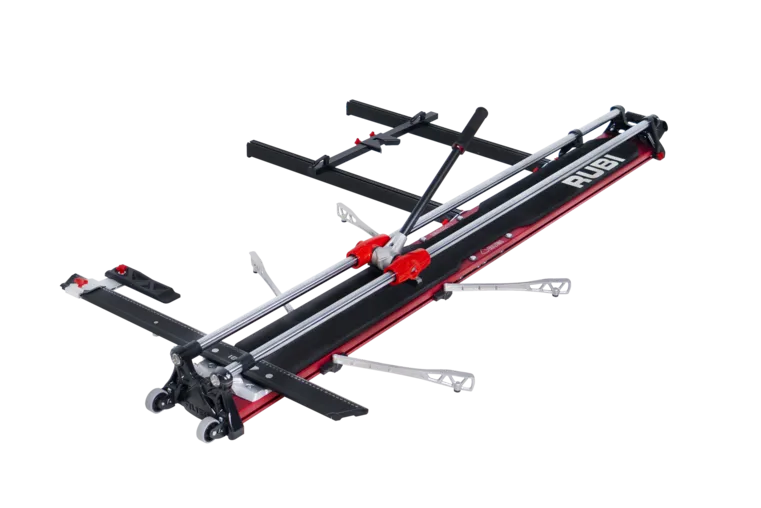

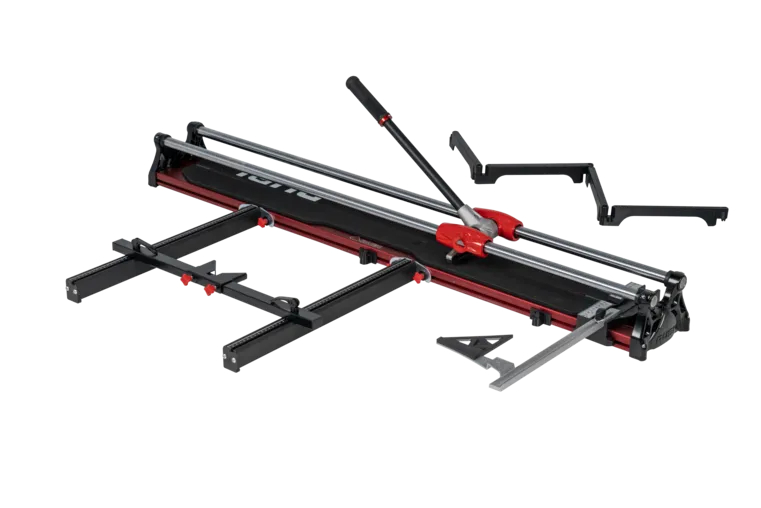

The RUBIĀ® HIT-PLUS Tile Cutter is a manual tile cutter designed for intensive cutting of large-format ceramic and porcelain tile. Its rigid aluminum construction, reinforced guide system, and forward scoring wheel position support accurate scoring and controlled breaking across extended cutting lengths.
Built for professional use, the HIT-PLUS series combines smooth scoring operation, clear visibility of the cutting line, and mechanical features that support repeatable straight and diagonal cuts on demanding tile installations.
Key Features

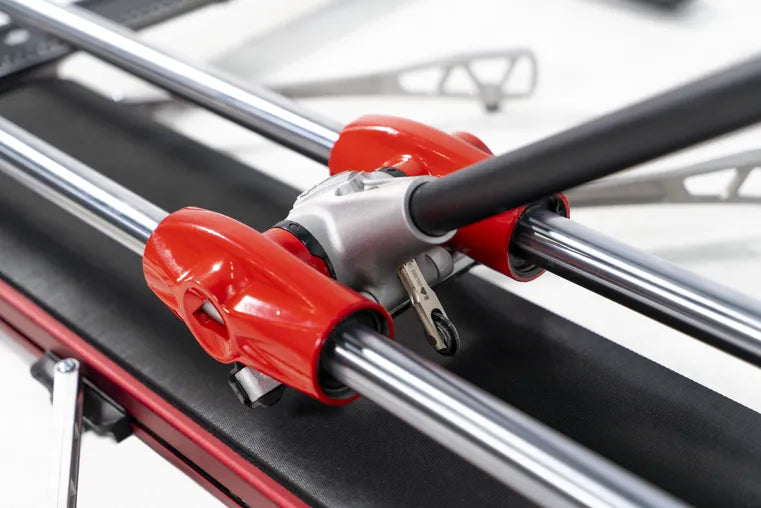

- Ball-Bearing Slider Assembly: Provides smooth, controlled scoring movement with improved accuracy and reduced effort.
- MAGNET Locking System: Allows one-handed locking and unlocking of the breaker for efficient scoring and separation.
- Forward Scoring Wheel Position: Maintains a clear, unobstructed view of the scoring and cutting line.
- Extruded Aluminum Base: Increases rigidity and supports higher cutting capacity on large-format tile.
- High-Performance Moving Breaker: Delivers controlled breaking force across ceramic and porcelain tile.
- Chrome-Plated Steel Guides: Solid 25 mm diameter guides with anti-corrosion treatment for torsional strength.
- Adjustable Square with Side Stop: Supports repetitive straight cuts and 45Ā° angle cuts.

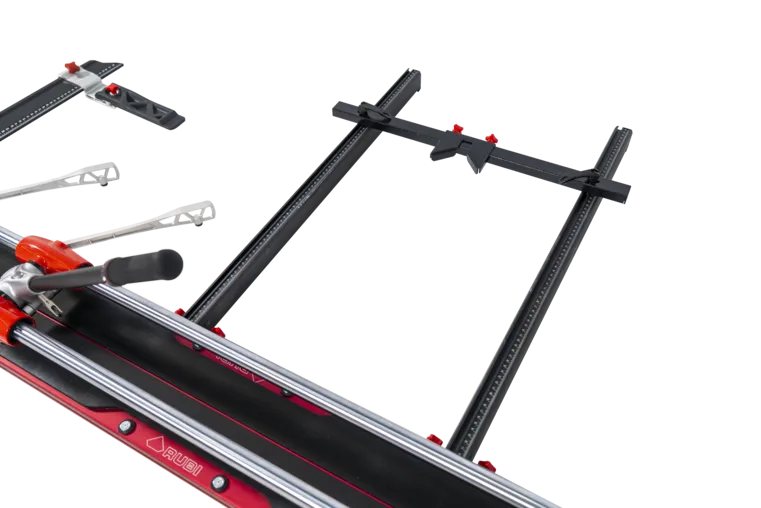

- Extended Tile Support Arms: Includes four additional aluminum arms for improved support when working with large tiles.
- Moving Guide Stop: Allows precise adjustment to match tile dimensions.
- Double Tile Support: Includes accessory support for 45Ā° cutting.
- Ergonomic Soft-Grip Handle: Designed for controlled operation during repeated scoring.
- Interchangeable Scoring Wheels: Compatible with multiple wheel diameters; includes Extreme 22 mm (7/8") scoring wheel.
- Integrated Transport Wheels: Larger models include wheels for easier movement and handling.
Specifications
| Model | Straight Cut | Diagonal Cut | Cutting Height |
|---|---|---|---|
| HIT-1200 PLUS | 47.25 in | 33.5 Ć 33.5 in | 1/8"ā3/4" |
| HIT-1600 PLUS | 62 in | 39 Ć 39 in | 1/8"ā3/4" |
| HIT-1800 PLUS | 71 in | 50 Ć 50 in | 1/8"ā3/4" |
The RUBIĀ® HIT-PLUS Tile Cutter provides a stable manual cutting platform with extended capacity, controlled scoring, and mechanical features that support repeatable cuts on large-format ceramic and porcelain tile.
