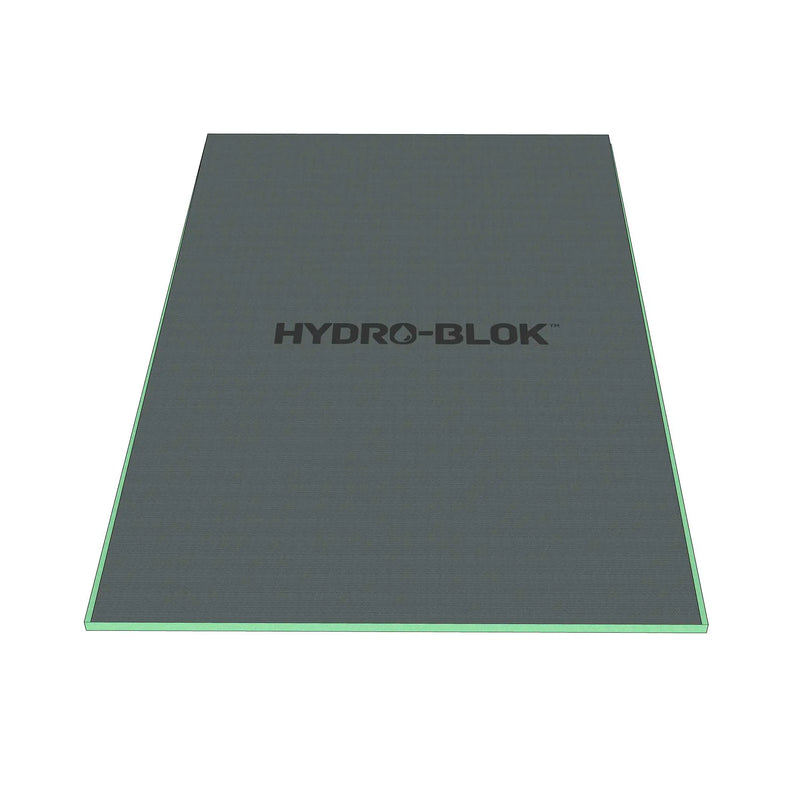

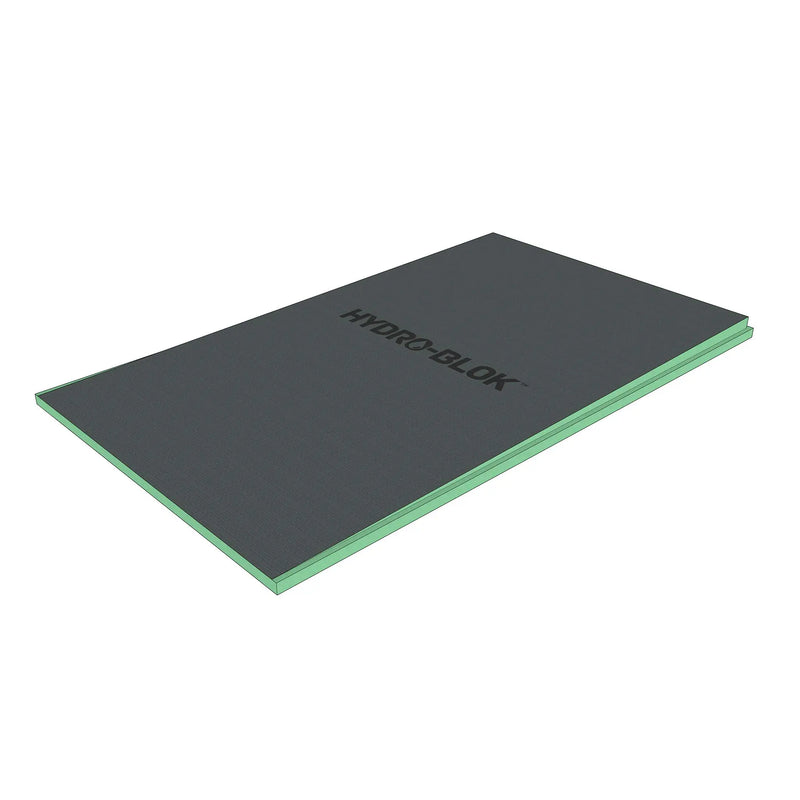

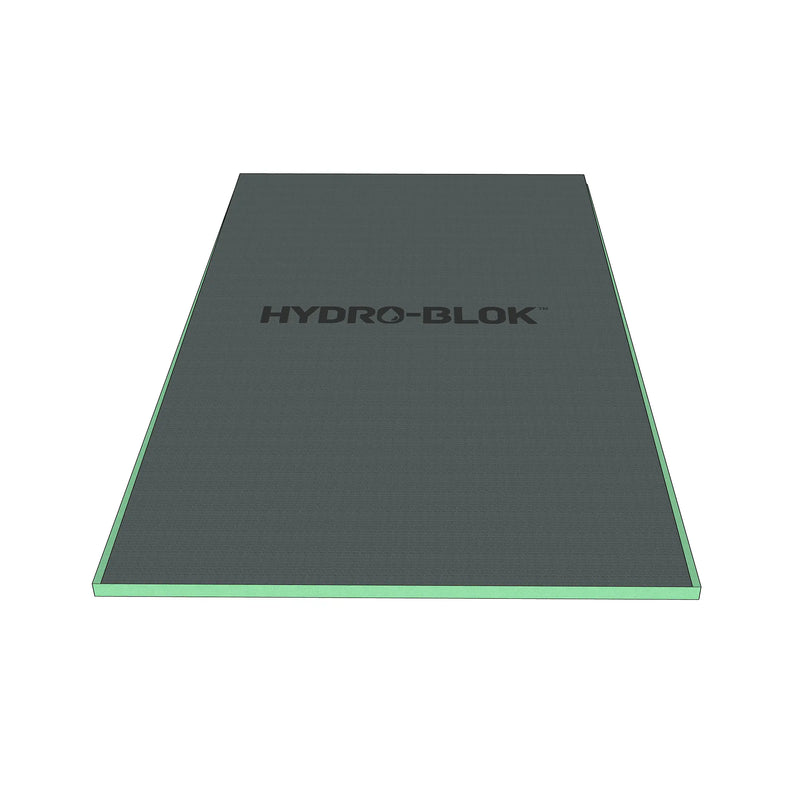

The HYDRO-BLOKĀ® THIN Single Slope Shower Pan is a tile ready shower pan designed as a custom shower base for flush-entry shower installations using tile, stone, glass, or mosaic finishes. Its single-slope design supports linear drain layouts while allowing flexibility in tile selection without a visible metal drain cover on the shower floor.
Constructed with a 100% waterproof XPS foam core, reinforced fiberglass mesh, and a modified cement surface, the pan provides a stable, ready-to-tile substrate for residential and commercial shower applications.
Key Features
- Single Slope Design: Supports linear drain installations and consistent water flow toward the drain.
- Flush Entry Installation: Designed to reduce subfloor modification compared to traditional shower bases.
- Waterproof XPS Foam Core: Provides moisture resistance while keeping overall weight manageable.
- Fiberglass Mesh Reinforcement: Adds strength and durability beneath the cementitious surface.
- Tile-Ready Cement Surface: Ready-to-tile shower pan surface supports tile, stone, glass, or mosaic finishes.
- Compatible with Linear Drains: Designed for use with Ebbe INNIĀ® Linear Drains, which can be positioned to suit various shower layouts.
Installation Notes
- Limited subfloor reconstruction is typically required.
- Floor joist restructuring is generally not needed.
- No special engineering modifications are required for standard installations.
- For tile sizes 2" x 2" or smaller, use a higher compression grout such as epoxy or urethane.
Whatās Included
- THIN Single Slope Shower Pan
- 2" Mesh Tape
- Straight Putty Knife
- Corner Putty Knife
- Installation Instructions
Available Sizes

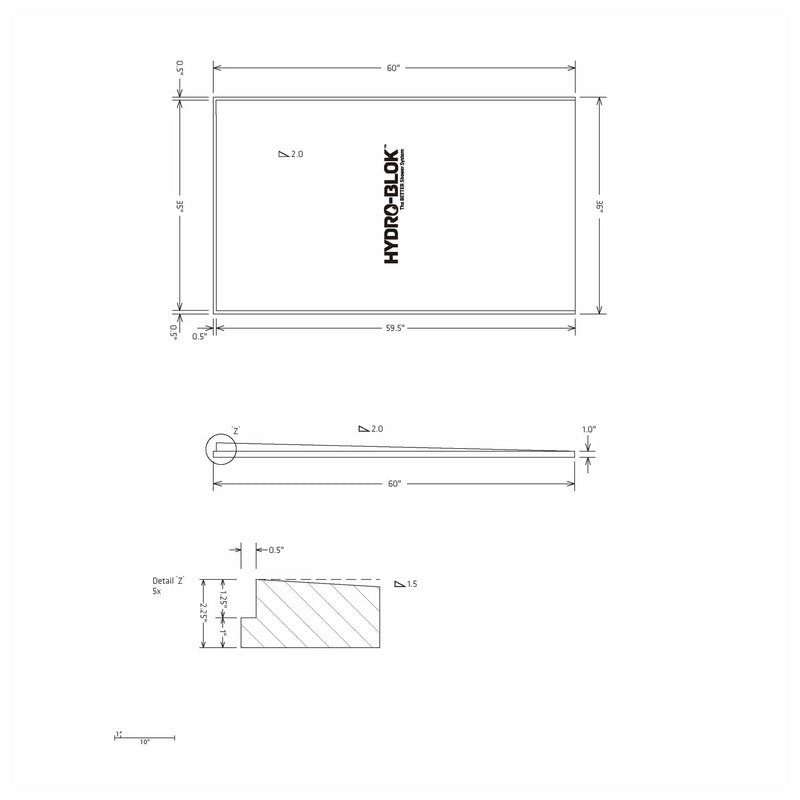

- 36" x 60"

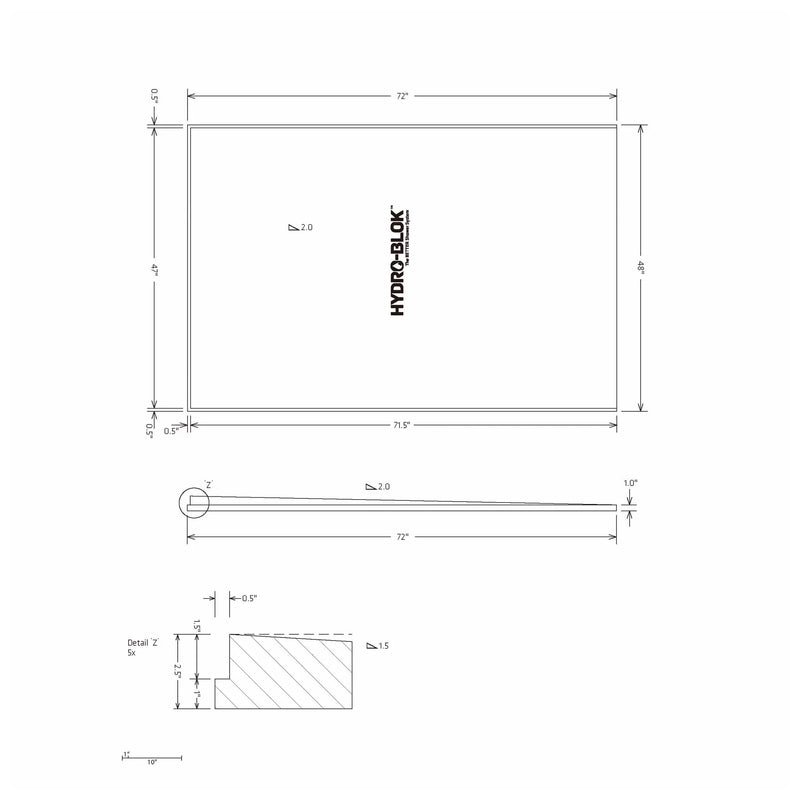

- 48" x 72"
The HYDRO-BLOKĀ® THIN Single Slope Shower Pan provides a ready-to-tile, waterproof shower pan and shower base designed to support linear drain installations and flush-entry shower layouts with minimal structural modification.
