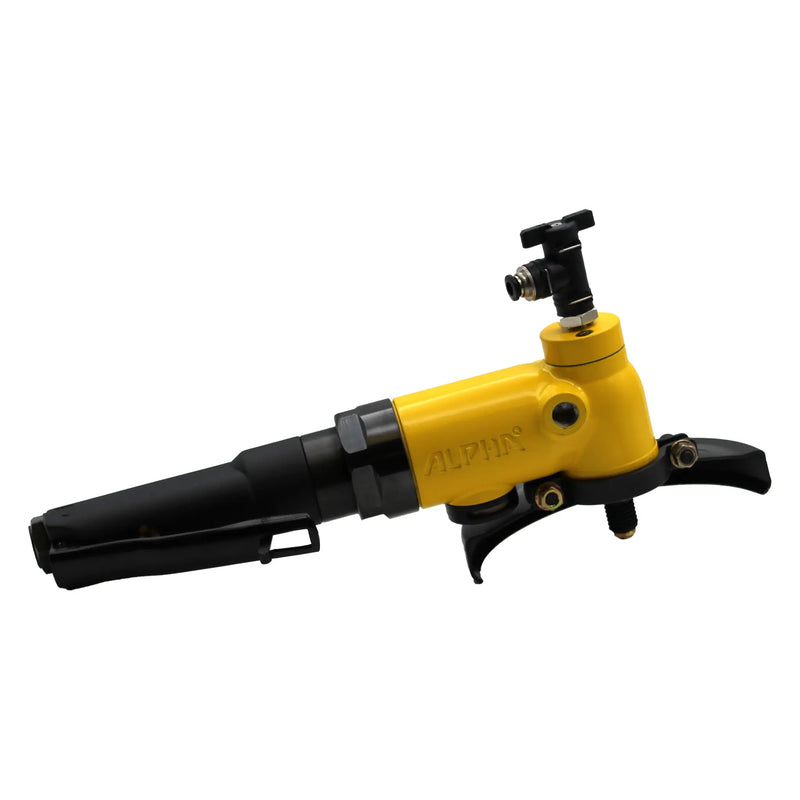

Alpha Pneumatic Cutter Grinder

The Alpha Pneumatic Cutter Grinder is a high-speed pneumatic cutter and grinder designed for wet cutting and flat grinding of stone, porcelain, and masonry materials. The tool operates using compressed air and incorporates a quad adapter center water-feed system that delivers water directly to both sides of the blade during operation.

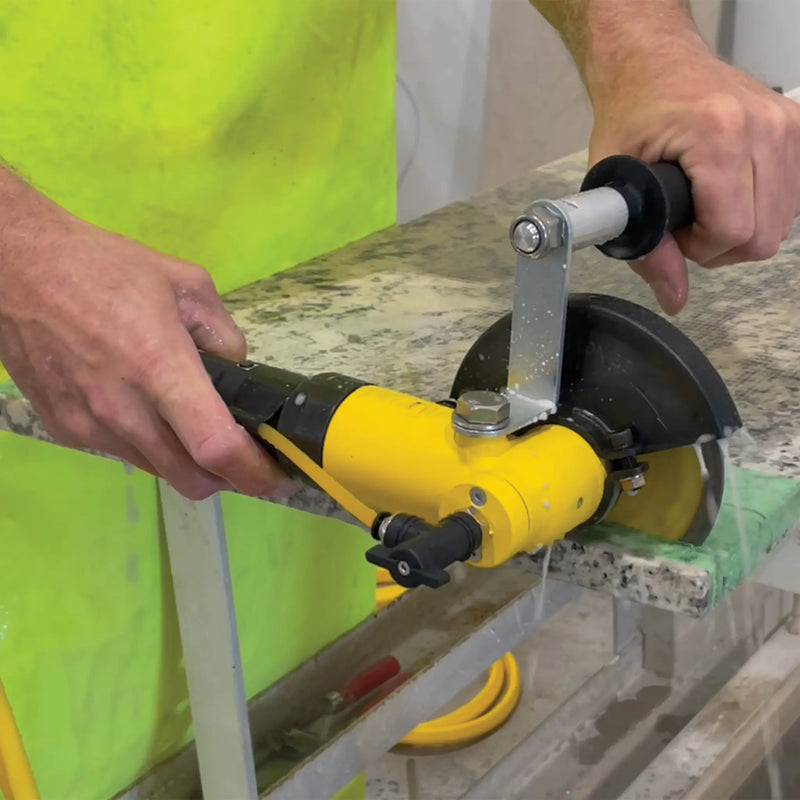

Multiple handle configurations support both pull-to-cut and push-to-cut methods. An L-bracket with side handle allows controlled pull cutting, while a direct side handle attachment supports push cutting and surface grinding. A reversible safety guard accommodates left- or right-side blade positioning.

The system is offered in multiple model sizes with different disc diameters, spindle threads, and no-load speeds. Each model is designed to support continuous wet operation for cutting, shaping, and grinding in stone fabrication and installation environments.

Key Features

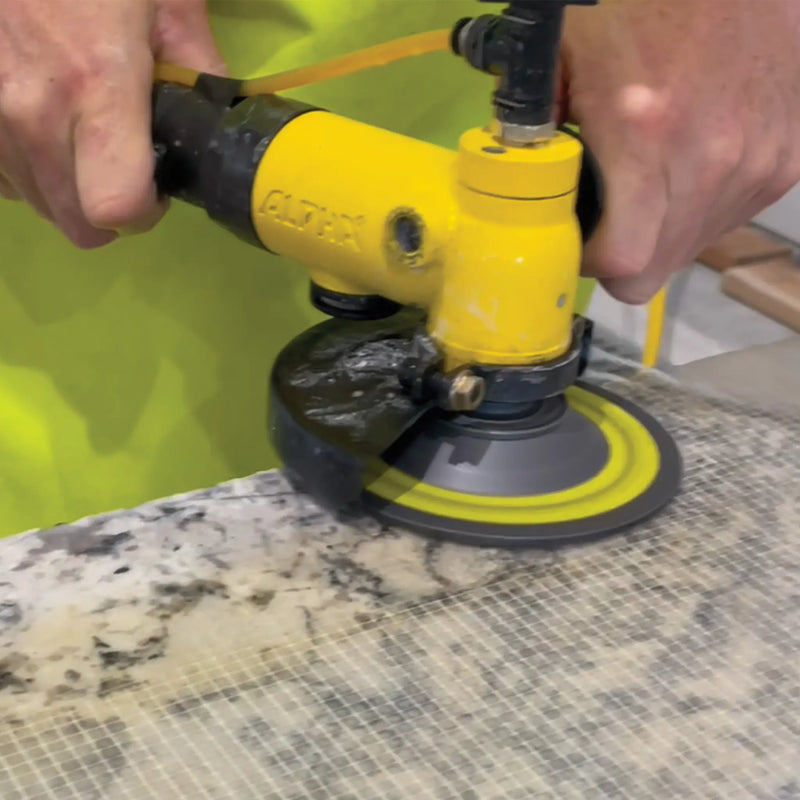

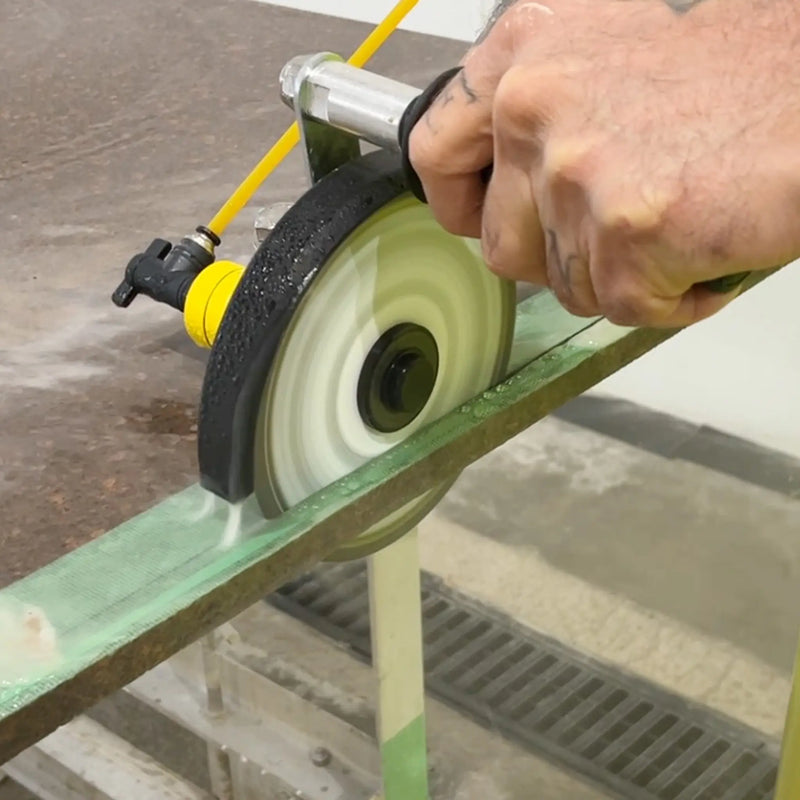

• Wet Cutting and Grinding: Supports wet cutting and flat grinding of stone and masonry materials.
• Quad Adapter Water-Feed System: Delivers water to front and back sides of the blade.
• Reversible Safety Guard: Supports left- or right-side blade positioning.
• Multiple Handle Configurations: Allows pull-to-cut and push-to-cut operation.
• Spring-Return Throttle: Helps prevent accidental startup.
• High-Speed Pneumatic Drive: Designed for continuous fabrication work.
• Easy Oil Port Access: Supports routine daily maintenance.

Specifications

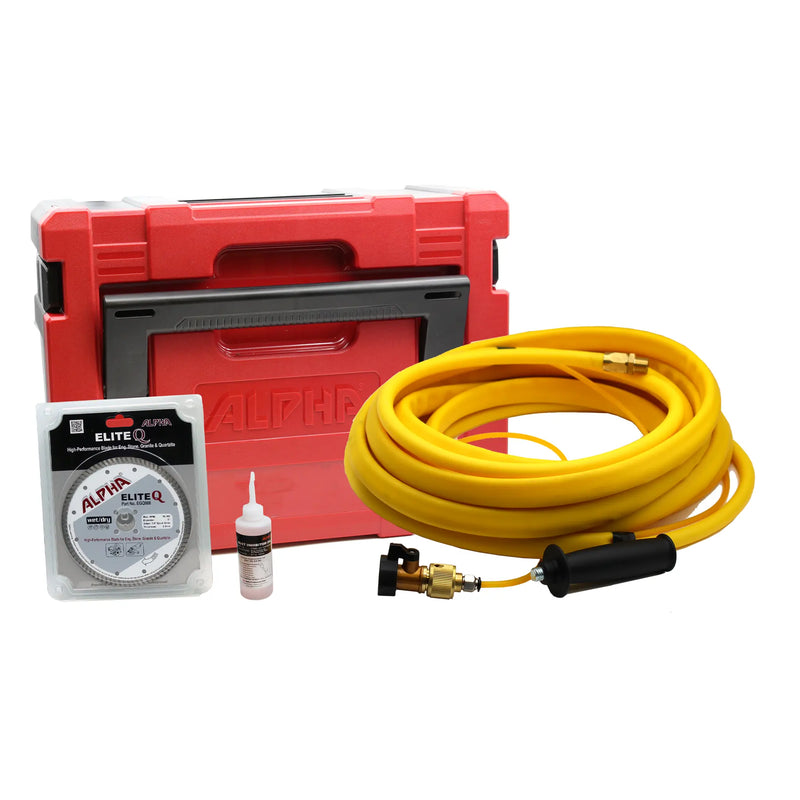

Kit Includes

• Reusable stackable toolbox

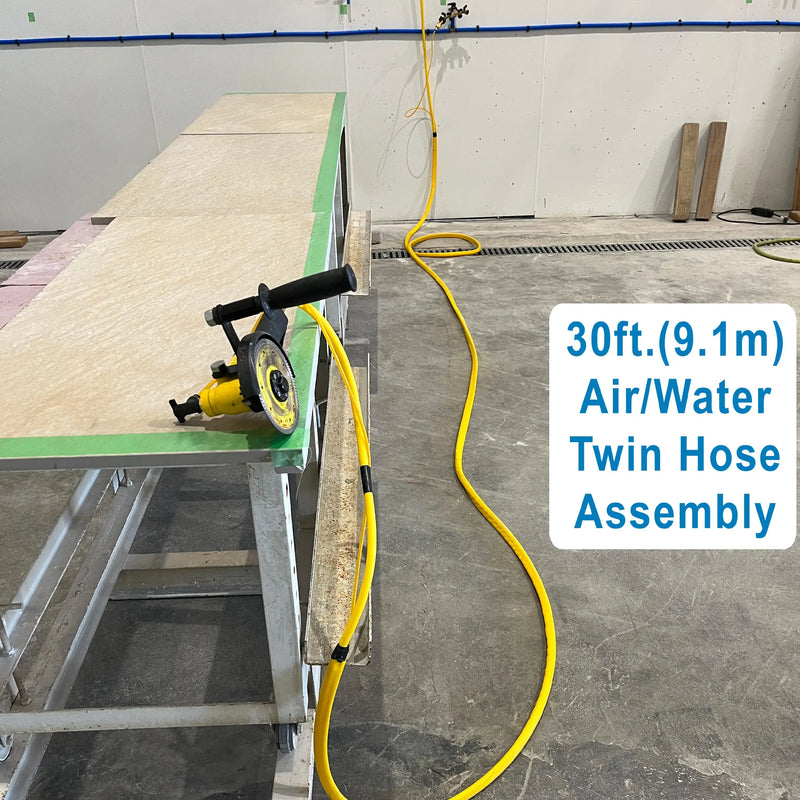

• Air/water twin hose assembly (30 ft)

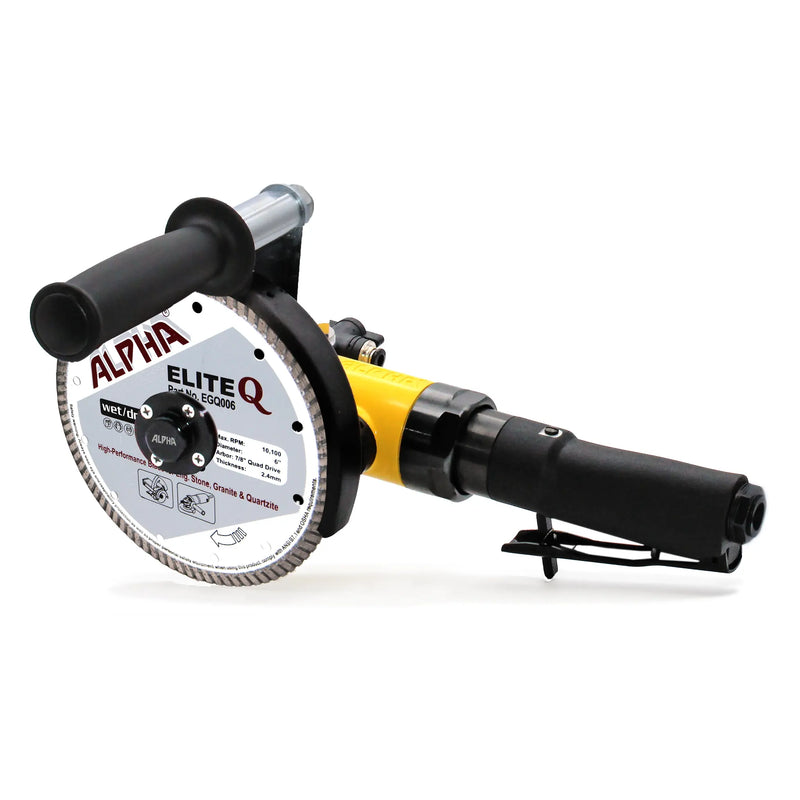

• Alpha Elite Q blade
• Rust inhibitor oil (3.4 oz)
• Quad adapter assembly
• Safety guard
• Side handle
• Handle bracket assembly
• Quick connect ball valve
• Hex wrenches (2 mm and 5 mm)
• Spanner wrenches (19 mm)
• Extension rod and nylon lock nut (M12)

This pneumatic cutter grinder is used for wet cutting and grinding in stone fabrication, installation, and surface preparation applications.
