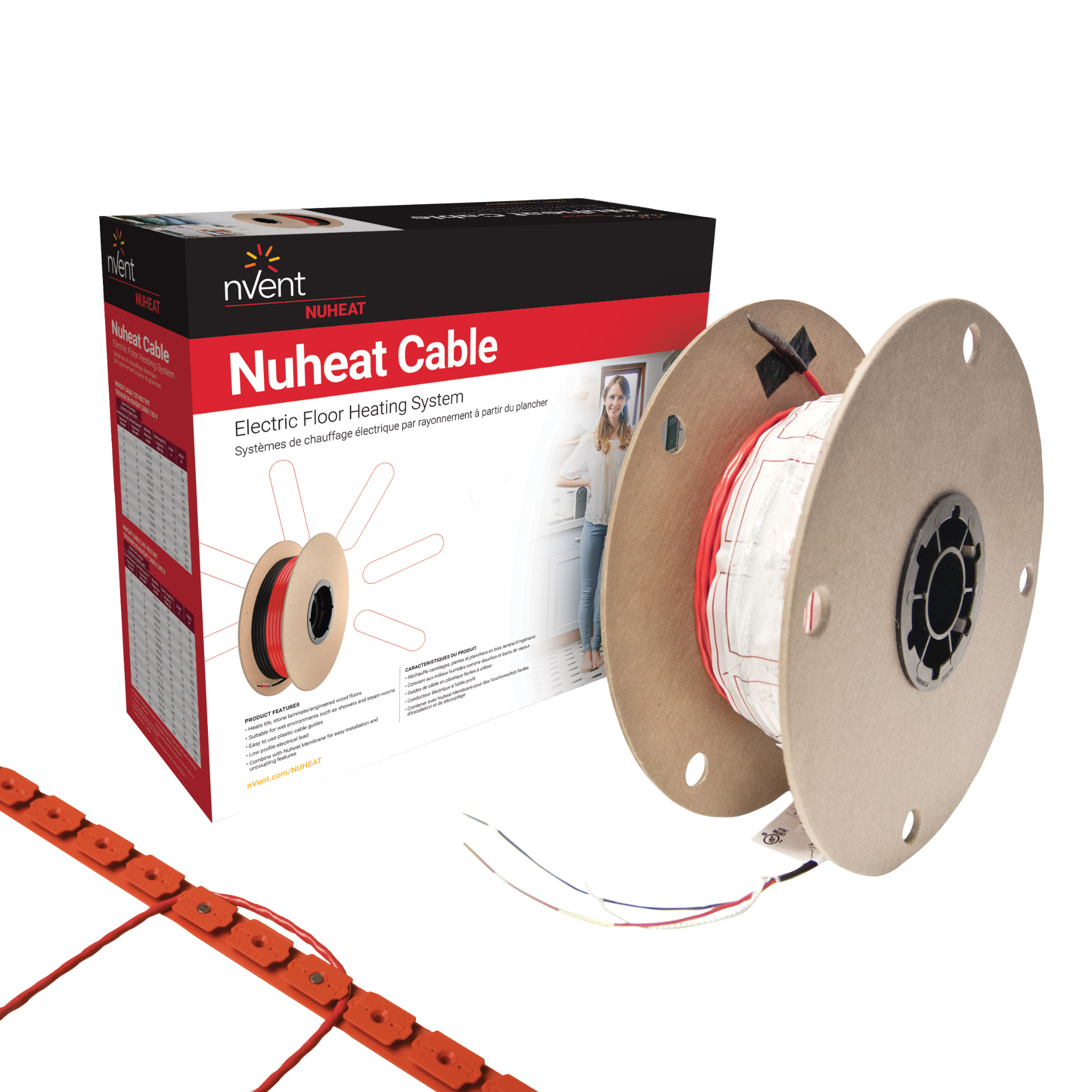

Nuheat Cable Floor Heating System
Fast Shipping
Easy Returns
Secure Checkout
At a Glance
Quick Decision Guide
Coverage
12 ft²
Voltage
120V
Power
146W
Current
1.22A
Cable Length
47 ft
Heat Output
12–15 W/ft²
Cold Lead
10 ft
Cable Guides
12
Why Choose This Product
Key Benefits
Customizable Layout
Free-form cable installation adapts to room dimensions
Adjustable Heat Output
Cable spacing provides 12–15 W/ft²
Multiple Flooring Types
Compatible with tile, stone, laminate, engineered wood and luxury vinyl
Wide Coverage Range
Cable options cover areas from 8 to 240 ft²
120V & 240V Options
Supports different electrical requirements and project sizes
Expandable Coverage
Multiple cable kits can be combined for larger areas
Product Information
Product Details
Specifications
Brand
Nuheat®
Model Number
N1C012
Product Type
Electric Floor Heating Cable
Coverage
12 ft²
Voltage
120V
Power
146W
Current
1.22A
Resistance
98 Ohms
Cable Length
47 ft
Power Output
12–15 W/ft²
Cable Guides
12
Minimum Bending Radius
0.5"
Cold Lead Length
10 ft
About This Product
Heat Cable for Custom Electric Floor Heating Layouts
Nuheat® Cable is a free-form heat cable system designed for electric floor heating installations where fixed-size mats may not fit the room layout. The cable is secured with patented plastic cable guides and can be spaced on site to match the shape and dimensions of the heated area, making it well suited for bathrooms, kitchens, and other spaces with irregular floor plans.
Radiant Heating for Tile, Stone and Resilient Flooring
The system provides radiant heating beneath tile, stone, laminate, engineered wood, and luxury vinyl flooring. By warming the finished floor surface from below, Nuheat Cable delivers evenly distributed electric floor heating across the installed area without requiring forced-air ductwork or bulky heating equipment.
Adjustable 12–15 W/ft² Heat Output
Cable spacing can be adjusted during installation to provide approximately 12–15 W/ft² based on the desired heating output and project requirements. This flexibility allows installers to tailor the radiant heating layout to the room instead of working around a fixed heating mat size.
120V and 240V Electric Floor Heating Options
Nuheat Cable is available in both 120V and 240V configurations with individual cable kits covering areas from 8 ft² to 240 ft². Multiple kits can be combined when larger heated areas are required, providing scalable electric floor heating for projects ranging from small bathrooms to larger living spaces.
Flexible Heating Cable Construction
The heating cable uses a two-wire, grounded, twisted-pair construction with a PVC outer jacket and a minimum bending radius of 0.5". Each cable includes a 10 ft cold lead for connection to the electrical system, while the supplied cable guides support controlled spacing and on-site adjustment during installation.
Common Questions
Frequently Asked Questions
What flooring can Nuheat Cable be installed under?
Nuheat Cable can be used with tile, stone, laminate, engineered wood, and luxury vinyl flooring.
How much heat does Nuheat Cable produce?
Cable spacing can be adjusted during installation to provide 12–15 W/ft² based on the desired heat output.
What is the difference between 120V and 240V Nuheat Cable?
Nuheat Cable is available in both 120V and 240V configurations. The correct voltage and cable size should be selected based on the electrical system and required heated area.
What size areas can Nuheat Cable cover?
Individual cable kits are available for heated areas ranging from 8 ft² to 240 ft². Multiple kits can be combined when additional coverage is required.
Can the cable layout be adjusted during installation?
Yes. Nuheat Cable is a free-form system that uses plastic cable guides, allowing the cable layout and spacing to be adjusted on site to suit the installation area.
How long is the cold lead on Nuheat Cable?
Nuheat Cable includes a 10 ft cold lead with two conductors and a ground braid inside a PVC outer jacket.
