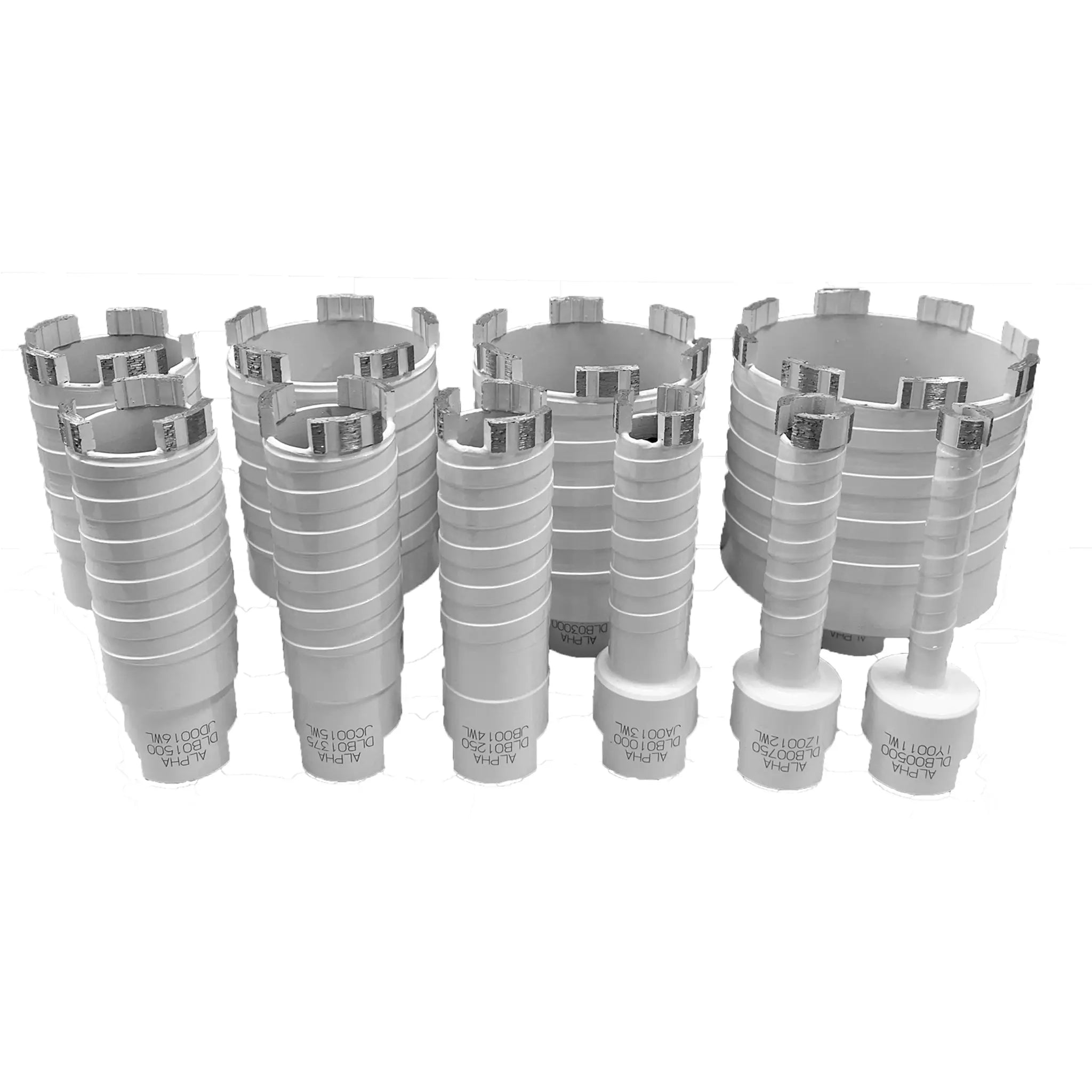

Alpha Laser Core Bits are diamond core bits designed for wet or dry drilling of porcelain, sintered slabs, granite, quartz, engineered stone, marble, and other commonly used construction materials. Developed for handheld core drilling with high-speed angle grinders, these core bits support fast material penetration and clean hole formation for installation work.
Each core bit is laser welded to improve segment retention and heat resistance during demanding drilling applications. The aggressive diamond segment design supports faucet-mounting holes in countertops and vanities, plumbing penetrations, electrical conduit openings, and clean rounded corners for square or rectangular sink cutouts.
Alpha Laser Core Bits feature a 5/8"-11 threaded connection that fits most popular angle grinders. Select sizes are rated for wet-only use, while others support wet or dry operation. These core bits can also be paired with a core bit extension for use with hammer drills or rotary hammer drilling systems when required.
Key Features
- Laser Welded Construction: Improves segment strength and heat resistance.
- Wet or Dry Drilling: Select models support wet-only or wet/dry operation.
- Multi-Material Capability: Drills porcelain, granite, quartz, engineered stone, marble, and sintered slabs.
- 5/8"-11 Threaded Connection: Fits most high-speed angle grinders.
- Aggressive Diamond Segments: Supports fast material penetration.
- Jobsite Applications: Used for faucet holes, plumbing, electrical, and sink cutouts.
Available Sizes
| Part No. | Diameter | Max RPM | Type | Thread |
|---|---|---|---|---|
| WLB00380 | 3/8" | 12,000 | Wet Only | 5/8"-11 |
| WLB00500 | 1/2" | 12,000 | Wet Only | 5/8"-11 |
| DLB00750 | 3/4" | 12,000 | Wet/Dry | 5/8"-11 |
| DLB01000 | 1" | 12,000 | Wet/Dry | 5/8"-11 |
| DLB01250 | 1-1/4" | 12,000 | Wet/Dry | 5/8"-11 |
| DLB01375 | 1-3/8" | 12,000 | Wet/Dry | 5/8"-11 |
| DLB01500 | 1-1/2" | 12,000 | Wet/Dry | 5/8"-11 |
| DLB02000 | 2" | 12,000 | Wet/Dry | 5/8"-11 |
| DLB02500 | 2-1/2" | 8,400 | Wet/Dry | 5/8"-11 |
| DLB03000 | 3" | 8,400 | Wet/Dry | 5/8"-11 |
| DLB04000 | 4" | 8,400 | Wet/Dry | 5/8"-11 |
These diamond core bits provide reliable drilling performance for fabrication shops and installation crews working with hard surface materials.
