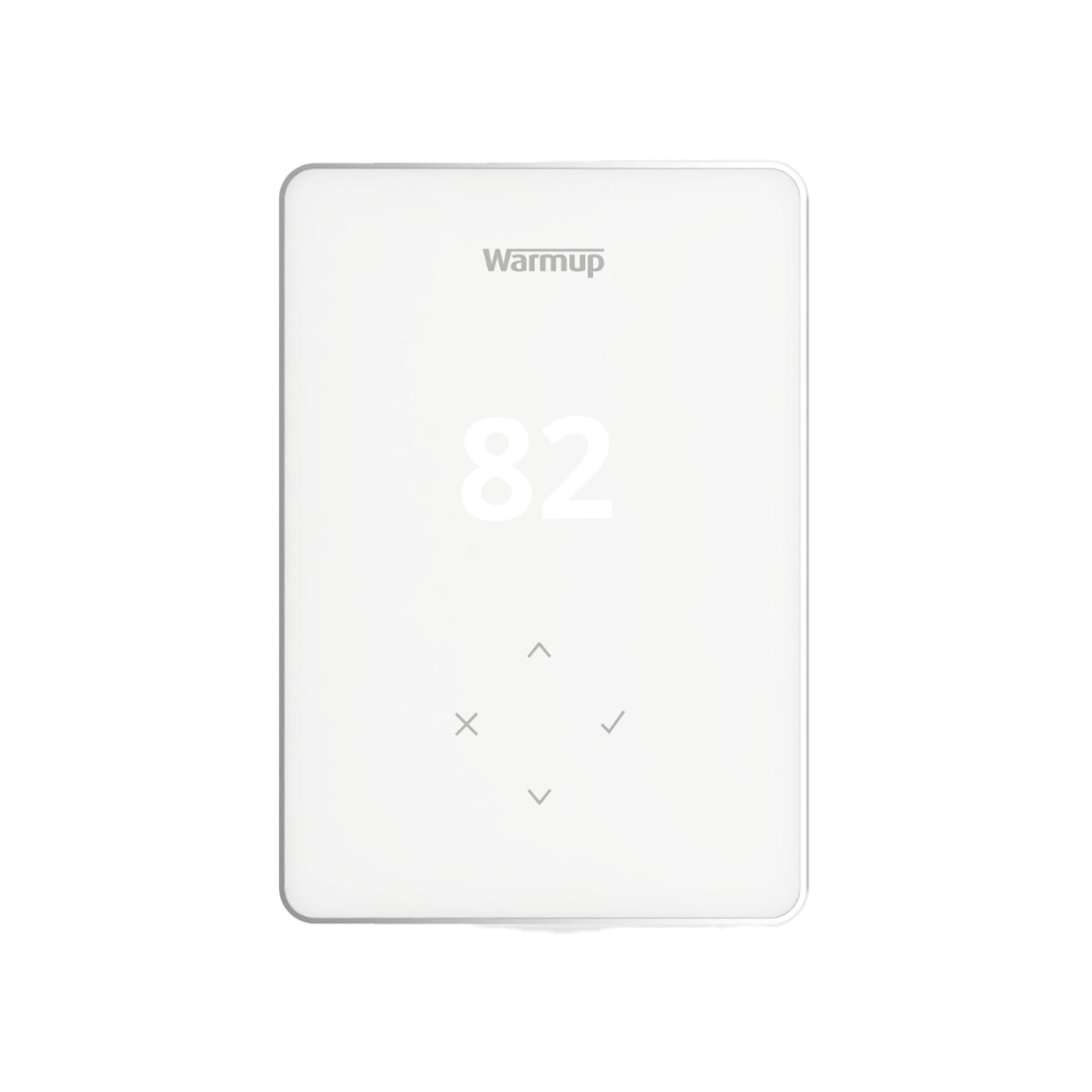

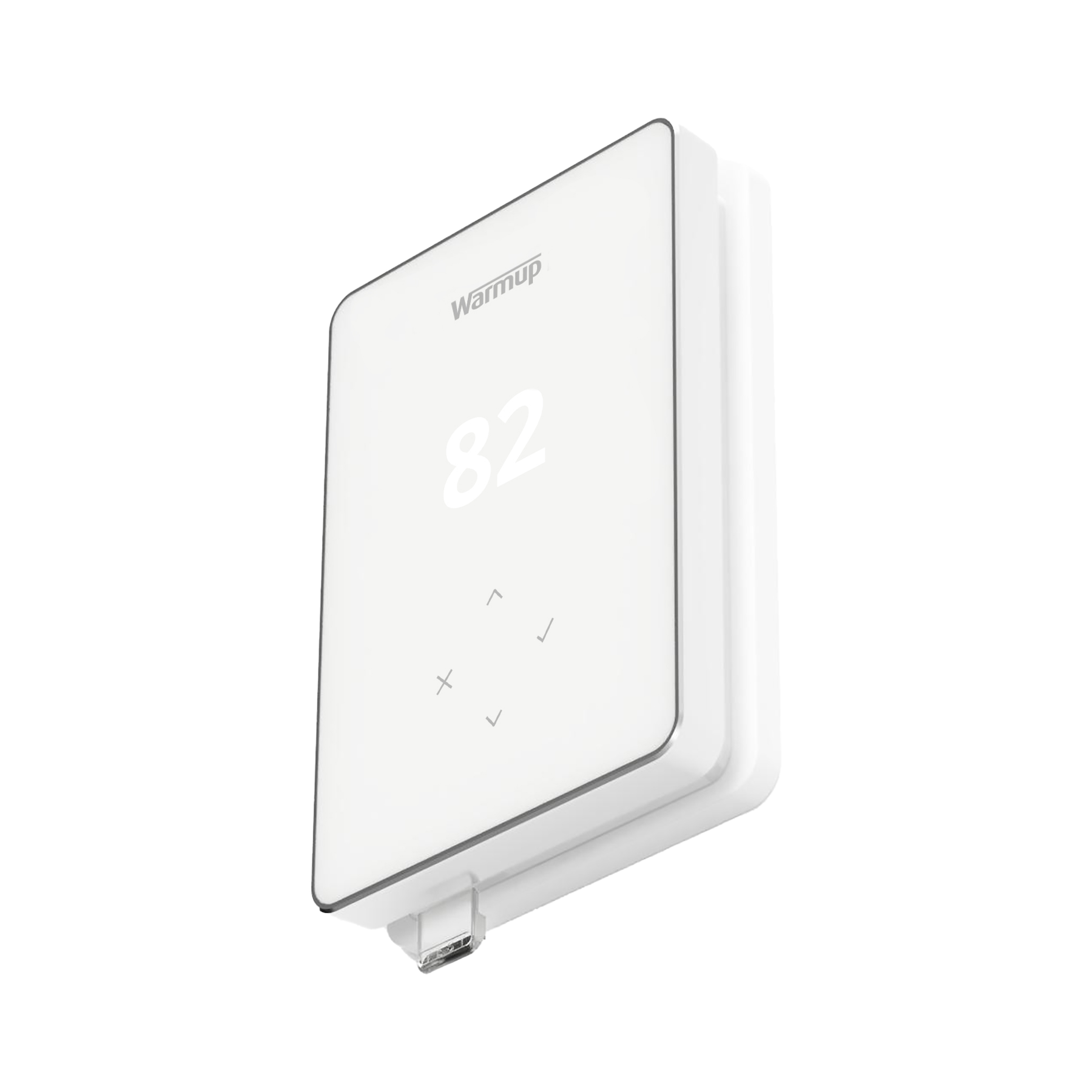

Warmup Terra WiFi Thermostat
The Warmup Terra WiFi Thermostat is a premium smart thermostat designed for use with electric floor heating and baseboard heating systems. With intelligent features like SmartGeo™, weather-based early start, and remote control via the MyHeating™ app, it maximizes both comfort and energy efficiency. The stylish design, advanced safety protections, and UL/CSA certifications make this thermostat ideal for modern installations that demand performance and reliability.
Key Features
- SmartGeo™ Technology: Learns your routine and adjusts heating based on location.
- WiFi App Control: Fully compatible with the MyHeating™ app for iOS and Android.
- Energy Monitoring: Track power usage and optimize energy savings.
- GFCI Safety: Integrated Class A GFCI with 5mA trip level for safety.
- Modern Aesthetics: Clean design with a translucent, low-profile finish.
Specifications
| Specification | Details |
|---|---|
| Model / SKU | RSW-04-CW-LC / TRA-04-WH-LC |
| Voltage | 110V - 240V AC ±15%, 50Hz/60Hz |
| Maximum Load | 15A resistive (1800W @ 120V, 3600W @ 240V) |
| Max. Ambient Temperature | 40°C / 104°F (T40) |
| Relative Humidity | 80% |
| Sensors | Floor and Air (NTC10K @ 25°C) |
| GFCI Protection | Class A, 5mA Trip Level |
| Rated Impulse Voltage | 4000V |
| Operating Frequency | 2401 - 2484 MHz |
| RF Power Transmitted | 20 dBm |
| Disconnection Means | 1B |
| Protection Class | Class II |
| IP Rating | IP30 |
| Pollution Degree | 2 |
| Compatibility | Electric Floor Heating and Baseboard Heating |
| Standards & Certifications | UL-60730-1, UL-60730-2-9, UL-943, CAN/CSA-E60730-1, CAN/CSA-E60730-2-9, CAN/CSA-C22.2 No. 144.1, FCC 47 CFR Part 15, ICES-003 |
Whether you're retrofitting or starting a new build, the Warmup Terra WiFi Thermostat delivers smart performance and efficient comfort control with the trusted safety and design of Warmup. Order now and modernize your heating system.
