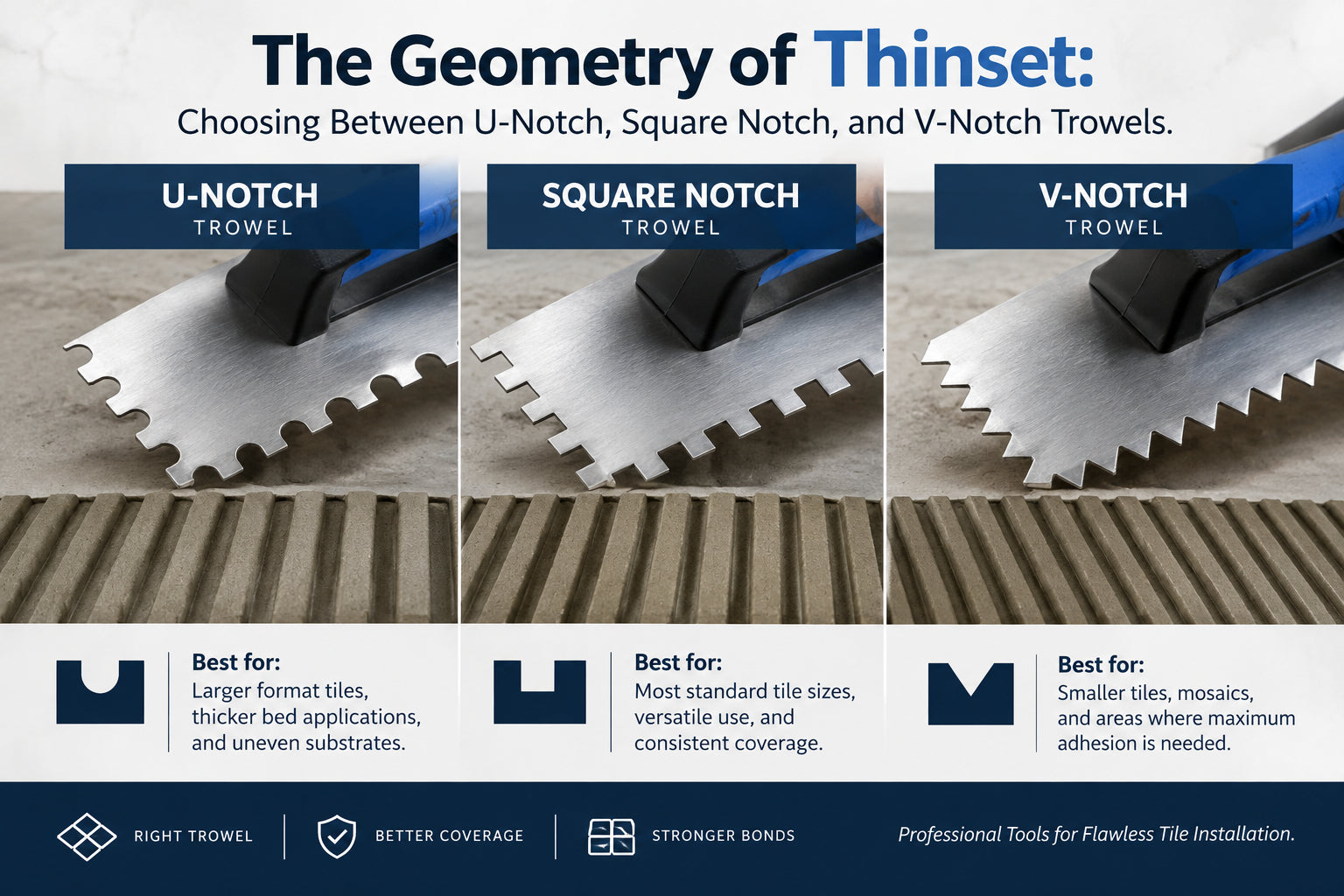

V-Notch vs. Square-Notch vs. U-Notch Trowels: What’s the Difference?

Choosing a notched trowel is an important part of setting tile because the notch shape and dimensions control how mortar is distributed across the substrate. V-notch, square-notch, and U-notch trowels create different mortar-ridge profiles, but no single notch shape is automatically best for every installation.

The goal is not simply to create a particular ridge shape. The trowel needs to deposit enough mortar so that proper coverage and support are achieved beneath the tile after the ridges are collapsed. Tile size and backing, substrate flatness, mortar selection, notch dimensions, and installation technique all influence the result.

Why Does Trowel Notch Shape Matter?

The notches along the edge of a trowel meter the mortar as the installer combs it across the substrate. Changing the shape, width, or depth of those notches changes the profile and amount of mortar left behind.

Once the tile is embedded, those mortar ridges need to collapse and spread beneath the tile. The appropriate trowel is therefore the one that helps achieve the required mortar coverage for the particular tile, substrate, mortar, and installation.

That is why choosing a trowel based only on whether it has V-shaped, square, or rounded notches can be misleading. Notch dimensions matter just as much as the basic shape.

V-Notch Trowels

A V-notch trowel has triangular notches that produce relatively narrow, pointed mortar ridges. V-notch trowels are commonly associated with applications requiring a smaller amount of setting material, including certain mosaics and smaller tiles.

However, the actual suitability of a V-notch depends on its dimensions and the installation. A small V-notch that provides sufficient coverage for a mosaic may not deposit enough mortar for a substantially larger tile.

When Is a V-Notch Trowel Used?

V-notch trowels can be useful where a comparatively small and controlled amount of mortar or adhesive is required. Smaller tile and mosaic installations are common examples, but the tile and setting-material manufacturer's recommendations should always take priority over a generalized tile-size rule.

Coverage should still be checked during installation. A V-notch should not be selected simply because the tile is being installed on a wall or because the material is lightweight.

Square-Notch Trowels

Square-notch trowels create rectangular mortar ridges and are widely used for ceramic, porcelain, stone, and large-format tile installations. They are available in many notch dimensions, allowing installers to change the amount of mortar deposited according to the demands of the installation.

Common square-notch dimensions include 1/4" x 1/4", 1/4" x 3/8", and 1/2" x 1/2", although many other configurations are available.

When Is a Square-Notch Trowel Used?

Square-notch trowels cover a broad range of tile installations. As tile size and installation demands increase, deeper notches are often used to provide the mortar necessary to achieve adequate coverage.

That does not mean that larger tile automatically requires the largest available trowel. Excess mortar can create its own installation problems, while too little mortar can result in inadequate transfer and support.

The proper notch should be selected according to the tile, mortar, substrate, manufacturer recommendations, and actual coverage achieved on the job.

U-Notch Trowels

U-notch trowels have rounded notches that create rounded mortar ridges rather than the rectangular ridges produced by a square-notch trowel.

The rounded profile changes how the mortar is deposited and how the ridges behave as the tile is embedded. As with square-notch trowels, U-notch trowels are available in different dimensions, so the amount of mortar being applied cannot be determined from the U-shaped profile alone.

When Is a U-Notch Trowel Used?

A U-notch can be used for tile installations where its particular ridge profile and mortar delivery help achieve the necessary transfer and coverage. Selection should be based on the entire trowel configuration rather than the assumption that rounded ridges inherently provide better adhesion.

The correct choice is ultimately demonstrated by the mortar coverage beneath the installed tile.

V-Notch vs. Square-Notch vs. U-Notch Trowels

These are general characteristics rather than universal prescriptions. Two trowels with the same notch shape but different notch dimensions can deposit substantially different amounts of mortar.

Does Trowel Notch Size Matter More Than Shape?

Notch size and shape work together. The width, depth, spacing, and profile of the notches determine how much mortar is deposited and the shape of the resulting ridges.

For example, a 1/4" square-notch trowel and a 1/2" square-notch trowel share the same general geometry but do not apply the same amount of mortar. Selecting the proper trowel therefore requires considering both the notch profile and its dimensions.

The objective remains adequate mortar coverage rather than matching a specific tile size to a notch from a universal chart.

How Much Mortar Coverage Does Tile Need?

Proper mortar coverage is one of the most important measures of whether the selected trowel and installation technique are working. Industry requirements generally call for at least 80% mortar contact in many interior dry applications and 95% in wet and exterior applications, with sufficient distribution to support the tile, including its edges and corners.

Requirements can vary with the tile material and installation, so applicable standards and manufacturer instructions should be followed.

Instead of assuming the selected trowel is producing adequate coverage, periodically lift a freshly installed tile and inspect the back. This shows whether the mortar is transferring and spreading sufficiently beneath the tile.

Proper Troweling Technique Matters

Even the correct trowel can produce poor coverage when it is used incorrectly. Begin by using the flat side of the trowel to key mortar into the prepared substrate. Then add mortar and comb it with the notched side.

Mortar should generally be combed into straight, parallel ridges rather than swirls or intersecting patterns. Embed the tile while the mortar is fresh and move it perpendicular to the direction of the ridges to help collapse them and release trapped air.

Periodically remove a tile and inspect the mortar transfer. If adequate coverage is not being achieved, the trowel size, mortar application, substrate preparation, back-buttering, or installation technique may need to be adjusted.

What About Slant-Notch and Euro-Notch Trowels?

V-notch, square-notch, and U-notch designs are not the only options. Slant-notch, Euro-notch, and other specialty trowel profiles are designed to alter the way mortar ridges are deposited and collapse beneath the tile.

These designs can be useful for applications where achieving high mortar coverage is challenging, including some large-format tile installations. As with traditional trowels, however, the final test is whether the selected tool and technique achieve the required coverage for the installation.

How to Choose the Right Tile Trowel

Consider the tile dimensions, tile backing, substrate flatness, setting material, installation environment, and recommendations from the tile and mortar manufacturers. Then select a notch configuration capable of applying enough mortar to achieve the required coverage.

Do not rely exclusively on a generic tile-size chart. Jobsite conditions vary, and checking actual mortar transfer beneath the tile provides much better information about whether the selected trowel is appropriate.
