wedi Tub & Shower Wall Kit
Fast Shipping
Easy Returns
Secure Checkout
At a Glance
Quick Decision Guide
Application
Tub & Shower Wall Surrounds
Panel Quantity
5 Panels
Panel Size
36" × 60"
Panel Thickness
1/2"
Panel Core
Waterproof Closed-Cell Foam
Tile Ready
Yes
Joint Sealant
5 Cartridges Included
Made In
USA
Why Choose This Product
Key Benefits
Complete Wall Kit
Includes panels, sealant, plumbing seals, fasteners and installation tool
Waterproof Panels
Closed-cell foam core provides integral waterproofing
Tile-Ready Surface
Cement-coated fiberglass mesh provides a bonding surface for thin-set mortar
Flexible Installation
Works with tubs, wedi systems, prefabricated shower bases and mortar beds
Plumbing Seals Included
Includes pipe and mixing valve seals for waterproof penetrations
Joint Waterproofing
SMP sealant waterproofs and reinforces seams, connections and fastener points
Product Information
Product Details
Specifications
Brand
wedi®
Part Number
US4000001
Product Type
Tub & Shower Wall Kit
Application
Waterproof Tileable Tub & Shower Wall Surrounds
Building Panel Quantity
5
Building Panel Size
36" × 60"
Building Panel Thickness
1/2"
Panel Core
Closed-Cell Extruded Polystyrene Foam
Panel Properties
Waterproof, Mold-Proof & Insulating
Panel Surface
Fiberglass Mesh Embedded in Cement Resin Coating
Joint Sealant Quantity
5 Cartridges
Joint Sealant Type
Silyl Modified Polymer (SMP)
Pipe Seal
1 wedi Subliner Dry Pipe Seal
Mixing Valve Seal
1 wedi Subliner Dry Mixing Valve Seal
Installation Tool
1 wedi Corner Putty Knife
Fasteners
1 wedi Fastener Kit
Compatible Installations
Tubs, wedi Shower Systems, Prefabricated Acrylic or Stone Shower Bases & Mortar Beds
Tile Ready
Yes
Country of Manufacture
USA
About This Product
Waterproof Tileable Tub and Shower Walls

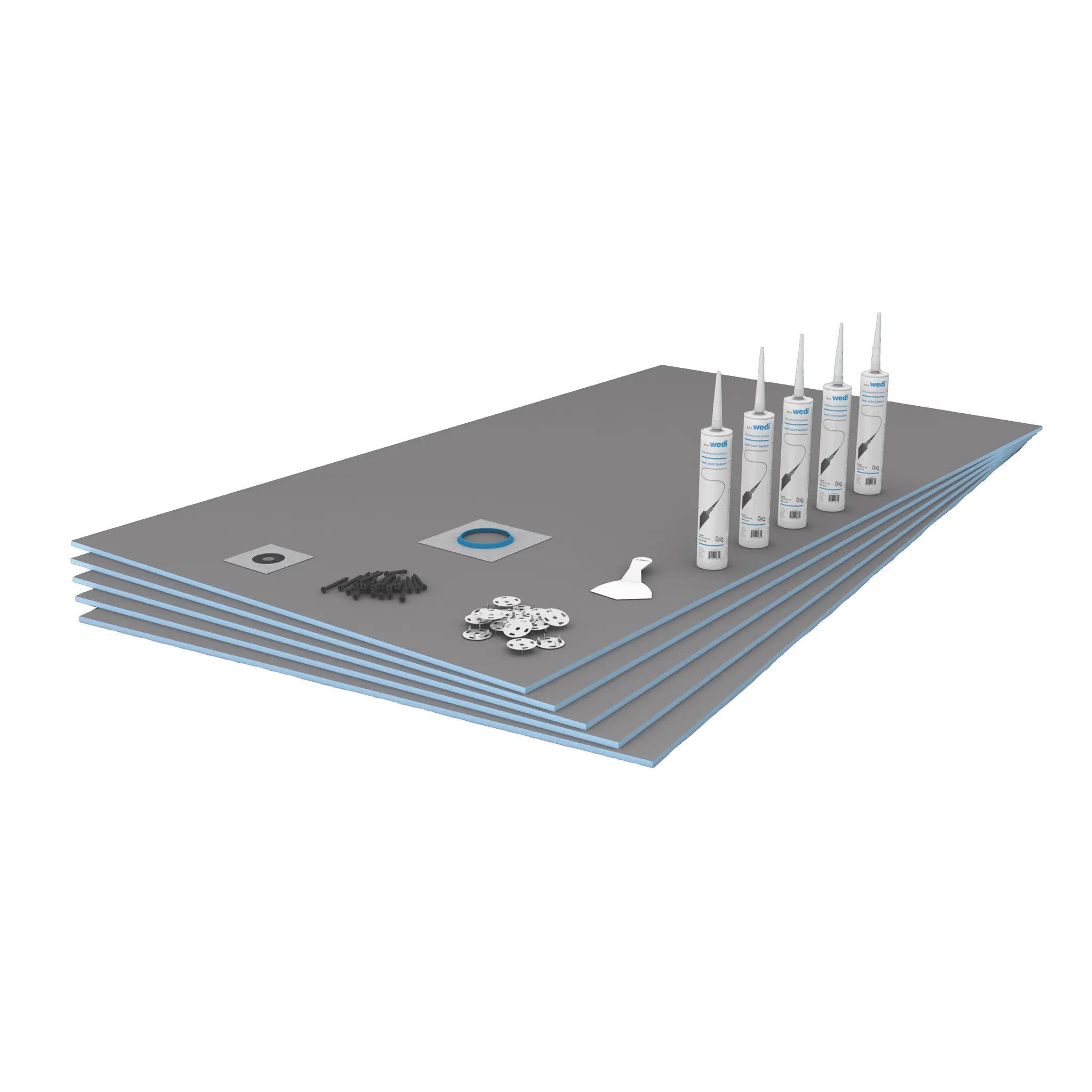

The wedi® Tub & Shower Wall Kit provides the primary components needed to build a waterproof, tile-ready wall surround for showers and tubs. The system combines waterproof wedi Building Panels with joint sealant, plumbing penetration seals, fasteners, and an installation tool to create a complete wall assembly ready for tile installation.
Waterproof Building Panels for Wet Areas
The kit includes five 36" × 60" × 1/2" wedi Building Panels for constructing the wall surround. Each panel has a closed-cell extruded polystyrene foam core that is waterproof, mold-proof, and insulating, making it suitable for continuously exposed wet-area applications such as tiled showers and tub surrounds.
Reinforced, Tile-Ready Panel Surface
Both sides of each Building Panel are covered with fiberglass mesh embedded in a cement resin coating. This reinforced surface provides the strength required to support tile while the textured waffle-pattern surface gives thin-set mortar a suitable surface for mechanical bonding. Once the waterproof connections are completed, tile can be installed directly over the panels.
Waterproof Seams, Fasteners and Connections
Five wedi Joint Sealant cartridges are included for waterproofing, bonding, and reinforcing panel joints, seams, connections, and fastener points. The single-component Silyl Modified Polymer (SMP) sealant provides strong initial adhesion while remaining permanently flexible after curing, allowing the individual system components to form a continuous waterproof wall assembly.
Pipe and Mixing Valve Penetration Seals
The included wedi Subliner Dry Pipe Seal and Mixing Valve Seal provide dedicated waterproofing around common plumbing penetrations in the shower or tub wall. These components integrate with the wall system to protect vulnerable openings where plumbing passes through the waterproof assembly.
Compatible with Tubs and Multiple Shower Base Systems
The wall kit can be used with wedi shower projects as well as prefabricated acrylic or stone shower bases, conventional tubs, and mortar bed installations. This allows the waterproof wedi wall system to be used independently of the shower floor or tub configuration instead of requiring a complete wedi shower base system.
Installation Components Included
In addition to the five Building Panels and five Joint Sealant cartridges, the kit includes a wedi Fastener Kit, Subliner Dry Pipe Seal, Subliner Dry Mixing Valve Seal, and Corner Putty Knife. The combined components provide the core materials needed to install, fasten, seal, and prepare the wall surround for tile.
Common Questions
Frequently Asked Questions
What is included in the wedi Tub & Shower Wall Kit?
The kit includes five 36" × 60" × 1/2" wedi Building Panels, five wedi Joint Sealant cartridges, one Subliner Dry Pipe Seal, one Subliner Dry Mixing Valve Seal, one corner putty knife, and one fastener kit.
Are the wedi Building Panels waterproof?
Yes. The panels have a waterproof closed-cell extruded polystyrene foam core designed for tiled wet-area applications.
Can this kit be used around a bathtub?
Yes. The kit is designed for waterproof, tileable wall surrounds in both tub and shower installations.
Can the wall kit be used with a prefabricated shower base?
Yes. It can be used with prefabricated acrylic or stone shower bases, wedi shower systems, tubs, and mortar bed installations.
What size Building Panels are included?
The kit includes five wedi Building Panels measuring 36" × 60" × 1/2" each.
Does the kit include materials for sealing plumbing penetrations?
Yes. A wedi Subliner Dry Pipe Seal and Subliner Dry Mixing Valve Seal are included for waterproofing the applicable plumbing penetrations.
