wedi S-DRY Shower Base Extension
Pre-Sloped Waterproof Extension for S-DRY Shower Bases
$95.84
Available to order
Special-order item. Ships directly from the manufacturer. Lead times may vary. Non-returnable.
- MPN:
- US3076003
- UPC:
- 810204530391
At a glance
Full specifications- Panel Size
- 24" × 48"
- Extension
- Adds 24" Along One 48" Side
- Starting Height
- 1-1/8"
- Ending Height
- 1-5/8"
Product Benefits
- Extends Shower Base Adds 24" of sloped surface along one 48" side
- Pre-Sloped Surface Continues the shower floor slope across the extension
- Waterproof Construction EPS foam core is covered with S-DRY Membrane
- System Integration Designed specifically for wedi S-DRY Shower Bases
Specifications
- Brand
- wedi®
- Part Number
- US3076003
- Product Type
- Shower Base Extension Panel
- Panel Size
- 24" × 48"
- Extension
- 24"
- Starting Height
- 1-1/8"
- Ending Height
- 1-5/8"
- Core Material
- Solid EPS Foam
- Waterproofing
- wedi S-DRY Membrane
- Compatible System
- wedi S-DRY Shower Bases
- Country of Origin
- USA
Product details
Sloped Extension for S-DRY Shower Bases

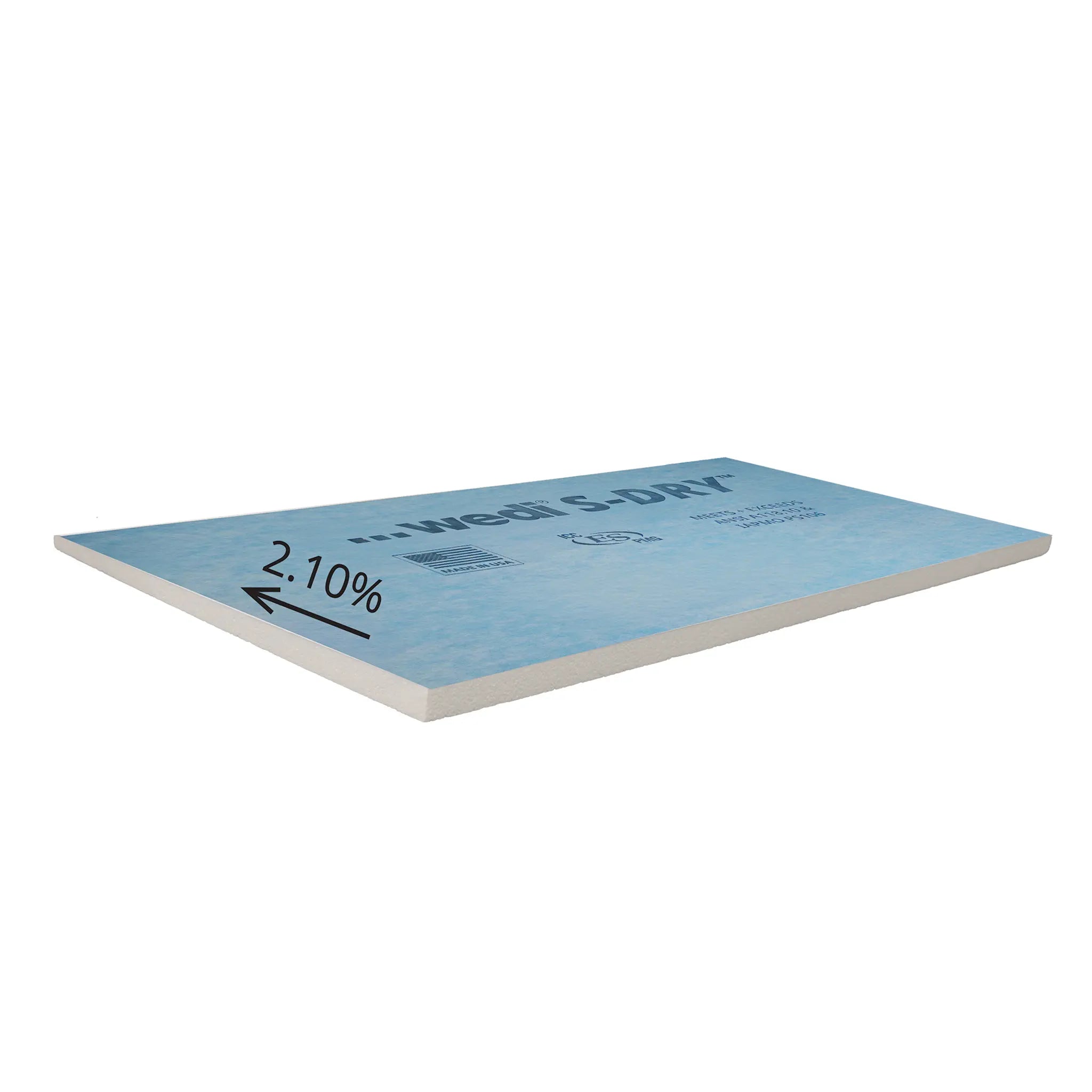

The wedi® S-DRY™ Extension is a waterproof, sloped extension panel designed for use with wedi S-DRY Shower Bases. The 24" × 48" panel adds 24" of sloped shower floor surface along one 48" side of the shower base, providing additional flexibility when building larger shower layouts.
Pre-Sloped Waterproof Construction
The extension is made with a solid EPS foam core covered with wedi S-DRY Membrane. Its pre-sloped surface begins at 1-1/8" high and increases to 1-5/8", continuing the slope needed for the extended shower floor while providing an integrated waterproof surface.
S-DRY Membrane Waterproofing
The factory-applied S-DRY Membrane provides strong waterproofing and vaporproofing performance. Connections and seams within the S-DRY assembly are bonded and waterproofed using wedi S-DRY SEAL, allowing the extension to become part of the continuous waterproof shower system.
Product questions
What does the wedi S-DRY Extension do?
The S-DRY Extension adds 24" of pre-sloped shower floor surface along one 48" side of a wedi S-DRY Shower Base.
What size is the S-DRY Extension?
The extension measures 24" × 48". Its sloped surface begins at a height of 1-1/8" and ends at 1-5/8".
Is the S-DRY Extension waterproof?
Yes. It is constructed with a solid EPS foam core covered with wedi S-DRY Membrane to provide a waterproof surface.
How are the extension connections waterproofed?
Connections and seams within the S-DRY assembly are bonded and waterproofed using wedi S-DRY SEAL.
What shower bases are compatible with the S-DRY Extension?
The extension is designed specifically for use with wedi S-DRY Shower Bases.
